Summary of Contents for VTech vt9011

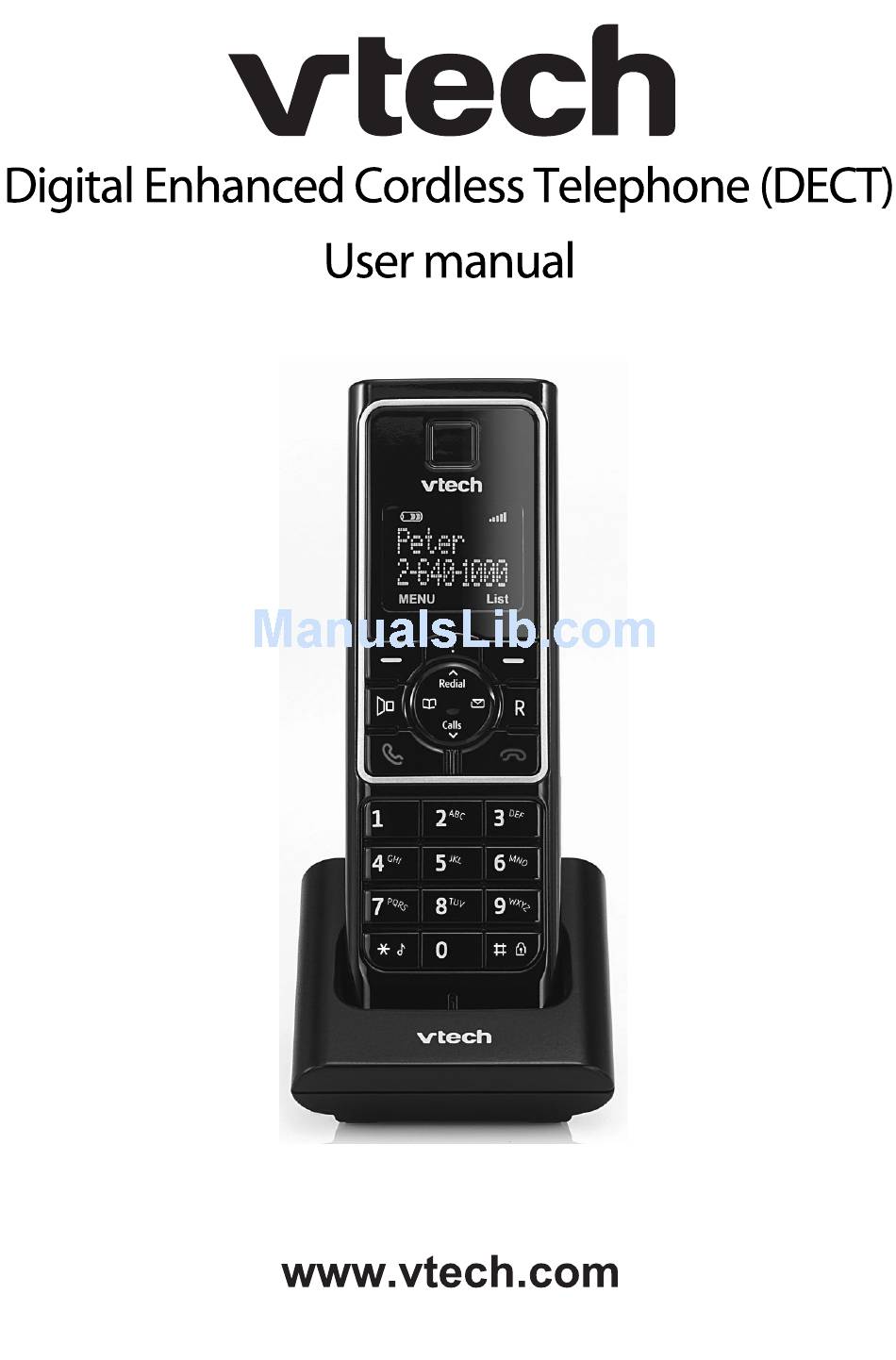

- Page 1 VT9012...
-
Page 2: Important Safety Instructions
Important safety instructions of this manual. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech product. - Page 3 Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3.
-
Page 4: Table Of Contents
Table of contents Getting started Location ......1 Setting up ......1 Set date and time manually. -
Page 5: Getting Started
Getting started Location WARNING Do not place your VT9012 in the Place your VT9012 within 2 metres of the mains power bathroom or other humid areas. socket and telephone socket so that the cables will reach. Handset range The VT9012 has a range of 300 Make sure it is at least 1 metre away from other electrical metres outdoors when there is a clear appliances to avoid interference. -
Page 6: Set Date And Time Manually
Getting started Set date and time manually Battery low warning If the icon flashes in the handset 1. Press and scroll and press Menu Settings display you will need to recharge the handset before you can use it again. You also hear a low battery warning 2. -
Page 7: Getting To Know Your Phone
Getting to know your phone Handset buttons Option button (right) Press to open the Menu. Press to open a list of important Press to select options phone number. displayed on screen. (UP) Redial Switch Call Waiting In standby, press to open and Press to toggle between the scroll through the Redial list. -
Page 8: Handset Display / Display Icons
Getting to know your phone Handset display Handset name/number Date Time Display icons On – alarm is set. Shows handset battery status. Flash – alarm time has been reached. Scrolls when the handset is charging. Off – alarm off. Empty when filled in black. The keypad is locked. -
Page 9: Charger
Getting to know your phone Charger Contact points... -
Page 10: Navigating The Menus
Getting to know your phone Navigating the menus Option buttons Press to select the option displayed Your VT9012 has an easy to use menu system. on the screen. Each menu has a list of options, which you can see on the Menu menu map on the following page. -
Page 11: Menu Map
Getting to know your phone Menu map Sound Settings Ringer H/set settings Tones Base settings Date/Time/Alarm The following menus can be accessed by pressing the relevant button: Names menu Directory empty Redial list Calls list empty Calls list ! menu Directory New entry displayed,... -
Page 12: Using Additional Handsets
VT9011/VT9010 base to extend your phone system without needing to install extension sockets for each new phone. Your VT9011/VT9010 handset can also be registered to up to four other bases. You can then select the base you would prefer to use. -
Page 13: Select Base
Using additional handsets At the base: If registration is not successful first time, please repeat the process again 1. Press and hold . Till the phone emit "Beep" sound. in case the base registration period ran out of time. The handset is automatically assigned the next available If there are already 5 handsets handset number. -
Page 14: Internal Calls
Using additional handsets 6. Display shows De-registered! 7. Press to return to the previous menu level. Back Internal calls Call another handset If you have more than one handset registered to the base, you can make internal calls between two handsets. 1. -
Page 15: 3-Way Conference Call
Using additional handsets 3-Way conference call If the other handset does not answer, press Single to return to your original You can hold a 3-way conference call between 2 internal caller. callers and 1 external caller 1. During your call, press 2. -
Page 16: Help
Help Phone does not work • Have you installed the batteries correctly? See page 2. • Check that the mains power is correctly connected. No dial tone • Is the telephone cord of the base plugged into the phone socket? •... - Page 17 • Check that the mains power is correctly connected. You hear the busy tone when you press • Make sure the handset is in range of the base. • Another handset registered to your VT9011/VT9010 base may be on the line.
- Page 18 Cannot register a handset to a base • You can register a total of 5 handsets to your VT9011/VT9010 base and you can register your VT9011/VT9010 handset to up to 4 bases. Check that you have not exceeded the limits.
- Page 19 Help Buzzing noise on my phone or on other electrical equipment nearby • Sometimes your VT9012 can interfere with other electrical equipment if it is placed too close. It is recommended that you place your VT9012 at least one metre away from electrical appliances or metal obstructions to avoid any risk of interference.
-
Page 20: General Information
• Use only the approved rechargeable batteries supplied. Spare rechargeable batteries are available Replacing the handset battery from the VTech Customer Service Hotline : After a time, you may find that the handset battery is (852)2776-3223 running out of charge more quickly. This is a standard •... -
Page 21: Cleaning
General information • It is recommended that you place your product at • There is a slight chance your phone could be least one metre away from such appliances to damaged by an electrical storm. We recommend that minimise any risk of interference. you unplug the power and telephone line cord during an electrical storm. -
Page 22: Technical Data
Technical Specifications Charger station dimensions: Standard: DECT Width / depth / height=68x72x51.2 mm Number of channels: Handset dimensions: Frequency: 1880MHz bis 1900MHz Width / depth / height=48x147x15 mm Range: Charger station weight: 43g (without adaptor) up to 300 meters outdoors, up to 50 metes indoors Weight of a hansdet: 110g (with battery) Charger station power supply:... - Page 23 Customer Service Centre Suite 1601, Lever Tech Centre, 69-71 King Yip Street, Kwun Tong, Kowloon, Hong Kong. Customer Service Hotline: (852) 2666 5558 Technical Inquiry Hotline: (852) 2667 7433...
