Unpacking

Thank you for buying the MSI
H170A PC MATE/ B150 PC MATE
motherboard.
®

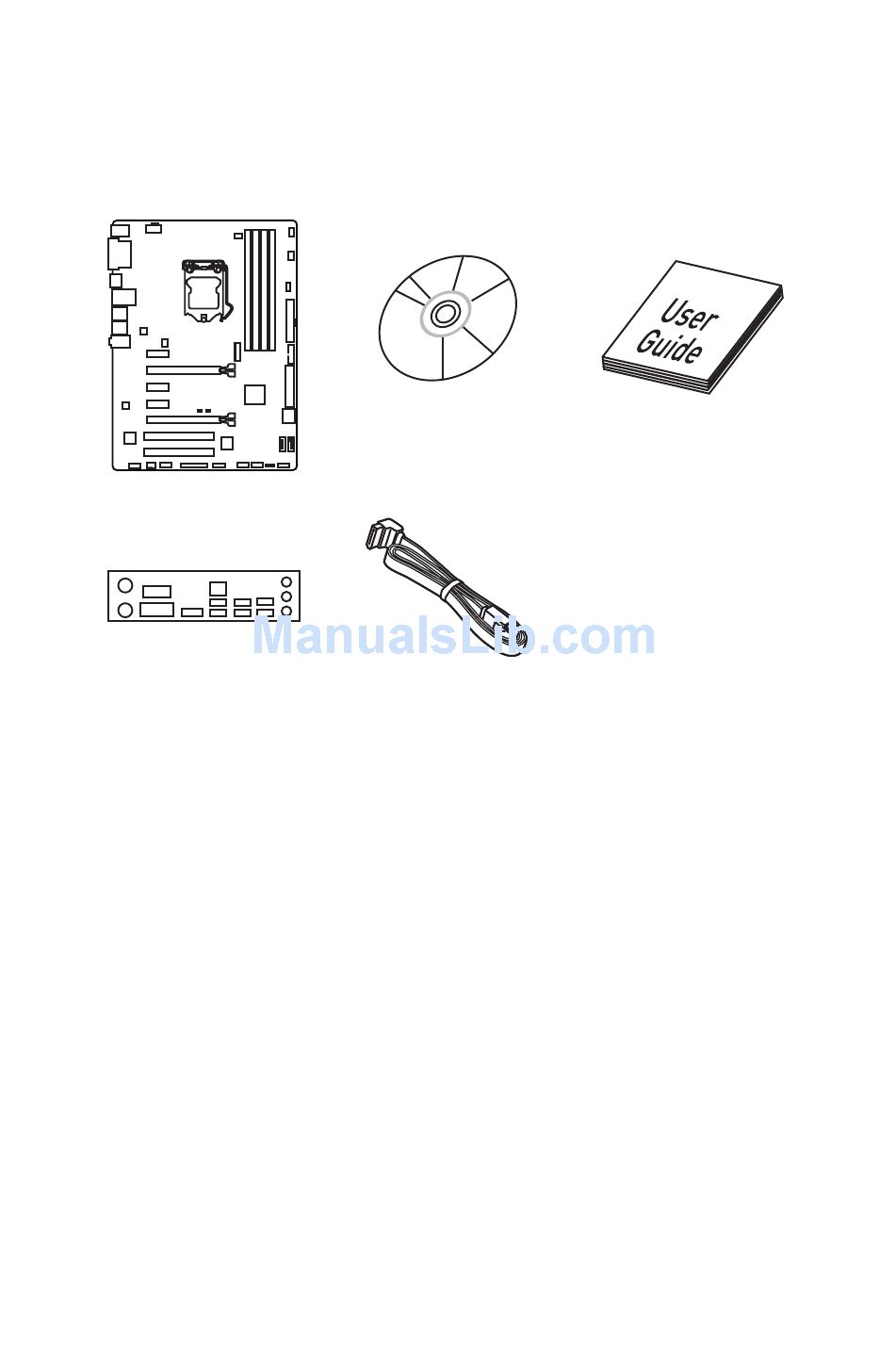

Check to make sure your motherboard box contains the following items. If something
is missing, contact your dealer as soon as possible.
Drivers & Utilities
Motherboard User
Disc
Guide
Motherboard
I/O Shield
SATA Cable x2
1
Unpacking

Advertisement

Table of Contents
loading

Related Manuals for MSI H170A PC MATE

Summary of Contents for MSI H170A PC MATE

  • Page 1: Unpacking

    Unpacking Thank you for buying the MSI H170A PC MATE/ B150 PC MATE motherboard. ® Check to make sure your motherboard box contains the following items. If something is missing, contact your dealer as soon as possible. Drivers & Utilities...

  • Page 2: Safety Information

    Safety Information ● The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. ● Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start.

  • Page 3: Quick Start

    Quick Start Preparing Tools and Components Intel LGA 1151 CPU ® CPU Fan Thermal Paste DDR4 Memory Power Supply Unit Chassis SATA Hard Disk Drive Graphics Card SATA DVD Drive A Package of Screws Phillips Screwdriver Quick Start...

  • Page 4: Installing A Processor

    Installing a Processor http://youtu.be/bf5La099urI Quick Start...

  • Page 5: Installing Ddr4 Memory

    Installing DDR4 memory http://youtu.be/T03aDrJPyQs Quick Start...

  • Page 6: Connecting The Front Panel Header

    Connecting the Front Panel Header http://youtu.be/DPELIdVNZUI HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch JFP1 Reserved No Pin JFP1 HDD LED - HDD LED HDD LED + POWER LED - POWER LED POWER LED + Quick Start...

  • Page 7: Installing The Motherboard

    Installing the Motherboard Quick Start...

  • Page 8: Installing Sata Drives

    Installing SATA Drives http://youtu.be/RZsMpqxythc Quick Start...

  • Page 9: Installing A Graphics Card

    Installing a Graphics Card http://youtu.be/mG0GZpr9w_A Quick Start...

  • Page 10: Connecting Peripheral Devices

    Connecting Peripheral Devices Quick Start...

  • Page 11: Connecting The Power Connectors

    Connecting the Power Connectors http://youtu.be/gkDYyR_83I4 JPWR1 JPWR2 Quick Start...

  • Page 12: Power On

    Power On Quick Start...

  • Page 13: Table Of Contents

    Contents Unpacking ........................1 Safety Information ....................2 Quick Start........................3 Preparing Tools and Components ............... 3 Installing a Processor ..................4 Installing DDR4 memory ..................5 Connecting the Front Panel Header ..............6 Installing the Motherboard ................... 7 Installing SATA Drives ..................8 Installing a Graphics Card ...................
  • Page 14 EZ Debug LED: Debug LED indicators ............35 BIOS Setup ......................36 Entering BIOS Setup ..................36 Resetting BIOS ....................37 Updating BIOS ....................37 System Status Menu ..................38 Advanced Menu ....................39 Overclocking Menu .................... 46 M-Flash Menu ....................52 Security Menu ....................

  • Page 15: Specifications

    Supports SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards (B150 PC MATE) Storage ▶ Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card** (H170A PC MATE) ● 1x SATAe port (PCIe 3.0 x2)*** ● Supports Intel Smart Response Technology for Intel ®...
  • Page 16 USB 3.1 Gen1 connector) ▶ 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors) (H170A PC MATE) ▶ 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB 2.0 connectors) (B150 PC MATE) ●...
  • Page 17 Continued from previous page ● 1x 24-pin ATX main power connector ● 1x 8-pin ATX 12V power connector ● 6x SATA 6Gb/s connectors ● 1x SATAe connector ● 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) ● 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) ●...
  • Page 18 ▶ USB 3.1 Gen2 (10 Gb/s) Type-A Ready ● SATA Express Support ● Turbo M.2 Ready (H170A PC MATE) ● NVMe / AHCI Driver Support (H170A PC MATE) ● U.2 Support (Optional) (H170A PC MATE) ● EZ Debug LED Specifications...

  • Page 19: Block Diagram

    6 x USB 3.1 Gen1 (5 Gbps) PCI Express Bus ASMEDIA ASM1142 2 x USB 3.1 Gen2 (10 Gbps) 4 x USB 2.0 (H170A PC MATE) (H170A PC MATE) 6 x USB 2.0 LPC Bus (B150 PC MATE) NV6793 Realtek Super I/O...

  • Page 20: Rear I/O Panel

    Line-in PS/2 Mouse VGA Port Line-out Mic-in PS/2 Keyboard USB 3.1 Gen2 USB 3.1 Gen1 DVI-D Port (blue, H170A PC MATE) USB 2.0 (black, B150 PC MATE) LAN Port LED Status Table Link/ Activity LED Speed LED Status Description Status...
  • Page 21 ● Device Selection - allows you to select a audio output source to change the related options. The check sign indicates the devices as default. ● Application Enhancement - the array of options will provide you a complete guidance of anticipated sound effect for both output and input device. ●...

  • Page 22: Overview Of Components

    Overview of Components DIMM4 CPUFAN1 SYSFAN1 DIMM3 JPWR2 CPU Socket DIMM2 DIMM1 CPUFAN2 SYSFAN3 EZ Debug LED JPWR1 PCI_E1 JUSB3 M2_1 PCI_E2 PCI_E3 SE1_21 PCI_E4 JCI1 JBAT1 PCI_E5 SATA3_4 SATA5 PCI1 SATA6 PCI2 JFP1 JAUD1 JFP2 SYSFAN2 JUSB1 JCOM1 JUSB2 JTPM1 JLTP1 Overview of Components...
  • Page 23 Component Contents Port Name Port Type Page CPUFAN1~2,SYSFAN1~3 Fan Connectors CPU Socket LGA1151 CPU Socket DIMM1~4 DIMM Slots EZ Debug LED Debug LED indicators JAUD1 Front Audio Connector JBAT1 Clear CMOS (Reset BIOS) Jumper JCI1 Chassis Intrusion Connector JCOM1 Serial Port Connector JFP1, JFP2 Front Panel Connectors JLPT1...

  • Page 24: Cpu Socket

    Always unplug the power cord from the power outlet before installing or removing ● the CPU. Please retain the CPU protective cap after installing the processor. MSI will deal ● with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket.

  • Page 25: Dimm Slots

    DIMM Slots DIMM1 DIMM3 Channel A Channel B DIMM2 DIMM4 Memory module installation recommendation DIMM4 DIMM4 DIMM3 DIMM2 DIMM2 DIMM2 DIMM1 Important ● Always insert memory modules in the DIMM2 slot first. ● Due to chipset resource usage, the available capacity of memory will be a little less than the amount of installed.

  • Page 26: Pci_E1~5, Pci1~2: Pcie/ Pci Expansion Slots

    PCI_E1~5, PCI1~2: PCIe/ PCI Expansion Slots PCI_E1: PCIe 3.0 x1 slot PCI_E2: PCIe 3.0 x16 slot PCI_E3: PCIe 3.0 x1 slot PCI_E4: PCIe 3.0 x1 slot PCI_E5: PCIe 3.0 x4 slot PCI1: PCI slot PCI2: PCI slot PCIe slots Bandwidth table Slot Bandwidth PCI_E1...

  • Page 27: Sata1~6: Sata 6Gb/S Connectors

    SATA1~6: SATA 6Gb/s Connectors These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. SATA1 SATA5 SATA2 SATA4 SATA3 SATA6 Important ● SATA1~2 ports will be unavailable when installing the M.2 SATA interface module in M.2 slot. ●...

  • Page 28: M2_1: M.2 Slot

    M2_1: M.2 Slot Important Intel RST only supports PCIe M.2 SSD with UEFI option ® ROM, does not support Legacy option ROM. Video Demonstration Watch the video to learn how to Install M.2 module. http://youtu.be/JCTFABytrYA Installing M.2 module Remove the screw from the base screw.

  • Page 29: Jfp1, Jfp2: Front Panel Connectors

    M.2/ SATA & SATAe combination table Slot Available SATA/ SATA Express connectors M2_1 Empty M.2 SATA M.2 PCIe SATA Express ✓ ✓ ✓ SATA1 ✓ ─ ✓ SATA2 ✓ ─ ✓ SATA3 ✓ ✓ ─ SATA4 ✓ ✓ ─ SATA5 ✓...

  • Page 30: Jpwr1~2: Power Connectors

    JPWR1~2: Power Connectors These connectors allow you to connect an ATX power supply. JPWR2 Ground +12V Ground +12V Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground JPWR1 Ground Ground PWR OK 5VSB +12V +12V +3.3V Ground Important...

  • Page 31: Jusb3: Usb 3.1 Gen1 Connector

    JUSB3: USB 3.1 Gen1 Connector This connector allows you to connect USB 3.1 Gen1 ports on the front panel. Power USB2.0+ USB3_RX_DN USB2.0- USB3_RX_DP Ground Ground USB3_TX_C_DP USB3_TX_C_DN USB3_TX_C_DN USB3_TX_C_DP Ground Ground USB3_RX_DP USB2.0- USB3_RX_DN USB2.0+ Power Ground No Pin Important Note that the Power and Ground pins must be connected correctly to avoid possible damage.

  • Page 32: Jaud1: Front Audio Connector

    JAUD1: Front Audio Connector This connector allows you to connect audio jacks on the front panel. MIC L Ground MIC R Head Phone R MIC Detection SENSE_SEND No Pin Head Phone L Head Phone Detection JTPM1: TPM Module Connector This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages.

  • Page 33: Cpufan1~2,Sysfan1~3: Fan Connectors

    CPUFAN1~2,SYSFAN1~3: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode and Voltage Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. Voltage Mode fan connectors control fan speed by changing voltage.

  • Page 34: Jlpt1: Parallel Port Connector

    JLPT1: Parallel Port Connector This connector allows you to connect the optional parallel port with bracket. RSTB# AFD# PRND0 ERR# PRND1 PINIT# PRND2 LPT_SLIN# PRND3 Ground PRND4 Ground PRND5 Ground PRND6 Ground PRND7 Ground ACK# Ground BUSY Ground Ground SLCT No Pin JBAT1: Clear CMOS (Reset BIOS) Jumper There is CMOS memory onboard that is external powered from a battery located on...

  • Page 35: Jci1: Chassis Intrusion Connector

    JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis intrusion event (default) Using chassis intrusion detector Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. Close the chassis cover. Go to BIOS >...

  • Page 36: Bios Setup

    Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process. Use MSI FAST BOOT application. Click on GO2BIOS button and choose OK. The ●...

  • Page 37: Resetting Bios

    Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: Insert the USB flash drive that contains the update file into the computer.

  • Page 38: System Status Menu

    System Status Menu After entering BIOS, the following screen is displayed. The System Status Menu allows you to configure basic system settings, such as time, date etc. ▶ System Language [English] Allows you to select the language of BIOS setup. ▶...

  • Page 39: Advanced Menu

    Advanced Menu The Advanced Menu allows you to set up the items of special enhanced features. ▶ PCI Subsystem Settings Sets PCI, PCI express interface protocol and latency timer. Press <Enter> to enter the sub-menu. ▶ PEG X - Max Link Speed [Auto] Sets PCI Express protocol of PCIe x16 slots for matching different installed devices.
  • Page 40 Onboard LAN Controller [Enabled] ▶ Enables or disables the onboard LAN controller. ▶ LAN Option ROM [Disabled] Enables or disables the legacy network Boot Option ROM for detailed settings. This item will appear when Onboard LAN Controller is enabled. [Enabled] Enables the onboard LAN Boot ROM.
  • Page 41 Initiate Graphic Adapter [PEG] ▶ Selects a graphics device as the primary boot device. [IGD] Integrated Graphics Display. [PEG] PCI-Express Graphics Device. ▶ Integrated Graphics Share Memory [64M] Selects a fixed amount of system memory allocated to the onboard graphics. This item will appear when IGD Multi-Monitor is enabled.
  • Page 42 Parallel (LPT) Port Configuration ▶ Sets detailed configuration of parallel port (LPT). Press <Enter> to enter the sub- menu. Parallel (LPT) Port [Enabled] ▶ Enables or disables parallel(LPT) port. ▶ Parallel (LPT) Port Settings [Auto] Sets parallel port (LPT). If set to Auto, BIOS will optimize the IRQ automatically or you can set it manually.
  • Page 43 Disables this function. ▶ MSI Fast Boot [Disabled] MSI Fast Boot is the fastest way to boot the system. It will disable more devices to speed up system boot time which is faster than the boot time of Fast Boot. [Enabled] Enables the MSI Fast Boot function to speed up booting time.
  • Page 44 Fast Boot [Disabled/ windows7, Enabled/ windows 8.1/ 10] ▶ Enables or disables the fast boot feature for Windows 8.1/ 10. This item will only be available when MSI Fast Boot is disabled. [Enabled] Enables the Fast Boot configuration to accelerate system boot time.
  • Page 45 Date (of month) Alarm/ Time (hh:mm:ss) Alarm ▶ Sets RTC alarm date/ Time. If Resume By RTC Alarm is set to [Enabled], the system will automatically resume (boot up) on a specified date/hour/minute/second in these fields (using the <+> and <-> to select the date & time settings). ▶...

  • Page 46: Overclocking Menu

    Overclocking Menu The Overclocking Menu allows you to adjust the frequency and voltage. Increasing the frequency may get better performance. Important ● Overclocking your PC manually is only recommended for advanced users. Overclocking is not guaranteed, and if done improperly, it could void your warranty ●...
  • Page 47 Adjusted CPU Frequency ▶ Shows the adjusted CPU frequency. Read-only. ▶ CPU Ratio Mode [Dynamic Mode]* Selects the CPU Ratio operating mode. This item will appear when you set the CPU ratio manually. [Fixed Mode] Fixes the CPU ratio. [Dynamic Mode] CPU ratio will be changed dynamically according to the CPU loading.
  • Page 48 DRAM Voltages control [Auto] ▶ These options allows you to set the voltages related to memory. If set to Auto, BIOS will set these voltages automatically or you can set it manually. PCH Voltages control [Auto] (optional) ▶ These options allows you to set the voltages related to PCH. If set to Auto, BIOS will set these voltages automatically or you can set it manually.
  • Page 49 Limit CPUID Maximum [Disabled] ▶ Enables or disables the extended CPUID value. [Enabled] BIOS limits the maximum CPUID input value to circumvent boot problems with older operating system that do not support the processor with extended CPUID value. [Disabled] Use the actual maximum CPUID input value. ▶...
  • Page 50 Intel C-State [Auto] ▶ Enables or disables the Intel C-state. C-state is a processor power management technology defined by ACPI. [Auto] This setting will be configured automatically by BIOS. [Enabled] Detects the idle state of system and reduce CPU power consumption accordingly.
  • Page 51 CPU Current Limit (A) [Auto] ▶ Sets maximum current limit of CPU package in Turbo Boost mode. When the current is over the specified value, the CPU will automatically reduce the core frequency for reducing the current. ▶ FCLK Frequency [Auto] Sets FCLK frequency.

  • Page 52: M-Flash Menu

    M-Flash Menu The M-Flash Menu allows you to update BIOS with a USB flash disk. ▶ Select one file to update BIOS and ME Selects a BIOS file, includes the ME management settings, in the USB flash drive to update the BIOS and ME. The system will reboot after updating. BIOS Setup...

  • Page 53: Security Menu

    Security Menu The Security Menu allows you to set supervisor and user passwords. ▶ Administrator Password Sets administrator password for system security. User has full rights to change the BIOS items with administrator password. After setting the administrator password, the state of this item will show “Installed”.
  • Page 54 Trusted Computing ▶ Sets TPM (Trusted Platform Module) function. ▶ Security Device Support [Enabled] Enables or disables the TPM function to build the endorsement key for accessing the system. ▶ TPM Device Selection [PTT] Selects TPM device: PTT or dTPM. [PTT] Select it for Intel Platform Trust technology [dTPM]...

  • Page 55: Boot Menu

    Boot Menu The Boot Menu allows you to specify the priority of boot devices. ▶ Full Screen Logo Display [Enabled] Enables or disables to show the full screen logo while system POST. [Enabled] Shows the logo in full screen. [Disabled] Shows the POST messages.

  • Page 56: Save & Exit Menu

    Save & Exit Menu This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes. ▶ Discard Changes and Exit Exit BIOS setup without saving any change. ▶...

  • Page 57: Software Description

    ® Installing Drivers Start up your computer in Windows 7/ 8.1/ 10. ® Insert MSI Driver Disc into your optical drive. ® The installer will automatically appear and it will find and list all necessary drivers. Click Install button. The software installation will then be in progress, after it has finished it will prompt you to restart.

  • Page 58: Command Center

    COMMAND CENTER COMMAND CENTER is an user-friendly software and exclusively developed by MSI, helping users to adjust system settings and monitor status under OS. With the help of COMMAND CENTER, making it possible to achieve easier and efficient monitoring process and adjustments than that under BIOS. In addition, the COMMAND CENTER can be a server for mobile remote control application.
  • Page 59 CPU Fan CPU Fan control panel provides Smart mode and Manual Mode. You can switch the control mode by clicking the Smart Mode and Manual Mode buttons on the top of the CPU Fan control panel. ● Manual Mode - allows you to manually control the CPU fan speed by percentage.
  • Page 60 Option Buttons - Advanced When click the Advanced button, The Voltage, Fan and DRAM icons will appear. ● Voltage - allows you to adjust advanced voltage values of CPU and chipset. ● Fan - allows you to control the system fans speed. ●...

  • Page 61: Gadget Mode

    Find the IP address on the SoftAP Management Setting area, and enter the IP address on your MSI COMMAND CENTER APP to link your system. ® Press Refresh on the MSI COMMAND CENTER APP to verify that monitoring ® and OC functions are working properly.

  • Page 62: Live Update 6

    LIVE UPDATE 6 LIVE UPDATE 6 is an application for the MSI system to scan and download the latest ® drivers, BIOS and utilities. With LIVE UPDATE 6, you don’t need to search the drivers on websites, and don’t need to know the models of motherboard and graphics cards.

  • Page 63: Total Installer

    Select the Live Update tab. Choose Automatic scan, system will automatically scan all the items and search for the latest update files. Or you can choose Manual scan and select the items you wish to scan. Click the Scan button at the bottom. It may take several moments to complete the process.

  • Page 64: M-Cloud

    M-CLOUD M-CLOUD is an application of MSI network sharing. It allows you to turn your computer into Wi-Fi AP. It can also transfer files between your MSI computers. Soft AP ON/OFF History Server Information Users & Permissions Server Local Directory...
  • Page 65 Setting up Soft AP (optional) The Soft AP function is only available for the motherboard with the built-in WiFi module. You can share your network connection to your smartphones, tablets and laptops with the Soft AP function. Important ● You must have an active network connection and an installed Wi-Fi moudle to enable Soft AP.
  • Page 66 Managing User Accounts This section describes how to create/ remove a user account and configure individual access permissions. Click the Users & Permissions button and the Users & Permissions Management window will pop up. Click Add Account button create a new user account. Fill in user’s ID, password and Confirm Password fields.

  • Page 67: Ramdisk

    RAMDISK RAMDISK creates a virtual RAM drive using the available memory in your computer, the performance of the RAMDISK is faster than an SSD and hard drive. RAMDISK allows you to store any temporary information on it. Furthermore, using the RAMDISK will extend your SSD’s life by sparing it from excessive reading and writing.

  • Page 68: Network Genie

    Exit - exits NETWORK GENIE. ● In case no icon is shown on the system tray, it is possible to activate NETWORK GENIE manually by clicking Start > Programs > MSI > NETWORK GENIE > NETWORK GENIE. NETWORK GENIE Control Panel ●...
  • Page 69 Configuring Application’s Network Priority Go to Application tab. Click L to assign the low network priority to the application, and H to hight. You can also click the Lock icon to block an application network connection. Click the Save button to store your settings. Configuring Network Speed There are two parts in the Advanced tab, one is Internet Speed, and another is Delay/Sensitivity Settings.

  • Page 70: Intel ® Extreme Tuning Utility

    Intel Extreme Tuning Utility ® Intel Extreme Tuning Utility (Intel XTU) is a simple overclocking software for you to ® tune, test and monitor your system. Tuning Controls Views Settings Help System Navigation Table System System Monitors Graphs ● Views Settings Help ▶...

  • Page 71: Raid Configuration (Optional)

    RAID Configuration (optional) Below are the different types of a RAID. RAID 0 breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance. RAID 1 provides data redundancy by mirroring data between the hard drives and provides enhanced read performance.
  • Page 72 Creating RAID Volume Select option Create RAID Volume and press Enter key. The following screen appears. CREATE VOLUME MENU Name : Volume0 RAID Level : RAID1(Mirror) Disks : Select Disks Strip Size : N / A Capacity : XXX.X GB Sync : N / A Create Volume...

  • Page 73: Delete Raid Volume

    Delete RAID Volume Here you can delete the RAID volume, but please be noted that all data on RAID drives will be lost. Important If your system currently boots to RAID and you delete the RAID volume in the IRST Option ROM, your system will become unbootable.

  • Page 74: Degraded Raid Array

    Important ● You will lose all data on the RAID drives and any internal RAID structures when you perform this operation. Possible reasons to Reset Disks to Non-RAID could include issues such as ● incompatible RAID configurations or a failed volume or failed disk. Recovery Volume Options Select option Recovery Volume Options from the main menu screen and press Enter to change recovery volume mode.

  • Page 75: Failed Hard Drive Member

    Reboot to Windows ; the rebuild will occur automatically. ® Failed Hard Drive Member Power off. Replace the failed hard drive with a new one that is of equal or greater capacity. Reboot the system to IRST Option ROM by press Ctrl + I keys during the POST. Select the port of the destination disk for rebuilding, and then press Enter.

  • Page 76: Troubleshooting

    Troubleshooting Lost BIOS password Before sending the motherboard for RMA repair, try to go over troubleshooting ● Clear the CMOS, but that will cause guide first to see if your got similar you to lose all customized settings in symptoms as mentioned below. the BIOS.

  • Page 77: Regulatory Notices

    EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the This device complies with part 15 of the FCC Rules. Council), MSI provides the information of chemical Operation is subject to the following two conditions: substances in products at: (1) This device may not cause harmful interference, http://www.msi.com/html/popup/csr/evmtprtt_pcm.html...
  • Page 78 MSI will comply with the product take entregar a una empresa autorizada para la recogida de back requirements at the end of life of MSI-branded estos residuos.
  • Page 79 MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita.

  • Page 80: Technical Support

    Alternatively, please try the following help resources for further guidance. ● Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com ● Register your product at: http://register.msi.com...
