DICOM Measurement

1. To show the CALIBRATION menu, select the CALIBRATION in the advanced menu (page 20).
2. Select DICOM MEASURE in the Mode selection (Figure 17).
3. Select the Color setting in COLOR*
*2 MD213MG does not have COLOR selection.
4. Press SELECT to start the DICOM MEASUREMENT. This may take several minutes depending on user setting.
5. After the DICOM MEASURED RESULT message appears (Figure 18), press SELECT. To end the calibration mode, press
"EXIT".

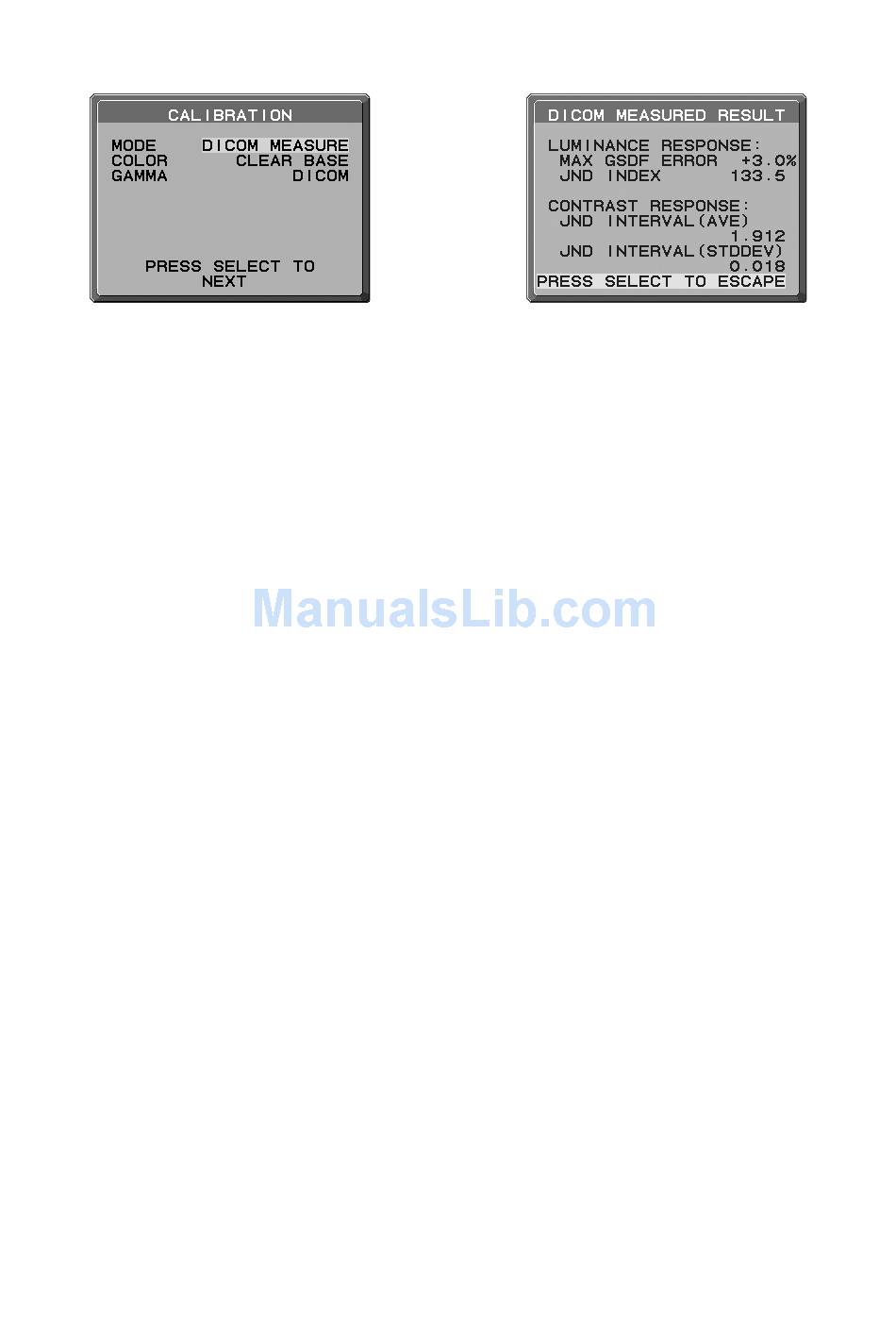

Figure 17
2
selection and Gamma setting in GAMMA selection.
English-24
Figure 18
