Calibration

Before proper calibration can be performed, display should warm-up for a minimum of 30 minutes.

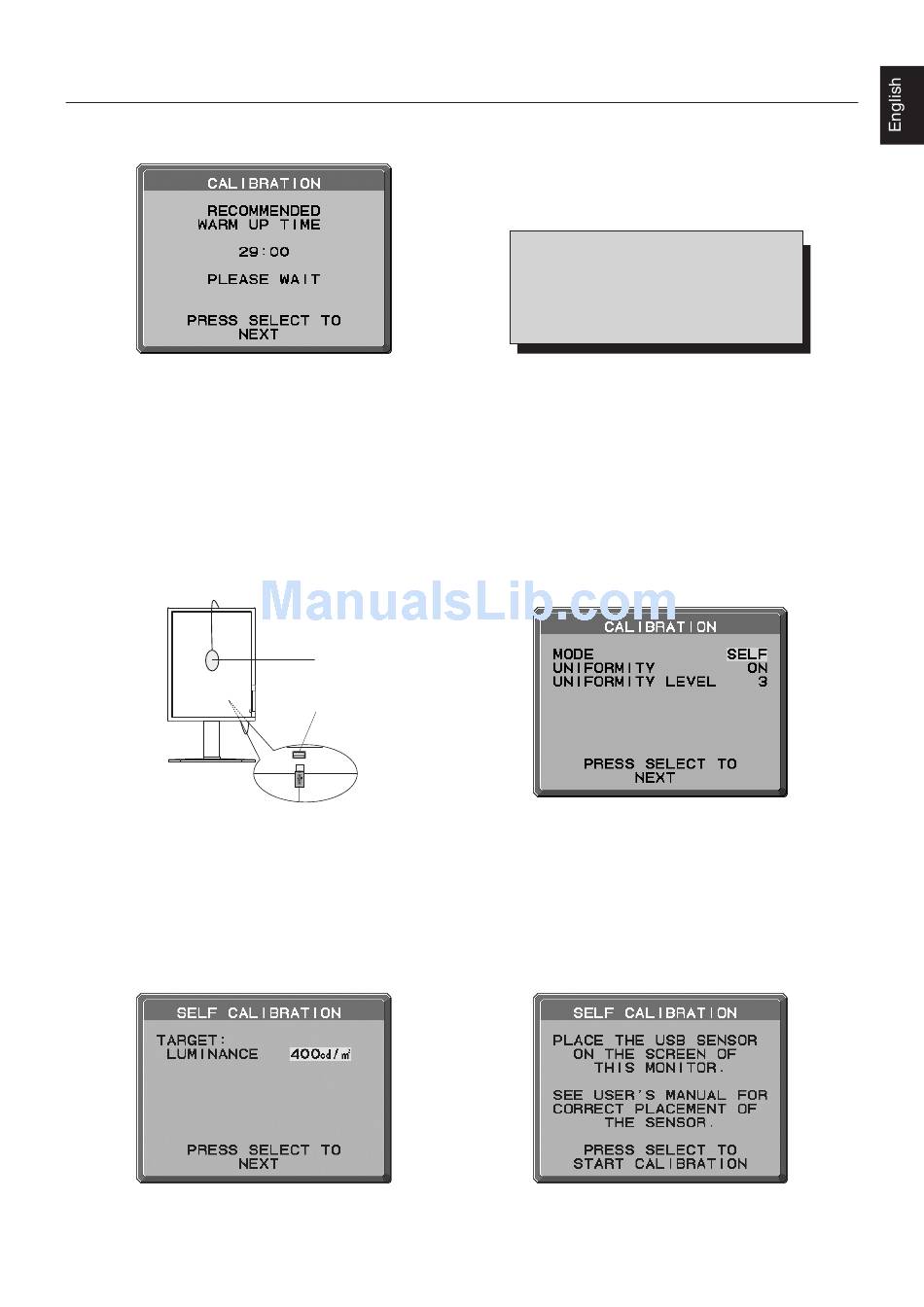

If trying to start calibration before the monitor is warmed-up, a warning will appear on the screen (Figure 1).
Figure 1
NOTE: Refer to the Key Map (Figure A) when changing settings during the calibration.
Self calibration and Copy calibration can only be performed using the X-Rite i1 display2 sensor.
During calibration activities and during normal operation, do not change the digital input.
Always use the SAME digital input.
NOTE: With no input signal on the screen, press LEFT and RIGHT button at the same time more than 3 seconds.
The CALIBRATION menu will appear.
Self Calibration
1. To show the CALIBRATION menu, plug-in the USB sensor to the sensor port (Figure 2) or select CALIBRATION in the
advanced menu (page 20).
Figure 2
2. Select SELF in the Mode selection (Figure 3).
3. Select the target UNIFORMITY and UNIFORMITY LEVEL. Press SELECT to go to the next section.
4. Set the target LUMINANCE (cd/m
5. The procedure will ask for the USB sensor to be placed on the center of the display panel (Figure 5).
Tilt the display panel approximately 5° backward and place the USB sensor in the center of the display panel (Figure 2).
NOTE: Place the USB sensor flat against the LCD to avoid external light contamination. DO NOT press the calibrator
against the display panel.
Figure 4
USB Sensor
Sensor Port (located at the
back of the monitor)
2
) (Figure 4). Press SELECT to go to the next section.
English-21
KEY MAP
UP/DOWN: Changes from setting to setting
LEFT/RIGHT: Changes the setting selection
(ie...SELF or COPY)
SELECT: Moves to the next step of calibration
EXIT: Moves back one step of calibration
Figure A
Figure 3
Figure 5
