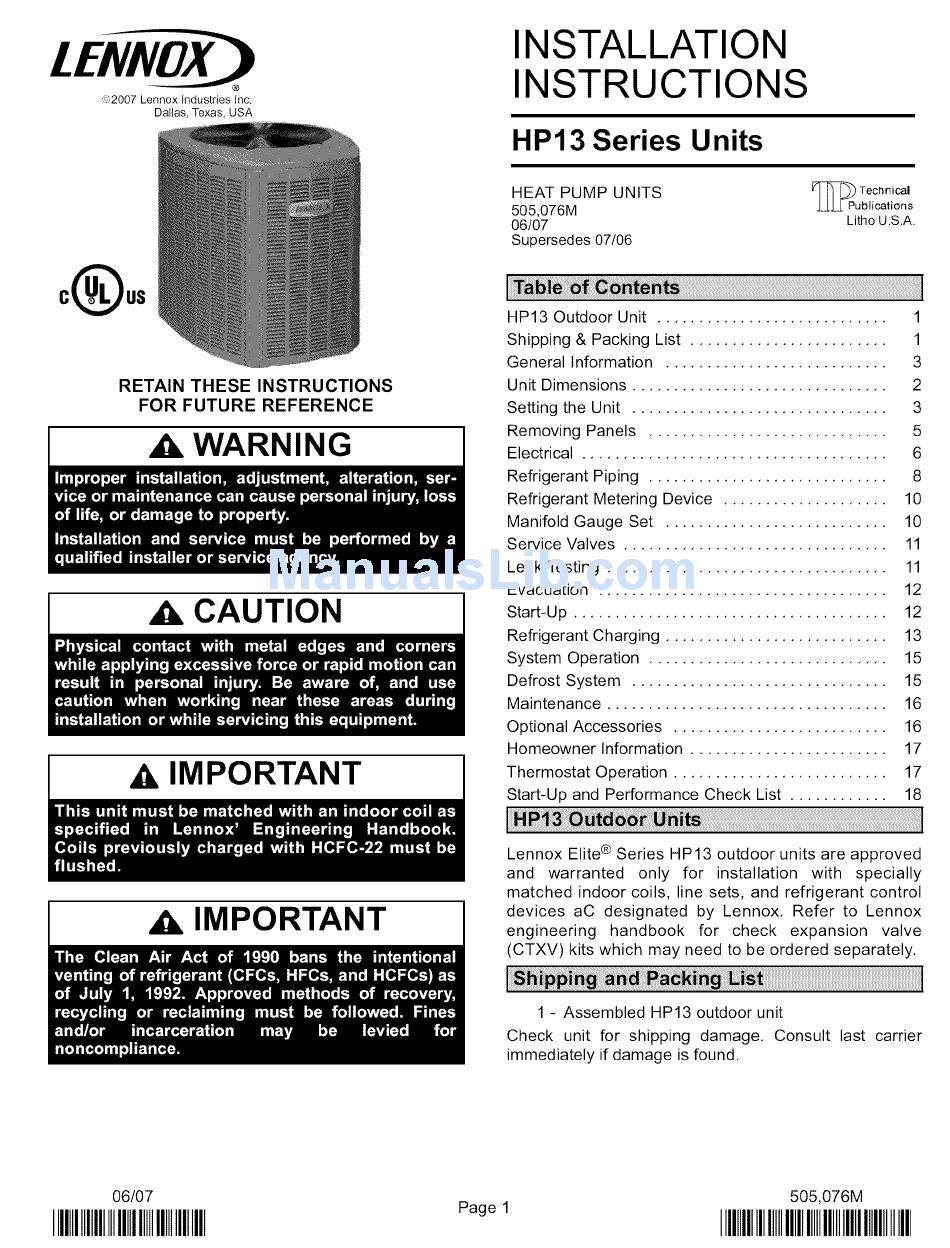

Lennox HP13 Series Installation Instructions Manual

®
';_)2007 Lennox industries Jnc,
Dallas, Texas, USA
0( us
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING
A CAUTION
A IMPORTANT
X_ IMPORTANT
INSTALLATION
INSTRUCTIONS
HP13 Series Units
HEAT PUMP
UNITS
_Technical
505,076M
LLJJ Publications
06107 Litho U.S.A.
Supersedes 07/06
HP13 Outdoor Unit ............................ 1
Shipping & Packing List ........................ 1
General Information ........................... 3
Unit Dimensions ............................... 2
Setting the Unit ............................... 3
Removing Panels ............................. 5
Electrical ..................................... 6
Refrigerant Piping ............................. 8
Refrigerant Metering Device .................... 10
Manifold Gauge Set ........................... 10
Service Valves ................................ 11
Leak Testing .................................. 11
Evacuation ................................... 12
Start-Up ...................................... 12
Refrigerant Charging ........................... 13
System Operation ............................. 15
Defrost System ............................... 15
Maintenance .................................. 16
Optional Accessories .......................... 16
Homeowner Information ........................ 17
Thermostat Operation .......................... 17
Start-Up and Performance Check List ............ 18
Lennox Elite ® Series HP13 outdoor units are approved
and warranted only for installation with specially
matched indoor coils, line sets, and refrigerant control
devices aC designated by Lennox. Refer to Lennox
engineering handbook for check expansion valve
(CTXV) kits which may need to be ordered separately.
1 - Assembled HP13 outdoor unit
Check unit for shipping damage. Consult last carrier
immediately if damage is found.
06/07
