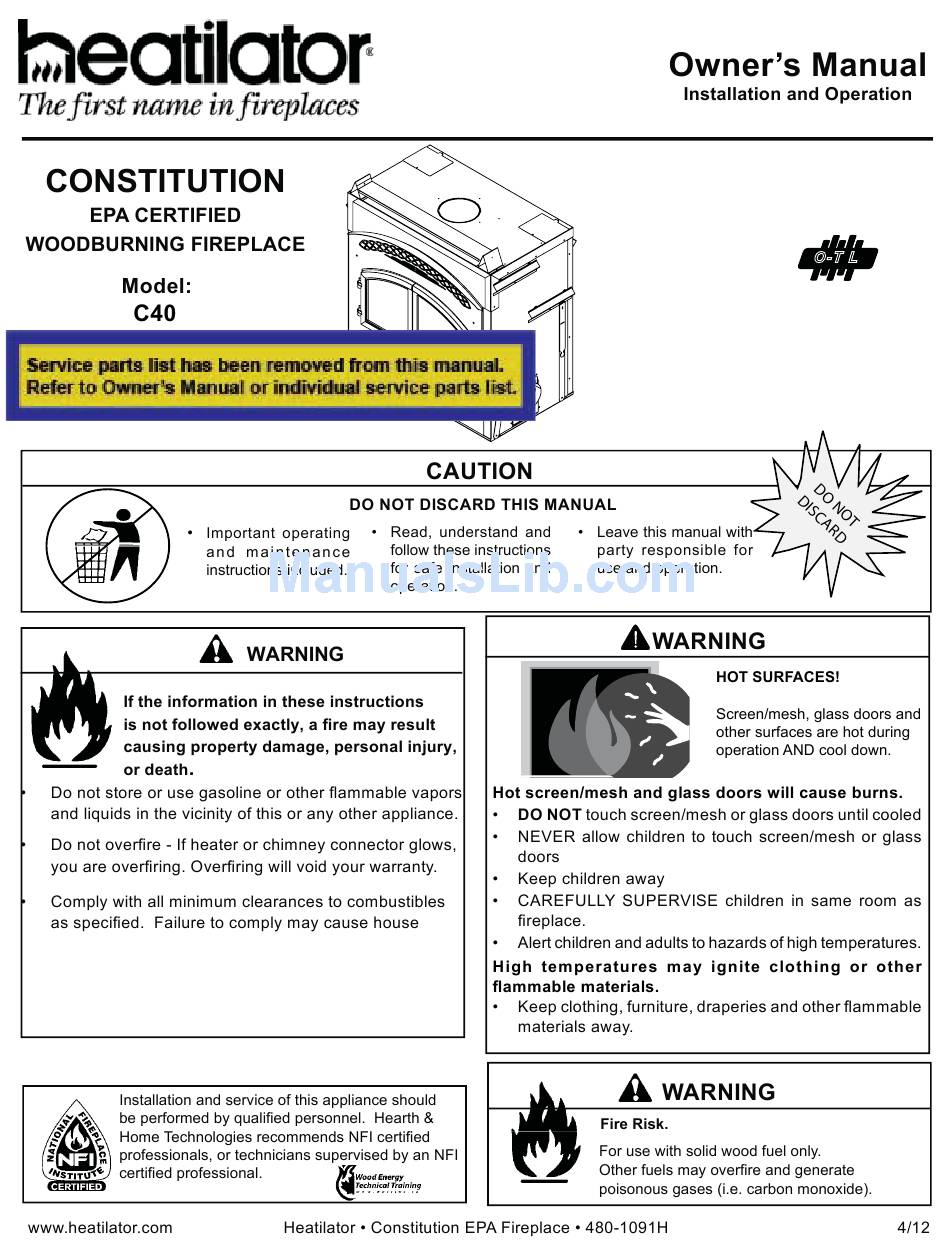

  • Page 1 O-T L Tested and Portland Listed by Oregon USA OMNI-Test Laboratories, Inc.

  • Page 2: Floor Protection

    Report #061-S-40-2 1915 W. Saunders, Mt. Pleasant, IA 52641 ERTIFIED IREPLACE TESTED TO www.heatilator.com UL 127, ULC-S610-M87 LISTED FIREPLACE, SOLID FUEL TYPE, ALSO SUITABLE FOR MANUFACTURED Minimum Clearances To Combustible Material Wood Fuel Only." HOME INSTALLATION. (UM) 84 HUD. "For Use with Solid Chimney sections at any level require a 2”...
  • Page 9 Back of Firebox Ceramic Blanket Baffle Board...
  • Page 12 Outside Air Control Handle...
  • Page 18 Overhanging tree? Bird's nest or leaves in termination cap? Structural changes in Another appliance in chimney area? home also exhausting air (furnace, fan, Unsealed dryer, etc.)? can lights? Overhead fan operating? Creosote buildup in flue? Air register from furnace near fireplace? Doors opening and closing?
  • Page 21 Remove screws, lift top cover. Top Cover Chimney TR344/TR342 Round Termination Cap Remove 4 screws and lift top pan off. Slip Section ST375 Square Termination Cap 1. Remove the 4 screws. 2. Remove the screen. 3. Remove the baffle. Chase TS345/TS345P Square Termination Caps...
  • Page 22 Latch Cam Door Cross Section (example) Locknut Handle Teflon Washer DO NOT REMOVE Spacing Washers Square Key...
  • Page 26 Unplug wire harness before removing fan Remove nut and lift out fan...
  • Page 27 Remove 2 screws in cover plate Black Knob Spring Handle Cover Plate Linkage Arm 1/4” bolts Mechanical Timer Assemby Timer Pry pointed edge toward fireplace and then down and out to remove. Cover Plate Remove 2 screws & pry open door...
  • Page 28 Timer Assembly with Gasket Linkage Arm Slider Control Rod Remove 2 bolts from timer assembly Slider Control Rod Remove 2 screws Linkage Arm Remove Timer Loosen Set Screw...
  • Page 29 D cut side of timer shaft must face away from the Linkage Timer Arm Tighten set screw...
  • Page 35 24 in. (610mm) In an exterior chase or projecting into a garage Across a corner 24 in. (610mm) Along a wall As a room divider 48 in. (1219mm) 24 in. (610mm)
  • Page 36 Storm Collar Roof Flashing 2 in. (51 mm) min. 2 in. min. Attic (51 mm) Insulation Shield (attic) Ceiling Firestop (ceiling) 2 in. (51 mm) min. 2 in. (51 mm) min. 2 in. (51 mm) min. Ceiling Firestop Offset/Return with hanger straps (ceiling) 2 in.
  • Page 39 Garage or Outlet blocked by Attic space combustible snow, leaves, etc. liquids storage Outlet placed higher than 3 ft below the termination cap Use only duct materials specified by manufacturer...
  • Page 41 Pallet 1 in. (25mm) Overlap Mounting Brackets Protective metal strips are placed 2 in.(51mm) under the front of the fireplace and must extend beyond the front and sides of fireplace opening by 2 in. (51mm). Nail or screw metal strips in place.
  • Page 42 Termination Cap Chimney must extend beyond combustible roof structure Additional support for Maintain minimum tall chimneys height of chimney above roof Storm Collar Install roof flashing Maintain minimum according to minimum clearances to requirements combustibles as specified Offsets/returns may not exceed Support straps for offsets/ 30°...
  • Page 43 6 ft (1.83 m) max. unsupported chimney above roof 6 ft (1.8 m) max. unsupported 20 ft (6.10 m) max. pipe between an offset & return 35 ft (10.7 m) max. straight Ceiling firestop unsupported chimney height 14.5 ft (4.42 m) min. height/single offset-return 44 in.
  • Page 45 Attach Flue First Secure with Screws Provided CAK4A Push Together Secure to Top...
  • Page 46 ROOM ABOVE (non-insulated ceiling) Wire Ties 4" Flex Ceilng firestop attached to bottom Wire Ties of framing 2 in. (51mm) clearance ATTIC ABOVE (insulated ceiling) Ceiling firestop When attic insulation attached to top of shield not used framing 2 in. (51mm) clearance Note: Use same dimensional lumber for framing...
  • Page 47 Bend remaining tabs to rest against pipe to prevent insulation from falling in.
  • Page 48 Ceiling Firestop Straps Joint Band (Optional) Optional Additional Support...
  • Page 50 CHIMNEY FLASHING PLATE FLASHING THIMBLE EXTENSION SCREW NAIL THIMBLE CHIMNEY FLASHING FLASHING PLATE THIMBLE EXTENSION SCREW NAIL ADJUSTABLE THIMBLE EXTENSION HOLES CHIMNEY FLASHING FLASHING PLATE JOISTS NAIL THIMBLE...
  • Page 51 All outside walls should be insulated. Round Termination Cap Storm Collar Metal Chase Top Ceiling Firestop False Ceiling Attic Insulation Tabs Shield Insulation in the Ceiling outside walls Firestop of the chase Insulation Insulation False Ceiling False Ceiling Chimney...
  • Page 55 1in. (25mm) OVERLAP Metal strips 2 in. (51mm) under edge of Fireplace and Hearth Extension and 2 in. (51mm) on both side of fireplace opening. Nail or screw metal strips in place. Seal with non-combustible sealant...
  • Page 56 8 in. (203mm) from each side of fuel loading door High temperature (300°F min.) continuous, non-combustible sealant 2 thickness of HX4 Hearth Ext or equivalent insulation Tile, stone or other (see Table below) non-combustible material Protective Metal Hearth Strip 2 in. (51 mm) required Floor constructed of wood or other combustible material...
  • Page 57 Fascia Outer Can Flange Tile or Marble Combustible Floor Minimum 20 in. (508mm) in front and 8 in. (203mm) on sides to fuel loading doors ........
  • Page 58 Clearances are Mantel from bottom of appliance to lower edge of mantel or trim Trim 60 in. (1524mm) 48 in. (1219mm)
  • Page 59 12 in. (305mm) minimum clearance from register to ceiling Ceiling Register Wall Register Floor Register Ceiling Register Two Duct Kits...
  • Page 60 3-13/16 in. (97mm) 3-1/8 in. (79mm) Adapter Mounting Plate Starter Pipe Knockout...
  • Page 61 2 x 4 wall 1/2 in. (13mm) clearance to Leave 1/4" (6mm) clearance from combustibles all 4 outer edges must be maintained. Sheet Rock Secure B-Vent to Fan Housing with sheet metal screws Bracket Can rotate Return Air Grille Securely Twist Junction Box Install with Louvers Lock B-Vent to...
  • Page 63 Fan Electrical Access (right side of fireplace)
  • Page 64 INSULATED DUCT UNINSULATED DUCT 4 in. 4 in. (102 mm) (102 mm) 10-1/2 in. 8 in. (267 mm) (203 mm) 42 in. 42 in. (10669 mm) (10669 mm) 12 in. (305 mm) 24-5/8 in. (625 mm) 14-1/2 in. 27-3/8 in. (368 mm) (695 mm) 12in.

  • Page 65: Chase Top

    10-1/2 in (267 mm) 24 in. 2 in. (610 mm 20-3/4 in. (51 mm (527 mm) Inside Diameter 10-1/2 in. 8 in. (267 mm) (203 mm) Outside Diameter 10-1/2 in. (267mm) 24-5/8 in. (625 mm) 29 in. 16-5/8 in. 16-5/8 in. (737 mm) (422 mm) (422 mm)
  • Page 68 Heatilator, a brand of Hearth & Home Technologies Inc. 1915 W. Saunders St. Mt. Pleasant, IA 52641 www.heatilator.com Please contact your Heatilator dealer with any questions or concerns. For the location of your nearest Heatilator dealer, please visit www.heatilator.com. - NOTES -...
