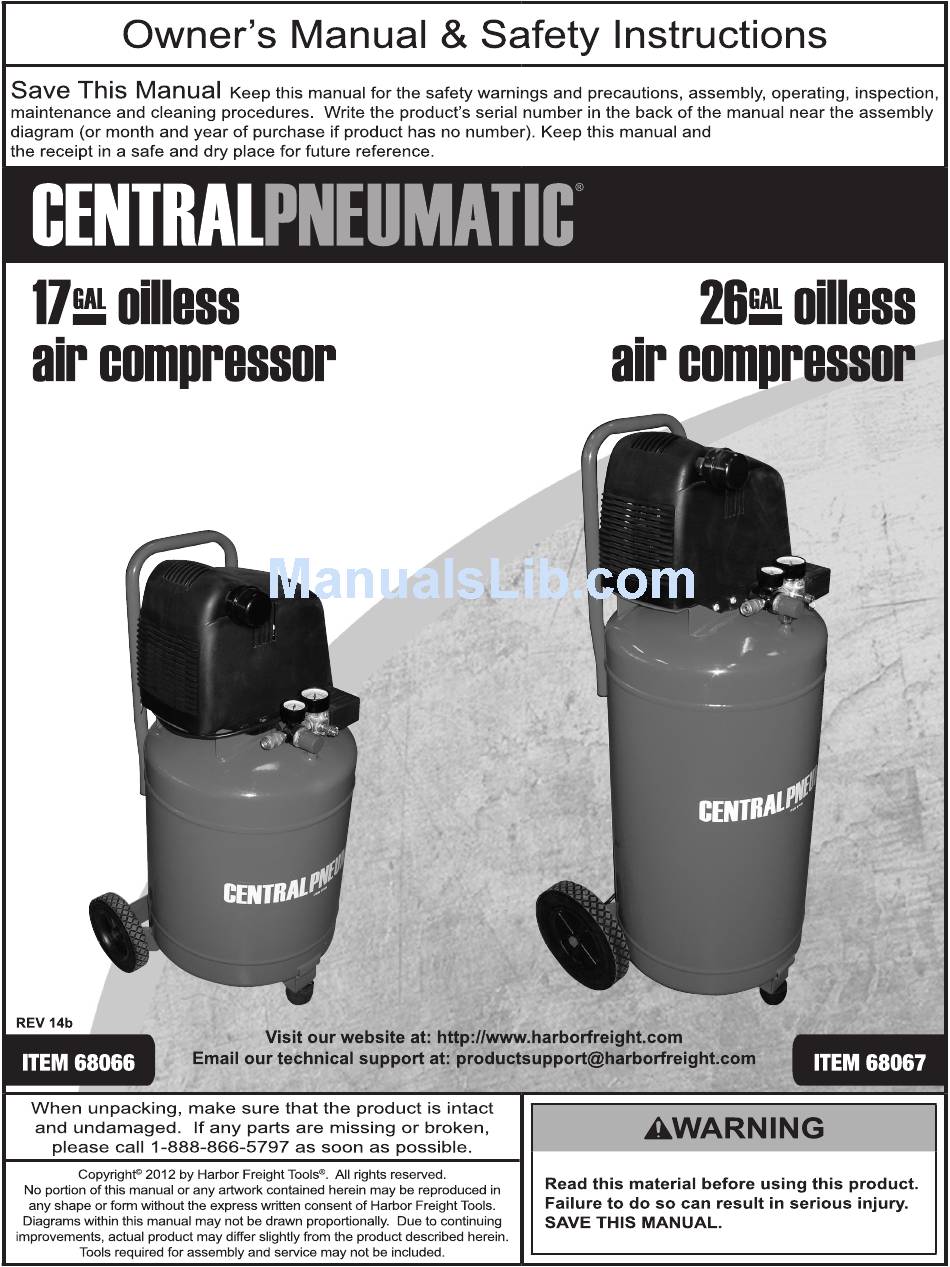

Central Pneumatic 68067 Owner's Manual & Safety Instructions

Oiless 17-26 gal.
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading

Related Manuals for Central Pneumatic 68067

Summary of Contents for Central Pneumatic 68067

  • Page 2: Table Of Contents

    IMPORTANT STOP STOP DO NOT RETURN TO STORE This unit was fully tested and inspected prior to shipment and will operate properly when instructions are followed. Refer to your owner’s manual for basic troubleshooting. To avoid unnecessary return to the store, simply call Compressor Support toll free for additional assistance. 1-888-866-5797 Compressor Support: Please have your model number and serial number available.

  • Page 3: Safety

    GENERAL SAFETY RULES which is marked to comply with ANSI Z87.1. Additional safety protection will be required in WARNING: some environments. For example, the working area Read and understand all instructions. Failure to may include exposure to a noise level which can lead to follow all instructions listed below may result in electric hearing damage.
  • Page 4 GENERAL SAFETY RULES affect the tool’s operation. If damaged, have the tool unauthorized parts or failure to follow Maintenance serviced before using. Many accidents are caused by instructions may create a risk of injury. poorly maintained tools. Never point any tool toward yourself or others. GENERAL Keep the exterior of the air compressor dry, clean, Do not remove or paint over any DANGER!,...
  • Page 5 SPECIFIC SAFETY RULES Know your power tool. Read operator’s manual Always follow all safety rules recommended by the carefully. Learn its applications and limitations, as well manufacturer of your tool, in addition to all safety as the specific potential hazards related to this tool. rules for the air compressor.
  • Page 6 SYMBOLS WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to po- tential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 7 GROUNDING TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE CONNECTION: Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the compressor.

  • Page 8: Features

    FEATURES PRODUCT SPECIFICATIONS Model 68066 Model 68067 Running Horsepower ..........1.8 HP Running Horsepower ..........1.8 HP Air Tank Capacity ............17 gal. Air Tank Capacity ............26 gal. Air Pressure ............150 PSI max. Air Pressure ............150 PSI max. Air Delivery ......... 6.0 SCFM @ 40 PSI Air Delivery .........

  • Page 9: Assembly

    FEATURES KNOW YOUR AIR COMPRESSOR PRESSURE REGULATOR KNOB See Figure 2. Use the pressure regulator knob to adjust the amount of Before attempting to use this product, familiarize yourself air being delivered through the hose. with all operating features and safety rules. REGULATOR PRESSURE GAUGE OIL-FREE UNIVERSAL MOTOR The current line pressure is displayed on the regulator...
  • Page 10 ASSEMBLY ASSEMBLING THE RUBBER FOOT AND WASHER WHEELS See Figure 3. Mount the rubber foot as shown in figure. Tighten firmly with an open-end wrench (not included) to secure it in position. Mount the wheels as shown in figure. Tighten firmly with an open-end wrench (not included) to secure the wheels in position.
  • Page 11 ASSEMBLY BREAKING IN THE PUMP QUICK REGULATOR See Figures 7 - 8. TANK COUPLER PRESSURE PRESSURE GAUGE Check and tighten all bolts, fittings, etc. GAUGE Turn the pressure regulator knob fully clockwise to PRESSURE open the air flow. SWITCH Press the red button of the On/Off switch and plug in the power cord.

  • Page 12: Operation

    OPERATION WARNING: WARNING: Do not allow familiarity with tools to make you careless. Your tool may require more air consumption than this Remember that a careless fraction of a second is air compressor is capable of providing. Check the tool sufficient to inflict serious injury.

  • Page 13: Draining The Tank

    OPERATION DRAINING THE TANK See Figures 9 - 10. To help prevent tank corrosion and keep moisture out of the air used, the tank of the compressor should be drained daily. A correct use of the drain valve: Verify that the compressor is turned off. Holding the handle, tilt the compressor toward the drain valve so that it’s set in a lower position.

  • Page 14: Maintenance

    MAINTENANCE WARNING: WARNING: Do not at any time let brake fluids, gasoline, petroleum- When servicing, use only identical Harbor Freight Tools based products, penetrating oils, etc., come in contact replacement parts. Use of any other parts may create a with plastic parts. Chemical can damage, weaken or hazard or cause product damage.

  • Page 15: Troubleshooting

    TROUBLESHOOTING Problem Possible Causes Likely Solutions Compressor does 1. Tank(s) already pressurized. 1. No problem. Compressor will start when needed. not start or restart 2. Power cord not plugged in properly. 2. Check that cord is plugged in securely. 3. Incorrect power supply. 3.

  • Page 16: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
