Smart Technologies SB680i2-SE240 Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SB680i2-SE240
Cautions, warnings and other important product information are included in the multi-language
Important Information document for this product, document 128166 at
www.smarttech.com/support.

Advertisement

loading

Related Manuals for Smart Technologies SB680i2-SE240

Summary of Contents for Smart Technologies SB680i2-SE240

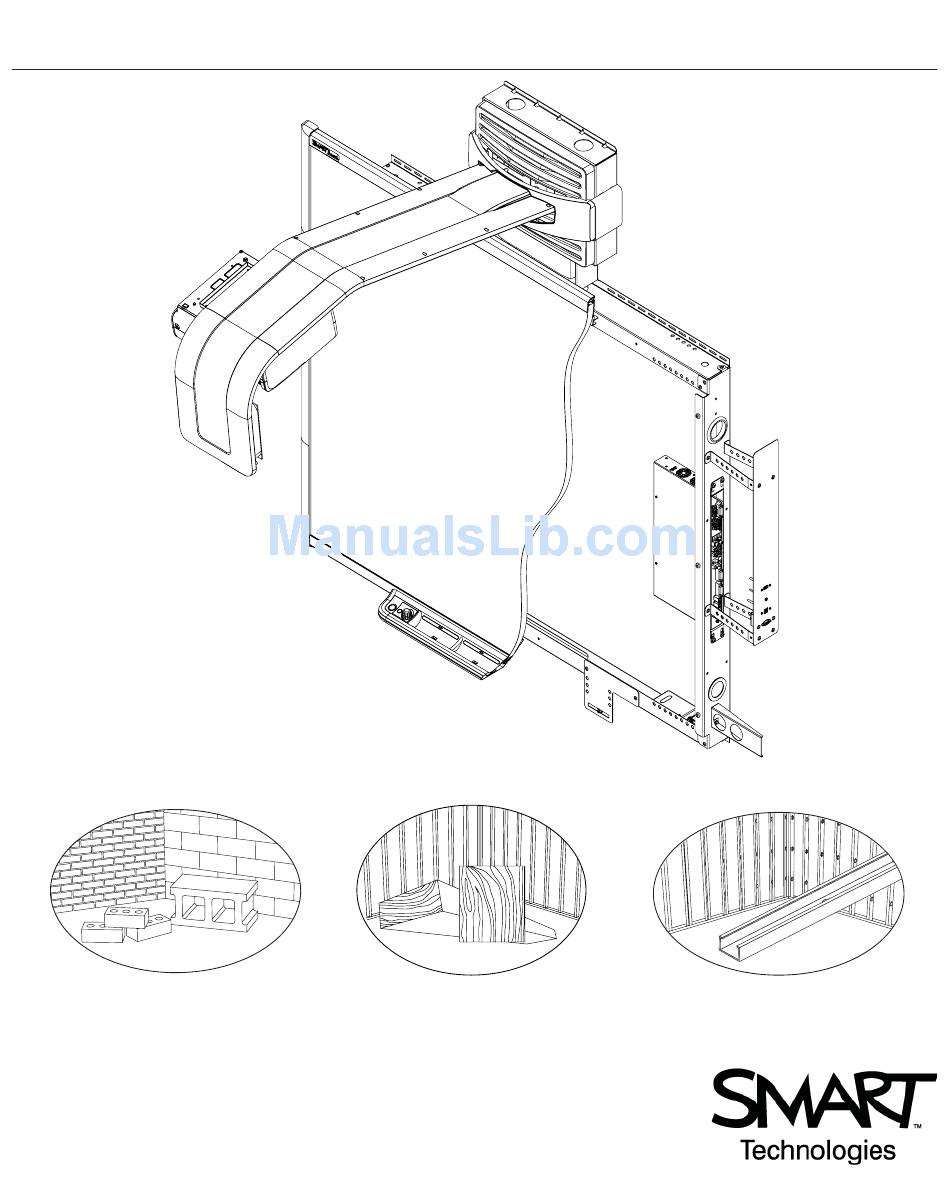

  • Page 1 SB680i2-SE240 Cautions, warnings and other important product information are included in the multi-language Important Information document for this product, document 128166 at www.smarttech.com/support.
  • Page 2 Wall Mount Frame for SB680i2-SE240 ×2 ×2 ×2 ×2 ×2 ×2 ×2 SMART Boar d™ 600i2 Inter active Whiteboar d System WEEE Tr eatm entInstr uctions for 600Ser iesPr oducts Manufactur er Identification SMART Technologies Inc. 1207 – 11 Avenue SW, Suite 300...
  • Page 3 SB680 (×7) (×7) 65 5/8" (166.9 cm) 49 1/4" (125.1 cm) ×7 ×7 ×2 SE240 ×8 ×4 99-00902-20 A0...
  • Page 4 Unifi 45 rr (×3) ×2 nn (×3) qq (×2) PE260 99-00902-20 A0...
  • Page 5 × 1/4" (6mm) 1/2" (13mm) 1/4" (6 mm) 99-00902-20 A0...
  • Page 6 99-00902-20 A0...
  • Page 7 ≥30" (76.2 cm) > 30" (76.2 cm) 97" (246 cm) 33" (83.8 cm) +3" 36" (91.4 cm) +6" ≥ 33" (83.8 cm) 97" (246 cm) 99-00902-20 A0...
  • Page 8 99-00902-20 A0...
  • Page 9 1/4" (6 mm) 1/2" (13 mm) 1/4" (6 mm) 99-00902-20 A0...
  • Page 10 1/2" (13 mm) 3× 1/4" (6 mm) 1/2" (13 mm) 1/2" (13 mm) 3× 3× 1/4" (6 mm) 99-00902-20 A0...
  • Page 11 (×3) hh (×3) hh (×2) (×2) (×3) gg (×3) 99-00902-20 A0...
  • Page 12 3× 99-00902-20 A0...
  • Page 13 3× 1/4" (6 mm) 1/2" (13 mm) 2× 1/4" (6 mm) 1/2" (13 mm) 3× 1/4" (6 mm) 99-00902-20 A0...
  • Page 14 hh (×3) cc (×3) hh (×2) cc (×2) gg (×3) ff (×3) 99-00902-20 A0...
  • Page 15 (×6) ×3 99-00902-20 A0...
  • Page 16 3× gg (×6) hh (×3) 1/4" (6 mm) 1/2" (13 mm) cc (×3) 2× gg (×6) 1/4" (6 mm) 1/2" (13 mm) cc (×2) gg (×6) gg (×3) 3× ff (×3) 1/4" (6 mm) 99-00902-20 A0...
  • Page 17 ×6 ×2 ×2 kk (×4) ×2 6× kk (×4) 99-00902-20 A0...
  • Page 18 6 8 0 dd (×5) kk (×5) 99-00902-20 A0...
  • Page 19 99-00902-20 A0...
  • Page 20 ×2 ×2 ×4 mm (×4) kk (×4) 99-00902-20 A0...
  • Page 21 kk (×2) kk (×2) 99-00902-20 A0...
  • Page 22 ???########## kk (×4) 99-00902-20 A0...
  • Page 23 99-00902-20 A0...
  • Page 24 6 mm ×2 qq (×2) 99-00902-20 A0...
  • Page 25 qq (×2) 99-00902-20 A0...
  • Page 26 2× 2.5 mm 99-00902-20 A0...
  • Page 27 AUDIO-OUT S-VIDEO L-AUDIO-R MONITOR OUT CONTROL AUDIO-IN S-VIDEO L-AUDIO-R COMPUTER 2 IN COMPUTER 1 IN 12V DC SMART Collaboration Appliance SCA-100 Computer Audio Composite Audio In Audio Out Video Computer Computer 1 Video In Computer 2 Network Reset RS-232 Video Out S-video Audio In Network...
  • Page 28 99-00902-20 A0...
  • Page 29 2× × 99-00902-20 A0...
  • Page 30 99-00902-20 A0...
  • Page 31 99-00902-20 A0...
  • Page 32 99-00902-20 A0...
  • Page 33 99-00902-20 A0...
  • Page 34 bb (×2) SB680 99-00902-20 A0...
  • Page 35 99-00902-20 A0...

  • Page 36: Waste Electrical And Electronic Equipment Regulations

    If you need more information on the collection, reuse and recycling of electrical and electronic equipment, please contact your local WEEE recycling agency. Alternatively, contact your local reseller or SMART Technologies for information on the environmental performance of our products.
