Summary of Contents for Napoleon B36DFP

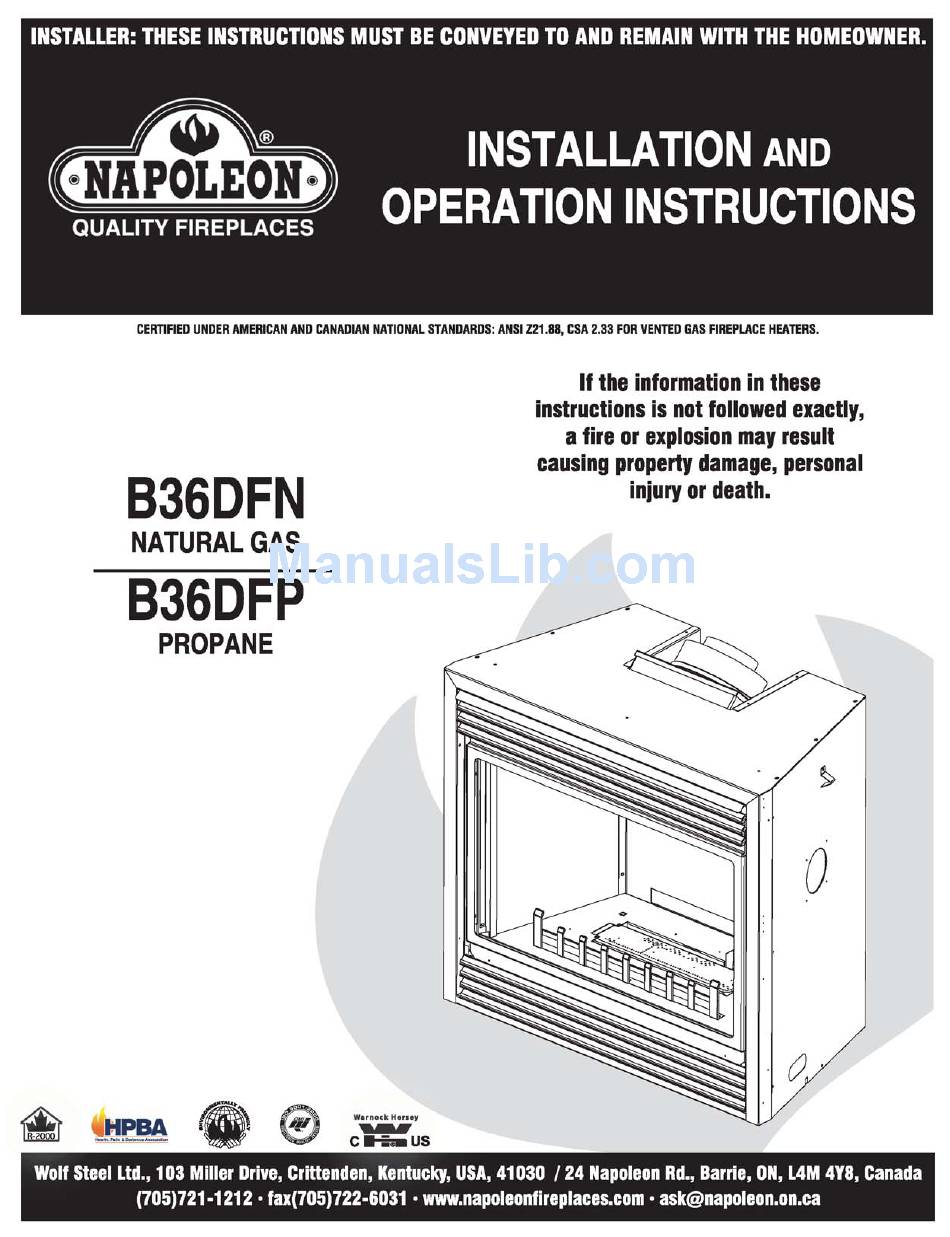

- Page 1 W415-0484 / A / 07.26.06 W415-0484 / A / 07.23.06...
- Page 2 WARNINGS & SAFETY PRECAUTIONS WHAT TO DO IF YOU SMELL GAS...
-
Page 3: Table Of Contents
PG 2-5 INTRODUCTION Warnings and Safety Precautions Warranty General Instructions General Information Care of Glass & Plated Parts 6 - 13 VENTING Venting Lengths Air Terminal Locations Typical Vent Installations Special Vent Installations Venting Specifications 14 - 18 INSTALLATION Wall and Ceiling Protection Using Flexible Vent Components Fireplace Vent Connection Restricting Vertical Vents... - Page 4 NAPOLEON gas fireplaces are manufactured under the strict Standard of the world recog- NAPOLEON NAPOLEON NAPOLEON NAPOLEON gas fireplaces are manufactured under the strict Standard of the world recog- gas fireplaces are manufactured under the strict Standard of the world recog- gas fireplaces are manufactured under the strict Standard of the world recog- gas fireplaces are manufactured under the strict Standard of the world recog- nized...
-
Page 5: General Instructions
GENERAL INSTRUCTIONS THIS GAS FIREPLACE SHOULD BE INSTALLED AND SERV- ICED BY A QUALIFIED INSTALLER to conform with local codes. In absence of local codes, install the B36DF to the current National Fuel Gas Code, ANSI Z223.1, or the current CAN/CGA B149, Installation Codes. -
Page 6: Venting
FIGURE 1 For safe and proper operation of the fireplace follow the venting instruction exactly. Deviation from the minimum vertical vent length can create difficulty in burner start-up and/or carboning. Provide a means for visually checking the vent connection to the fireplace after the fireplace is installed. Vent lengths that pass through unheated spaces (attics, garages, crawl spaces) should be insulated with the insulation wrapped in a protective sleeve to minimize... -
Page 7: Air Terminal Locations
AIR TERMINAL LOCATIONS FIGURE 2 INSTALLATIONS CANADIAN U.S.A. 12 INCHES 12 INCHES 12 INCHES 9 INCHES 12 INCHES* 12 INCHES* 18 INCHES** 18 INCHES** 12 INCHES** 12 INCHES** 0 INCHES 0 INCHES 0 INCHES*** 0 INCHES*** 2 INCHES*** 2 INCHES*** 3 FEET 3 FEET**** 3 FEET... -
Page 8: Typical Vent Installations
TYPICAL VENT INSTALLATIONS NOTE: When terminating vertically, the restrictor plate W500-0205 must be installed. Refer to Restricting Vertical Vents. FIGURES 3 a-c When installing with no vertical rise, ensure that the vent pipe does not slope downward. SPECIAL VENT INSTALLATIONS PERISCOPE TERMINATION Use the GD401 periscope kit to locate the air termination above grade. - Page 9 VENTING APPLICATION FLOW CHART HORIZONTAL TERMINATION Vertical rise Vertical rise is less than is equal to or h o r i z o n t a l g r e a t e r than horizontal H o r i z o n t a l Horizontal run + verti- run + verti-...
- Page 10 DEFINITIONS for the following symbols used in the venting calcula- tions and examples are: > - greater than > - equal to or greater than < - less than < - equal to or less than - total of both horizontal vent lengths (H sets (H ) in feet - combined horizontal vent lengths in feet...
- Page 11 HORIZONTAL TERMINATION when (H ) > (V Simple venting configuration (only one 45º and 90° elbow) See graph to determine the re- quired vertical rise V for the re- quired horizontal run H REQUIRED VERTICAL RISE IN INCHES (V HORIZONTAL VENT RUN PLUS OFFSETS IN FEET (HT) The shaded area within the lines represents acceptable values for H and V...
- Page 12 VERTICAL TERMINATION when (H ) < (V Simple venting configurations FIGURE 9 See graph to determine the required vertical rise V required horizontal run H REQUIRED VERTICAL RISE IN FEET (V The shaded area within the lines represents acceptable values for H and V For vent configurations requiring more than one 45º...
- Page 13 VERTICAL TERMINATION when (H ) > (V Simple venting configurations FIGURE 11 See graph to determine the required vertical rise V required horizontal run H REQUIRED VERTICAL RISE FEET (V HORIZONTAL VENT RUN PLUS OFFSET IN FEET (H The shaded area within the lines represents acceptable values for H and V For vent configurations requiring more than one 45º...
-
Page 14: Installation
WALL AND CEILING PROTECTION FOR SAFE AND PROPER OPERATION OF THE FIREPLACE, FOLLOW THE VENTING INSTRUCTIONS EXACTLY. NOTE: Only a clearance to combustibles of 2" at the top of the vent pipe is required and 1" at the bottom and sides. HORIZONTAL INSTALLATION This application occurs when vent ing through an exterior wall. -
Page 15: Using Flexible Vent Components
USING FLEXIBLE VENT COMPONENTS Use only approved aluminum flexible liner kits marked: "Wolf Steel Approved Venting" as identified by the stamp only on the 8” outer liner. HORIZONTAL AIR TERMINAL INSTALLATION A VENT SHIELD MUST BE USED IF THE WALL TERMINAL IS INSTALLED ON COMBUSTIBLE, EXTERIOR SURFACES. -
Page 16: Fireplace Vent Connection
5. Remove nails from the shingles, above and to the sides of the chimney. Place the flashing over the air terminal and slide it underneath the sides and upper edge of the shingles. Ensure that the air terminal is properly centred within the flashing, giving a 3/4"... -
Page 17: Mobile Home Installation
B36DF MOBILE HOME INSTALLATION FIGURE 27a-d This appliance may be installed as an OEM (Original Equipment Manufacturer) installation in a manufactured home or mobile home and must be installed in accordance with the manufacturer’s instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard, CAN/CSA Z240 MH Series, in Canada. -
Page 18: Nailing Tab Installation
NAILING TAB INSTALLATION 1) Attach the nailing tabs to the corner posts using the 2 sheet metal screws supplied. Secure through the centre of the top and bottom slots in the nailing tab and then through the existing holes in the corner posts. If there are no existing holes, follow these instructions: Position the nailing tab so that the front... -
Page 19: Finishing
DOOR REMOVAL & INSTALLATION The upper louvres must be removed to allow the door to be opened or closed. To access the lower door latch, open the valve control door. Release the top and bottom door latches, located at the right side of the door. FIGURE 34 FINISHING L36 LOUVRE INSTALLATION... -
Page 20: Charcoal Embers
LOG PLACEMENT PHAZER logs and glowing embers exclusive to Napoleon Fire- places, provide a unique and realistic glowing effect that is different in every installation. Take the time to carefully po- sition the glowing embers for a maximum glowing effect. Log colours may vary. -
Page 21: Optional Blower Installation
OPTIONAL BLOWER INSTALLATION FIGURE 37 ANSI/NFPA 70 NATIONAL ELECTRICAL CODE If the fireplace was not previously equipped with a blower: route a grounded 2-wire, 60hz power cable to the receptacle / junction box. At this point, it must be strain relieved and insulated. -
Page 22: Optional Fan Installation
OPTIONAL FAN INSTALLATION ELECTRICAL INSTALLATION TO BE DONE BY A QUALI- FIED INSTALLER and must be connected and grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 C Canada or the ANSI/NFPA 70 NATIONAL ELECTRICAL CODE United States. -
Page 23: Operation / Maintenance
OPERATION / MAINTENANCE OPERATING INSTRUCTIONS When lit for the first time, the fireplace will emit a slight odour for a few hours. This is a normal temporary condition caused by the curing of the logs and the "burn-in" of inter- nal paints and lubricants used in the manufacturing proc- ess and will not occur again. -
Page 24: Adjustments
PILOT BURNER ADJUSTMENT Adjust the pilot screw to provide properly sized flame. Turn in a clockwise direction to reduce the gas flow. FIGURE 47 FIGURE 48 VENTURI ADJUSTMENT Air shutters have been factory set open according to the chart below: AIR SHUTTER 1/ 16 "... -
Page 25: Replacements
Contact your dealer for questions concerning prices and availability of replacement parts. Normally all parts can be ordered through your Napoleon dealer or distributor. IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED THER INFORMATION CONTACT YOUR NAPOLEON DEALER COMMON REPLACEMENT PARTS: PART NO. DESCRIPTION W225-0058 BLACK DOOR FRAME... - Page 26 WARNING: This is a fast acting thermocouple. It is an integral safety component. Replace only W415-0484 / A / 07.26.06 with a fast acting thermocouple supplied by Wolf Steel Ltd.
-
Page 27: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE EFORE ATTEMPTING TO TROUBLESHOOT PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR OPENED. SYMPTOM PROBLEM Main burner goes Pilot flame is not large out; pilot stays on. enough or not engulfing the thermopile Thermopile shorting Remote wall switch wire is... - Page 28 SYMPTOM PROBLEM Pilot goes Gas piping is undersized. while standing; Main burner is in 'OFF' position. Flames are con- Unit is over-fired or under- sistently too large fired. small. Carboning occurs. Door is ajar Flames are very aggressive. Venting action is too great. Main burner flame Blockage in vent.
- Page 29 W415-0484 / A / 07.23.06...
- Page 30 NOTES W415-0484 / A / 07.26.06...
