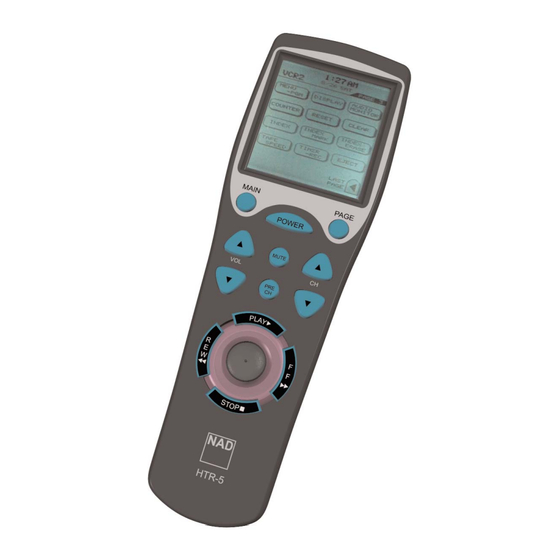

HTR-5
®
LCD TOUCH SCREEN PREPROGRAMMED
AND LEARNING REMOTE CONTROL
ENG

Advertisement

Table of Contents
loading

Related Manuals for NAD HTR-5

Summary of Contents for NAD HTR-5

  • Page 1 HTR-5 ® LCD TOUCH SCREEN PREPROGRAMMED AND LEARNING REMOTE CONTROL...

  • Page 3: Table Of Contents

    Appendix B. Set up code Table ........44 - 57 NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited...

  • Page 4: Introduction

    780 buttons into the HTR-5 from your original remote controls. With the HTR-5 you can change the button size and shape and edit the text on the button in the LCD, allowing you to customize your remote control exactly to your own preferences.

  • Page 5: Battery Installation

    BATTERY INSTALLATION HTR-5 uses four AA batteries. Please be sure to match the batteries with the (+) and (-) markings inside the battery compartment during installation. The remote control self-tests for three seconds after the batteries are installed and then automatically moves to the setting mode for programming.

  • Page 6: Summary Of Operations

    The HTR-5 comes with preprogrammed codes for practically all the major audio and video equipment that are on the market. You can operate all of your components with the HTR-5 simply by punching in the three-digit code number that is assigned to your brand. The code numbers for various brands and components are listed in the instruction manual.
  • Page 7 MACRO OPERATION The remote control is capable of sending out a series of commands with the single press of a button. There are three types of macro buttons you can use for such macro operations and they are as follows: 1 M1, M2 and M3 buttons on MAIN page.
  • Page 8 Please refer to page 22 in the manual for details. LOADING PROGRAM The HTR-5 is capable of receiving software programs and data through the Internet. You can also upload programs and data in the remote control to your personal computer and download them to another HTR-5.

  • Page 9: Lcd Screen And Button Layout

    LCD SCREEN AND BUTTON LAYOUT 1 Displays the name of the device selected 2 Displays the data and clock 3 Displays page number 4 Displays the device names 5 LIGHT button 6 MACRO buttons 7 MAIN DEVICE menu button 8 LCD Page change button 9 POWER 10 MUTE 11 VOLUME...

  • Page 10: Getting Ready With System Setting

    GETTING READY WITH SYSTEM SETTING All the programming is done by first entering the SYSTEM SETTING mode in the remote control. Press both the MAIN and PAGE buttons simultaneously for five seconds to enter the SYSTEM SETTING mode. Move the cursor on the screen with the joystick to your selection in the list. Enter the selection by pushing down the joystick.

  • Page 11: Programming The Remote Control

    You can program the HTR-5 to make it compatible with all of your components by following either the preprogramming method or teaching it using your original remote controls. PREPROGRAMMING METHOD USING A THREE-DIGIT CODE NUMBER: 1 Turn on the component you plan to operate manually.
  • Page 12 PROGRAMMING THE REMOTE CONTROL 8 Confirm that you entered the right code number that matches your component by pressing other buttons such as POWER, VOLUME, MUTE and CHANNEL. If any of the buttons do not operate as they should, please repeat from Step 5. 9 Continue to program other components by repeating from the above step 5.
  • Page 13 7 Point the remote control to the component and press the BRAND button. 8 Press the number button on LCD screen that bears the first alphabetical character of your brand name. (Please press the number button within 20 seconds of programming).

  • Page 14: Learning Method

    PROGRAMMING THE REMOTE CONTROL 10 Continue to program other components by repeating from Step 5. 11 Once you have completed programming all the devices, exit from the programming mode by pressing both the MAIN and PAGE buttons simultaneously. 12 You will be in the setting mode. Move the cursor to 8. TO EXIT and press the joystick down or simply press the MAIN button to exit to the main menu.
  • Page 15 PROGRAMMING THE REMOTE CONTROL 4 Place your original remote control to the HTR-5 head to head about 2-3 inches apart as shown below. HTR-5 5 Press either the device button or functional button, whichever you wish to teach in the HTR–5.

  • Page 16: Erasing The Learned Buttons

    PROGRAMMING THE REMOTE CONTROL TO ERASE THE LEARNED BUTTONS TO ERASE A SINGLE BUTTON: 1 Go to the program setting mode by pressing both the MAIN and PAGE buttons simultaneously for five seconds. 2 Move the cursor to 4. Learning with the joystick and then push the joystick down to enter the learning mode.
  • Page 17 3 Press the MUTE button to move the cursor to the DEVICE BUTTON and keep the device button you wish to erase all the learned commands down for five seconds until the LCD shows ERASED. This will erase the function taught in the device button. If you continue to press the device button for another five seconds, it will erase all the functions in the device.

  • Page 18: System And Operations Setup

    SYSTEM AND OPERATIONS SETUP Go to the program setting mode by pressing both the MAIN and PAGE buttons simultaneously for five seconds. Move the cursor on the LCD screen to 2. SYSTEM & OPTIONS with the joystick. Enter this mode by pushing the joystick down and the following can be programmed: SETTING UP THE SYSTEM The LCD screen will list the following choices: Buzzer Status:...

  • Page 19: Macro And Punch Through Programming

    MACRO AND PUNCH THROUGH PROGRAMMING The MACRO and PUNCH THROUGH can be also programmed in this mode. Press the button you wish to program and follow procedures shown below: MACRO PROGRAMMING There are three type of macro functions you can program. They are as follows: 1 M1, M2 and M3 in the Main menu.
  • Page 20 SYSTEM OPERATIONS AND SET UP FOR DEVICE BUTTONS: 1 Press one of the twelve device buttons you wish to store macro functions with the cursor on DEVICE BUTTON. 2 Move the cursor to COMMON BUTTON and select again either the same or another device button whose functional buttons you wish to store in the device macro button you first selected.

  • Page 21: Programming Punch Through Functions

    TO PROGRAM PUNCH THROUGH FUNCTIONS You can use audio receiver volume control in a different mode (e.g. Audio receiver Volume Up and Volume Down and Mute in Satellite mode) using a volume punch through feature. You can also have four VCR (or DVD) transport buttons, Play, Stop, Fast Forward and Rewind, operate in another mode such as in Satellite, Cable and Audio modes.

  • Page 22: To Edit The Buttons On Lcd

    TO EDIT THE BUTTONS ON THE LCD You can add or delete buttons, change the button size and shape, move the button locations and edit the text on the buttons on LCD screen in the EDITING Mode. 1 Go into setting mode by pressing both the MAIN and PAGE buttons simultaneously for five seconds.

  • Page 23: To Copy Buttons

    The device buttons in favorite device page can be moved. Please refer to “To Copy - Creating a Favorite Device Page” TO COPY BUTTONS You can copy any functional button and move them anywhere in the LCD screen or to any other 3 pages within the same device mode.

  • Page 24: To Delete Buttons

    TO EDIT THE BUTTONS ON LCD TO DELETE BUTTONS You can delete any button on the LCD screen except the twelve device buttons in the MAIN page. With this operation you can delete both the device buttons in the favorite page and the functional buttons with the following steps: 1 Select the functional button you wish to delete in the device page and push the joystick down for three seconds to delete the button.

  • Page 25: To Insert Buttons

    TO INSERT BUTTONS This is designed to create new functional buttons in any of the twelve devices. 1 Select INSERT button in EDITING mode. 2 Select the device you wish to create as a new button. 3 Move to the page you wish to create a new button by pressing the PAGE button. Press the CHANNEL UP or DOWN buttons and various sizes and shapes of buttons will appear on the top left side of the LCD screen.

  • Page 26: To Change Buttons

    TO EDIT THE BUTTONS ON LCD TO CHANGE BUTTONS This is designed to change the size and shape of any functional buttons and device buttons (in favorite device page) with the steps shown below: 1 Press CHANGE button in EDITING MODE. 2 If you wish to change the functional buttons, press the device that contains the functional button you wish to change and then select the functional button.

  • Page 27: To Edit A Text

    TO EDIT A TEXT This is designed to write a new text on any of the buttons in the LCD screen with the following steps: 1 Select TEXT EDIT button in EDITING MODE. 2 If you wish to write on the functional buttons, move the cursor to COMMON BUTTON with the MUTE button and select the device you wish to enter.

  • Page 28: Clock Setting

    CLOCK SETTING Enter the Setting mode by pressing both the MAIN and PAGE button simultaneously for five seconds. Move the cursor on the LCD screen to 6. SET DATE & CLOCK by using the joystick. Enter this mode by pushing the joystick down. Press the selection you wish to change from the LCD screen and change them using the UP and DOWN buttons.

  • Page 29: Lcd Screen Alignment

    LCD ALIGNMENT You may need to align the LCD screen after you down load the program to the HTR-5. Enter the Setting mode by pressing both the MAIN and PAGE button simultaneously for five seconds. Move the cursor on the LCD screen to 1. TOUCH PAD ALIGNMENT with joystick.

  • Page 30: Caution On Lcd Screen

    Please note that the LCD screen is made of a breakable glass. Please use necessary caution in handling LCD screen. MEMORY LOCK The HTR-5 has an internal memory lock system that retains all the programs and learned functions for an extended period. ERASING ALL THE PROGRAMS Pressing the button shown through the opening in the battery compartment after removing the batteries from the HTR-5 will erase all the programs in the remote control.

  • Page 31: Specifications

    Operating range Power requirements Battery life Weight Dimensions Programmed Code Numbers: AUDIO TUNER TAPE CABLE VCR1 VCR2 13 m ~ 20 m, depending upon components. Four size AA batteries About 4 months 209.2 g (not including batteries) 226 mm x 76 mm x 38 mm (W x H x D) __ __ __ __ __ __ __ __ __...

  • Page 32: Appendix A. Set Up Function Table

    SET-UP FUNCTION TABLE - AUDIO Button Name Device Name POWER CH UP CH DOWN VOL UP VOL DOWN MUTE PRE. CH Button Name TUNER VIDEO 1 VIDEO 2 VIDEO 3 VIDEO 4 VIDEO 5 VIDEO 6 TAPE 1 TAPE 2 EXT 5.1 Button Name SURR UP...
  • Page 33 Button Name SAT Functions Device Name SAT (On) POWER On/Off (On) CH UP Channel Up CH DOWN Channel Down VOL UP Volume Up VOL DOWN Volume Down MUTE Mute PRE. CH Prev. Ch. Button Name SAT Functions DISPLAY TV/SAT ENTER Enter Button Name SAT Functions...
  • Page 34 SET-UP FUNCTION TABLE - TV Button Name Device Name POWER CH UP CH DOWN VOL UP VOL DOWN MUTE PRE. CH Button Name ENTER Button Name AUTO:CH DELETE PIP ON PIP OFF SWAP FREEZE POSITION FAV1 TV Functions Button Name PLAY Standby STOP...
  • Page 35 Button Name VCR1,2 Functions Device Name VCR (On) POWER On/Off (Off) CH UP Channel Up CH DOWN Channel Down VOL UP Volume Up VOL DOWN Volume Down MUTE Mute PRE. CH Button Name VCR1,2 Functions 1-100 ENTER Enter Button Name VCR1,2 Functions MENU-PGM Program...
  • Page 36 SET-UP FUNCTION TABLE - CABLE Button Name Device Name POWER CH UP CH DOWN VOL UP VOL DOWN MUTE PRE. CH Button Name INPUT ENTER Button Name PLAY F.F. PAUSE STOP FAV1 FAV2 FAV3 Cable Functions Button Name Cable (On) PLAY On/Off (Off) STOP...
  • Page 37 Button Name DVD Functions Device Name POWER Standby CH UP Skip Forward CH DOWN Skip Back VOL UP VOL DOWN MUTE PRE. CH Button Name DVD Functions PAUSE Pause OPEN/CLOSE Open/Close NEXT DISC AUDIO Audio SUBTITLE Subtitle ANGLE Angle TITLE Title MENU Menu...
  • Page 38 SET-UP FUNCTION TABLE - CD Button Name Device Name POWER CH UP CH DOWN VOL UP VOL DOWN MUTE PRE. CH Button Name PROGRAM DELETE DISC Button Name DISC1 DISC2 DISC3 DISC4 DISC5 DISC6 CD Functions Button Name PLAY Standby STOP CD Skip Forward CD Skip Back...
  • Page 39 Button Name LD Functions Device Name LD (On) POWER On/Off (Off) CH UP Track+ / Skip+ CH DOWN Track- / Track+ VOL UP Volume Up VOL DOWN Volume Down MUTE Mute PRE. CH Button Name LD Functions DISP Display Button Name LD Functions AUTO PGM Auto Program...
  • Page 40 SET-UP FUNCTION TABLE - TAPE Button Name Device Name POWER CH UP CH DOWN VOL UP VOL DOWN MUTE PRE. CH Button Name DECK B REVERSE PLAY TAPE MON1 DECK B REC/PAUSE TAPE MON 2 DECK B PAUSE Tape Functions Button Name PLAY Standby...
  • Page 41 Button Name AUX Functions Device Name AUX Functions POWER AUX (On) CH UP On/Off (Off) CH DOWN VOL UP Down VOL DOWN MUTE PRE. CH Button Name AUX Functions DISP Disp ENTER Enter Button Name AUX Functions AUX - SET-UP FUNCTION TABLE Button Name AUX Functions PLAY...
  • Page 42 SET-UP FUNCTION TABLE - TUNER Button Name Device Name POWER CH UP CH DOWN VOL UP VOL DOWN MUTE PRE. CH Button Name DISPLAY ENTER Button Name SEARCH UP TUNING UP SEARCH DOWN TUNING DOWN Tuner Functions Button Name PLAY Standby STOP Preset Up...
  • Page 43 Button Name Audio Functions Device Name POWER Standby CH UP Preset Up CH DOWN Preset Down VOL UP Volume Up VOL DOWN Volume Down MUTE Mute PRE. CH Tune/Preset Button Name Audio Functions TUNER Tuner VIDEO 1 LD/Video 1 VIDEO 2 VCR 1/Video 2 VIDEO 3 VCR 2/Video 3...

  • Page 44: Appendix B. Set Up Code Table

    SET-UP CODE TABLE - AUDIO Manufacturer/Brand ADCOM AIWA AKAI AMEND ANGSTROM ARCAM AUDIO ACCESS AUDIO ALCHEMY AUDIO DESIGN AUDIO EASE AUDIO FILE AUDIO MATRIX AUDIO SOURCE AUDIO TECHNICA B & K BOSE BRYSTON CARVER CASIO CHIRO CINEMA SOUND CITATION CLARION CURTIS MATHES DENON EIGER...
  • Page 45 Manufacturer/Brand Set-Up Code Number NAKAMICHI 111 244 245 172 183 ONKYO 017 046 064 107 108 187 079 080 090 179 209 270 275 OPTIMUS 026 041 138 PANASONIC 032 195 219 177 PARASOUND 129 130 132 261 PHAST PHILIPS 249 250 251 063 PIONEER 014 033 039 044 045 050 069 159 168 116 035 078 198...
  • Page 46 SET-UP CODE TABLE - SAT Manufacturer/Brand ALPHASTAR AMPLICA BIRDVIEW CAPETRONICS CHANNEL MASTER CHAPARRAL CITOH CURTIS MATHES DRAKE DX ANTENNA ECHOSTAR ELECTROHOME EUROSAT FUJITSU GENERAL ELECTRIC GENERAL INSTRUMENT HITACHI HOME CABLE HOUSTON TRACKER HUGHES HYTEK HYUNDAI JANIEL KATHREIN LEGEND LUTRON LUXOR MACOM MEMOREX NEXTWAVE...
  • Page 47 Manufacturer/Brand Set-Up Code Number ADMIRAL 072 081 161 160 AKAI 197 146 AMARK 112 143 AMPRO 073 167 157 183 AMSTRAD ANAM 043 054 056 080 112 131 197 004 112 058 AUDIOVOX BLAUPUNKT CAIRN CANDLE 197 002 003 004 CAPEHART CETRONIC CITIZEN...
  • Page 48 SET-UP CODE TABLE - TV Manufacturer/Brand NIKEI ONKING ONWA OPTONICA ORION PANASONIC PHILCO PHILIPS PIONEER PORTLAND PROSCAN PROTON QUASAR RADIO SHACK REALISTIC ROCTEC RUNCO SAMPO SAMSUNG SANYO SCOTT SEARS SELECO SHARP SIEMENS SIGNATURE SONY SOUNDESIGN SPECTRICON SUPRE MACY SYLVANIA TANDY TATUNG TECHNICS TECHWOOD...
  • Page 49 Manufacturer/Brand AIWA AKAI AMPRO ANAM AUDIO DYNAMICS BROOKSONIC CANON CAPEHART CRAIG CURTIS MATHES DAEWOO DAYTRON DYNATECH ELECTROHOME EMERSON FISHER FUNAI GO VIDEO GOLDSTAR HARMAN KARDON HITACHI INSTANTREPLAY JCPENNY JENSEN KENWOOD LLOYD MAGIN MAGNAVOX MARANTZ MARTA MATSUI MEMOREX MINOLTA MITSUBISHI MULTITECH NORDMENDE OPTONICA ORION...
  • Page 50 SET-UP CODE TABLE - VCR1 Manufacturer/Brand RUNCO SALORA SAMSUNG SANSUI SANYO SCOTT SEARS SHARP SHINTOM SIGNATURE SONY SOUNDESIGN SYLVANIA SYMPHONIC TANDY TATUNG TEAC TECHNICS TEKNIKA THOMAS TOSHIBA TOTEVISION UNITECH VECTOR RESEARCH VICTOR VIDEO CONCEPTS VIDEOSONIC WARDS YAMAHA ZENITH Set-Up Code Number 032 040 066 102 104 107 109 112 113 115 120 122 125 022 043 048 135 003 007 010 014 134 102...
  • Page 51 Manufacturer/Brand Set-Up Code Number 103 003 004 039 042 046 053 AMERICAST ANTRONIX ARCHER 005 007 014 BELL SOUTH CENTURION CENTURY CITIZEN COMBANO 080 081 COMSAT COMTRONICS DIGICABLE EAGLE 020 030 040 EASTERN 057 066 ECHOSTAR ELECTRICORD GEMINI 008 054 GENERAL ELECTRIC GENERAL INSTRUMENT 103 074 104...
  • Page 52 SET-UP CODE TABLE - DVD Manufacturer/Brand APEX DIGITAL DENON HARMAN KARDON MAGNAVOX MARANTZ MITSUBISHI ONKYO PANASONIC PHILIPS PIONEER PROCEED PROSCAN SAMSUNG SHARP SONY THETA DIGITAL THOMPSON TOSHIBA YAMAHA ZENITH Set-Up Code Number 007 080 026 027 091 057 074 088 091 076 035 021 042 023 092...
  • Page 53 Manufacturer/Brand ADCOM AIWA AKAI AMEND ARCAM AUDIO ACCESS AUDIO EASE AUDIO TECHNICA CALIFORNIA AUDIO CAPETRONIC CARRERA CARVER CASIO CLARINETTE CREEK CROWN DENON EMERSON FISHER FRABA GENEXXA GOLDSTAR HAITAI HARMAN KARDON HITACHI INKEL JC PENNY JENSEN KENWOOD KOSS KRELL KYOCERA LOTTE LUXMAN MAGNAVOX MARANTZ...
  • Page 54 SET-UP CODE TABLE - CD Manufacturer/Brand QUASAR RADIO SHACK REALISTIC ROTEL SANSUI SANYO SCOTT SHARP SHERWOOD SIGNATURE SONY SOUNDESIGN SUMO SYLVANIA SYMPHONIC TAEKWANG TANDY TEAC TECHNICS TECHWOOD THETA DIGITAL TOSHIBA VECTOR RESEARCH VICTOR WARDS YAMAHA YORX Set-Up Code Number 103 008 017 042 150 042 050 051 102 181 182 187 044 107 161 178 250...
  • Page 55 Manufacturer/Brand Set-Up Code Number DENON 206 207 FUNAI KENWOOD 152 013 MAGNAVOX 032 121 MARANTZ MITSUBISHI OPTIMUS 049 013 PANASONIC PHILIPS PIONEER 106 117 121 RADIO SHACK REALISTIC RUNCO SANYO SHARP 152 013 SONY 053 110 TECHNICS THETA DIGITAL TOSHIBA 152 106 YAMAHA 043 129...
  • Page 56 SET-UP CODE TABLE - TAPE Manufacturer/Brand AIWA CARVER DENON FISHER GOLDSTAR HARMAN KARDON KENWOOD LINN LUXMAN MAGNAVOX MARANTZ MCINTOSH MITSUBISHI NAKAMICHI ONKYO OPTIMUS PANASONIC PHILIPS PIONEER QUASAR SANSUI SHARP SHERWOOD SONY TEAC TECHNICS TOSHIBA VICTOR YAMAHA Set-Up Code Number 015 071 100 114 006 008 027 024 036 105 227 229 106 116 239 240...
  • Page 57 Manufacturer/Brand Set-Up Code Number AIWA ARCHER AUTON DRAPER SCREEN DWIN EVERQUEST EXTRON FAROUDJA FUJI JERROLD KENWOOD LITE-TOUCH LUTRON 077 158 159 MAKITA 186 201 MINDPATH NILES 160 187 PIANO DISC PLUS POLKAUDIO REPLAY RUSSOUND SCIENTIFIC ATLANTA 156 163 SIMA SOLO ELECTRONICS SOMFY 078 079 SONY...
  • Page 58 ©2002 NAD ELECTRONICS INTERNATIONAL All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International HTR-5 Manual 01/02 Printed in Korea...
