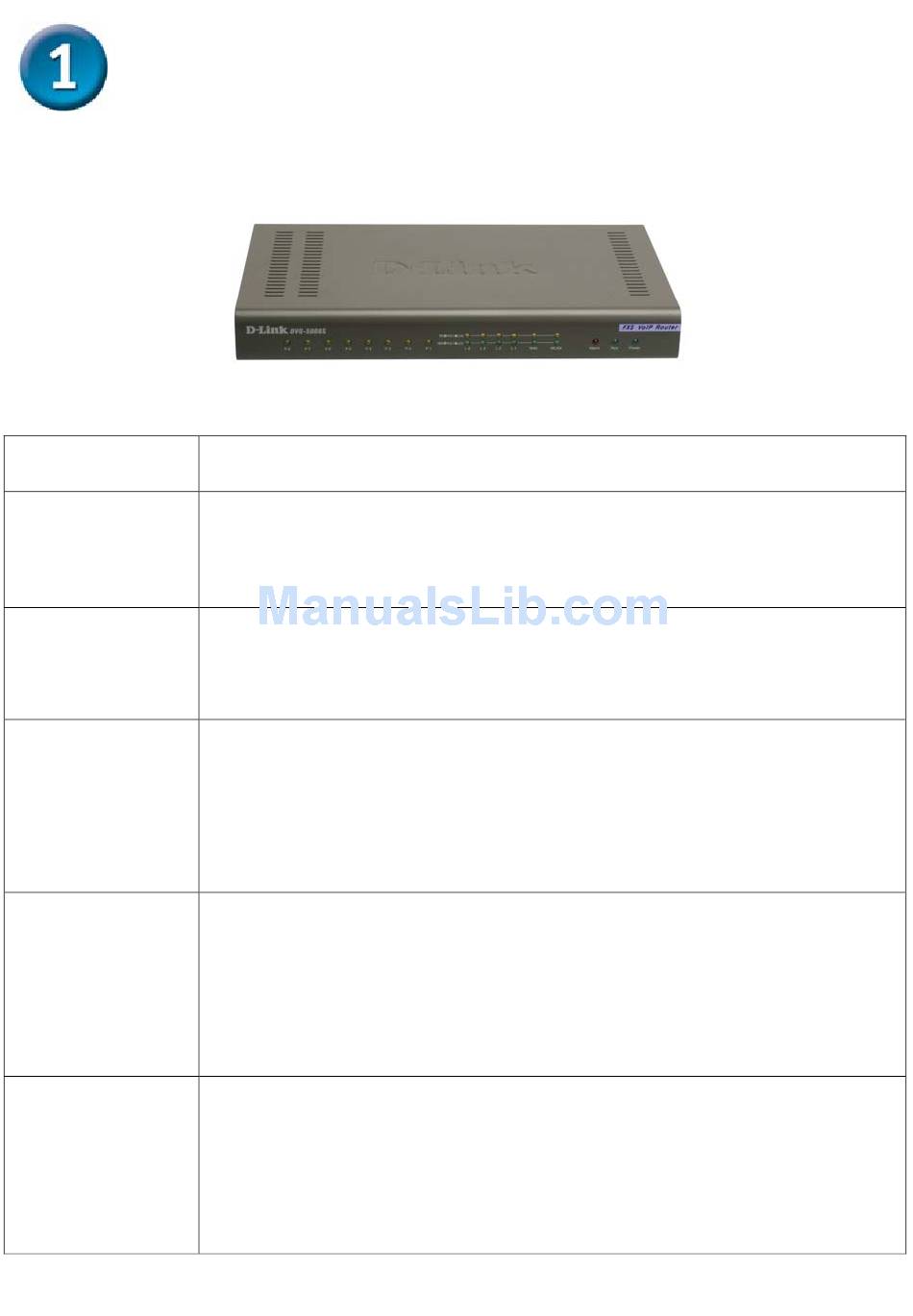

Hardware Overview
Front Panel
Power LED
Run
Alarm
WAN LED
LAN LEDs
Phone LEDs
Indicates the unit is powered on.
The Run LED will flash when performing a self-
test/booting up and light solid green if the self-test or
bootup fails.
The Alarm LED will light solid red if the self-test or
bootup fails. The Alarm will flash red when the system is
registering with the service provider or register fails.
When a connection is established the 10 or 100 LED will
light up solid. The LED will blink to indicate activity. If the
10 or 100 LED does not light up when a cable is
connected, verify the cable connections and make sure
your devices are powered on.
When a connection is established the 10 or 100 LED will
light up solid on the appropriate port. The LEDs will blink
to indicate activity. If the 10 or 100 LED does not light up
when a cable is connected, verify the cable connections
and make sure your devices are powered on.
This LED displays the VoIP status and Hook activity on
the phone port that is used to connect your normal
telephone(s). If a phone connected to a phone port is off
hook or in use, this LED will light solid. When a phone is
ringing, the indicator will blink.
