Pages 6-59 and 6-60; Errors in Port References for VLAN Example.
Page 6-59:

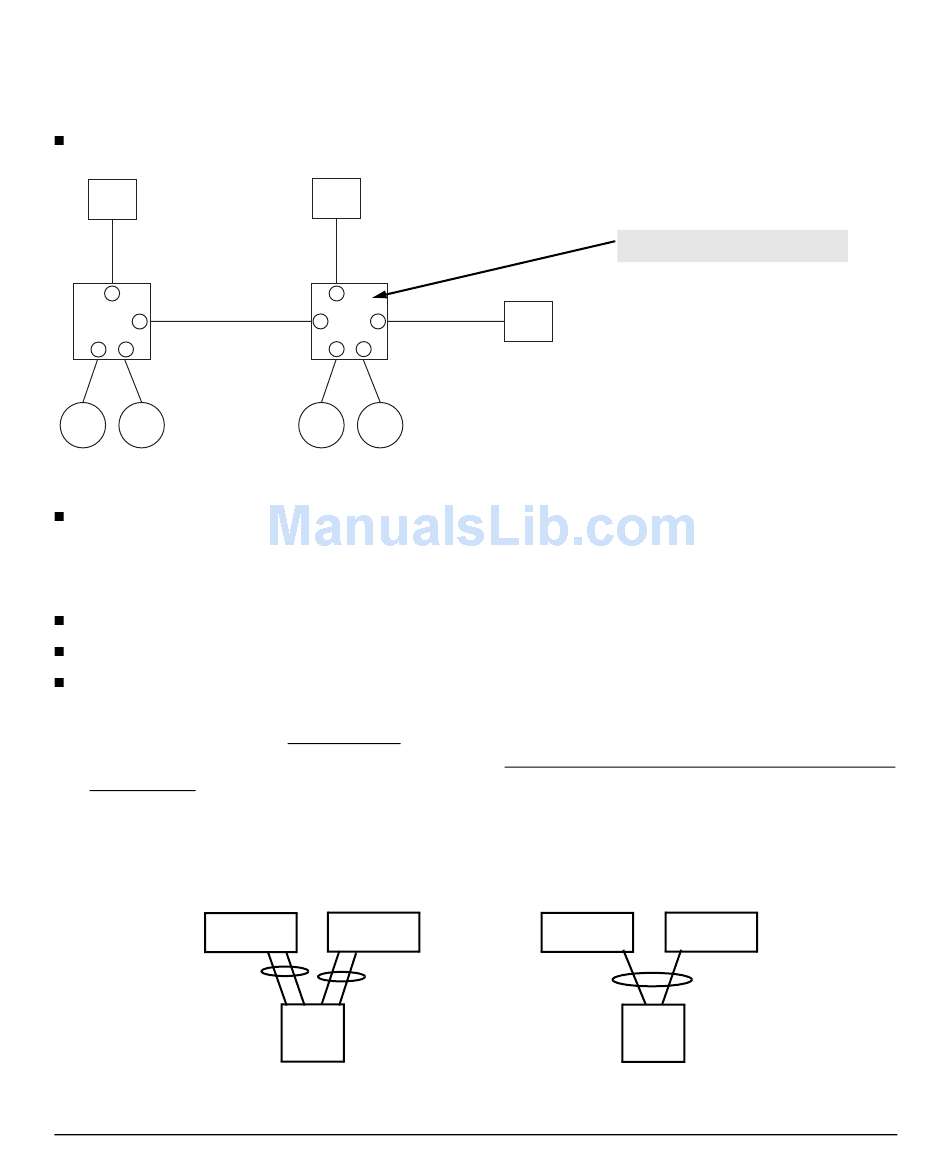

Figure 6-38 contains port reference errors for "Switch Y". The correct version is:
Server
S1
Red VLAN: Untagged
Green VLAN: Tagged
Red VLAN: Untagged
X1
Green VLAN: Tagged
Switch
X2
"X"
X4 X3
Red Green
VLAN VLAN
Figure 6-38. Example of Networked 802.1Q-Compliant Devices with Multiple VLANs on Some Ports
In the paragraph following Figure 6-38, change "Port X-a..." to "Port X1..." Also, change the
last sentence to read "The same applies to ports X2, Y1, and Y5."
Page 6-60:
In the "Note", change "...ports X-A and Y-E..." to "...Ports X2 and Y5..."
In the sentence at the bottom of the table, change "...ports A1 and B5..." to "...X2 and Y5..."
In the paragraph under "Spanning Tree Protocol Operation with VLANS", change the last
two sentences (corrections underlined):
"However, you can use port trunking to prevent STP from unnecessarily blocking ports (and to
improve overall network performance). Refer to'Spanning Tree Operation with 802.1Q VLANs'
on page 6-38."
Page 6-72; FEC (Fast EtherChannel®) Operation. FEC operates between paired devices
connected by a trunked link. A topology combining three devices in the same FEC link will not operate
properly. For example:
This Topology Operates Properly
Switch
FEC
Separate FEC Links
for Separate Devices
Example of Proper and Improper FEC Topologies
Server
S2
Red VLAN: Untagged
Green VLAN: Tagged
Y1
Green VLAN only
Switch
Y5 Y2
"Y"
Y4 Y3
Red Green
VLAN VLAN
Switch
FEC
Server
Corrected Port Labels for "Switch Y"
Server
S3
This Topology Does Not Operate Properly
Switch
Switch
Server
FEC
Common FEC Link for
Separate Devices
5
