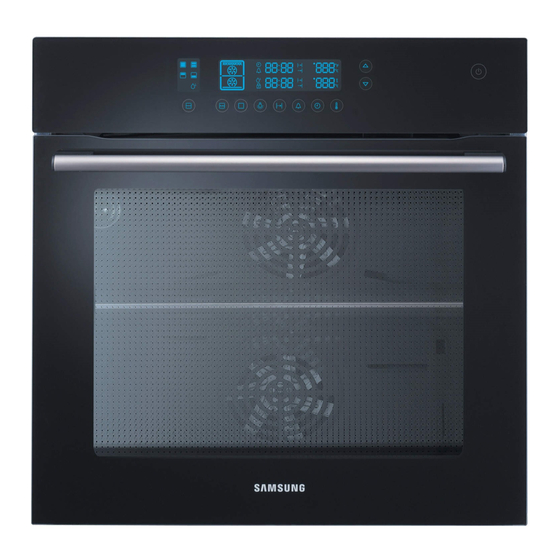

- Page 1 Installation and Operating Instructions Built-In Oven BQ2Q7G078 Owner’s Manual This manual is made with 100 % recycled paper. BQ2Q7G078_XEU-00182S-02_EN.indd 1 6/21/2013 5:44:07 PM...
-
Page 2: Table Of Contents
Contents Using This Manual ..3 Safety Instructions ..3 Electrical safety ..3 Safety during operation ..4 Disposal Instructions ..4 ..5 Installing the Oven Safety instructions for the installer . -
Page 3: Using This Manual
● In the event of a fault or damage to the appliance, do not attempt to operate it ● Repairs should be performed by a licensed technician only Improper repair may result in considerable danger to you and others If your oven needs repair, contact a SAMSUNG Service Centre or your dealer ● If the supply cord is defective, it must be replaced by a special cord or assembly available... -
Page 4: Safety During Operation
Safety Instructions (Continued) Safety during operation ● This oven has been designed only for the cooking of household foods ● During use, the oven interior surfaces become hot enough to cause burns Do not touch heating elements or interior surfaces of the oven until they have had time to cool ● Never store flammable materials in the oven. -
Page 5: Installing The Oven
With built-in furniture, plastic surfaces and adhesive for the oven should be resistant to 90°C inside of the furniture and to 75°C for adjacent furniture Samsung will take no responsibility for damage of plastic surfaces or adhesive from the heat Safety instructions for the installer ● Installation must guarantee protection against exposure to electrically live parts... -
Page 6: Connecting To The Mains Power Supply
Installing the Oven (Continued) Connecting the oven to the power supply (H05VV-F, H05RR-F, Min 1 5 m, 1 5~2 5 mm²) Live Earth Neutral Connecting to the mains power supply Electrical connections must be made as per the connection plate fixed to the back of the appliance by an electrical fitter who must ensure that the appliance has been connected up in accordance with fitting instructions and local regulations. -
Page 7: Installing Into A High Cabinet
Installing the Oven (Continued) Installing into a high cabinet ● Observe minimum clearance requirements ● The oven should be slid into place at the proper angle of alignment min.550 min.590~max.600 min.560 Connecting the oven to the power supply (H05VV-F, H05RR-F, Min 1 5 m, 1 5~2 5 mm²) Live Earth Neutral... -
Page 8: Parts And Features
Parts and Features Oven Control panel Air outlet filter Top heating elements Oven light Level Level Level Level Level Switch divider Glass door Door handle Shelf levels are numbered from the bottom up Levels 4 and 5 are used mainly for the grill function Please refer to the cooking guides provided throughout this manual to determine appropriate shelf levels for your dishes BQ2Q7G078_XEU-00182S-02_EN.indd 8... -
Page 9: Oven Controls
Parts and Features (Continued) Oven controls 1 Power On/Off button 7 Kitchen Timer button 2 Partition Select button 8 Clock button 3 Auto Cook select button 9 Temperature button 4 Cooking Mode Select button 10 Time/temperature Control buttons 5 Lamp Button 11 Information Screen 6 Cooking Time button Power On/Off button... -
Page 10: Accessories
Parts and Features (Continued) Accessories The following accessories are provided with your oven. The oven operates without the side runners and racks in position. Wire grill, for dishes, cake tins, Wire roast, for roasting. roasting and grilling trays. Front Front Baking tray, for cakes and biscuits. -
Page 11: Using The Accessories
Parts and Features (Continued) The baking tray, deep pan and wire grill should be inserted correctly into the side runners When taking out the cooked foods from the Baking tray oven, be careful of hot utensils and surfaces Example Level 1: Deep pan Deep pan Level 4: Baking tray gap 1 cm... -
Page 12: Before You Begin
Before You Begin Setting the clock When connecting the power for the first time, please use the product after setting the time. Press the Clock Button The “ ” and Press the Time / Temp Control “12: ” will blink Button to set the hour of the day Example To set 1:30... -
Page 13: Initial Cleaning
Before You Begin (Continued) Initial cleaning Clean the oven thoroughly before using for the first time. Do not use sharp or abrasive cleaning materials These could damage the oven surface For ovens with enamel fronts, use commercially available cleaning agents To clean the oven 1 Open the door The oven light comes on 2 Clean all oven trays, accessories and side runners with warm water or washing - up liquid... -
Page 14: Oven Use
Oven Use Setting the divider mode For upper, twin and lower modes, insert the divider For single mode, remove the divider And then Press the Partition Select button to select the mode you want For further details, see the table below Press the Partition Select button to Press the Cooking Mode Select button (skip this step in single mode) - Page 15 Oven Use (Continued) Upper mode Only the upper heating element operates The divider should be inserted Convection Top Heat + Convection Large Grill Lower mode Only the lower heating element operates The divider should be inserted Convection Bottom Heat + Convection BQ2Q7G078_XEU-00182S-02_EN.indd 15 6/21/2013 5:44:13 PM...
- Page 16 Oven Use (Continued) Twin mode The upper and lower modes operate at the same time It is possible to set which mode activates first. When one of the dishes has finished cooking in twin mode and you would like to change the cooking time or temperature of the other partition, Press the Partition Select button to select the mode (upper or lower) that you would like to continue operating Divider should be inserted Twin mode 1: The upper mode begins operating first.
- Page 17 Oven Use (Continued) Single mode Convection Top Heat + Convection Conventional Large Grill Small Grill Bottom Heat + Convection BQ2Q7G078_XEU-00182S-02_EN.indd 17 6/21/2013 5:44:14 PM...
-
Page 18: Setting The Oven Temperature
Oven Use (Continued) Setting the oven temperature In single, upper and lower modes Press the Temperature Button Press the Time / Temp Control Button to adjust the temperature in increments of 5°C Single Mode (Large 40°C – 250°C & Small Grill) (40°C –... -
Page 19: Switching The Oven Off
Oven Use (Continued) Switching the oven off To switch the oven off, Press the Power On/Off button Cook time You can set the cook time during cooking In single, upper and lower modes Press the Cook Time Button “ ” Press the Time / Temp Control will blink Button to set the desired cook time... - Page 20 Oven Use (Continued) In twin mode Cook times for the upper and lower modes can be selected by using the Cook Time Button and the Time / Temp Control Button Press the Cook Time Button twice Press the Time / Temp Control (lower mode) “...
-
Page 21: Kitchen Timer
Oven Use (Continued) Kitchen timer Press the Kitchen Timer Button Turn the Time / Temp Control Button once “ ” flashes. to set the desired time Example 5 minutes Press the Kitchen Timer Button to start the kitchen timer When the set time has elapsed, an audible signal sounds Press and hold the Kitchen Timer Button for 2 seconds each to cancel the timer... -
Page 22: Child Safety Function
Oven Use (Continued) Child safety function Press the Cooking Time button and Press the Cooking Time button and Kitchen Timer button at the same Kitchen Timer button at the same time and hold for 3 seconds ( ) will time and hold for 3 seconds again to appear in the display field. -
Page 23: Oven Functions
Oven Use (Continued) Oven functions The features of this oven include the following functions Oven Modes The following table represents the various oven modes and settings of your oven Use the cooking guide tables for these modes in the following pages as guidelines for cooking Conventional Food is heated by top and bottom heating elements This setting is suitable for baking and roasting... - Page 24 Oven Use (Continued) Conventional Suggested temperature: 200°C The conventional function is ideal for baking and roasting foods arranged on one rack Both the top and bottom heating elements operate to maintain the oven temperature We recommend to preheat the oven in conventional mode Shelf Temperature Time...
- Page 25 Oven Use (Continued) Top Heat + Convection Suggested temperature: 190°C The top heating element is in operation and the fan operates to constantly circulate the hot We recommend to preheat the oven with Top Heat + Convection mode Shelf Temperature Time Food Item Accessory...
- Page 26 Oven Use (Continued) Convection Suggested temperature: 170°C This function bakes foods placed on up to three shelves and is also appropriate for roasting Cooking is achieved by the heating element on the rear wall and the fan distributes the heat We recommend to preheat the oven in convection mode Shelf Temperature...
- Page 27 Oven Use (Continued) Large Grill Suggested temperature: 240°C The large grill function grills large quantities of flat foods, such as steaks, schnitzels and fish. It is also suitable for toasting. Both the top heating element and the grill are on in this mode We recommend to preheat the oven using Large Grill mode Shelf...
- Page 28 Oven Use (Continued) Small Grill Suggested temperature: 240°C This setting is for grilling smaller amounts of flat foods, such as steaks, schnitzels, fish and toast, placed in the middle of the tray Only the top element is in operation We recommend to preheat the oven using Small Grill mode Put food in the centre of accessory Shelf Temperature...
- Page 29 Oven Use (Continued) Bottom Heat + Convection Suggested temperature: 190°C The Bottom Heat + Convection mode is for recipes calling for a moist topping and a crisp base, as with foods like pizzas, quiches lorraine, German-style open fruitcakes and cheesecakes We recommend to preheat the oven in Bottom Heat + Convection mode Shelf Temperature...
- Page 30 Oven Use (Continued) Twin Mode Using twin mode you can cook two different food items in your oven When cooking in upper and lower cavity you can use different temperatures, cooking modes and cooking times For example, you can grill steaks and bake gratin simultaneously Using the divider, you can cook gratin in the lower and steaks in the upper part of the oven Always insert divider into shelf level 3 before you start cooking Suggest 1: Cooking at different temperatures...
-
Page 31: Test Dishes
Oven Use (Continued) Test dishes According to standard EN 60350 1 Baking The recommendations for baking refer to preheated oven Shelf Cooking Cooking Type of Food Dish & Notes Temp °C level Mode time min Small Cakes Baking tray Conventional 160-180 15-25 Deep pan + Baking... -
Page 32: Automatic Cooking
Automatic Cooking In auto cook mode you can select 40 Auto Programmes for cooking, roasting and baking For upper, twin and lower modes, insert the divider Press Auto Cook select button Select the desired function by pressing Cooking Mode Select button (skip this step in single mode) Select the desired recipe by Select the desired weight by pressing... - Page 33 Automatic Cooking (Continued) Shelf Food Item Weight/kg Accessory Recommendation Level Beef Steaks 0.3-0.6 Deep pan with Put marinated beef steaks side 0.6-0.8 wire roast by side on the wire roast. Turn over as soon as the oven beeps. The first setting is for thin beef steaks, the second setting is for thick beef steaks.
- Page 34 Automatic Cooking (Continued) Shelf Food Item Weight/kg Accessory Recommendation Level Roast Fish 0.5-0.7 Deep pan with Put fishes head to tail on the wire 0.8-1.0 wire roast roast. First setting is for 2 fishes, the second setting is for 4 fishes. The programme is suitable for whole fishes, like trout, pikeperch or gilthead.
- Page 35 Automatic Cooking (Continued) Shelf Food Item Weight/kg Accessory Recommendation Level Muffins 0.5-0.6 Wire Grill Put dough into black metal 0.7-0.8 baking dish for 12 muffins. First setting is for small muffins, the second setting is for large muffins. Bread 0.7-0.8 Wire Grill Prepare dough according to (white)
-
Page 36: Upper Oven Auto Cook Programmes
Automatic Cooking (Continued) Upper Oven Auto Cook Programmes The following table presents 5 Auto Programmes for Cooking, Roasting and Baking It contains its quantities, weight ranges and appropriate recommendations Cooking Modes and times have been pre-programmed for your convenience You can refer to these guide lines for cooking Always insert food in cold oven Shelf Food Item Weight/kg Accessory... -
Page 37: Lower Oven Auto Cook Programmes
Automatic Cooking (Continued) Lower Oven Auto Cook Programmes The following table presents 5 Auto Programmes for Cooking, Roasting and Baking It contains its quantities, weight ranges and appropriate recommendations Cooking Modes and times have been pre-programmed for your convenience You can refer to these guide lines for cooking Insert food in cold oven, unless it is recommended to preheat the oven Shelf Food Item Weight/kg Accessory... -
Page 38: Twin Oven Auto Cook Programmes
Automatic Cooking (Continued) Twin Oven Auto Cook Programmes Before using twin auto cook function insert the divider into the oven The following table presents 5 Twin Auto Cook Programmes for Cooking, Roasting and Bak- ing Using those programmes you will be able to cook your main dish & side dish or main dish &... -
Page 39: Cleaning And Care
Cleaning and Care Self cleaning This mode for cleaning the oven automatically This mode burns the leftover grease in the oven so that it can be wiped out when the oven cools down The oven is heated up to around 500°C During the Self Cleaning (pyrolytic self-cleaning), oven door is locked automatically When the oven temperature heats up to 300°C , the door will be Door locking (... -
Page 40: Steam Cleaning
Cleaning and Care (continued) Steam cleaning Remove all accessories from the oven Pour approximately 400 ml (3 / 4 pint) of water onto the bottom of the empty oven Use normal water only, no distilled water Close the oven door Caution The steam cleaning system can be switched on only when the oven has cooled to room temperature completely Allow the oven to cool... - Page 41 Cleaning and Care (continued) After deactivating the Steam Cleaning Tips ● Take care when opening the door before the end of the steam cleaning procedure; the water on the bottom is hot ● Never leave the residual water in the oven for any length of time, for example, overnight ● Open the oven door and remove the remaining water with a sponge ● Using a detergent - soaked sponge, a soft brush or a nylon scrubber, wipe the oven interior Stubborn soil can be removed with a nylon scourer...
- Page 42 Cleaning and Care (continued) Rapid drying 1 Leave the oven door ajar at an angle of approximately 30° 2 Press the Partition Select button to single mode 3 Press the Cooking Mode Select button 4 Press the Time / Temp Control button to convection 5 Set the cook time to about 5 minutes and the temperature to 50°C 6 Switch the oven off at the end of this period WARNING...
-
Page 43: Door Removal
Cleaning and Care (Continued) Door removal For normal use, the oven door must not be removed but if removal is necessary, for example, for cleaning purposes, follow these instructions CAUTION: The oven door is heavy 1 Open the door and 2 Close the door by 3 After cleaning, for flip open the clips... - Page 44 ● Protect the oven light bulb and the glass cap by laying a cloth on the bottom of the oven ) Y ou can buy a lamp at SAMSUNG service centre Replacing the rear oven lamp and cleaning the glass cap 1 Take off the cap by turning counterclockwise 2 Remove the metal rings and clean the glass cap 3 If necessary, replace the halogen bulb with a 25 watt, 230 V, 300°C...
-
Page 45: Warranty & Service
Error and Safety codes Error and General Functions Solution Safety codes E-2 * TEMP SENSOR ERROR Call local SAMSUNG service centre 5-01 SAFETY SHUTOFF Turn oven off and remove food Allow oven to cool before using Oven has continued operating at set... -
Page 46: Product Data Sheet
Warranty & Service (Continued) Product data sheet SAMSUNG SAMSUNG Model identification BQ2Q7G078 Energy Efficiency Index per cavity (EEI 106.1 cavity Energy Efficiency Class per cavity Energy consumption required to heat a standardised load in a cavity of an electric heated oven during a cycle in conventional mode per cavity 0.89 kWh/cycle... - Page 47 Warranty & Service (Continued) CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e g charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them...
