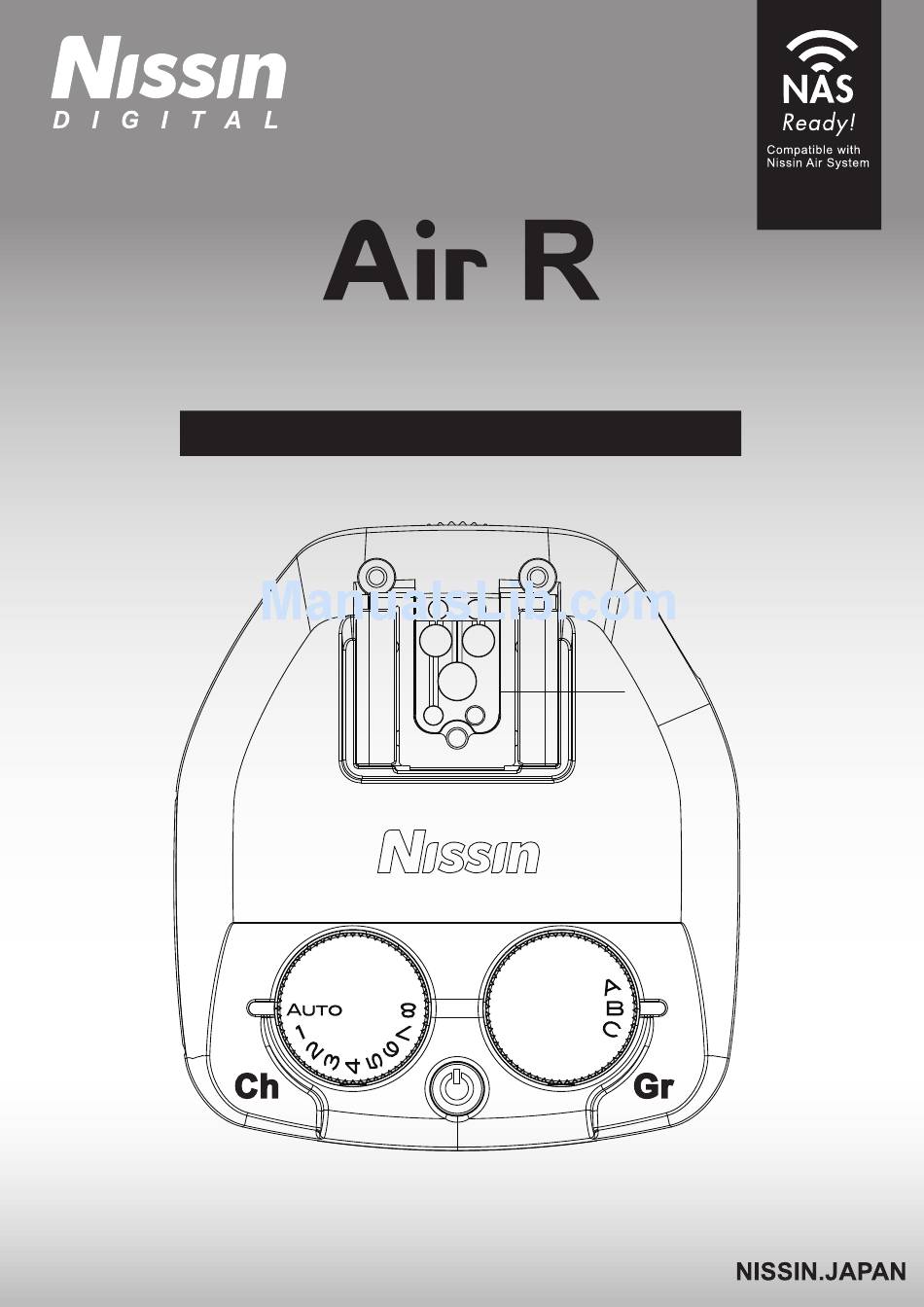

- Page 1 Receiver for wireless flash shooting Canon/ Nikon/ Sony INSTRUCTION MANUAL...
- Page 2 The Nissin Air R is a receiver to adapt your normal flashes units to NAS system for wireless flash shooting. There are 3 types of Air R; Air R for Canon, Air R for Nikon, Air R for Sony. Air R was tested and is guaranteed to work with Nissin flashes and manufacturers flashes.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS These safety instructions refer to important information on how to use this product safely and properly. Please read the following instructions before using the product. CAUTIONS This sign refers to conditions which may cause damage or defect. Do not touch the inside parts from the opening when the unit was dropped or broken. Place the batteries correctly in position. - Page 4 Use with NAS receiver & Nissin digital flashes & Original flashes. The Nissin commander attached to the camera is called master unit. The flash unit attached to the Air R is called slave unit. Once connecting to NAS Commander, all functions will be controlled through NAS Commander.
-
Page 5: Built In Stand
NAS Air R special feature Built in stand Just flip the built in stand foot out and the Air R can be place on any flat surface without mounting a tripod. External sync socket Air R can trigger some flash units that have the external syn socket. -
Page 6: Names Of The Components
Names of the Components Hotshoe mount Battery compartment door Channel selection dial Group selection dial On/ Off switch Front indicator Built in stand X-terminal socket Lock ring Cold shoe/ 1/4” Tripod lug... -
Page 7: Inserting Batteries
Basic Operation Before starting wireless flash shooting. Inserting batteries Usable batteries - Alkaline batteries, Lithium batteries or NiMH batteries. 1. Open the battery compartment door and insert 2 x size AAA batteries as shown by the picture. 2. Make sure the + and - battery contacts are correctly inserted at the battery compartment. -
Page 8: Basic Operation
Mounting flash unit to the Air R Mounting a flash unit to the Air R is just like mounting a flash unit on a camera. Unlock button type as shown in the picture : Slide the mounting foot of flash into the hotshoe of the Air R. - Page 9 Receiver Air R. 2) Power them on until ready. 3) Make sure that the group selected on the Air R is not turned off at thr commander Air 1. Press the pilot button on the Commander Air 1 to cause your grouped a flash unit to emit flash.
-
Page 10: Wireless Flash Shooting
- The binding setting is memorized and remains unchanged when power on/off. - For a test-flash, press the pilot button on the NAS commander. - The Nissin commander attached to the camera is called the master unit, and a flash that is wirelessly controlled is called slave unit. - Page 11 (wireless), you can change the transmission channel. Nissin Air R channel select in auto mode. Set the Channel “Ch” dial to 'Auto'. Nissin Air R channel select manually.
- Page 12 Front indicator will blink in Green/ Red color Green = GN25-49 Hold 6 sec Red = GN50-65 Control the Flash “Beep” sound On/Off Nissin commander Air 1 Air 1 “Beep” On/ Off Commander 1. Press On/Off switch Orange 2. Color change on Pilot button...
- Page 13 Use build in stand which can be placed either on a flat surface, or Air R also can be mounted on the Autoflash shooting using Two slave groups tripod by the screw. NAS Flash /...
-
Page 14: Specifications
Specifications Type For Nissin digital flashes & Original flashes Wireless system Radio category Radio specifications 2.4GHz ISM band (Obtaining technical standards conformity certification) Channel 8 channels, auto select or manual select Flash Groups A, B, C (3 Groups) Power Source 2 x AAA batteries Guide no. -
Page 15: Warranty
Warranty In case of the following reason of the defect, it may void the warranty. Please refer the respective warranty condition for details which depends on the country of purchase. 1. The product is not used in accordance with the instruction of the owner’s manual. - Page 16 Nissin Japan Ltd., Tokyo http://www.nissin-japan.com Nissin Marketing Ltd., Hong Kong http://www.nissindigital.com Design and Specifications are subject to change without prior notice. CNS_AR.Rev.0915.1.0...
