User's Information

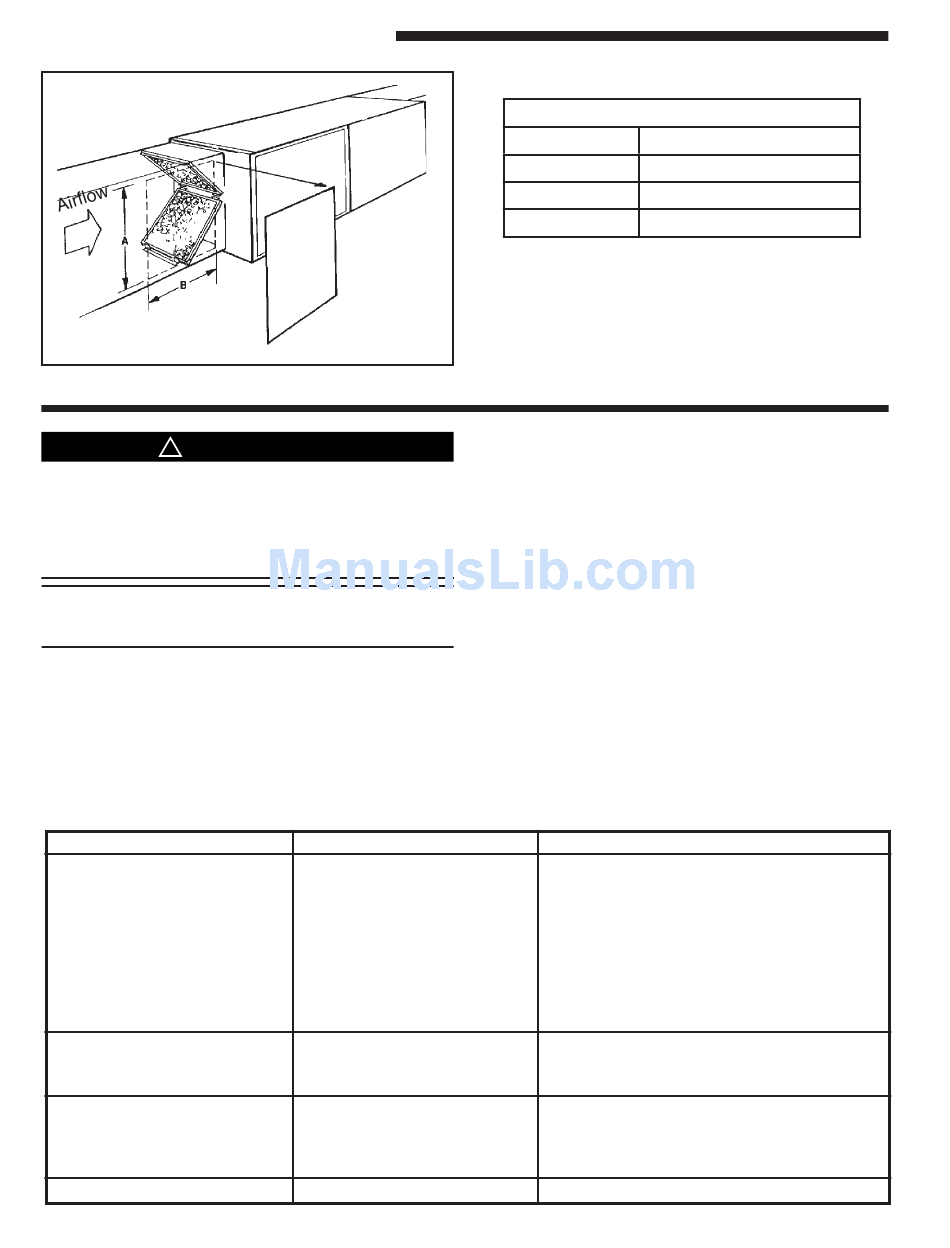

DOWNFLOW/HORIZONTAL FILTER
WARNING
▲
!
CARbON MONOXIDE POISONING HAZARD
DO NOT ATTEMPT TO CHANGE THE vENTING SySTEM.
FAILuRE TO FOLLOW THE INSTALLATION AND OPER-
ATION INSTRuCTIONS FOR THE vENTING SySTEM'S
OPERATION COuLD RESuLT IN CARbON MONOXIDE
POISONING OR DEATH.
NOTE: Improperly sized vents can cause the formation
of condensate, combustion gas leakage and spillage,
and an inoperable furnace.
A furnace is not a household appliance. It is complex
and requires professional maintenance and repair.
Attempts at "do-it-yourself" repairs on an in-warranty
unit may void the remainder of your warranty.
Save time and money. before calling for service, check the following:
Problem
No Heating –
Blower does not operate.
Insufficient Heating –
Blower operates continuously.
No Heat – Vent motor is running.
unusual Noise
8

The Problem Solver

Other than performing the simple maintenance rec-
ommended in this manual, you should not attempt to
make any adjustments to your furnace. Your dealer
will be able to take care of any questions or problems
you may have. A periodic inspection of your furnace
should be made by a qualified service agency at the
start of each heating season.
In the event that electrical, fuel, or mechanical failures
occur, immediately turn the gas supply off at the man-
ual gas valve located on the gas pipe leading to the fur-
nace before turning off electrical power to the furnace.
Contact a qualified service agency.
Keep your furnace looking like new for years.
Clean the enamel finish of your furnace with ordi-
nary soap and water. For stubborn grease spots, use
a household detergent. Lacquer thinner or other syn-
thetic solvents may damage the finish.
Possible Trouble
1. Thermostat set incorrectly.
2. Blown fuse or tripped
circuit breaker.
3. Defective component.
4. Burner does not ignite.
5. Main gas line turned off.
6. Blower door removed or ajar.
7. Lockout
1. Dirty air filters.
2. Blocked supply or return
registers.
1. Restricted or plugged furnace
Condensate drain.
DOWNFLOW (vertical) FILTER TAbLE
REquIRED FILTERS - DOWNFLOW
CAbINET WIDTH FILTER quANTITy & SIZE
17-1/2" 2 - 14" X 20" X 1"
21" 2 - 16" X 20" X 1"
24-1/2" 2 - 16" X 20" X 1"
Possible Remedy
1. Adjust thermostat. See operating instructions.
2. Replace or reset protective device or call for servicer.
3. Most controls are automatic and will recycle. If your
unit still does not operate call for servicer.
4. Call servicer.
5. Have gas company check.
6. Close door securely to restore power to
blower and gas valve.
7. Turn power on-off-on-off twice in 30 seconds.
1. Clean or replace filters.
2. Make sure registers are open and
No obstacles blocking off the air.
1. Remove drain clamps to condensate trap
and drain pan outlet.
2. Flush or clean drain blockage.
3. Reinstall clamps.
Call your servicer
32-5035-13
