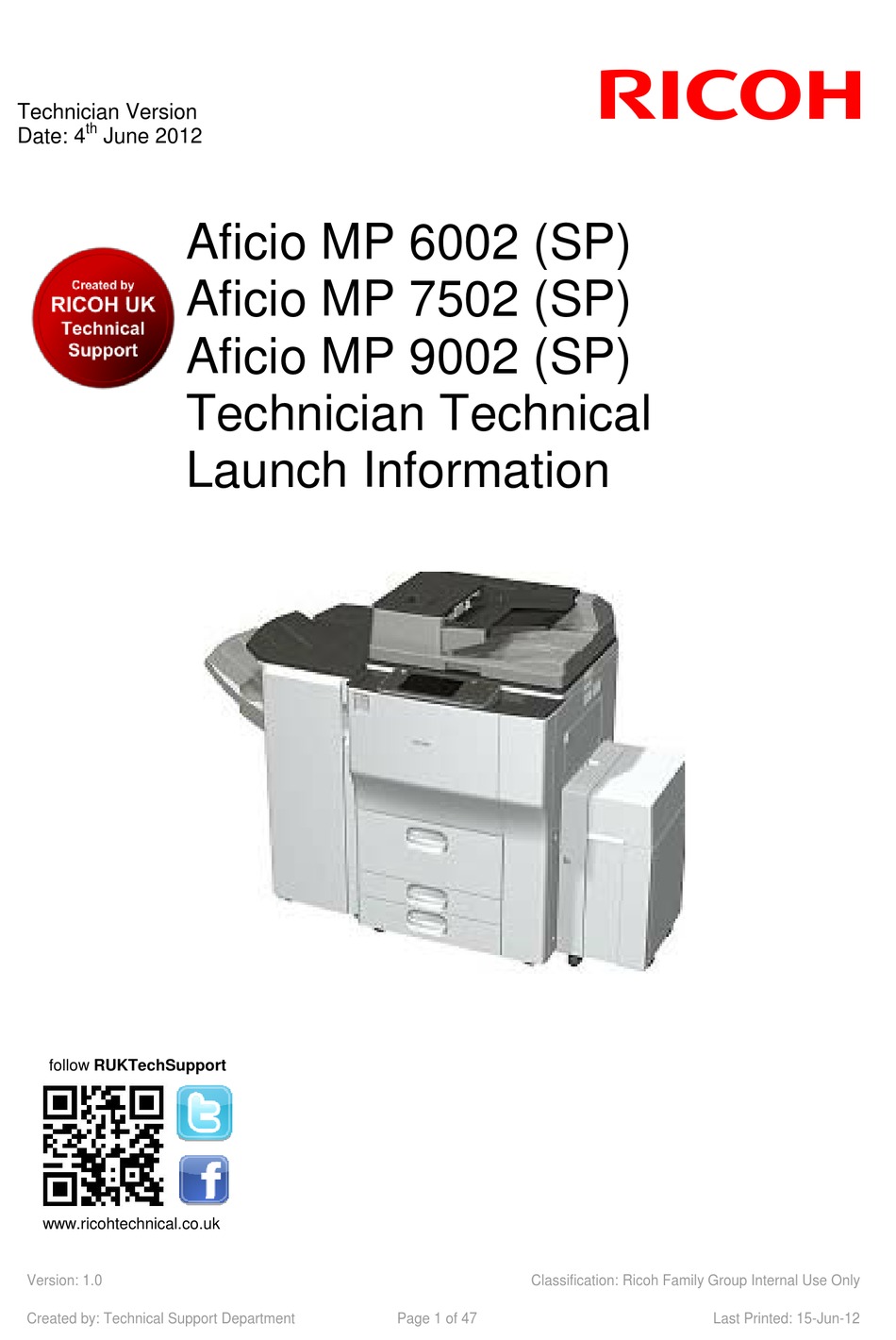

Technician Version
th
Date: 4
June 2012
follow RUKTechSupport
www.ricohtechnical.co.uk
Version: 1.0
Created by: Technical Support Department
Aficio MP 6002 (SP)
Aficio MP 7502 (SP)
Aficio MP 9002 (SP)
Technician Technical
Launch Information
Classification: Ricoh Family Group Internal Use Only
Page 1 of 47
R
Last Printed: 15-Jun-12

Advertisement

Table of Contents
loading

Related Manuals for Ricoh Aficio MP 6002

Summary of Contents for Ricoh Aficio MP 6002

  • Page 1 Aficio MP 6002 (SP) Aficio MP 7502 (SP) Aficio MP 9002 (SP) Technician Technical Launch Information follow RUKTechSupport www.ricohtechnical.co.uk Version: 1.0 Classification: Ricoh Family Group Internal Use Only Created by: Technical Support Department Page 1 of 47 Last Printed: 15-Jun-12...
  • Page 2 15/06/2012 MP6002/7502/9002 Technical Launch Information DOCUMENT REVISION LIST REVISION DATE CHAPTER PAGE DESCRIPTION...

  • Page 3: Table Of Contents

    15/06/2012 MP6002/7502/9002 Technical Launch Information Table of Contents 1.  INTRODUCTION 6  1.1  GENERAL 6  1.2  INSTALLATION 6  1.3  WARRANTY 6  1.4  CAUTIONS 6  2.  CONFIGURATION 7  2.1  COPIER 7  2.2  NRG BRAND PLAQUE 7  2.3  EXTERNAL OPTIONS 8  2.4  INTERNAL OPTIONS 9 ...
  • Page 4 8.12  JOGGER UNIT SR4040/4030 40  8.13  FAX UNIT 40  8.14  MODEL OVERVIEW 40  9.  TECHNICAL DOCUMENTATION 41  9.1  RICOH TECHNICAL BULLETIN (R.T.B.) 41  9.2  MODIFICATION BULLETIN (M.B.) 41  9.3  PCIL 41  9.4  SERVICE MANUALS / PARTS CATALOGUES 41  9.5  RICOH UK TECHNICAL WEBSITE 41 ...
  • Page 5 15/06/2012 MP6002/7502/9002 Technical Launch Information 12.  PERFORMANCE DATA 44  12.1  PRODUCT DESIGN LIFE 44  12.2  RELIABILITY TARGETS 44  12.3  AVERAGE MONTHLY VOLUME 44  12.4  MAXIMUM MONTHLY VOLUME 44  12.5  PM PARTS (MAINFRAME) 45  12.6  SUPPLIES 45  12.7  STAPLES 46  13.  QUICK REFERENCE GUIDE 47 ...

  • Page 6: Introduction

    Please refer to Section 11 for full details on Warranty cover on this product. 1.4 CAUTIONS Ricoh carries out a continuous program of product development and improvement. Therefore specifications, parts, code numbers and prices are subject to change and should always be verified with current documentation.

  • Page 7: Configuration

    15/06/2012 MP6002/7502/9002 Technical Launch Information CONFIGURATION 2.1 COPIER UNIT TYPE PRODUCT NUMBER EDP CODE Aficio MP6002 D131-27 416398 Aficio MP6002SP D132-67 416399 Aficio MP7502 D133-27 416400 Aficio MP7502SP D131-67 416401 Aficio MP9002 D132-27 416402 Aficio MP9002SP D133-67 416403 English Operating Instructions 975042 Document Feeder is fitted as standard with these products.

  • Page 8: External Options

    15/06/2012 MP6002/7502/9002 Technical Launch Information 2.3 EXTERNAL OPTIONS OPTION NAME EDP CODE Finisher 3000 Sheets (100 sheet stapler) SR4080 415900 Output Jogger Unit Type Output Jogger Unit For SR4080 416231 9002B Finisher 3000 Sheets (50 Sheet Staple) SR4060 415901 Finisher 2000 Sheets Booklet Finisher SR4070 415902 Output Jogger Unit Type...

  • Page 9: Internal Options

    15/06/2012 MP6002/7502/9002 Technical Launch Information 2.4 INTERNAL OPTIONS OPTION NAME EDP CODE Optional Counter Interface Unit Optional Counter Interface Unit 413012 Type A 32MB Type BUK 32MB Type buk 924424 Data Over Write Security Unit Type Data Over Write Security Unit 416373 Copy Data Security Unit Copy Data Security Unit Type F...

  • Page 10: Option Interchangeability

    15/06/2012 MP6002/7502/9002 Technical Launch Information 2.6 OPTION INTERCHANGEABILITY ITEM PRODUCT NAME REMARKS Paper 11”X17” / A3 Tray Unit Type 9002 New Item Drawers Tab Sheet Unit Tab Sheet Holder New Item Type 9002 A4/LT LCT RT4010 New Item LG Unit For LCT 81/2”X14”...
  • Page 11 15/06/2012 MP6002/7502/9002 Technical Launch Information DataOverwriteSecurity Unit Type Data Overwrite Unit Security Unauthorized Copy Guard Option Copy Data Security Unit Type F Common to AP-C2 Unit HDD Encryption HDD Encryption Unit Connect Copy Connector (Common to Katana- Copy Connector Copy Type3260 Device SDK VM Card...

  • Page 12: Option Correlation Interchangeability

    15/06/2012 MP6002/7502/9002 Technical Launch Information 2.7 OPTION CORRELATION INTERCHANGEABILITY 1.DTL/A3 Tray 2.Tab Sheet Holder 3.LCT 4.LCT LG Unit X X X X X X X X X 5.Copy Tray 6.50sheet staple Fin SR4060 7.50 sheets staples with Saddle Stitch Fin SR4070 8.100sheet Staple Fin X X X SR4080...

  • Page 13: Upgrade Path

    15/06/2012 MP6002/7502/9002 Technical Launch Information 2.8 UPGRADE PATH MP6002 MP7502 MP9002 Base models – no printing or scanning capabilities. Can have Printer / Scanner and all other options added. MP6002SP MP7502SP MP9002SP As base models but with printing and scanning capability. Can have all other options added.

  • Page 14: Specification

    15/06/2012 MP6002/7502/9002 Technical Launch Information SPECIFICATION 3.1 COPIER ITEMS SPECIFICATION Configuration Console Printing Process Four laser beams & Electro-photographic printing Scanning Element Simultaneous Double Sides Scanner Flatbed with fixed CCD array image-sensing and Sheet through with fixed CIS array image-sensing Original Type Book/Sheet/Object Original Size...

  • Page 15: Options

    15/06/2012 MP6002/7502/9002 Technical Launch Information Tray: 550 sheets Tray: 550 sheets Bypass: 100 sheets Maximum paper capacity 8,300 sheets LCT: 4,000 sheets Output capacity 500 sheets/A4,LT 250 sheets/A3, 11” x 17” Memory Capacity RAM:512MB( Standard ) RAM:1GB (Upgrade) 1 GB (Base) 1.5 GB ( SP) HDD: 250 GB Rating power spec.

  • Page 16: Lcit Rt4010 (D613)

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.2.2 LCIT RT4010 (D613) 4,000 sheets Paper capacity 2500 sheets (*3) A4 LEF, B5 LEF, 8 Limitations The following types of paper cannot be Multi-folded Translucent paper OHP transparencies Labels Tab stock Thick paper Paper of low stiffness Paper Sizes Multi-fold and punch cannot be used at the same time Multi-folding unit and cover interposer can be installed...

  • Page 17: A3 Tray (Type 9001 - D482)

    FILE FORMAT CONVERTER (TYPE E – D377) When retrieving Document Server data that has been stored using copy or printer applications, a File Format Converter is required. By attaching this option, the Ricoh unique format is converted to a common file format (PDF / TIFF /JPEG).

  • Page 18: 3000 Sheet Finisher (Sr4080 - D610)

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.2.7 3000 SHEET FINISHER (SR4080 – D610) UPPER TRAY Paper Capacity (80 g/m 500 sheets (A4, 8½" x 11" and smaller) 250 sheets (B4, 8½" x 14" and larger) Paper Size A3 to A6 SEF, 11" x 17" to 5½" x 8½", 12" x 18" Paper Weight 52 to 216 g/m Upper Tray Full Detection...

  • Page 19: Punch Unit (Type 1075 - B531)

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.2.8 PUNCH UNIT (TYPE 1075 – B531) Punch Specifications Punching Allowed All modes Allowed Paper Sizes Holes Feed Paper Size 2 holes A3 ~ A5, 11" x 17" ~ 51/2" x 81/2" A4 ~ A5, 81/2" x 11", 51/2" x 81/2" 4 holes A3, B4, 81/2"...

  • Page 20: 2000 Sheet Finisher (Sr4060 - D611)

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.2.10 2000 SHEET FINISHER (SR4060 – D611) Dimensions W x D x H 657 x 613 x 960 mm Weight Less than 63kg Less than 65kg with punch unit Power consumption 96W or less Noise 71dB or less Configuration Console type attached base unit...

  • Page 21: Lg/B4 Kit (Type Type 9002 - B474)

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.2.11 LG/B4 KIT (TYPE TYPE 9002 – B474) Paper Size B4, 8½" x 14", A4 SEF,8½" x 11" SEF Paper Weight 52 ~ 128 g/m Tray Capacity 1,000 sheets (80 g/m 3.2.12 PUNCH UNIT FOR SR4060/4070 (TYPE 3260 – B702) Variety of punch 2 –...

  • Page 22: Multi-Folding Unit (Fd4000 - D615)

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.2.2 MULTI-FOLDING UNIT (FD4000 – D615) Multi-folding unit FD4000 is a new option. This can be attached with both 100 staple finisher and 50 staple/saddle stitch finisher. Item Specification Folding Single sheet Z-fold, type half fold/print inside, half fold/print outside, letter fold-in/print inside, letter fold-in/print outside, letter fold-out, double parallel/print inside, double parallel/print...

  • Page 23: 3000 Sheet Finisher (Sr4080 - D610)

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.3 3000 SHEET FINISHER (Sr4080 – D610) This finisher provides corner stapling only. Dimension (W x D x H) 800 x 730 x 980 mm Weight Less than 65 kg Power Consumption Less than 100 W Noise Less than 78 db Configuration...

  • Page 24: Printer Specification

    TCP/IP (IP v4, IP v6), IPX/SPX* MIB-II(RFC1213), Standard Host Resource (RFC1514), Printer Mib (RFC1759), MIB support Printer Port Monitor MIB Private Ricoh Original Windows: XP/Vista/Server2003/Server2008/Server2008R2/7, Netware: 6.5 or later* Unix: Sun Solaris, HP-UX, SCO OpenServer, Red Hat Network/Operating Linux, IBM AIX Systems Mac: OS X 10.2 or later,...

  • Page 25: Printer Driver Specifications

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.6 PRINTER DRIVER SPECIFICATIONS PostScript3 RPCS Features PCL5e PCL6 Windows Mac OS X v.10.2 or later XP/Vista/7 Send to job Binding Send to Document Server Sample Print Locked Print Hold Print Scheduled Print Stored Print Stored Print(Shared) Store and Print Store and Print(Shared)
  • Page 26 15/06/2012 MP6002/7502/9002 Technical Launch Information Print Priority Setting :Speed Print Priority Setting :High Speed User ID User Code User Authentication Encryption/Encoding Mirror image Print Negative Image Print Edge to Edge Print Limitation Seting Classification Code Y: supported N: not supported *1: This function is not supported for PCL5e driver.

  • Page 27: Scanner Specifications

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.7 SCANNER SPECIFICATIONS 3.7.1 GENERAL SPECIFICATIONS Resolution 100 / 200 / 300 / 400 / 600 dpi (Default =200dpi) 100 – 1200 dpi (Twain: B/W) Scan Speed Colour : 55 ipm (Simplex) / 90 ipm (Duplex) Black and White: 80 ipm (Simplex) / 130 ipm (Duplex) *A4,200 dpi Max.

  • Page 28: Scan To Email

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.7.2 SCAN TO EMAIL Requirement: SMTP gateway and TCP/IP Authorization SMTP POP before SMTP Resolution: 100dpi, 200dpi (default), 300dpi, 400dpi, 600dpi Max e-mail address# in 2,000 Addresses hdd: Register group address in Max. 500 addresses minimum 100 addresses in one group hdd: address Maintain e-mail address in...

  • Page 29: Scan To Folder

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.7.3 SCAN TO FOLDER Protocol Support: SMB (Server Message Block), FTP (File Transfer Protocol) Security: Client folder log-in (log-in name and password) Encryption of log-in name and password during transmission Resolution: 100dpi, 200dpi (Default), 300dpi, 400dpi, 600dpi Register client folder Max.

  • Page 30: Fax Unit Type 9002

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.8 FAX UNIT TYPE 9002 3.8.1 GENERAL SPECIFICATIONS Circuit: PSTN, PBX Compatibility: ITU-T (CCITT) G3, Additional G3 (option), Resolution: 8 x 3.85 line/mm, 200 x 100dpi (std.), 8 x 7.7 line/mm, 200 x 200dpi (std.), 8 x 15.4 line/mm, 16 x 15.4 line/mm, 400 x 400dpi (with optional SAF memory) Compression method:...

  • Page 31: Wireless Lan

    15/06/2012 MP6002/7502/9002 Technical Launch Information 3.9 WIRELESS LAN Speed 54MBPS Protocol TCP/IP, IPX/SPX, AppleTalk Security WEP / WPA / WPA 2 Frequency 5000MHz(a), 2400 MHz (g) Operating System XP/Vista/Server2003/2008, Mac OS 3.10 DOCUMENT SERVER Items Capability HDD Capacity 250 GB HDD capacity for Document 37.32 GB Maximum stored documents...

  • Page 32: Product User Remarks

    15/06/2012 MP6002/7502/9002 Technical Launch Information PRODUCT USER REMARKS 4.1 METER READINGS Meter readings are obtained by pressing the User Tools key, followed by the Counter button on the LCD display.

  • Page 33: Environmental, Health And Safety

    15/06/2012 MP6002/7502/9002 Technical Launch Information ENVIRONMENTAL, HEALTH AND SAFETY 5.1 GENERAL Ricoh products conform to various UK and European safety standards. Please contact the RUK Environmental Department for further information.

  • Page 34: Product Training

    15/06/2012 MP6002/7502/9002 Technical Launch Information PRODUCT TRAINING Please speak to your line manager in regards to training opportunities.

  • Page 35: Installation

    15/06/2012 MP6002/7502/9002 Technical Launch Information INSTALLATION 7.1 GENERAL All products and options must be installed by recognised Ricoh trained service technicians in accordance with the procedures in the Product Service Manual (Section 1). 7.2 MINIMUM SPACE REQUIREMENTS CAUTION The MP 6002/6002SP/7502/7502SP/9002/9002SP exceeds the width of a standard (762mm/30”) doorway...
  • Page 36 15/06/2012 MP6002/7502/9002 Technical Launch Information...

  • Page 37: Installation Time

    15/06/2012 MP6002/7502/9002 Technical Launch Information 7.3 INSTALLATION TIME The following times are given as a guideline for experienced technicians after unpacking. Mainframe 30 minutes Finisher SR4080/SR4070/SR4060 10 minutes LCIT RT4010 10 minutes Multi-Folding Unit 15 minutes Cover Interposer 10 minutes CS4000 9-bin mailbox 10 minutes Punch Units...

  • Page 38: Serial Number

    M = Month of production XXXXX = Nth machine produced in that month Factory of Production Production Month Factory Location January Atsugi Japan February Gotemba Japan March Tohoku Ricoh Japan April Denso UC China June July August Sindoh Korea September October France...

  • Page 39: 3000 Sheet Finisher (100 Sheet Stapler)

    15/06/2012 MP6002/7502/9002 Technical Launch Information 8.2 3000 SHEET FINISHER (100 SHEET STAPLER) DESTINATION NAME PRODUCT CODE SERIAL Generic SR4080 D610 - 17 8.3 3000 SHEET FINISHER (50 SHEET STAPLER) DESTINATION NAME PRODUCT CODE SERIAL Generic SR4070 D612 - 17 8.4 2000 SHEET FINISHER DESTINATION NAME PRODUCT CODE...

  • Page 40: Punch Unit Sr4070/4060

    Y = The last digit of the year of production. MM = Month of production. Range: Japan production: 01 (Jan) to 12 (Dec) Sindo Ricoh production: 13 (Jan) to 24 (Dec) RPL production 25 (Jan) to 36 (Dec) RIF production:...

  • Page 41: Technical Documentation

    15/06/2012 MP6002/7502/9002 Technical Launch Information TECHNICAL DOCUMENTATION 9.1 RICOH TECHNICAL BULLETIN (R.T.B.) Issued on a regular basis to provide the latest technical information. Before using the Hotline procedure, refer to the R.T.B.'s that contain the latest information on field activities, modification kits, problem solving and manual changes.

  • Page 42: Technical Support Department

    All requests for assistance must be placed through the RUK helpdesk, having met the helpdesk criteria. Prior to the Ricoh representative attending the site the product must have been serviced in accordance with the recommended Ricoh Service Procedure, i.e. PM's must be up to date, and a full current SMC data list provided to the support specialist.

  • Page 43: Warranty

    MP6002/7502/9002 Technical Launch Information 11. WARRANTY Ricoh UK Ltd. will warrant manufacturer fitted spare parts in excess of £30 for a period of thirteen months from date of invoice. This policy does not apply to consumable items or any part with a published consumable life.
  • Page 44 12.2 RELIABILITY TARGETS The following figures represent target averages for an established machine population, using Ricoh supplies and serviced by fully experienced technicians. They are intended for planning purposes only, since the actual performance may vary due to environment, customer requirements, geographical situation and machine population.
  • Page 45 Cleaning WEB 450,000 AE044068 Cleaning WEB PressureRoller 450,000 AW100132 Inner Back Fusing Thermistor 450,000 AW100131 Thermistor Center 450,000 AA012128 Filter 300,000 12.6 SUPPLIES 885098 Ricoh Toner Type 6210D Black 43,000 B0649640 Ricoh Developer Type 24 Black 350,000 B2469510 Drum 1,200,000...
  • Page 46 15/06/2012 MP6002/7502/9002 Technical Launch Information 12.7 STAPLES EDP CODE DESCRIPTON YIELD 411240 Staple Cartridge Type L (SR4060) 2000 411241 Staple Refill Type L (SR4060) 8000 410508 Staple Cartridge Type H (SR4080) 5000 410509 Staple Refill Type H (SR4080) 25000 410801 Staple Cartridge Type K (SR4060/4070) 5000 410802...

  • Page 47: Quick Reference Guide

    15/06/2012 MP6002/7502/9002 Technical Launch Information 13. QUICK REFERENCE GUIDE ITEM CODE PAGE Aficio MP6002 416398 Aficio MP6002SP 416399 Aficio MP7502 416400 Aficio MP7502SP 416401 Aficio MP9002 416402 Aficio MP9002SP 416403 NRG Brand Plaque’s Various Product Design Life MP6002/7502/9002 9000K Or 5 years MCBC 120K Average Monthly Volume MP6002...
