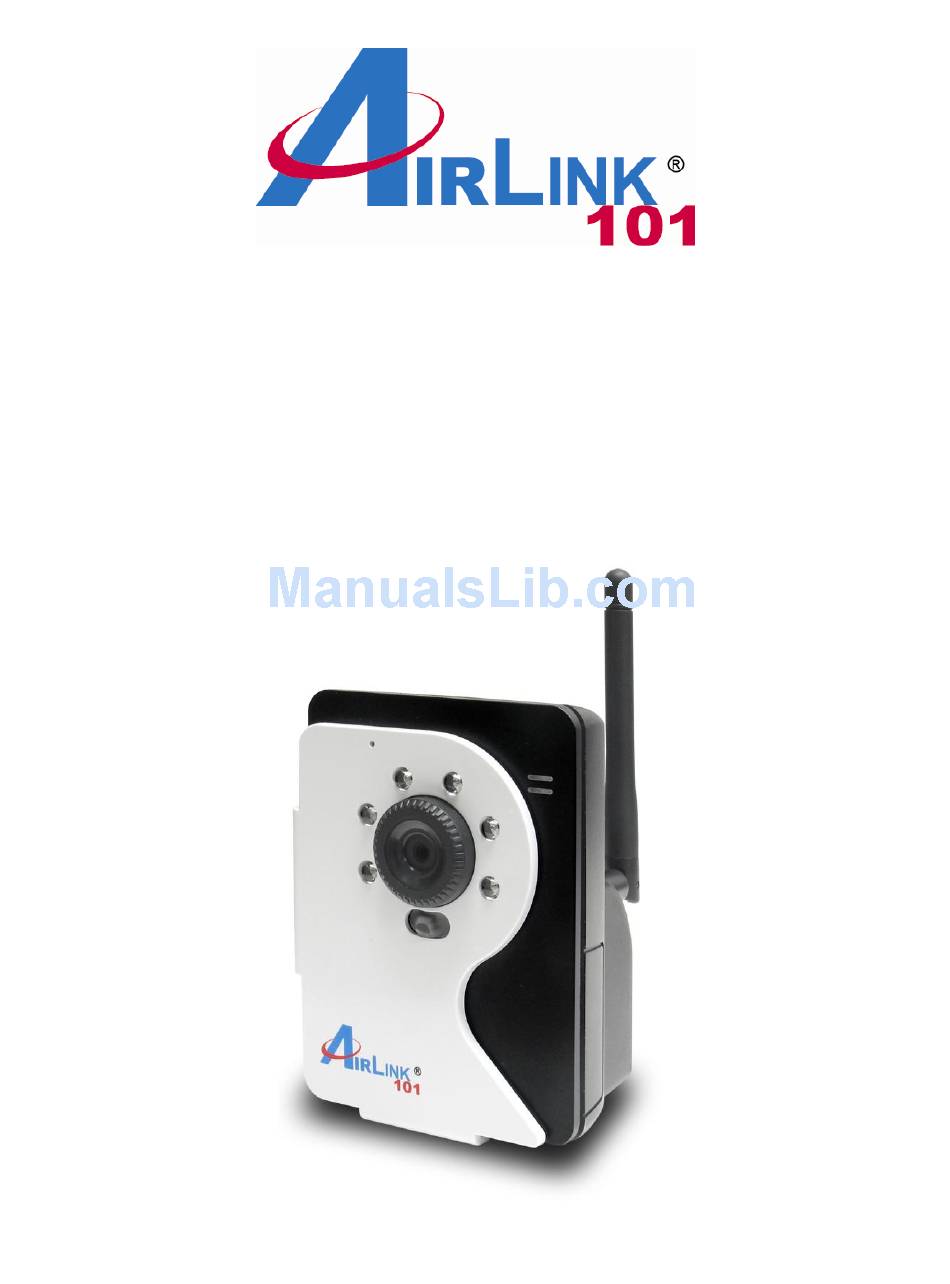

- Page 1 Quick Installation Guide SkyIPCam1500Wv2 Wireless N Night Vision Network Camera Model # AICN1500Wv2 Ver. 1A...
-
Page 2: Package Contents
Package Contents • Wireless N Night Vision Network Camera AICN1500Wv2 • Antenna • Camera Stand • Power Adapter • Ethernet Cable (Cat.5) • Utility CD • Quick Installation Guide System Requirement • Accessing the Camera using Web Browser - Supported Browsers*: Microsoft® Internet Explorer 6.0 or above;... -
Page 3: Getting Started
Section 1 This Quick Installation Guide only provides basic instructions for installation. For detailed information on using this product, including the bundled software SkyIPCam UltraView, please refer to the User’s Manual on the supplied CD. Getting Started Step 1.1 Attach the enclosed external antenna to the camera. Step 1.2 Connect one end of the Ethernet cable to the IP Camera and connect the other end to one of the LAN ports on your router or switch. - Page 4 Section 2 Installing the SkyIPCam Utility and UltraView Step 2.1 Insert the provided CD into your computer’s CD ROM drive. Step 2.2 Click on Install Utility and Software.
- Page 5 Note: If you do not see the autorun menu pops up on the screen. Please go to your CD-ROM drive > UltraView folder > run “Setup.exe”. Windows 7 and Vista users: an AutoPlay window pops up on screen, please make sure you give permission to run the setup program by clicking Run Autorun.exe.
- Page 6 Step 2.4 Click Finish when installation has finished.
-
Page 7: Configuring The Camera
Section 3 Configuring the Camera Step 3.1 Go to Start > (All) Programs > Airlink101 SkyIPCam UltraView > SkyIPCam Utility. Step 3.2 Click on Search to find the camera on your network. Select the Camera you wish to configure and click on Link. - Page 8 Step 3.3 You may simply accept the suggested default setting DHCP if your router’s DHCP server is enabled, so the router will automatically assign a dynamic IP address to your camera. Another option is to select Static IP, you can manually change the last 3-digit number of the IP Address, in case that the suggested one has already been used by another device in the same network.
- Page 9 Step 3.4 Once the utility has saved the changes, it will return to the original screen. Select your camera from the list and click Link. Step 3.5 When you are prompted for the user name and password, enter “admin” for both User name and Password, and click OK.
- Page 10 Step 3.6 The camera viewing window will appear. Click on Setup, and then click on Smart Wizard. Step 3.7 Enter a name for your camera and a location if you like. Then enter “admin” for both Admin Password and Confirm Password. Click Next.
- Page 11 Step 3.8 You can change the camera’s IP settings in the below window. If you have done this in Step 3.3, click Next and go to the next step. Step 3.9 If you would like to set up email alerts that you can receive in the future, enter your email information here.
- Page 12 Step 3.10 Enter the wireless information according to your wireless router’s (or access point’s) setting if you would like to connect the camera wirelessly to the network. You can log into the router’s (or AP’s) web configuration pages to get the SSID and encryption details.
- Page 13 Step 3.11 Confirm your settings at the last window. If everything is correct, click Apply and the configuration is completed.
-
Page 14: Viewing Images
Section 4 Viewing Images Method 1 --- Access from Web Browser Step 4.1 If you know the IP address of your network camera, you may open the Web Browser on your computer. Step 4.2 Type the IP address of your camera (the default IP is 192.168.2.240) in the Address bar, and then press [Enter]. - Page 15 Step 4.4 If it is the first time for your computer to access the Web based viewing page, you may be prompted to install the software of ActiveX Control. Click on the bar on top of the screen and click on Run Add-on or Install ActiveX Control (depends on different IE versions).
- Page 16 Step 4.6 To get a clear view of images, you can simply rotate the camera’s lens clockwise or counter-clockwise to adjust the focus.
- Page 17 Method 2 --- Access from SkyIPCam Utility Step 4.7 Go to Start > (All) Programs > AirLink101 SkyIPCam UtraView, and open the Airlink101 SkyIPCam Utility. Step 4.8 Select your camera from the list and click on Link. Step 4.9 Follow Step 4.3 to Step 4.6 mentioned in Method 1.
-
Page 18: Technical Support
(e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate. Specifications are subject to change without notice. All products and ® trademarks are the property of their respective owners. Copyright ©2011 AirLink101 ® ®...
