Summary of Contents for Monessen Hearth ODWR400

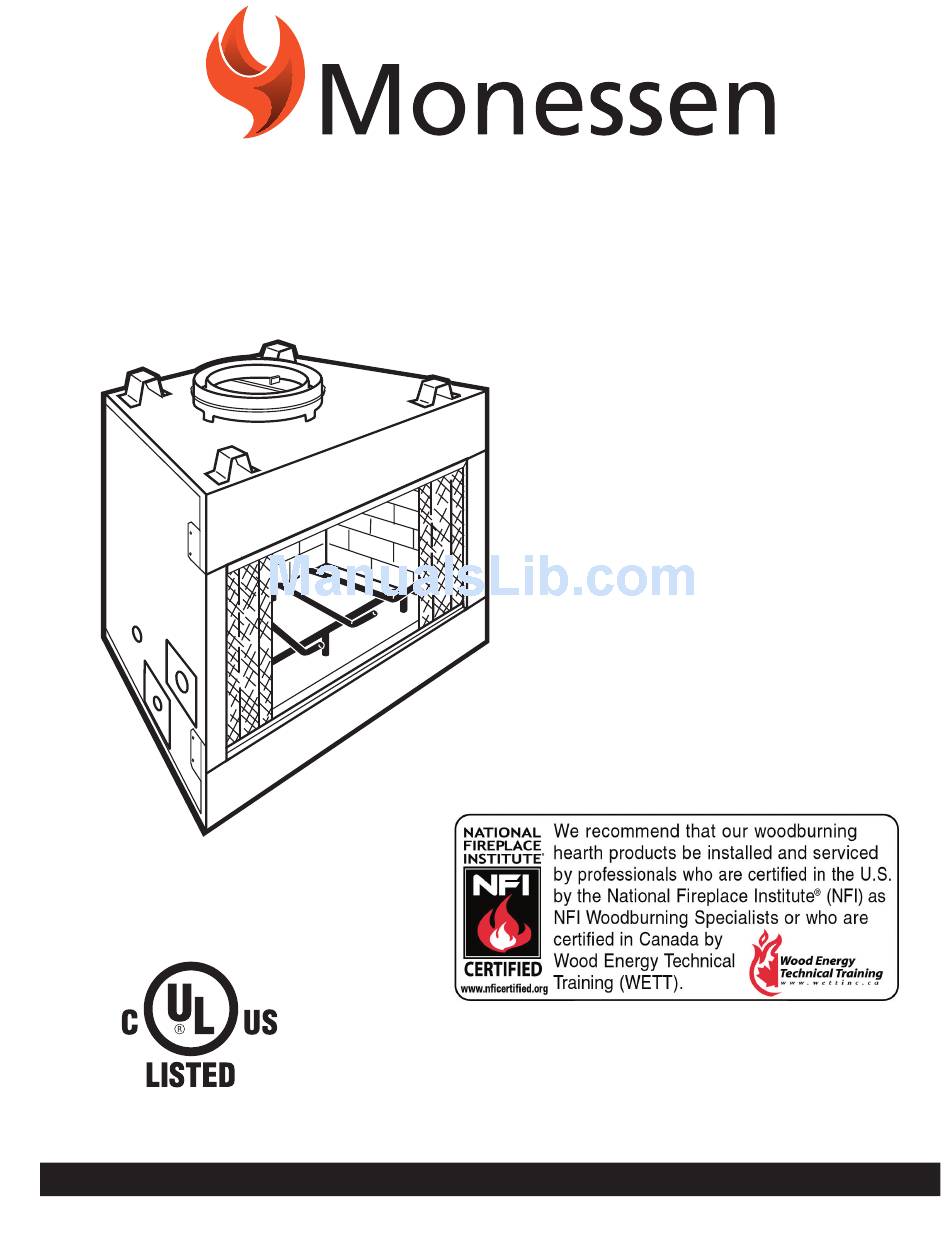

- Page 1 ODWR Series Outdoor Woodburning Fireplace For Models: ODWR400 ODWR500 Homeowner's Installation and Operating Manual SR cover 11/18/97 For use in U.S./Canada Underwriter's Laboratories Report No. MH6018 DO NOT DISCARD THIS MANUAL - Retain for future use. 87D1502 3/09 Rev. 1...
-
Page 2: Table Of Contents
Warranty ............23 Proposition 65 Warning: Fuels used in gas, wood- ODWR400 / ODWR500 burning or oil fired appliances, and the products of... -
Page 3: Safety Information
ODWR Series Outdoor Woodburning Fireplaces Safety Information NOTe: These units are intended for outdoor use in the United States and Canada using the 'SK' chimney sys- tem. These units may also be used outdoors in the United States and Canada using the 'S' chimney system with an adapter. -
Page 4: Specifications And Framing
14 " (372 mm) 11" 7 " (279 mm) (197 mm) 8" 40" (203 mm) (1016 mm) Fig. 1 ODWR400 specifications and framing. ODWR500 Woodburning Fireplace — Circulating Model 6811 ODSR36 Minimum 26 " specs Rough (667 mm) Opening 9/03 Depth 50"... -
Page 5: Hearth Dimensions
1/4" per foot away from any structure. Blocking FP1531 Front Width Back Width Depth 1/2” (13 mm) FP1531 ODWR400 31¹⁄₈" 19⁷⁄₈" 15¹⁄₂" hearth dimensions (791 mm) (505 mm) (394 mm) 9/04 djt Metal Safety Strips ODWR500 36³⁄₄"... - Page 6 ODWR Series Outdoor Woodburning Fireplaces NOTe: If the fireplace is a freestanding unit, it must be located a minimum of 10' (3 m) from the opening of the firebox to a combustible structure. A minimum height of 6'4" (1.9 m) measured from the base of the firebox to the 6'4"...
-
Page 7: Chimney Requirements
20 feet. (G 0 1 1 2 2 78" 140³⁄₄" plus H cannot exceed 20 feet.) 0 0 3 1 2 81" 146" ODWR400 ODWR500 e. A chimney support (Model SKCS8) 0 1 0 3 2 84" 151¹⁄₄" Maximum: 90'0"... -
Page 8: Planning Information
ODWR Series Outdoor Woodburning Fireplaces Planning Information Preplanning an installation is very important to ensure safety and to save time and money. An installer must TOTAL INSTALLED predetermine where a fireplace will be set and how the LENGTH LENGTH MODEL SK chimney system will be run. -
Page 9: Chimney Supports
ODWR Series Outdoor Woodburning Fireplaces Installation 0 To 10’ Insulating Fireplace enclosure 2’ Min. 0 To 10’ 3’ for Cold Climates Min. 2’ Min. If you live in a cold climate, it is not required but 3’ Min. highly recommended that you insulate fireplace enclosure to eliminate cold air penetration as much Reference as possible. -
Page 10: Framing
ODWR Series Outdoor Woodburning Fireplaces Framing Chimney Centerline Framing can be constructed before or after the fireplace Actual Centerpoint is set in place, however, most installers build the frame before setting the fireplace. Frame fireplace with 2 x 4 lumber or heavier materials. 9¹⁄₄"... -
Page 11: Cutting The Hole
ODWR Series Outdoor Woodburning Fireplaces Cutting the Hole Cover fireplace collar opening and cut proper sized chimney hole in chimney. The SK8 pipe allows you to run pipe through a typical 16” on center joist without Metal Safety cutting joists. Strips (1, 2 or 3 pieces) Framing the Ceiling Hole... -
Page 12: Installing Outside Air Kit
ODWR Series Outdoor Woodburning Fireplaces Installing Outside Air Kit elbow Strap Support Structure An outside air kit is not installed in all ODWR Fireplac- es. If desired, or if local codes mandate the use of an air kit, then an AKU1 is required . If the outside air kit is to be used, the AKU1 MUST be installed BeFORe the fireplace is enclosed. - Page 13 ODWR Series Outdoor Woodburning Fireplaces Chimney Supports Attic Installation If chimney supports are required, they are installed the Nails (4) same as elbows. Nail chimney support straps to adja- cent structural framing, as shown on, Page 9, Figure Firestop 10. Bend straps as necessary and make sure they are Spacer secure so they will support the weight of the chimney.
-
Page 14: Finishing
ODWR Series Outdoor Woodburning Fireplaces Cut and frame the hole. It is good practice to use fram- Air Space Clearances ing lumber that is the same size as the rafters. Install the frame securely because the chimney top and flash- Combustible framing material MUST NOT ing anchored to the frame must be able to withstand penetrate AIR SPACE (shaded areas). - Page 15 ODWR Series Outdoor Woodburning Fireplaces Mantel Clearance - Mantel Clearance - with Noncombustible Facing Material No Noncombustible Facing Material Combustible Mantel 12" Combustible Mantel 12" and Trim (305mm) and Trim (305mm) Finished Wall Finished Wall Max. Max. 1¹⁄₂" 1¹⁄₂" Header Header (38mm) (38mm)
-
Page 16: Side Wall Protection
INSULATION must overlap FLOOR Minimum height and width is 40" x 40". VALUE "R" " minimum ** Dimension/degree of angle will vary depending on thickness of noncombustible surround facing. ODWR400 16" 12" 48° 41° 18" 14" 7³⁄₄" 16"... - Page 17 ODWR Series Outdoor Woodburning Fireplaces Side View COMMON MATERIALS AND FACTORS Wall Covering MINIMUM MATERIAL THICKNESS Noncombus- 2 x 4 Header EH2416 tible Decorative (Do not notch 0.458 1.09 0.50 in.** (MHSC) Facing at standoffs) Seal all cracks between fireplace sur- Common Brick 0.10 5.46 in.**...
-
Page 18: Installing Line For Gas Logs
ODWR Series Outdoor Woodburning Fireplaces Installing Line for gas Logs Fireplace Top View Hole in Outer Casing Monessen fireplaces are designed to accept a 1/2" (13 mm) gas line for installation of an approved gas appli- ance. (MHSC manufactures a wide variety of gas logs 1"... -
Page 19: Replacement Parts
ODWR Series Outdoor Woodburning Fireplaces 6811 MHSC reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. ODWR400/500 Outdoor Woodburning Fireplace Item/Model Number ODWR400 ODWR500 1. Damper Weld Assembly... -
Page 20: Accessories
Accessory Descritpion Model Number Glass Door - Standard Bi-Fold set Brushed Brass finish 36GDKBBSR (ODWR400) 42GDKBBSR (ODWR500) (recommended for indoor use) Black finish 36GDKBKSR (ODWR400) 42GDKBKSR (ODWR500) (recommended for indoor use) Polished Brass finish... -
Page 21: Chimney Components
ODWR Series Outdoor Woodburning Fireplaces Chimney Components U.S. Component Description Model Number Round Top Termination Top used to terminate chimney at roof. RLTSK8 (Flashing not included.) Round Top Termination - Top used to terminate chimney at chase. RLTSK8L Extended (Flashing not included.) Flashing Metal finishing required around Contemporary 8-6-12 with 8"... - Page 22 ODWR Series Outdoor Woodburning Fireplaces (Chimney Components con't.) Canada Component Description Model Number Chimney Collar Enclosure Installs on the "over the chimney collar" of the CCE-SK fireplace; provides outside air to assist in cooling the chimney system. Attic Insulation Shield Used to prevent insulation from coming in AIS-SK contact with the chimney system.
-
Page 23: Warranty
ODWR Series Outdoor Woodburning Fireplaces LIMITeD WARRANTY Factory-Build Fireplace and Components (except Blowers) What is Covered and For How Long Five-Year Coverage: For five years from the date this fireplace and components are first purchased for use, MHSC will, at its option, repair or replace any defective part of this fireplace or components, or refund to you a sum not to exceed the factory retail price in effect at the time of purchase. - Page 24 MHSC 149 Cleveland Drive • Paris, Kentucky 40361 www.mhsc.com...
