Page 1: User Manual

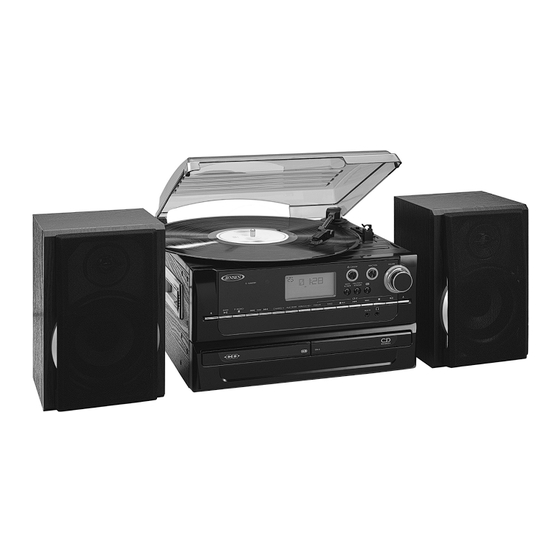

3-SPEED STEREO TURNTABLE 2 CD MUSIC SYSTEM WITH CASSETTE AND AM/FM STEREO RADIO USER MANUAL JTA-980C PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE. -
Page 2: Dear Jensen® Customer
The serial number of this product is found on its back cover. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number: JTA-980C Serial Number: __________________... -
Page 3: Important Safety Instructions
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET REFER SERVICING TO QUALIFIED PERSONNEL ONLY. The lightning flash with arrowhead symbol, CAUTION TO REDUCE THE RISK OF The exclamation point within an equilateral within an equilateral triangle is intended to... - Page 4 6. CLEAN ONLY WITH A DRY CLOTH. 7. DO NOT BLOCK ANY OF THE VENTILATION OPENINGS. INSTALL IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS. 8. DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS, HEAT REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDING AMPLIFIERS) THAT PRODUCE HEAT. 9.
- Page 5 FIGURE 1 EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE ANTENNA LEAD IN WIRE GROUND CLAMP ANTENNA DISCHARGE UNIT (NEC SECTION 810 - 20) ELECTRONIC SERVICE EQUIPMENT GROUNDING CONDUCTORS (NEC SECTION 810 - 21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250.
-
Page 6: Precaution For Use
CAUTION Note: CLASS 1 LASER PRODUCT. THIS PRODUCT COMPLIES WITH DHHS RULE 21 CFR, SUBCHAPTER J, PART 1040 AT THE DATE OF MANUFACTURE. Follow the advice below for safe and appropriate operation. ON PROTECTION AGAINST LASER ENERGY EXPOSURE o As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the casing. -
Page 7: Compliance With Fcc Regulations
• DO NOT COVER ANY VENTS AND MAKE SURE THAT THERE IS A SPACE OF SEVERAL CENTIMETERS AROUND THE UNIT FOR VENTILATION. IMPORTANT NOTES Avoid installing the unit in locations described below: • Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters. -
Page 8: Getting Started
GETTING STARTED SPEAKER CONNECTION 1. Insert the speaker cable ends (exposed wires) into the terminals located on the back of the main unit by pushing down the lever of the left speaker terminal and then the right speaker terminal 2. Connect the left speaker to the left speaker terminals with the red wire to L+ and the black wire to L -. -
Page 9: Location Of Controls And Indicators
LOCATION OF CONTROLS AND INDICATORS MAIN UNIT 1) TURNTABLE DUST COVER 2) LCD DISPLAY 3) REMOTE SENSOR 4) STANDBY MODE LED INDICATOR 5) MEMORY/CLOCK ADJUST BUTTON 6) CD 1 PLAY MODE BUTTON 7) RADIO PRESET UP (CHANNEL+) BUTTON – CD TRAY OPEN/CLOSE BUTTON –... -
Page 10: Remote Control
REMOTE CONTROL BUTTON DESCRIPTION POWER STANDBY BUTTON PRESS TO TURN UNIT POWER ON OR STANDBY 2) FUNCTION BUTTON PRESS TO SELECT RADIO/ CD 2/CD 1/PHONOGRAPH/ TAPE/AUX OPERATION MODE EXCLUSIVE FUNCTION FOR CD-2 (3 - 10) 3) PLAY/PAUSE BUTTON IN CD PLAYER MODE, PRESS TO START /PAUSE CD PLAYBACK. -
Page 11: Battery Installation
- PLAY/PAUSE BUTTON IN CD MODE, PRESS TO START/PAUSE CD PLAYBACK. IN RADIO MODE, PRESS TO SELECT AM/FM BAND - SKIP UP /DOWN IN CD MODE, PRESS TO SELECT PREVIOUS / NEXT TRACKS IN RADIO MODE, PRESS TO TUNE FREQUENCY UP/DOWN - STOP BUTTON IN CD MODE, PRESS TO STOP PLAYBACK OR PRESS IT TWICE TO... - Page 12 OPERATING INSTRUCTIONS SETTING THE CLOCK After plugging in the AC power, “- -:- -” will appear and start blinking on the LCD display. 1. In unit standby mode, STANDBY indicator lights. Press and hold the “MEM/CLK-ADJ” button, the 12 hour format 12 H will show on display and digit “12” will keep blinking. 2.
- Page 13 NOTE: Automatic tuning depends on the signal strength of the broadcasting station, so weak stations may be skipped. You can manually tune to find the weak stations if a station gets skipped. With strong signals, the tuner may stop before it reaches the actual broadcast frequency, so you may need to manually tune for the best reception.
-
Page 14: Stop Mode
The following procedure can be accomplished by using the remote and main controls on the unit. PLAYING COMPACT DISC AT The system is equipped with 2 CD players, below are the functions for GETTING STARTED 1. Press the “POWER /STANDBY”... -
Page 15: Cd Play Mode
CD PLAY MODE Press the “PLAY MODE” button before or during playback, a single track or all the tracks or shuffle track can be played in difference mode as follow: (1) REPEAT 1 TRACK (2) REPEAT ALL TRACKS (3) RANDOM OFF MODE PLAY MODE INDICATOR ON LCD DISPLAY... - Page 16 Skip Mode (Skip Up /Skip Down The system will go to the next or previous track only when you tap the Skip button during PLAY or PAUSE mode. Notes: Before pressing the “ CD2 Open/Close ” button when changing discs, press the CD 2 “STOP ”...
-
Page 17: Recording Mode
Display Information (Remote Control Only) During CD playback, press the “DISPLAY” button on remote control to toggle between elapsed time or time remaining for the track being played. RECORDING FUNCTION ON CD-2 Apart from the CD playback function, CD-2 can perform the CD recording function either from CD 1, PHONOGRAPH, TAPE or AUX modes. -
Page 18: Recording Settings
5) After completion of recording, press the “STOP ” button at CD-2 and then stop the playback of the record. III) CASSETTE RECORDING 1) Tap the “FUNCTION” button to enter “TAPE“ mode. Get the tape ready for playback. 2) Press “REC “... - Page 19 Press the “PLAY/PAUSE ” button to start finalizing and the LCD will show “busy “ during the process. After completion, the CD tray will open automatically and the “NO TOC“ indicator will disappear from LCD display when you load the disc that has been finalized. Notes: The time for finalizing is subject to the contents of the recording and it may take up to 15 minutes in some cases.
- Page 20 LISTENING TO TAPE GENERAL OPERATION 1. Tap the “FUNCTION” button to enter the “TAPE” mode. 2. The system will start playback automatically after inserting the cassette tape. 3. Adjust the volume to the desired level. 4. Press the TAPE FAST FORWARD / EJECT button half way when playing, the tape will be advanced forward rapidly.
-
Page 21: Wake-Up Timer Setting
PRESET EQ This unit provides 5 different EQ modes to enhance your listening experience. You can select the desired effect by pressing the “EQ” button on remote control repeatedly at following sequence: FLA (FLAT) CLA (CLASSIC) ROC (ROCK) JAZ (JAZZ) LINE OUT CONNECTION You can connect this unit to an external Hi-Fi / AMPLIFIER system by connecting the LINE OUT socket to the auxiliary input socket of your Hi-Fi / AMPLIFIER system with... -
Page 22: Auxiliary Input
For tuner wake up, the system will preset at the latest radio frequency being listened before switching off. ACTIVE/DE-ACTIVE TIMER FUNCTION 1. To active wake up timer function, tap the “W.TIMER” button once in standby mode, the timer indicator “ ” will appear on LCD display. 2. -
Page 23: Cassette Care
6. Always clean the outside of the cabinet thoroughly if it becomes wet with moisture or water splashes. This will help to protect the internal parts of the unit from entry of water and possible moisture damage. CASSETTE CARE Two common causes of trouble experienced when using cassettes are: 1) Tape Jamming –... -
Page 24: Cleaning The Unit
MANUALLY EJECT THE CD If the power is interrupted or if you notice a problem occurs during the CD burning process, the CD tray may not eject when the eject button is pressed. If this occurs, you will need to manually eject the CD tray to retrieve the CD following the steps below. -
Page 25: Troubleshooting Guide
TROUBLESHOOTING GUIDE SHOULD YOU EXPERIENCE DIFFICULTIES IN THE USE OF THIS PLAYER PLEASE REFER TO THE FOLLOWING CHART OR CALL 1-800-777-5331 FOR CUSTOMER SERVICE. PROBLEM POSSIBLE CAUSE SOLUTION The unit is disconnected from the Reconnect to the AC outlet. The unit does not AC outlet. -
Page 26: Specification
SPECIFICATION Power Requirement Main unit: AC120V~ 60Hz Remote control 2 x 1.5V “AAA” (UM-4) size batteries Frequency Range Radio Band FM 87.5 ~ 108 MHz AM 520 ~ 1710 KHz Power Consumption Main Unit: 22 Watts At Spectra, environmental and social responsibility is a core value of our business. - Page 27 90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A.
