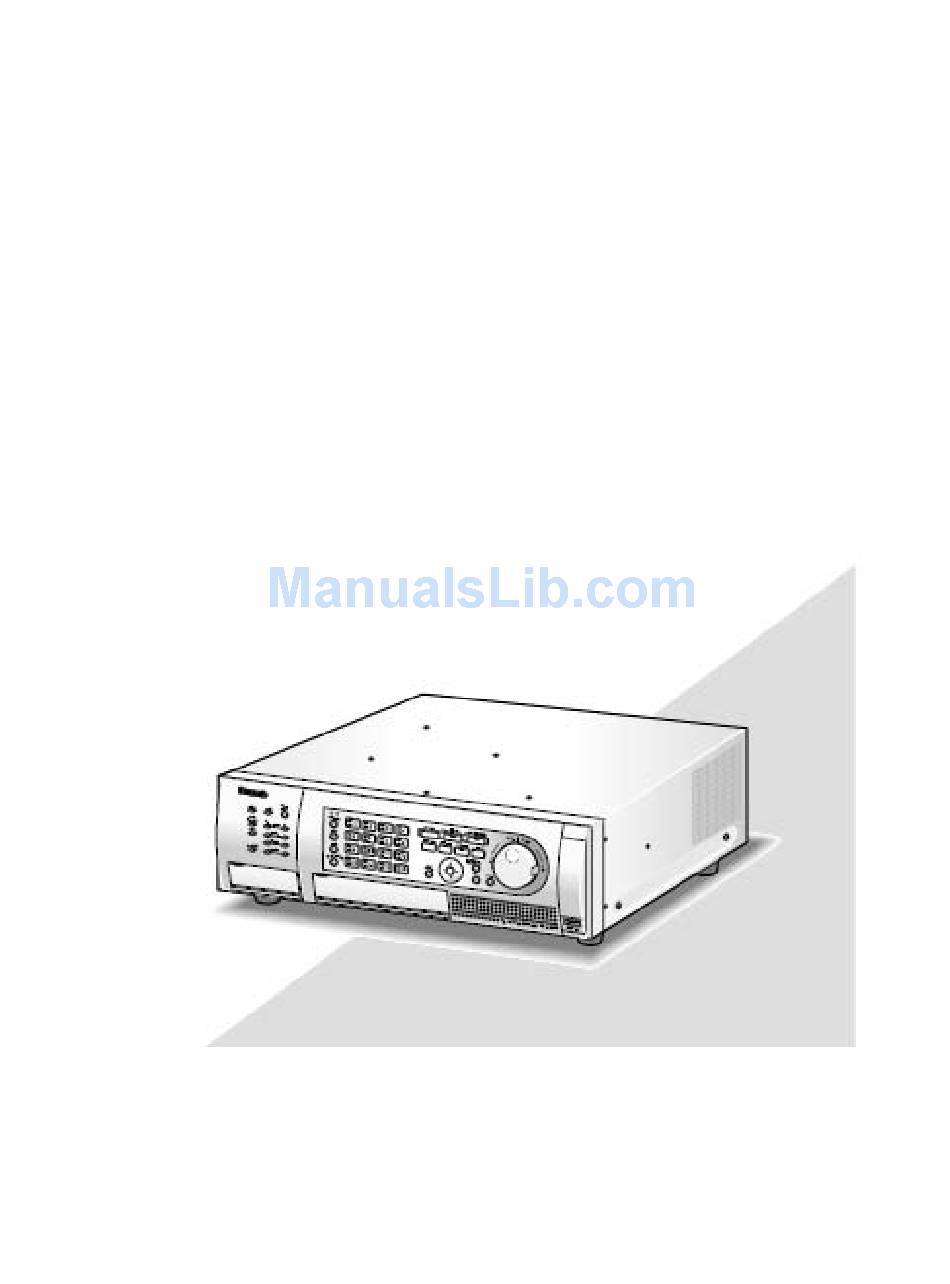

WJ-HD616K/716K

Quick Reference

Guide
Local Operation
Front Panel and USB Mouse
For a web based quick guide refer to "Remote Quick Guide"
available for download
http://panasonic.ca/english/customercare/operatinginstructions/query.asp
Ver.1.0

Advertisement

loading

Related Manuals for Panasonic WJ-HD616K

Summary of Contents for Panasonic WJ-HD616K

  • Page 1: Quick Reference

    WJ-HD616K/716K Quick Reference Guide Local Operation Front Panel and USB Mouse For a web based quick guide refer to “Remote Quick Guide” available for download http://panasonic.ca/english/customercare/operatinginstructions/query.asp Ver.1.0...
  • Page 2 Table of Contents Topic Page Table of Contents Operation - Using the USB Mouse - Using the Front Panel Operation of Submenus - Using the USB Mouse - Using the Front Panel Monitor Live images from cameras - Selecting Monitor 1 and 2 - Displaying images on 1 screen - Display Images on a Multi-screen - Display a sequence of multiple cameras...
  • Page 3 Local Access (Via USB Mouse) Operations of the Operation Panel When right clicking the mouse, the operation panel representing the front panel (Monitor control and camera selection buttons on the front panel) of the recorder will be displayed. Move the mouse cursor over a button or tab then click the left mouse button to select the operation.
  • Page 4 Local Access (Front Panel) Operations of the Front Panel Numeric Buttons – Selects the camera (1-16) for viewing on the monitor Multi-screen – Press this button to cycle through available multi-screen patterns OSD – Press to turn ON/OFF the on screen display information showing camera title, time date etc. Sequence –...
  • Page 5 Operations of the Sub Menu 2. The sub menu panel appears on the monitor -The submenu will only appear on monitor 2 output. (see page 4 for selecting monitor 1 or 2). 1. Press the [SUB MENU] button on the front panel Camera control Go to last The camera control panel and the camera menu...

  • Page 6: Monitor Live Images From Cameras

    Monitor Live Images from Cameras Select Monitor 1 or 2 Mouse Front Panel 1.Press the [MONITOR] button - each time the monitor button is pressed the monitor LED will light to indicate which monitor is selected 1. Display the operation panel by right clicking then pressing the [MONITOR] button - The monitor number will light to...

  • Page 7: Display Images On A Multiscreen

    Monitor Live Images from Cameras Display images on a Multiscreen Mouse Front Panel 1. Right click the mouse and bring up the display panel 1.Select a monitor to display the 2. Click the [MULTISCREEN] button multiscreen - Each time the button is clicked, the 2.
  • Page 8 Playback Images Display recorded images on the monitor Mouse Front Panel Step 1. Right click the mouse and bring Step 1. up the display panel. Select Select Monitor 2 to display monitor 2 playback images. Step 2. Click the [S.Menu] button. →...
  • Page 9 Functions During Playback (When Using Front Panel Buttons) Function Button Operation Pause [PLAY/PAUSE] button • Playback will resume when this button is pressed during pause. • The [PLAY/PAUSE] button will blink during pausing. Frame by frame playback Jog dial (Inside) •...
  • Page 10 Functions During Playback (When Using a Mouse) Function Operation Pause Select "REC & Playback" from the submenu, and then Frame by frame playback/ operate the displayed "REC & Playback" panel. Reverse frame by frame playback Fast forward/Fast rewind Skip Skip to the latest recorded Select "Go to last"...
  • Page 11 Search and Playback Playback of an Image at a Specific Date and Time Front Panel Mouse Step 1 Step 1 Click the submenu button then click "Go Press the [Go to Date] Button to date" - Go to date and time search window appears - Date and time window appears Step 2 Enter the Date and time and select the...
  • Page 12 Search and Playback Search for and Playback of Recorded Events Mouse Front Panel Step 1. Step 1. Click the submenu button then click Press the [SEARCH] button “Search" to display the “Search" window. - The recording event list window appears - The recording event list window appears Step 2 Select search filters.
  • Page 13 Search for and Playback of Recorded Events (Continued from previous page) Mouse Front Panel Step 5 Step 5 Select the desired recording event to Select the desired recording event to play. To select a recording event, rotate play. To select a recording event, click the inner jog dial.
  • Page 14 Search and Playback Search for Time and Date of Recorded Images When Motion was Detected (VMD Search) Front Panel Mouse Step 1. Step 1. Press the [SEARCH] button on the front panel. Click the submenu button then click “Search” to display the “Search " window. →...
  • Page 15 Search Operation of VMD Select camera channels Move the cursor onto the [Ch] button, and then press the [SET] button (click with the mouse). - The camera channel setup menu will be displayed. To select a camera channel, rotate the jog dial (inside), click the button using the mouse and click on a camera number...
  • Page 16 Step 5. After specifying the search conditions (filters), press the [SET] button after moving the cursor onto the button. (click the next button using the USB mouse). - Data matched the search conditions (filters) will be displayed on the VMD search list window. Step 6.
  • Page 17 Copy Recorded Image to SD memory Card (or DVD Option) Step 1. Insert an SD memory card into the SD card slot. Alternatively, insert and DVD into the DVD drive. (if DVD drive equipped, (optional). Step 2. Press the [Copy] button on the front panel. Note: →...
  • Page 18 IMPORTANT! Step 6. When copying on a DVD, it is necessary to complete copying by removing the DVD. (When copying on a SD memory card, it is unnecessary to take the following procedures to complete copying.) When the [Copy] button on the front panel is pressed, the "Eject media"...

  • Page 19: Operating The Cameras

    Operating The Cameras It is possible to operate the following camera operations when displaying live images from a camera with the panning/tilting and zooming function. Displaying the Camera Control Panel The panning/tilting, zooming, focus adjustment and iris adjustment can be made on the camera control panel. Front Panel Mouse Step 1...
  • Page 20 Panning and Tilting Moving the camera position horizontally side to side and vertically up and down. Front Panel Mouse Step 1 Step 1 Display the camera control panel (pg 18). Display the camera control panel (pg 18). Step 2 Step 2 Adjust the horizontal/vertical position of Adjust the horizontal/vertical position of images of the camera view using the...
  • Page 21 Focus Adjusting the focus of the camera. Manual and Auto focus is available Front Panel Mouse Step 1 Display the camera control panel (page 18), Step 1 and then press the camera selection button [2] Display the camera control panel (pg 18). on the front panel.
  • Page 22 Move a camera to a preset position Move a camera to a pre-registered preset position. Front Panel Mouse Step 1 Step 1 Display the Pan/Tilt tab of the of the camera Display the pan tilt tab of the camera control panel. (pg. 18) control panel (pg 18).
  • Page 23 Auto Functions (Auto Panning, Sequence etc.) Move a camera to a pre-registered preset position. Front Panel Mouse Step 1 Step 1 Display the “Preset/Auto” Window (pg. 21) Display the “Preset/Auto” window (pg. 21) Step 2 Step 2 Move the cursor onto "Auto mode", and then Move the mouse onto and click select the desired auto function by rotating Select one of the 8 auto functions.
  • Page 24 For more information on Panasonic security products please refer to or call www.panasonic.ca 1-877-559-8473 Ver.1.0...
