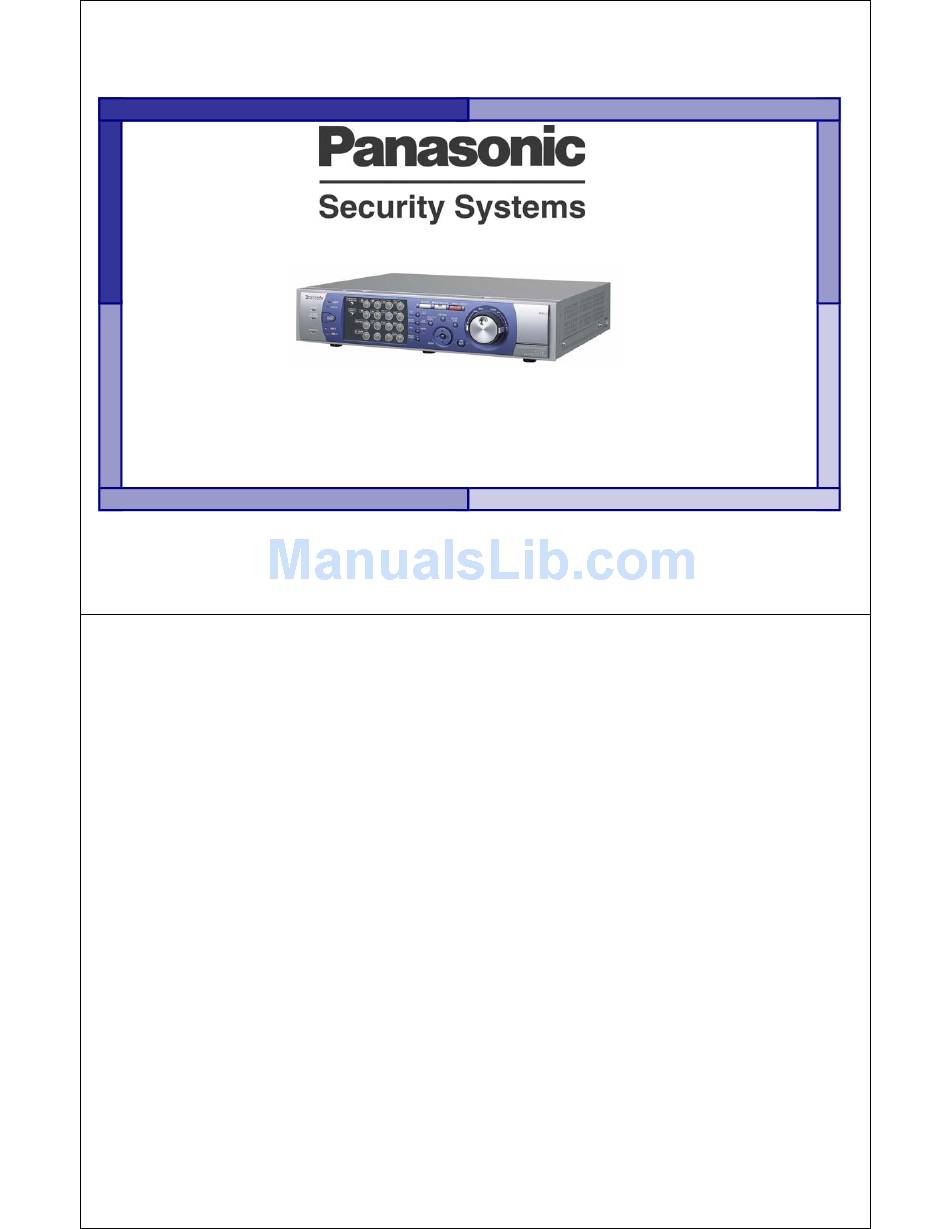

- Page 1 WJ-HD300A DVR Series Introduction to User Interface for Schedule Recording (Front Panel Advanced Setup)
- Page 2 ………………………..Application of [Schedule] settings Scenario I: Single Input …………………………………………………………………………………………………….. Scenario II: Multiple Inputs ……………………………………….………………………………………………………… Copyright © 2005 Panasonic Security Systems Key Buttons to Set a Schedule for Recording a Program/Event Jog Dial Set Button Setup/Escape Button Arrow Buttons Camera Channels (Note: The WJ-HD300DVR Series is available in either 9 channel (WJ-HD309) or 16 channel (WJ-HD316) configuration.
- Page 3 [Schedule] Setting for Recording Program/Event Program Key points to remember: Setup menu can be seen only on monitor two. A day can be divided into six time zones and you can assign programs and event action programs to each time zone to create a recording schedule.
- Page 4 Step I A. Creating a recording program [REC Program] To create a recording program, go to SETUP MENU and set up a schedule program. To set the REC Program, assign resolution (image quality) and recording rate (image per second or ips). Resolution There are four different resolutions available for you to create a REC Remember:...
- Page 5 Recording Rate for Camera Channels The total recording rate of the camera channels must be as follows: Remember: FRAME 3D ON/FRAME 3D OFF: 30 ips or less When total recording rate is more than the values FIELD: 60 ips or less on left, sections displaying maximum recording rates for each camera channel turn red.
- Page 6 Step I...continued B. Creating an event program for an event occurrence [EVENT Program] To perform setting for Event Program, assign Action Mode for each event type. You can perform settings of event action for each event type (motion detection/video loss/terminal or command alarm).
- Page 7 Video Loss/Terminal Command Alarm You can assign settings to an event function at a video loss function the same way as mentioned for VMD above. Steps II and III Creating a timetable [Time Table] and assigning REC Program/Event Program to a timetable You can create timetables for each day of the week, and assign REC Program and Event Program to each timetable.
- Page 8 Creating a [Time Table] Step 1: Open the Setup menu and go to Timetable window. Step 2: Press [SET]. A pop up window will show setting menu for timetable for every day of the week. The cursor displayed can be moved to ’MON’...
- Page 9 Creating a [Time Table]...continued Step 8: Use arrow buttons ( ) to assign the REC Program/ Remember: Event Program and move cursor to a particular time zone of the day. REC or Pre/ Post Event programs are displayed in different colors : Step 9: Rotate Jog Dial to select desired REC Program/Event Yellow = REC Program 1/Event Program 1...
- Page 10 Scenario 1: Single Input Now that you have understood the basics of creating the settings of a Setting Parameters schedule, let’s try applying them to two commonly used settings. One Camera Scheduled to record from 9 A.M. - 5 P.M. daily Operator A needs specific settings for recording program/events during Field Resolution different hours in a day with just one camera (see the box on right for...
- Page 11 Creating [REC Program] and [Event Program]...continued Step 4: Use arrow buttons ( ) to move cursor to MANUAL and turn it Remember: OFF. Repeat the step for SCHEDULE. Step 5: Use arrow buttons ( ) to go to PRE EVENT. Use Jog Dial to The maximum rate for each camera channel can set values: be set up to 30 ips for field resolution and the total...
- Page 12 Creating [REC Program] and [Event Program]...continued Step 14: Select VMD under Event Program 1 and Press [SET] to enter SETUP. Press [SET] again. Step 15: Click on OPERATION MODE to set action. Use Jog Dial and select ACT DET. Use arrow buttons to move cursor to OK and press [SET].
- Page 13 Creating [REC Program] and [Event Program]...continued Step 19: Use Jog Dial to select SENSITIVITY on status bar. Use arrow buttons ( ) to move cursor to selected SETUP AREA to set sensitivity for that area. Press [SET]. Use Jog Dial to EXIT. Sensitivity for the selected area can be set to LOW, MD, HIGH or OFF.
- Page 14 Create a [Time Table] to Assign to REC Program/ Event Program Use arrow buttons ( ) to move cursor to ‘start time’ input Step box for PERIOD 3. Rotate Jog Dial to set ‘start time’ as 5:00 P.M. and ‘end time’ as 12:00 A.M. Select OK using arrow buttons and press SET.
- Page 15 Creating [REC Program] and [Event Program] Step 1: Click [SETUP/ESC] button to open the Setup Menu Advanced. Step 2: Select SCHEDULE from Main Menu and REC PROGRAM from submenu. Use arrow buttons ( to move cursor to desired recording program. You are setting PROGRAM 1.
- Page 16 Creating [REC Program] and [Event Program]...continued Step 7: For CAM3, CAM4 and CAM5, use arrow buttons ( ) to go to SCHEDULE and set the values: RATE = 10 ips QUALITY = SFB (Be sure to disable/turn off camera inputs that are not required to be recorded.
- Page 17 Creating [REC Program] and [Event Program]...continued Step 13: Use Jog Dial to select SENSITIVITY on status bar. Use arrow buttons ( ) to move cursor to selected SETUP AREA to set sensitivity for that area. Press [SET]. Step 14: Press [SETUP/ESC] button to return to submenu page.
- Page 18 Creating a [Time Table] to Assign to REC Program/Event Program Step 18: You can copy schedule to other days of week. Go to THURS (Thursday). Press [SET[. Highlight ‘COPY THE OTHER TIME TABLE’. Step 19: Press [SET]. Use Jog Dial to select day, TUES in this case.
- Page 19 Notes _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ Notes _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________...
- Page 20 Panasonic 1-800-528-6747 Phone: CENTER SUPPORT TECHNICAL NATIONAL...
