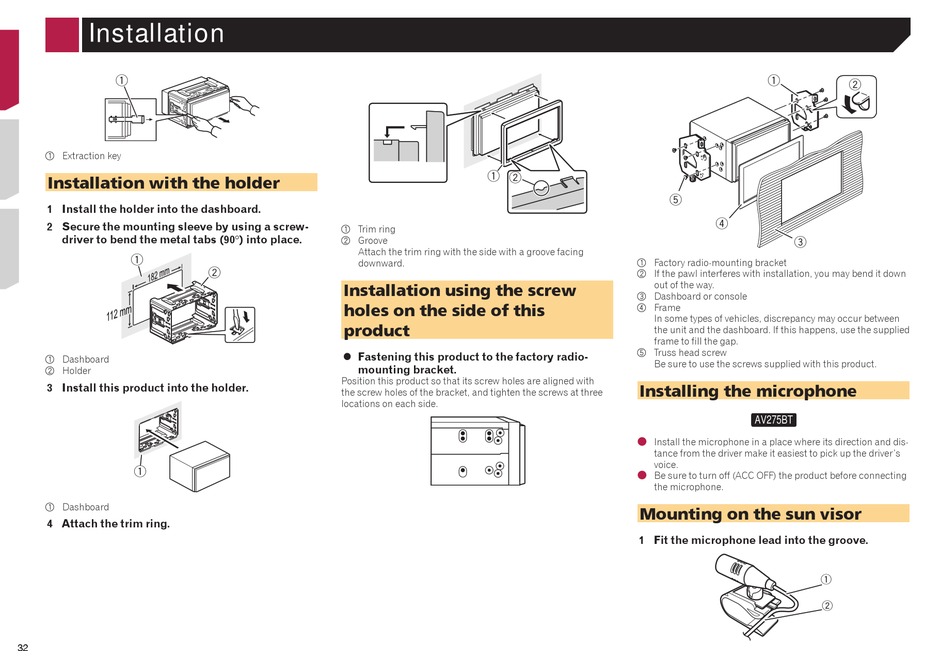

Installation
1
1 Extraction key

Installation with the holder

1 Install the holder into the dashboard.
2 Secure the mounting sleeve by using a screw-
driver to bend the metal tabs (90°) into place.
1
1 Dashboard
2 Holder
3 Install this product into the holder.
1
1 Dashboard
4 Attach the trim ring.
32
1 Trim ring
2 Groove
Attach the trim ring with the side with a groove facing
downward.
2
Installation using the screw
holes on the side of this
product
 Fastening this product to the factory radio-
mounting bracket.
Position this product so that its screw holes are aligned with
the screw holes of the bracket, and tighten the screws at three
locations on each side.
1 2
1 Factory radio-mounting bracket
2 If the pawl interferes with installation, you may bend it down
out of the way.
3 Dashboard or console
4 Frame
In some types of vehicles, discrepancy may occur between
the unit and the dashboard. If this happens, use the supplied
frame to fill the gap.
5 Truss head screw
Be sure to use the screws supplied with this product.

Installing the microphone

●
Install the microphone in a place where its direction and dis-
tance from the driver make it easiest to pick up the driver's
voice.
●
Be sure to turn off (ACC OFF) the product before connecting
the microphone.

Mounting on the sun visor

1 Fit the microphone lead into the groove.
1
2
5
4
3
AV275BT
1
2
