Motorola SYMBOL DS9808 User Manual

Motorola barcode reader user manual.


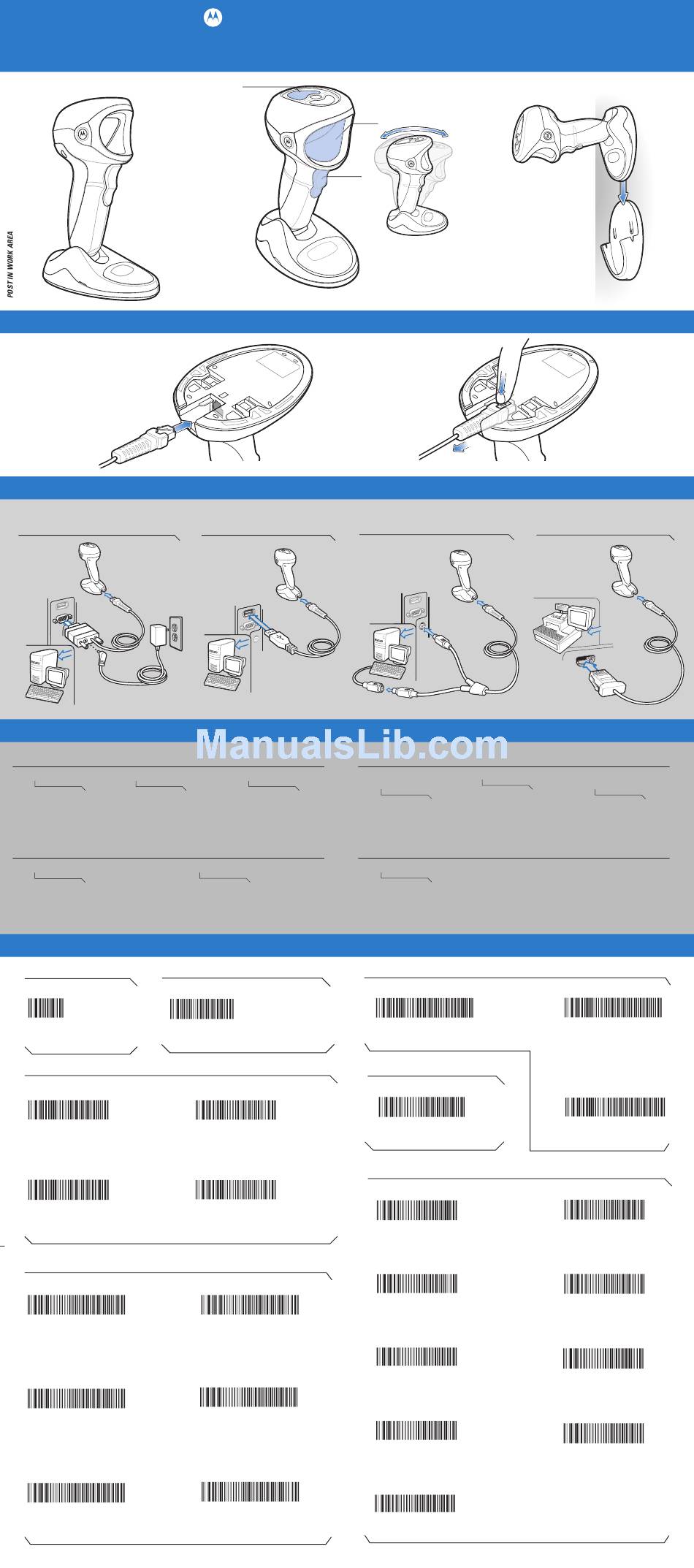

SYMBOL DS9808
Quick Start Guide
http://www.motorola.com/ds9808
See Product Reference Guide
for detailed information
RS-232
Scanner not working
No power to scanner
Incorrect interface cable used
Check system power;
Ensure that correct
ensure power supply,
interface cable is used
if required, is connected
Scanner decoding bar code, but data not transmitting to host
Scanner not programmed for correct host interface
Scan appropriate host parameter bar codes
Set Defaults
SET DEFAULTS
USB Host Types
HID KEYBOARD EMULATION
IBM HAND-HELD USB
RS-232 Host Types
STANDARD RS-232
ICL RS-232
NIXDORF RS-232 MODE A
1
CORD ATTACHMENT/REMOVAL
NOTE: Cables may vary depending on configuration
USB
TROUBLESHOOTING
Interface/power cables are loose
Ensure all cable connections
are secure
Interface cable is loose
Ensure all cable connections are secure
SYMBOL DS9808 PROGRAMMING BAR CODES
Enter Key (Carriage Return/Line Feed)
<DATA><SUFFIX 1>
SNAPI WITH IMAGING
SNAPI WITHOUT IMAGING
NIXDORF RS-232 MODE B
FUJITSU RS-232
OPOS/JPOS
2
3
1
LED Indicators
2
Scan Window
3
Scan Trigger
HOST INTERFACES
Keyboard Wedge
Scanner not decoding bar code
Scanner not programmed
for bar code type
Ensure scanner is programmed
to read type of bar code being
scanned
Scanned data incorrectly displayed on host
Scanner not programmed for correct host interface
Scan appropriate host parameter bar codes
IBM 46XX Host Types
PORT 5B
Keyboard Wedge Host Types
IBM PC/AT and IBM PC COMPATIBLE
Scan ONE of the following country types
NORTH AMERICAN
FRENCH
FRENCH CANADIAN
GERMAN
SPANISH
ACCESSORIES
Wall Mount
IBM 46XX
Power supply optional
Bar code unreadable
Ensure bar code is not defaced;
try scanning test bar code of same
bar code type
PORT 9B
PORT 17
ITALIAN
SWEDISH
UK ENGLISH
JAPANESE
Distance between scanner
and bar code incorrect
Move scanner closer to
or further from bar code
