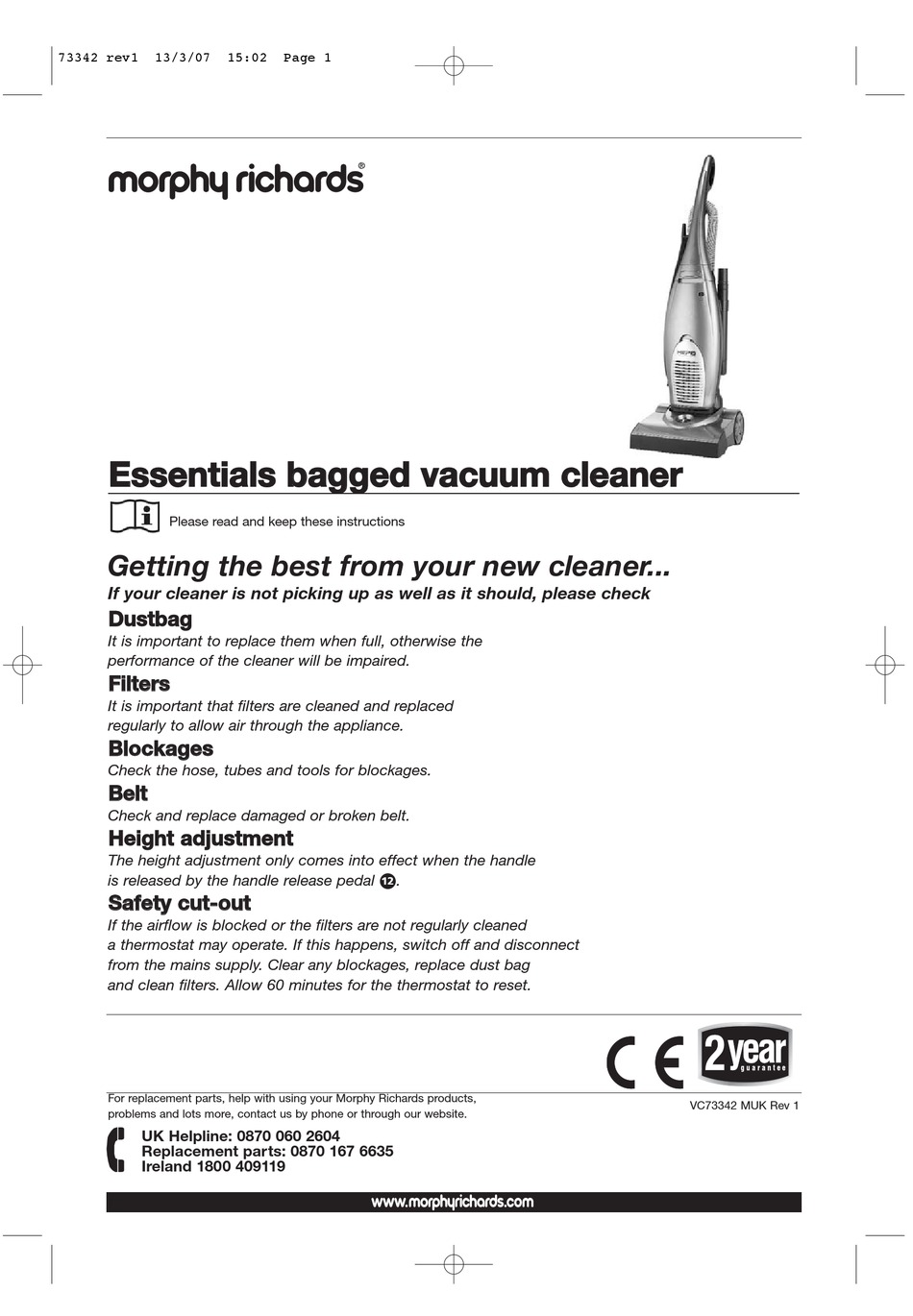

73342 rev1
13/3/07
15:02
E E s s s s e e n n t t i i a a l l s s b b a a g g g g e e d d v v a a c c u u u u m m c c l l e e a a n n e e r r
Please read and keep these instructions
Getting the best from your new cleaner...
If your cleaner is not picking up as well as it should, please check
D D u u s s t t b b a a g g
It is important to replace them when full, otherwise the
performance of the cleaner will be impaired.
F F i i l l t t e e r r s s
It is important that filters are cleaned and replaced
regularly to allow air through the appliance.
B B l l o o c c k k a a g g e e s s
Check the hose, tubes and tools for blockages.
B B e e l l t t
Check and replace damaged or broken belt.
H H e e i i g g h h t t a a d d j j u u s s t t m m e e n n t t
The height adjustment only comes into effect when the handle
is released by the handle release pedal Â.
S S a a f f e e t t y y c c u u t t - - o o u u t t
If the airflow is blocked or the filters are not regularly cleaned
a thermostat may operate. If this happens, switch off and disconnect
from the mains supply. Clear any blockages, replace dust bag
and clean filters. Allow 60 minutes for the thermostat to reset.
For replacement parts, help with using your Morphy Richards products,
problems and lots more, contact us by phone or through our website.
UK Helpline: 0870 060 2604
Replacement parts: 0870 167 6635
Ireland 1800 409119
Page 1
VC73342 MUK Rev 1
Advertisement
Table of Contents
Related Manuals for Morphy Richards Essentials Bag Vacuum Cleaner
Summary of Contents for Morphy Richards Essentials Bag Vacuum Cleaner
- Page 1 Clear any blockages, replace dust bag and clean filters. Allow 60 minutes for the thermostat to reset. For replacement parts, help with using your Morphy Richards products, problems and lots more, contact us by phone or through our website.
-
Page 2: Important Safety Instructions
Richards spare parts and accessories. • The appliance must never be left running when unsupervised. • This vacuum cleaner is intended for domestic use only. Misuse or use for commercial or any other purpose will render the guarantee invalid. •... - Page 3 73342 rev1 13/3/07 15:02 Page 3 „ · ‡ fi Â Ô FEATURES ⁄ Upper handle ¤ Flexible hose ‹ Main body › Hose connector fi Carpet height adjustment knob fl Hepa filter grille ‡ Front panel · Full bag indicator ‚...
-
Page 4: Operating The Appliance
73342 rev1 13/3/07 15:02 Page 4 OPERATING THE APPLIANCE Assembly WARNING: Do not plug in the cleaner until it is assembled. Carefully unpack all components. Lift cleaner body to upright position. Remove the two screws that are already attached to the body. From the rear of the cleaner, align the handle with groove and slide into the body. -
Page 5: Turbo Brush
73342 rev1 13/3/07 15:02 Page 5 • • • Í Switch on/off. IMPORTANT: Always fix the hose clip È to the main body slot Ë when using the hose and tools. Never over extend the hose such that the cleaner is pulled over. -
Page 6: Changing The Belt
(usually because the brush has been stalled). A spare belt is supplied. Replacement belts can also be obtained from Morphy Richards. Removing the floor nozzle cover Disconnect the cleaner from the mains supply. -
Page 7: Cleaning And Maintenance
73342 rev1 13/3/07 15:02 Page 7 Cleaning and maintenance Unplug from the mains before cleaning. The vacuum cleaner, especially the dust compartment and all accessories can be cleaned using a damp cloth or a non- abrasive cleaner and wiped dry. HELPLINE... - Page 8 Morphy Richards products are intended for household use only. Morphy Richards has a policy of continuous improvement in product quality and design. The company, therefore reserves the right to change the specification of its models at any time.
