Sony CCD-TRV15 Service Manual

Sony CCD-TRV15 Service Manual

Video camera recorder
Hide thumbs Also See for CCD-TRV15:

Advertisement

Quick Links

Download this manual See also: Service Manual
CCD-TRV15/TRV15E/TRV15EP/TRV15PK/TRV25/
SERVICE MANUAL
B MECHANISM
Video camera recorder
System
Video recording system
CCD-TRV65/TRV65PK/TRV85/TRV93/
TRV615/TRV815 : 4 rotary heads (SP/
LP independent heads)
CCD-TRV15/TRV15PK/TRV15E/
TRV15EP/TRV25/TRV25PK/TRV35/
TRV35E/TRV215 : 2 Rotary heads
Helical scanning FM system
Audio recording system
Rotary heads, FM system
Video signal
CCD-TRV15/TRV15PK/TRV25/
TRV25PK/TRV35/TRV65/TRV65PK/
TRV85/TRV93/TRV215/TRV615/
TRV815 :
NTSC color, EIA standards
CCD-TRV15E/TRV15EP/TRV35E :
PAL color CCIR standards
Usable cassette
8mm video format cassette
CCD-TRV15/TRV15PK/TRV15E/
TRV15EP/TRV25/TRV25PK/TRV35/
TRV35E/TRV215 : standard 8
CCD-TRV65/TRV65PK/TRV85/TRV93/
TRV615/TRV815 : Hi8 or standard 8
MICROFILM
TRV25PK/TRV35/TRV35E/TRV65/TRV65PK/
TRV85/TRV93/TRV215/TRV615/TRV815

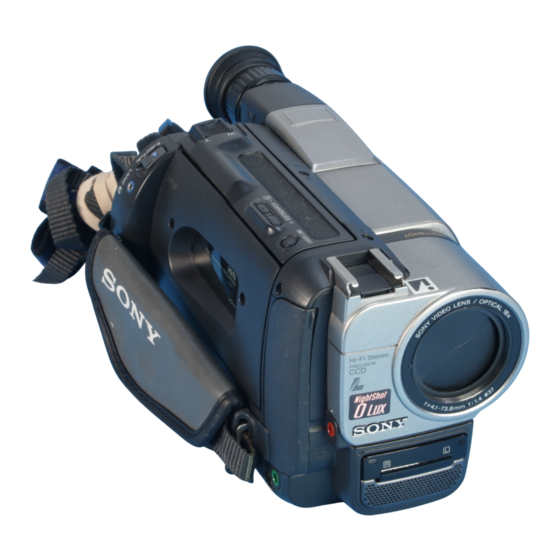

Photo : CCD-TRV93
: RMT-708
SPECIFICATIONS
Recording / Playback time
CCD-TRV15/TRV15PK/TRV25/
TRV25PK/TRV35/TRV65/TRV65PK/
TRV85/TRV93/TRV215/TRV615/
TRV815 :
(using 120 min. cassette)
SP mode: 2 hours
LP mode: 4 hours
CCD-TRV15E/TRV15EP/TRV35E :
(using 90 min. cassette)
SP mode: 1 hours and 30 minutes
LP mode: 3 hours
Fastforward/rewind time
CCD-TRV15/TRV15PK/TRV25/
TRV25PK/TRV35/TRV65/TRV65PK/
TRV85/TRV93/TRV215/TRV615/
TRV815 :
(using 120 min. cassette) Approx. 5 min.
CCD-TRV15E/TRV15EP/TRV35E :
(using 90 min. cassette) Approx. 5 min.
Image device
CCD (Charge Coupled Device)
Viewfinder
Electronic viewfinder
CCD-TRV15/TRV15PK/TRV15E/
TRV15EP/TRV25/TRV25PK/TRV35/
TRV35E/TRV65/TRV65PK/TRV85/
TRV215/TRV615/TRV815 :
Monochrome
CCD-TRV93 :
Color 113,578 (521 x 218)
CCD-TRV15/TRV25/TRV65/TRV85/TRV93/
CCD-TRV15/TRV15EP/TRV15PK/TRV25PK/
North European Model
For MECHANISM ADJUSTMENTS, refer to
the "8mm Video MECHANICAL ADJUSTMENT
MANUAL VII" (9-973-801-11).
Lens
Combined power zoom lens
Filter diameter 17/16 in. (37 mm)
CCD-TRV15 (US,CND)/TRV15E
(AEP,UK)/TRV25 (AEP,UK)/TRV215 :
16 x (Optical), 64 x (Digital)
CCD-TRV15 (E,HK,BR)/TRV15PK/
TRV15E (NE,EE,RU)/TRV15EP/
TRV25PK : 16 x (Optical), 200 x
(Digital)
TRV35E (AEP,UK)/TRV65/TRV85/
TRV93/TRV615/TRV815 :
18 x (Optical), 72 x (Digital)
CCD-TRV35/TRV35E
(EE,NE,RU,E,AUS,HK,CN,JE)/
TRV65PK :
18 x (Optical), 220 x (Digital)
hVIDEO CAMERA RECORDER
CCD-TRV15/TRV15E/TRV15PK/TRV15EP/TRV25/
TRV25PK/TRV35/TRV35E/TRV215
HVIDEO CAMERA RECORDER
CCD-TRV65/TRV65PK/TRV85/TRV93/TRV615/TRV815
RMT-708
US Model
TRV215/TRV615/TRV815
Canadian Model
CCD-TRV15/TRV25/TRV65/TRV93/
TRV215/TRV615
E Model
TRV35/TRV35E/TRV65PK
AEP Model
UK Model
East European Model
Russian Model
CCD-TRV15E/TRV35E
Hong Kong Model
CCD-TRV15/TRV35/TRV35E
Tourist Model
CCD-TRV35/TRV35E
Australian Model
Chinese Model
CCD-TRV35E
Brazilian Model
CCD-TRV15/TRV65
Focal distance
CCD-TRV15/TRV15PK/TRV15E/
TRV15EP/TRV25/TRV25PK/TRV215 :
3/16 - 2 5/8 in. (4.1 - 65.6 mm)
CCD-TRV35/TRV35E/TRV65/
TRV65PK/TRV85/TRV93/TRV615/
TRV815 : 3/16 - 8 in. (4.1 - 73.8 mm)
When converted to a 35 mm still camera
CCD-TRV15/TRV15PK/TRV15E/
TRV15EP :
1 9/16 - 24 7/8 in. (39.4 - 630 mm)
CCD-TRV25/TRV25PK/TRV215 :
1 7/8 - 29 3/4 in. (47.2 - 755 mm)
CCD-TRV35/TRV35E/TRV65/
TRV65PK/TRV85/TRV93/TRV615/
TRV815 :
1 7/8 - 33 1/2 in. (47.2 - 850 mm)
— Continued on next page —
