Connecting to External Devices

Connecting to VCR/DVD

1.

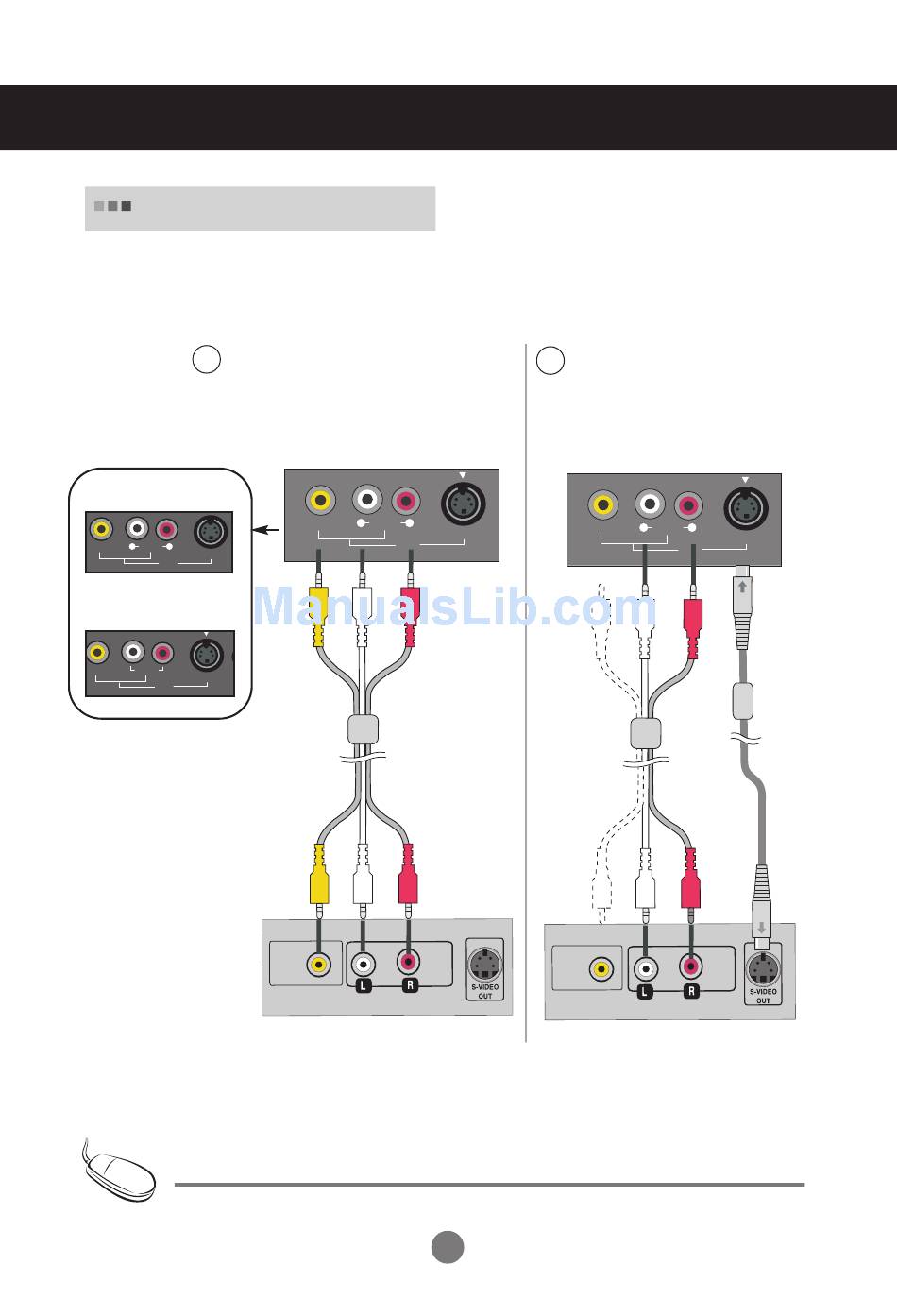

Connect the video/audio cable as shown in the figure below and then connect the power
cord (See page 14).
A
When using the RCA cable.
Connect the input terminal with a
•
proper colour match.
[19 inch]
(RGB) IN
VIDEO L AUDIO R
(Mono) S-VIDEO
AV IN
[17 inch]
L R
(Mono)
AUDIO
VIDEO
S-VIDEO
AV IN
Note
• In case the RCA cable is connected simultaneously as S-Video cable is connected, S-Video cable is first.
Rear side of the Product
AUDIO
VIDEO L R
(Mono) S-VIDEO
AV IN
RCA Cable
(Not included)
VIDEO AUDIO
OUT OUT
VCR/DVD
15
When using the S-Video cable.
B
Connect to the S-Video input terminal to
•
watch high image quality movies.
Rear side of the Product
AUDIO
VIDEO L R
(Mono)
AV IN
RCA
Cable
(Not
included)
AUDIO
VIDEO
OUT
OUT
VCR/DVD
S-VIDEO
S-Video
Cable
(Not
included)
