Connecting to External Devices
Connecting to Set-top Box /DVD (480i/576i/480p/576p/720p/1080i)
1.

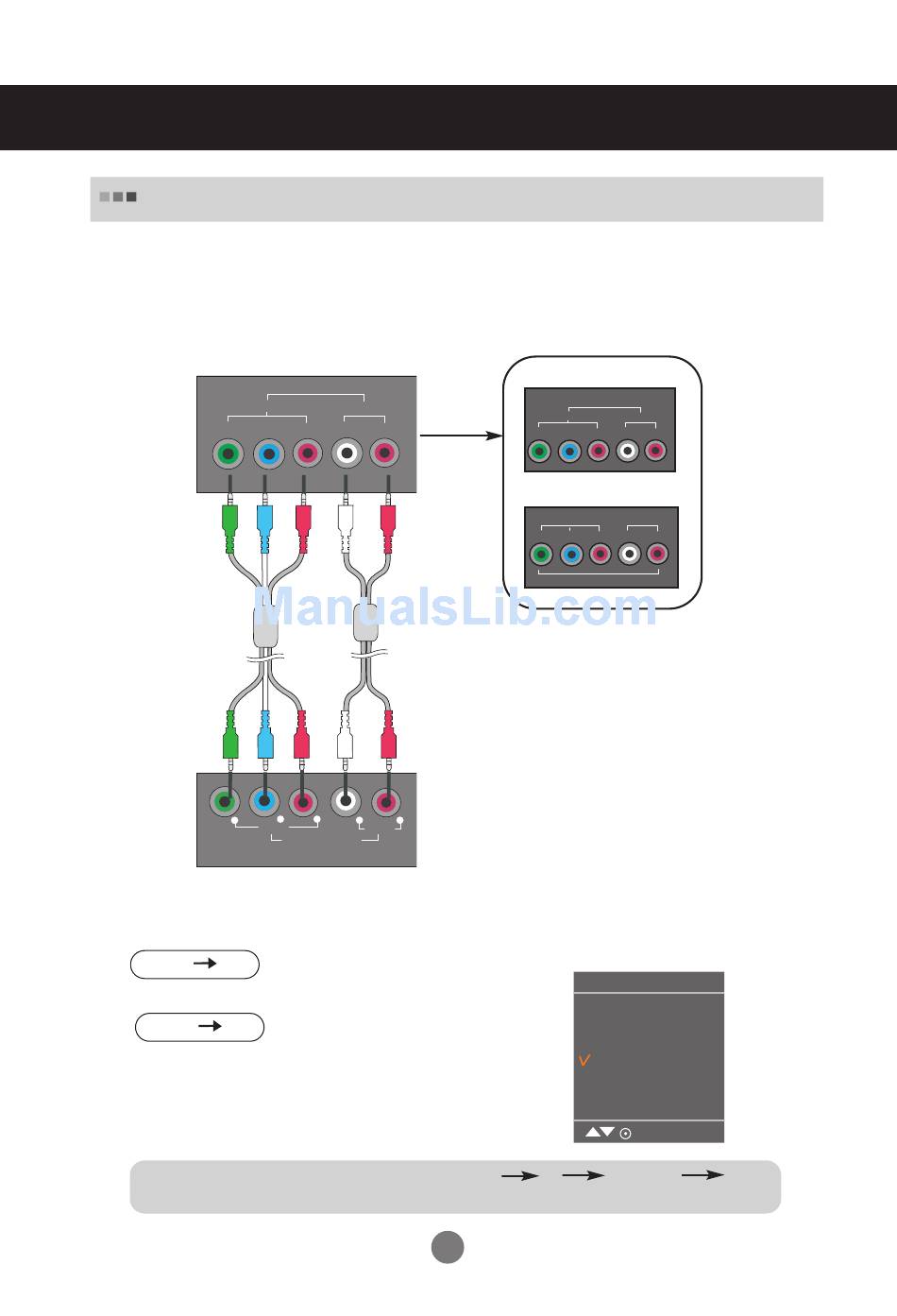

Connect the video/audio cable as shown in the figure below and then connect the power
cord (See page 14).
Connect the input terminal with a proper color match.
•
Rear side of the Product
VIDEO
Y
Component Cable
(Not included)
Y
Set-top Box /DVD
2.
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
INPUT OK
Or, press the INPUT button at the top side of the product.
INPUT OK
• Select Component
Each time you press the Input button it will change to TV
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
COMPONENT IN
AUDIO
PB PR L R
Audio Cable
(Not included)
Pb Pr
L R
VIDEO
AUDIO
COMPONENT OUT
[19 inch]
COMPONENT IN
VIDEO
PB PR
Y
[17 inch]
VIDEO
PB PR
Y
COMPONENT IN
Input
TV
AV
Component
RGB
AV Component
