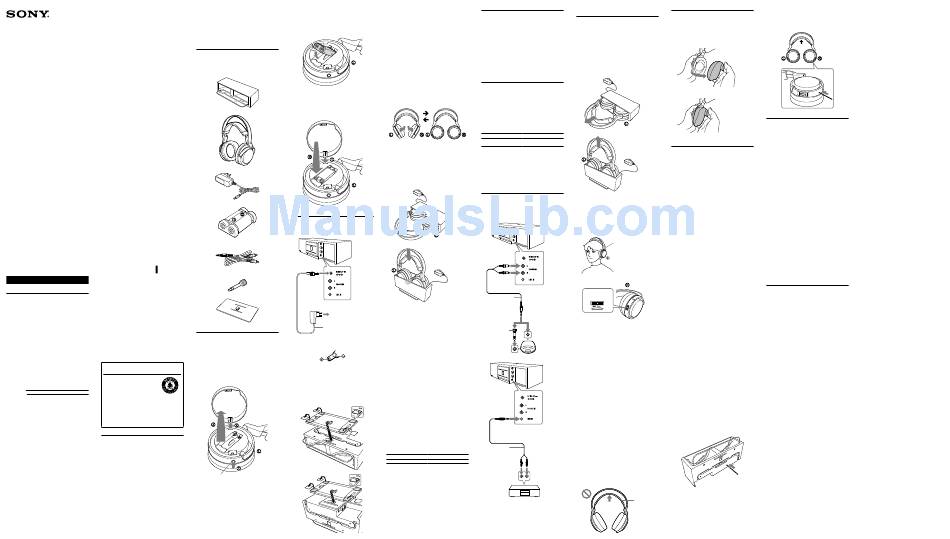

Sony MDR-RF4000K Operating Instructions

4-170-882-55(1)
Wireless Stereo
Headphone System
Operating Instructions
Manual de instrucciones
MDR-RF4000K
©2010 Sony Corporation Printed in China
English This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
WARNING
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
To reduce the risk of fire or electric shock, do not If this equipment does cause harmful interference to radio or
expose this apparatus to rain or moisture. television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
For the customers in the USA – Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Owner's Record
You are cautioned that any changes or modifications not
The model number is located at the bottom of the
expressly approved in this manual could void your authority
transmitter and the left inner side of the headband.
to operate this equipment.
The serial number is located at the bottom of the transmitter
and the inner side of the battery compartment.
Record these numbers in the spaces provided below. Refer to
For the customers in the USA
them whenever you call upon your Sony dealer regarding
this product. RECYCLING NICKEL METAL HYDRIDE
BATTERIES
Model No. MDR-RF4000K
Transmitter TMR-RF4000
Nickel Metal Hydride batteries are
Headphones MDR-RF4000
recyclable.
Serial No.
You can help preserve our environment
Transmitter
by returning your used rechargeable
Headphones
batteries to the collection and recycling
location nearest you.
NOTE
The Transmitter and Wireless stereo headphones must not be co- For more information regarding recycling of
located or operated in conjunction with any other antenna or rechargeable batteries, call toll free
transmitter. 1-800-822-8837, or visit http://www.rbrc.org/
This Transmitter complies with FCC radiation exposure limits set
Caution: Do not handle damaged or leaking Nickel
forth for uncontrolled equipment and meets the FCC radio frequency
Metal Hydride batteries.
(RF) Exposure Guidelines in Supplement C to OET65. This
Transmitter has very low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation (MPE). This
Transmitter is desirable that it should be installed and operated with
at least 20 cm and more between the radiator and person's body Welcome!
(excluding extremities: hands, wrists, feet and ankles).
Thank you for purchasing the Sony MDR-RF4000K Wireless
The Wireless stereo headphones comply with FCC radiation exposure
Stereo Headphone System. Before operating the unit, please
limits set forth for uncontrolled equipment and meets the FCC radio
read this manual thoroughly and retain it for future
frequency (RF) Exposure Guidelines in Supplement C to OET65. The
reference.
Wireless stereo headphones have very low levels of RF energy that it is
deemed to comply without testing of specific absorption ratio (SAR). Some features are:
 Wireless stereo headphone system for music and movies
 2.4 GHz digital transmission with high quality sound
NOTICE FOR THE CUSTOMERS IN THE U.S.A.
 Impressive sound reproduction with 40 mm driver unit
equipped high quality closed type headphones
NOTE
 2 way transmitter design for convenient setting
This device complies with Part 15 of the FCC Rules.
 Easy battery charging system
Operation is subject to the following two conditions: (1)this
 Lightweight headphones for long time listening comfort
device may not cause harmful interference, and (2)this
 Real-time automatic tuning on headphones for best
device must accept any interference received, including
reception of signal
interference that may cause undesired operation.
 Up to 100 feet reception range*
 7 hours playback with supplied Ni-MH rechargeable
battery
2
 Easy connection with TV/DVD/audio equipment with Insert the supplied rechargeable nickel-metal
supplied audio cable hydride battery into the battery compartment,
 Automatic On/Off function on headphones to preserve
matching  terminal on the battery to the  mark
battery life
in the compartment.
 Free adjustable headband for precise and comfortable fit
Do not attempt to charge any other kind of battery with
 Volume control function on the headphones
this unit.
* Transmission distance varies depending on conditions of use.
 Preparation
Checking the components and
accessories
Before setting up the system, check that all of the
components are included.
Transmitter TMR-RF4000 (1)
Note
The battery compartment has a tab on the  side which holds the
rechargeable battery in place. Insert the  terminal first when
installing the rechargeable battery.
3
Close the battery compartment lid.
Wireless stereo headphones MDR-RF4000 (1)  Insert the tab in the hole at the top left.
 Close the lid until it clicks.
AC power adaptor (1)
Rechargeable nickel-metal hydride battery BP-HP550-11 (1)
Charging
1
Connect the supplied AC power adaptor to the
transmitter.
Connecting cable (stereo mini plug  pin plug × 2),
1 m (39 3 / in) (1)
8
Transmitter
Unimatch plug adaptor (stereo mini jack  stereo phone
plug) (1)
To DC IN
5.2 V jack
Stand (1)
To an AC outlet
AC power adaptor
(supplied)
Inserting the supplied
Notes
 Be sure to use the supplied AC power adaptor. Using AC
rechargeable nickel-metal
adaptors with different plug polarity or other characteristics
hydride battery can cause product failure.
The supplied rechargeable nickel-metal hydride battery is
not charged from the first time you use it. Be sure to charge
it before use. Unified polarity plug
To charge the headphones, place them on the transmitter.  Be sure to always use the supplied AC power adaptor. Even AC
power adaptors having the same voltage and plug polarity can
1
Press the PUSH button of the left housing to open
damage this product due to the current capacity or other
the battery compartment lid. factors.
 Connect the AC power adaptor to an easily accessible AC
The battery compartment lid comes off.
outlet. Should you notice an abnormality in the AC power
adaptor, disconnect it from the AC outlet immediately.
2
Put the stand to the transmitter.
You can place the transmitter horizontally or vertically,
using the stand.
PUSH button
Notes on the transmitter with stand and
Checking the remaining
installation surface
battery power
 The stand should not be placed on a surface that is cloth-
covered, textured, dirty or dusty.
 Peel off the protection films (transparent) on the adhesive
Pull up the self-adjusting band and check the POWER
sheets (4 corners) of the stand. The stand cannot be indicator located on the right housing. The battery is still
installed with the protection films on the adhesive sheets. serviceable when the indicator lights in green.
 When placing the transmitter, press it down softly to Charge the rechargeable battery or install new dry-cell
steady the stand. batteries if the POWER indicator light dims, flashes, or the
sound becomes distorted or noisy.
If the power of the adhesive sheets becomes Note
The rechargeable nickel-metal hydride battery should be replaced
weak
with a new one when it lasts only half the expected time, after a full
Use a soft cloth slightly moistened to remove dust. A soft
charge has been performed. The rechargeable battery, type BP-
cloth with mild detergent solution may be used to remove HP550-11, is not commercially available. You can order the battery
finger marks or grease. The power of the adhesive sheets will from the store where you purchased this system, or at your nearest
be restored for repeated use. Sony dealer.
To change the installation place
Using the headphones with
Move the stand slowly with your fingers on the edge of the
stand. The adhesive sheets will not be detached with a sharp
alkaline batteries (sold
move.
separately)
3
Turn the left and right headphones so as to be flat.
Commercially available (size AAA) alkaline batteries can
also be used to power the headphones. Install the batteries
in the same manner as described in "Inserting the supplied
rechargeable nickel-metal hydride battery. "
When dry-cell batteries are installed, the battery charge
function is not activated.
Battery life
Battery Approx. hours* 1
Sony alkaline batteries 10 hours* 2
4
LR03/AM-4(N)
Insert the headphones in the transmitter so that
the headphones' contact point meets the * 1 at 1 kHz, 1 mW + 1 mW output
* Time may vary, depending on the temperature or conditions of
transmitter's contact pin, and make sure that the 2
use.
CHG indicator lights up.
Notes on Batteries
It takes approximate 16 hours to fully charge the battery
 Do not charge a dry-cell battery.
(the CHG indicator goes off when charging is complete).
 Do not carry a dry-cell battery together with coins or other metallic
When placing the headphones on the transmitter, be
objects. Heat can be generated by the battery if its positive and
sure to insert the left and right housings completely. negative terminals are accidentally shorted.
 If you are not going to use the unit for a long time, remove the
When the transmitter's contact pin meets the
batteries to avoid damage from battery leakage or corrosion.
headphones' contact point, the CHG indicator lights up
in red.
 Connection
Setting up the transmitter
1
Connect the transmitter to an AV component.
Select one of the hookups below depending on the jack
type:
 To connect to a headphones jack
Transmitter
To PHONES IN
jacks
Left channel
(white)
Right channel
(red)
Connecting cord
(supplied)
If the CHG indicator is not lit
 Be sure to close the battery compartment lid. The battery
charge function is not activated when the lid is not fully
closed.
 Check that the left and right headphones are inserted in
the transmitter correctly.
Unimatch plug
 The indicator will not light up if the headphones' contact To headphones jack
adaptor (supplied)
point does not meet the transmitter's contact pin. In this
(Stereo mini jack)
case, remove the headphones and insert them in the
transmitter again so that the indicator lights up.
To headphones
 Make sure that the supplied rechargeable nickel-metal WALKMAN®*,
jack (Stereo
TV, etc.
hydride battery is installed in the battery compartment.
phone jack)
 You cannot charge any rechargeable battery or dry-cell
battery other than the supplied battery.
 To connect to LINE OUT or REC OUT jack
To recharge the headphone battery after use
Place the headphones on the transmitter after use. The CHG
indicator lights up, and then charging starts.
Since the built-in timer recognizes when charging is
complete, there is no need to remove the headphones from
the transmitter after charging has completed.
Transmitter
Notes
 The transmitter automatically turns off while charging the battery.
 This system is designed to charge only the supplied rechargeable
battery, type BP-HP550-11, for safety. Note that other types of
rechargeable battery cannot be charged with this system.
 You cannot charge any rechargeable battery or dry-cell battery
other than the supplied battery.
 Do not attempt to use the supplied BP-HP550-11 rechargeable
To LINE IN jack
battery with other components. It is for use with this system only.
 Charge in an environmental temperature of between 0 °C and 40 °C
(between 32 °F and 104 °F). Otherwise, the battery may not be fully
charged.
 Do not touch the contact pin of the transmitter. If a contact pin
becomes dirty, charging may not be possible.
 Charging may not be completed if the transmitter's contact pin and
headphones' contact point are dusty. Wipe them with a cotton bud,
etc.
Connecting cord
(supplied)
Charging and usage time
Approx. charging time Approx. usage time* 1
16 hours* 2 7 hours* 3
Right channel (red) Left channel (white)
* 1 at 1 kHz, 1 mW + 1 mW output
* 2 hours required to fully charge an empty battery
* 3 Time may vary, depending on the temperature or conditions of
To LINE OUT or
use.
REC OUT jacks
Stereo system,
VCR, etc.
* "WALKMAN" and "WALKMAN" logo are registered trademarks
of Sony Corporation.

Operation
Replacing the earpads
Listening to a programme
The earpads are replaceable. If the earpads become dirty or
worn out, replace them as illustrated below. The earpads are
Before listening
not commercially available. You can order replacements
To reduce the risk of hearing damage, first lower the volume. from the store where you purchased this system, or at your
nearest Sony dealer.
1 1
Turn on the AV component connected to the Remove the old earpad by pulling it off.
transmitter.
If the transmitter is connected to the headphone jack, set
the volume control of the audio source component as
high possible but not so high that the audio signal
becomes distorted.
2
Remove the headphones from the transmitter.
The transmitter's POWER indicator lights up in green.
2
Place the new earpad around the housing.
 Additional information
Troubleshooting
If you run into any problems using this headphone system,
use the following checklist. Should any problem persist,
consult your nearest Sony dealer.
No sound
 Check the connection between the transmitter and the AV
component.
 Turn on the AV component connected to the transmitter, and
start the playback.
 If you connect the transmitter to an AV component using the
headphone jack, raise the volume level on the connected AV
component.
3
Put on the headphones.
 Make sure you are wearing the headphones correctly.
 Raise the headphone volume.
When you put on the headphones, the headphones'
 The headphones' POWER indicator goes off.
power turns on automatically.
 Charge the rechargeable battery if it is weak, or replace alkaline
The POWER indicator on the right housing lights up. Be
batteries with new ones. If the POWER indicator is still off
sure to put the right housing  on your right ear and
after charging the battery, take the headphones to a Sony
the left housing  on your left ear. Wear the
dealer.
headphones vertically on your head so that auto power
Distorted or intermittent sound
on function is properly activated.
(sometimes with noise)
There is a tactile dot on the hanger marked  to
 Charge the rechargeable battery if it is weak, or replace alkaline
distinguish the left side.
batteries with new ones. If the POWER indicator is still off after
charging the battery, take the headphones to a Sony dealer.
 Check if there is any wireless apparatus using 2.4 GHz frequency,
Tactile dot
or a microwave oven in the vicinity.
(on the left)
 Change the position of the transmitter.
 If you connect the transmitter to an AV component using the
headphone jack, lower the volume level on the connected AV
component.
Low sound
 If you connect the transmitter to an AV component using the
headphone jack, raise the volume level on the connected AV
component.
4  Raise the headphone volume.
Adjust the volume.
Loud background noise
 Check if there is any wireless apparatus using 2.4 GHz frequency,
or a microwave oven in the vicinity.
Volume control  If you connect the transmitter to an AV component using the
headphone jack, raise the volume level on the connected AV
component.
 Charge the rechargeable battery if it is weak, or replace alkaline
batteries with new ones. If the POWER indicator is still off after
charging the battery, take the headphones to a Sony dealer.
The sound cuts off.
 The transmitter stops transmitting if no signal is input for 10
minutes.
Notes
 If you connect the transmitter to an AV component using the
 When watching films, be careful not to raise the volume too
headphone jack, raise the volume level on the connected AV
high in quiet scenes. You may hurt your ears when a loud scene
component.
is played.
 You may hear some noise when you disconnect the AC power The battery cannot be charged.
adaptor from the transmitter before removing the headphones.
 Check if the CHG indicator turns on. If not, put the headphones
RF signal transmission area on the transmitter correctly so that the CHG indicator turns on.
 Dry batteries are installed.
The approximate RF signal transmission area from the
 Insert the supplied rechargeable nickel-metal hydride battery.
transmitter is up to 100 ft (30 m).
 Rechargeable batteries other than the supplied are installed.
The transmitter detects the optimum frequency
 Insert the supplied rechargeable nickel-metal hydride battery.
automatically when the headphones are removed from the
 The transmitter's contact pin and headphones' contact point are
transmitter. The sound may be interrupted if the dusty.
headphones are out of RF signal transmission area or  Wipe them with a cotton bud, etc.
reception conditions deteriorate. In this case, move closer to
A repeated beep sounds.
the transmitter.
 The headphones cannot receive the signal from the transmitter.
Notes  Move within the RF signal transmission area.
 Because this system transmits signals at 2.4 GHz, sound may be  Check the connection of the transmitter, AC power adaptor,
interrupted if interference occurs. This is due to radio frequency and AC outlet.
 Check if there is any wireless apparatus using 2.4 GHz
characteristics, and is not a malfunction.
 Any noise you hear through the headphones may vary depending frequency, or a microwave oven around the transmitter and
on the transmitter position and room conditions. It is headphones.
recommended that you place the transmitter in a location that  Change the position of the transmitter.
produces the clearest sound.  There is no audio signal input for about 10 minutes and RF
signals are not transmitted.
 Sound may be interrupted if the transmitter is used with other
wireless apparatus using 2.4 GHz frequency, or a microwave oven.  Input the audio signal to the transmitter.
If an audio signal is not input for 10 minutes The unit does not operate properly.
RF signal transmission from the transmitter automatically  Reset the system.
 Push a small pin, etc., into the hole of the transmitter until you
stops when an audio signal is not input for 10 minutes.
feel a click.
When the transmitter stops, the transmitter's POWER
The POWER indicator on top starts blinking in green.
indicator blinks in green for 30 seconds and then turns off.
The RF signals are automatically transmitted when an audio
signal is input again. RF signal transmission may stop when
an extremely low sound is input for about 10 minutes. If this
happens, raise the volume of the connected AV component
and lower the volume of the headphones. If signal noise is
output from a component connected to the PHONES IN
jacks, RF signal transmission may not stop.
The headphones automatically turn off when
they are removed
— Auto Power On/Off function
Do not pull up the self-adjusting band when not in use, as
this will consume the battery power.
Self-adjusting
band
Once the POWER indicator starts blinking, pull up and hold
the self-adjusting band to turn on the headphones, and push a
small pin, etc., into the hole of the right headphone until you
feel a click.
The POWER indicator of the transmitter stops blinking and
stays lit in green.
Precautions
On safety
 Do not drop, hit, or otherwise expose the headphones to
strong shock of any kind. This could damage the product.
 Do not disassemble or attempt to open any parts of the
system.
On power sources and placement
 If you are not going to use the system for a long time,
unplug the AC power adaptor from the AC outlet. When
removing the plug, grip the AC power adaptor.
Do not pull on the cord.
 Do not place the system in any of the following locations.
– Location exposed to direct sunlight, near a heater, or
other extremely high-temperature location
– Dusty location
– On an unsteady or inclined surface
– Location exposed to large amounts of vibration
– Bathroom or other high-humidity locations
On headphones
Act considerately
When the volume is too high, the sound leaks outside the
headphones. Be careful not to raise the volume so high that
it bothers people around you.
There is a tendency to raise the volume when using in noisy
places. However, for reasons of safety, it is advised to keep
the volume at a level whereby you can still hear sounds
around you.
On cleaning
Use a soft cloth slightly moistened with mild detergent
solution. Do not use solvents such as thinner, benzene or
alcohol as these may damage the surface.
When the product breaks
 When the product breaks, or if a foreign object gets inside
the unit, immediately turn off the power and consult your
nearest Sony dealer.
 When taking the system to a Sony dealer, be sure to take
both the headphones and transmitter.
Specifications
Wireless stereo transmitter (TMR-RF4000)
Modulation System
GFSK
Carrier wave frequency
2.404 GHz - 2.476 GHz
Transmission distance
Approx. 100 ft (30 m) of longest
Frequency response
10 Hz - 22,000 Hz
Distortion rate
1% or less (1 kHz)
Audio inputs
Phono jacks (left/right)
Stereo mini jack
Power requirements
DC 5.2 V (from the supplied AC power adaptor)
Dimensions
Approx. 246 mm × 75 mm × 120 mm
(9 3 / in × 3 in × 4 3 / in) (w/h/d)
4 4
Mass Approx. 430 g (15.2 oz)
Wireless stereo headphones (MDR-RF4000)
Playback frequency range
12 Hz – 22,000 Hz
Power requirements
Rechargeable nickel-metal hydride battery
(supplied) or commercially available (size AAA)
alkaline batteries
Mass Approx. 300 g (10.6 oz) (including the supplied
rechargeable nickel-metal hydride battery)
Supplied accessories
AC power adaptor (5.2 V) (1)
Rechargeable nickel-metal hydride battery
BP-HP550-11 (550 mAh) (1)
Connecting cable (stereo mini plug  pin plug
× 2), 1 m (39 3 / in) (1)
8
Unimatch plug adaptor (stereo mini jack 
stereo phone plug) (1)
Stand (1)
Card warranty (1)
Operating Instructions (this manual) (1)
Design and specifications are subject to change without
notice.
