M M M M M odel/Modèles 510/511
odel/Modèles 510/511
odel/Modèles 510/511
odel/Modèles 510/511
odel/Modèles 510/511

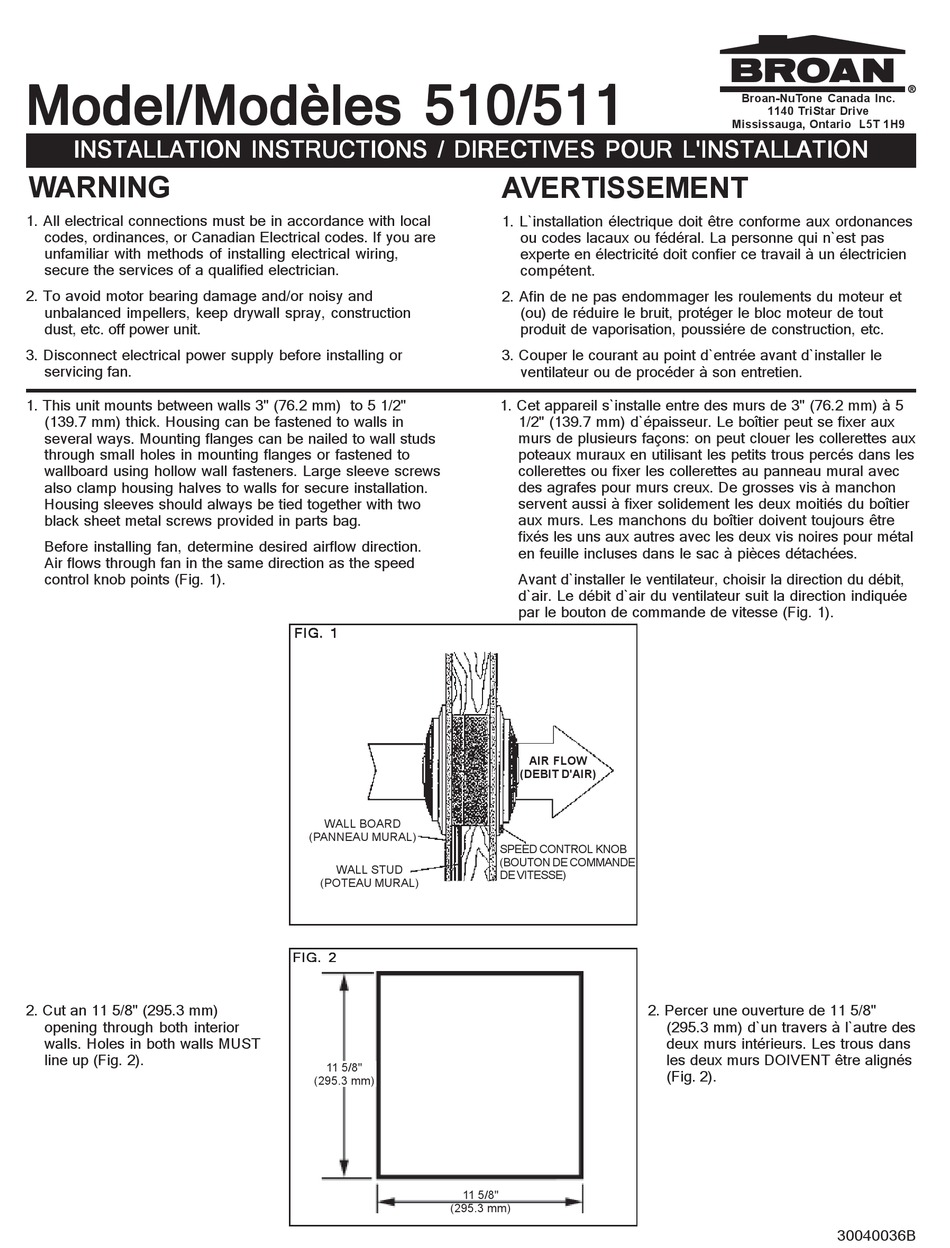

INSTALLATION INSTRUCTIONS / DIRECTIVES POUR L'INSTALLATION
INSTALLATION INSTRUCTIONS / DIRECTIVES POUR L'INSTALLATION
INSTALLATION INSTRUCTIONS / DIRECTIVES POUR L'INSTALLATION
INSTALLATION INSTRUCTIONS / DIRECTIVES POUR L'INSTALLATION
INSTALLATION INSTRUCTIONS / DIRECTIVES POUR L'INSTALLATION
WARNING
1. All electrical connections must be in accordance with local
codes, ordinances, or Canadian Electrical codes. If you are
unfamiliar with methods of installing electrical wiring,
secure the services of a qualified electrician.
2. To avoid motor bearing damage and/or noisy and
unbalanced impellers, keep drywall spray, construction
dust, etc. off power unit.
3. Disconnect electrical power supply before installing or
servicing fan.
1. This unit mounts between walls 3" (76.2 mm) to 5 1/2"
(139.7 mm) thick. Housing can be fastened to walls in
several ways. Mounting flanges can be nailed to wall studs
through small holes in mounting flanges or fastened to
wallboard using hollow wall fasteners. Large sleeve screws
also clamp housing halves to walls for secure installation.
Housing sleeves should always be tied together with two
black sheet metal screws provided in parts bag.
Before installing fan, determine desired airflow direction.
Air flows through fan in the same direction as the speed
control knob points (Fig. 1).
2. Cut an 11 5/8" (295.3 mm)
opening through both interior
walls. Holes in both walls MUST
line up (Fig. 2).
FIG. 1
FIG. 1
FIG. 1
FIG. 1
FIG. 1
WALL BOARD
(PANNEAU MURAL)
WALL STUD
(POTEAU MURAL)
FIG. 2
FIG. 2
FIG. 2
FIG. 2
FIG. 2
11 5/8"
(295.3 mm)
11 5/8"
(295.3 mm)
AVERTISSEMENT
1. L`installation électrique doit être conforme aux ordonances
ou codes lacaux ou fédéral. La personne qui n`est pas
experte en électricité doit confier ce travail à un électricien
compétent.
2. Afin de ne pas endommager les roulements du moteur et
(ou) de réduire le bruit, protéger le bloc moteur de tout
produit de vaporisation, poussiére de construction, etc.
3. Couper le courant au point d`entrée avant d`installer le
ventilateur ou de procéder à son entretien.
1. Cet appareil s`installe entre des murs de 3" (76.2 mm) à 5
1/2" (139.7 mm) d`épaisseur. Le boîtier peut se fixer aux
murs de plusieurs façons: on peut clouer les collerettes aux
poteaux muraux en utilisant les petits trous percés dans les
collerettes ou fixer les collerettes au panneau mural avec
des agrafes pour murs creux. De grosses vis à manchon
servent aussi à fixer solidement les deux moitiés du boîtier
aux murs. Les manchons du boîtier doivent toujours être
fixés les uns aux autres avec les deux vis noires pour métal
en feuille incluses dans le sac à pièces détachées.
Avant d`installer le ventilateur, choisir la direction du débit,
d`air. Le débit d`air du ventilateur suit la direction indiquée
par le bouton de commande de vitesse (Fig. 1).
AIR FLOW
(DEBIT D'AIR)
SPEED CONTROL KNOB
(BOUTON DE COMMANDE
DE VITESSE)
2. Percer une ouverture de 11 5/8"
(295.3 mm) d`un travers à l`autre des
deux murs intérieurs. Les trous dans
les deux murs DOIVENT être alignés
(Fig. 2).
Broan-NuTone Canada Inc.
1140 TriStar Drive
Mississauga, Ontario L5T 1H9
30040036B
