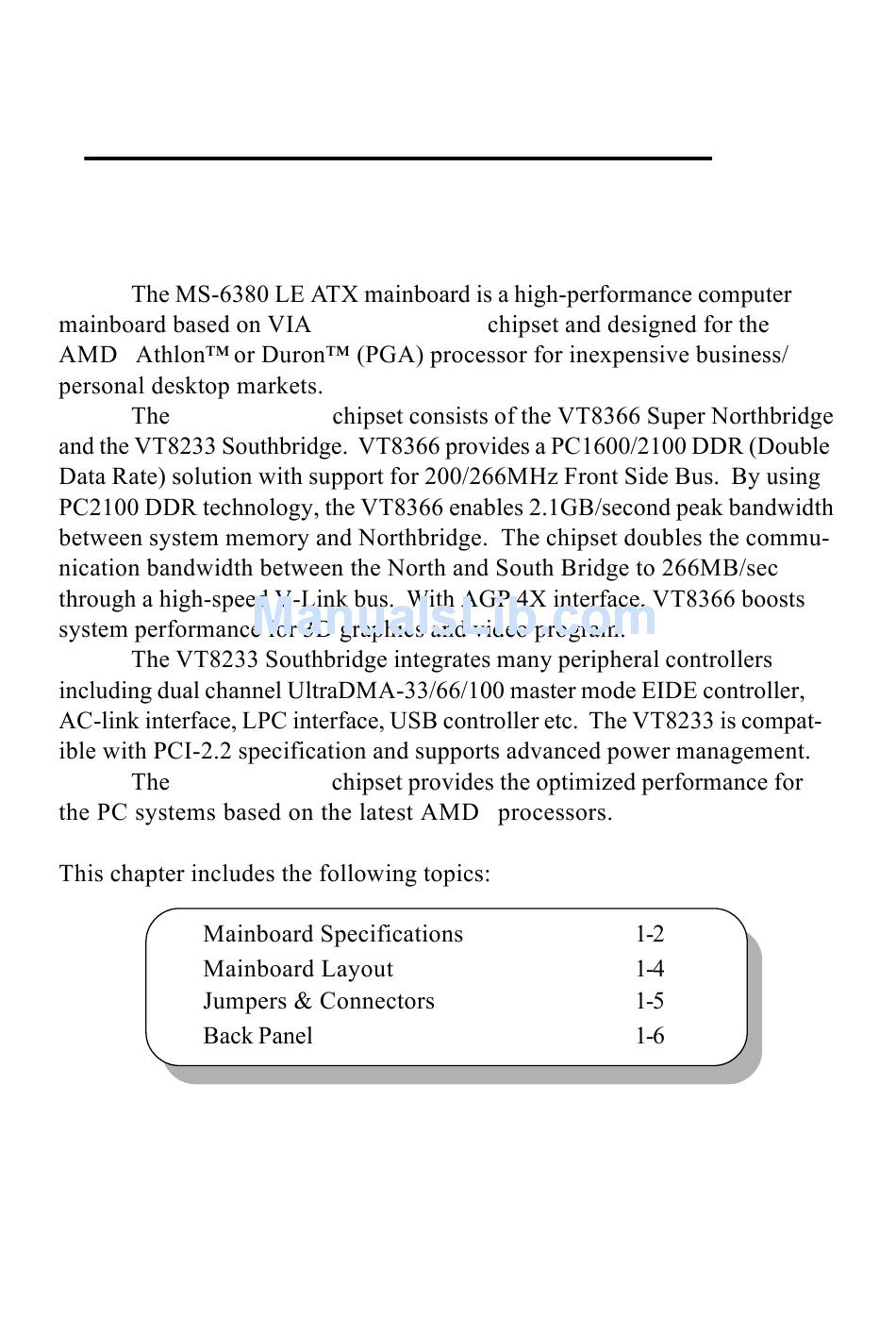

- Page 1 Introduction Chapter 1. Introduction Apollo KT266 ® ® Apollo KT266 Apollo KT266 ®...
-
Page 2: Mainboard Specification
Chapter 1 Mainboard Specification ® Chipset ® ® Clock Generator Main Memory Slots On-Board IDE... - Page 3 Introduction Audio On-Board Peripherals BIOS Dimension Mounting...
-
Page 4: Mainboard Layout
Audio Ports AGP Slot BATT PCI Slot 1 Winbond W83627HF-AW BIOS PCI Slot 2 JBAT1 PCI Slot 3 86& !! SFAN1 PCI Slot 4 PCI Slot 5 Codec CNR Slot JMDM1 JMDM JUSB3 JUSB2 JGL1 JFP1 MS-6380 LE ATX VA Mainboard... - Page 5 Introduction Jumpers & Connectors This is used to set the CPU FSB frequency. 133MHz 100MHz JBAT1 A battery must be used to retain the mainboard configuration in CMOS RAM. Short 1-2 pins of JBAT1 to store the CMOS data. Keep Data Clear Data JKBV1 This is used to set the PS/2 Keyboard/Mouse wake-up (power on)
-
Page 6: Back Panel
Chapter 1 Back Panel LPT 1 COM A COM B Joystick/MIDI Mouse Connector Pin5 Pin6 Mouse Clock Pin4 Pin3 Pin1 Pin2 Mouse DATA Keyboard Connector Audio Ports Pin5 Pin6 KBD Clock Pin4 Pin3 Line Line Pin1 Pin2 KBD DATA USB Ports USB Port 1 !"...
