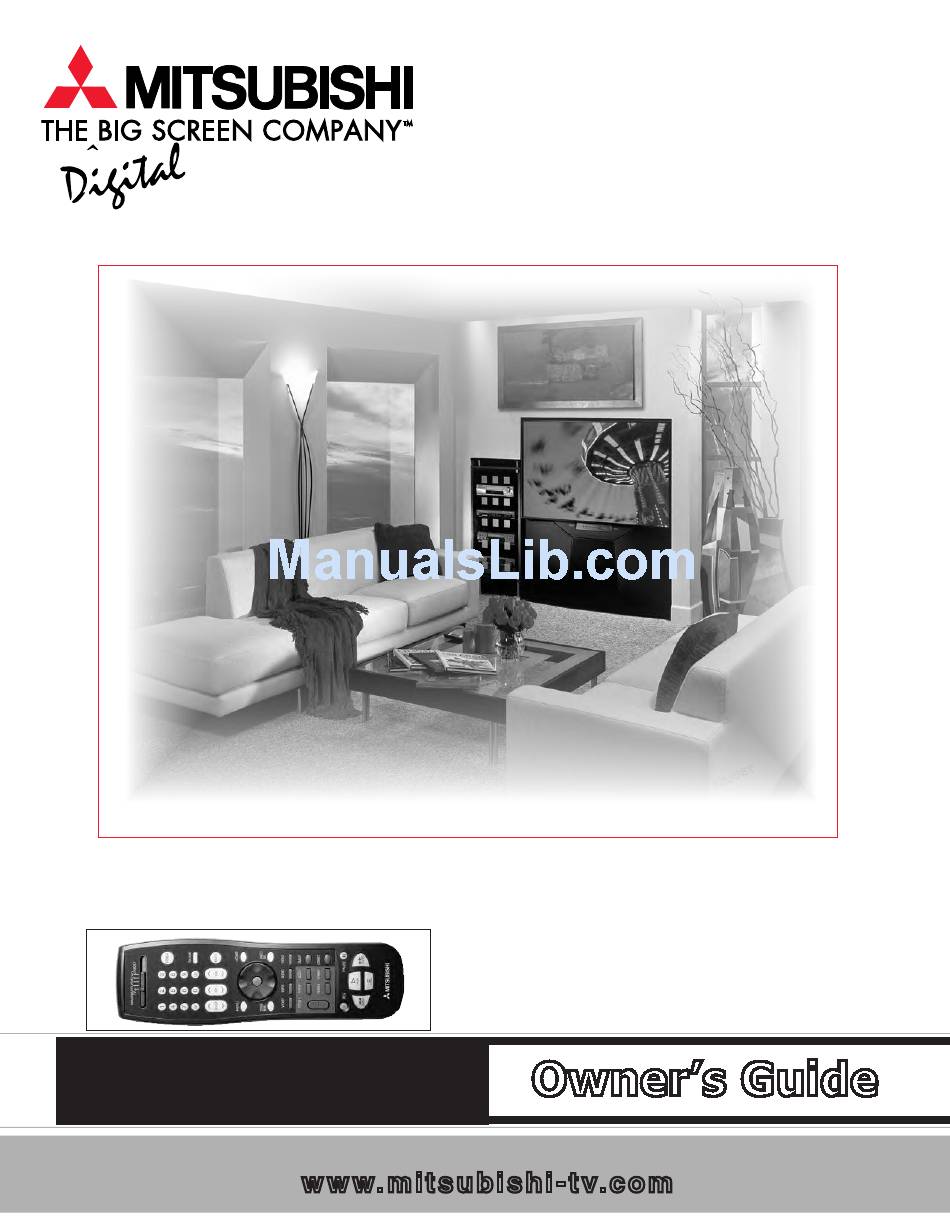

Projection Television Models

Owner's Guide

WS-B55

WS-48511 WS-55511 WS-55711

WS-65511 WS-65611 WS-65711 WS-65712

WS-73711

visit our website at

w w w. m i t su b i s h i - t v. c o m

Table of Contents

Summary of Contents for Mitsubishi WS-48511

Page 1 Projection Television Models Owner’s Guide WS-B55 WS-48511 WS-55511 WS-55711 WS-65511 WS-65611 WS-65711 WS-65712 WS-73711 visit our website at w w w. m i t su b i s h i - t v. c o m...
Page 2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be sufficient magnitude to constitute a risk of electric shock.
Page 3: Table Of Contents
In This Owner’s Guide Important Safeguards CHAPTER ONE: Getting Started Our Thanks Unpacking Your New TV Special Features Chapter TWO: Connect and Setup Front Control Panel Back Panel External Devices & NetCommand™ Supported Devices Antenna or Wall Outlet Cable for Digital Broadcasts Analog Antenna, Wall Outlet Cable, or Cable Box...
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. Read, Retain and Follow All Instructions Read all safety and operating instructions before operating the TV. Retain the safety and operating instruc- tions for future reference.
Page 5 IMPORTANT SAFEGUARDS 12. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
Page 6 If you have questions regarding your television, call Consumer Relations at (800) 332-2119, or email us at M D E A s e r v i c e @ b i g s c r e e n . m e a . c o m To order replacement or additional remote controls or owner’s guides call (800) 553-7278...
Page 7 In This Section . . . CHAPTER ONE Our Thanks Unpacking Your New TV Special Features...
Page 8: Our Thanks
Our Thanks... Thank you for choosing Mitsubishi as your premier Home Entertainment provider. This Owner’s Guide describes the features and functions of your Mitsubishi widescreen, high definition TV. We urge you to examine this Owner’s Guide to become familiar with the innovative features and operations this unique television offers.
Page 9: Unpacking Your New Tv
Unpacking Your New TV Please take a moment to review the following list of items to ensure that you have received everything included: � Remote Control (2) AA Batteries � � (1) Digital Audio Cable (1) Double IR Emitter Cable (1) Quadruple IR Emitter Cable Product Registration Card Owner’s Guide...
Page 11 In This Section . . . CHAPTER TWO Front Control Panel Back Panel External Devices & NetCommand™ Supported Devices Antenna or Wall Outlet Cable for Digital Broadcasts Analog Antenna, Wall Outlet Cable, or Cable Box Analog VCR Audio/Video Surround Sound Receiver DVD Player S-Video Satellite Receiver External Digital TV (DTV or HDTV)
Page 12: Front Control Panel
Front Control Panel �� The buttons on the Front Control Panel highlighted in gray are duplicated on the remote control. The top row of labels show the control functions when there are no TV menus displayed on the screen.
Page 13: Back Panel
Back Panel Inputs 1-4 � These inputs can be used for the connection of a VCR, Super VHS (S-VHS) VCR, DVD player, standard satellite receiver or other A/V device to the TV. Please note that if you connect to the S-VIDEO terminal, the VIDEO terminal is deactivated.
Page 14: Digital Audio Output
Back Panel Antenna DTV (ANT-DTV) This input receives digital TV signals from a VHF/UHF antenna or unscrambled digital cable system. If the TV receives scrambled cable signals on this input, it will not be able to decode them. In this case, your cable company must provide a decoding box.
Page 15 Connecting External Devices & NetCommand™ Setup NetCommand™ is able to control many current audio and video devices by sending remote control signals from the TV to each device. NetCommand™ will also automatically switch the TV and compatible Audio/ Video (A/V) Receivers to the correct input used with each device. It is important that the inputs on the TV and AV Receiver match the NetCommand™...
Page 16 NetCommand™ Supported Devices Following is a list of devices, by several manufacturers, tested and shown to be compatible with the NetCommand™ control system. When you use these devices you will be able to control them without changing the setting of the remote control from TV to another product. NetCommand™...
Page 17: Antenna Or Wall Outlet Cable
Connecting Antenna or Wall Outlet Cable for Digital Broadcasts Figure 1. Antenna or wall outlet cable. Antenna or Wall Outlet Cable for Digital Broadcasts For cable or antenna with coaxial lead (Figure 1) 1. Connect the incoming cable to ANT-DTV on the TV back panel.
Page 18: Cable Box
Connecting an Analog Antenna, Wall Outlet Cable, or Cable Box, cont’d. Antenna or Wall Outlet Cable for Analog Broadcasts. (Figure 2) For antennas with twin flat lead 1. For antenna with twin flat leads, connect the 300- Ohm twin leads to the transformer. 2.
Page 19 Connecting an Analog VCR Figure 1. Connecting VCR with antennas or wall outlet cable. IMPORTANT Additional connection cables are not provided with the TV. They are available at most electronic stores. Figure 2. Connecting VCR with cable box. Figure 3. Connecting the VCR Audio/Video. VCR to Analog Antennas or Wall Outlet Cable (Figure 1)
Page 20 Connecting an Audio/Video Surround Sound Receiver Connecting an A/V Receiver (Figure 1) 1. Connect a video cable from Monitor VIDEO OUTPUT on the back of the TV to the TV VIDEO INPUT on the back of the A/V Receiver. Note: If you have connected an S-VHS VCR to the A/V Receiver, then follow the same video connection using the S-Video cable and terminals on the TV and A/V Receiver (instead...
Page 21: Connecting A Dvd Player
WARNING: Do not display the same stationary images on the screen for more that 15% of your total TV viewing in one week. Examples of stationary images are letterbox top/bottom bars from DVD or other video sources, side bars when showing standard TV pictures on widescreen TV’s, stock market reports, video game patterns, station logos, black or bright Closed caption backgrounds web sites, or stationary computer images.
Page 22 Connecting an External Digital TV (DTV or HDTV) Receiver DTV Connectors and Adaptors (Figure 1) The TV back panel has 5 RCA-type connectors for the Input-DTV. The back panel of your external DTV receiver may use RCA-type connectors or BNC-type connectors. If your DTV receiver comes with BNC type connections, you will need to purchase BNC to RCA adaptors to connect the TV to the DTV receiver.
Page 23: Video Connections
Connecting an External Digital TV (TV or HTV) Receiver, cont. IMPORTANT • See Appendix B for RGB video signal compatibility information. • For digital audio connections, see your DTV Receiver and A/V Receiver Owner’s Guides. Figure 1. Connecting the DTV receiver with RGB video External DTV Receiver with RGB Video Connections (Figure 1)
Page 24: Connecting A Computer
Connecting a Computer with a VGA Monitor Output Connecting a Computer (Figure 1) 1. Connect VGA Monitor Out from the computer to VGA Input on the TV back panel using a VGA compatible monitor cable. See Appendix B for VGA signal compatibility. 2.
Page 25: Important Notes
IMPORTANT NOTES WARNING: When using the VGA input, do not leave stationary, toolbar, or partial images on-screen for extended periods of time. Mix the types of pictures shown. Uneven picture tube aging is NOT covered by your warranty. The VGA capability of this television is designed for occasional use ONLY.
Page 26 NetCommand™ Setup - Getting Started In order to use your TV’s NetCommand™ feature, you need to provide some detailed information during the setup of your Mitsubishi TV. You must define the Manufacturer of the devices that are connected to the television. For each device, the input to the TV and A/V receiver, and the names for the device are pre-set during Initial NetCommand™...
Page 27 Programming the Remote Control to Control NetCommand ™ NetCommand™ CODE to ENTER TV Control and NetCommand™ Devices: Figure 1. Programming the TV remote to control your NetCommand™ A/V devices. To Program the Remote to Control the TV and NetCommand™ A/V Products: (See NetCommand™...
Page 28: Netcommand™ Setup
NetCommand™ Setup When you first power On your new Mitsubishi TV, the initial setup screens will appear. You will need to navigate through these screens and properly set up the equipment connected to the TV in order to use NetCommand™. NetCommand™...
Page 29 NetCommand™ Setup, cont’d. Figure 1. A/V Receiver screen. Figure 2. Cable box screen. Note: Your Cable Box should be connected to Ant-B or your VCR. Also, Channel 3 is the default output channel for the Cable Box. If either the connections or output channel are different, use the Change option in the Edit NetCommand™...
Page 30 NetCommand™ Setup, cont’d. DBS Screen Figure 1 The DBS (Digital Broadcast Satellite) screen allows you to select the manufacturer of the satellite system you are currently using. If “Other” is selected for the Manufacturer, then NetCommand™ can not control the device (use the layer switch on the remote or use the remote for the device).
Page 31: Finish Screen
NetCommand™ Setup, cont’d. Figure 1. Review screen. Figure 2. Finish screen. Review Screen Figure 1 Once you have finished the setup screens and selected the manufacturer for each device, you will see the Review Screen. It is important to review the settings.
Page 32: Edit Netcommand
Edit NetCommand™ Realizing your home theater system will continually change as you add and remove components, Mitsubishi’s NetCommand™ also offers ease of use when it comes to editing your home theater configuration. Edit NetCommand™ Screen Figure 1 When you need to make a change to your current setup, the Edit NetCommand™...
Page 33 Edit NetCommand™, cont’d. Figure 1. Delete screen. Figure 2. Review screen. Figure 3 Edit NetCommand™ (Initial) screen NetCommand™ does not allow you to delete a device or change the connections for a device (like a VCR or a DVD player) if the device is currently in use. Switch the TV to a different device from the one you are changing or deleting.
Page 34: Rf Connection For Cable Screen
Edit NetCommand™, cont’d. The following screens are a part of the Add device or Change device modes. Name Screen Figure 1 The Name screen allows you to change the default name for each device to a custom name of up to eight characters (including a blank space), selecting from letters, numbers, and nine different characters.
Page 35: Monitor Out To Avr Screen
Edit NetCommand™, cont’d. Figure 1. Connection screen - Cable (example) Figure 2. Monitor Out to AVR screen. Figure 3. Monitor Out to VCR screen. Connection for Device Screen Figure 1 The Connection screen allows you to select the inputs used with the devices that are connected to the TV Inputs 1-5, Components 1&2 and Input-DTV.
Page 36 Edit NetCommand™, cont’d. AVR to VCR Connection Screen Figure 1 This screen is displayed only when a VCR is the device being added or changed. The AVR to VCR Connection screen allows you to confirm the connection of the A/V Receiver’s record output to the VCR’s line input.
Page 37 In This Section . . . CHAPTER THREE 3D Graphical ViewPoint® Menu System Device Selection Menu PIP/POP Selection Menu Menu Screens (Overview) Setup Menu: Edit NetCommand™, Icon Position Setup Menu: Convergence Setup Menu: Advanced Convergence, Transport Menu and Language Antenna, Memorize Channels, Channel, Memory and Name SuperQuickView™...
Page 38 3D Graphical Your TV has a special control system called NetCommand™ that will control IEEE 1394 devices and selected older devices. For instructions on operating these control features, see the NetCommand™ guide. Your TV also has Mitsubishi’s exclusive 3D Graphical on-screen operating system, which provides on-screen information for menu choices and changes (Figure 1).
Page 39: Device Selection Menu
Device Selection Menu Device Section When the Device Selection menu is displayed, the Device or Input you are currently viewing shows a gold-colored icon. To select another device or input, use the ADJUST button, to move the yellow highlight among the devices. Press ENTer to select the device you would like to view and hear.
Page 40: Pip/Pop Selection Menu
PIP/POP Selection Menu PIP Device Selection Menu Figure 1 When you press the PIP DEVICE button on the remote control, the PIP Selection menu displays. The PIP Selection menu is similar to the Device Selection menu except the source for the sub picture in the Video Section is selected and the Audio and Connection Sections are not displayed.
Page 41: Setup Menu
Menu Screens (Overview) Figure 1. Setup Menu Figure 2. Antenna Menu Figure 3. Clock Menu Setup Menu (Figure 1) You can add, change, review or delete NetCommand™ settings and devices. You can also change the order of icons displayed on the Device Selection menu, select convergence adjustment, turn on or off the transport menu, and select English or Spanish as the language for the menus and on-...
Page 42: Captions Menu
Menu Screens (Overview) Captions Menu (Figure 1) Display Closed Captions if sent by the broadcaster. Select the background color for the Closed Captions display. Enter the Digital Settings sub-menu or automatically display the Digital Channel Guide as the channels are changed. V-Chip Lock Menu (Figure 2) Block or allow programing based upon rating...
Page 43 Setup Menu: Edit NetCommand™ Icon Position Figure 1. Setup Menu Figure 2. Icon Position Menu Edit NetCommand™ Button (Figure 1) The Edit NetCommand™ button displays the Edit NetCommand™ menu (refer to Edit NetCommand™ section in Part 2 of this book.) Edit NetCommand™ provides the following options: Addition of new devices.
Page 44: Setup Menu: Convergence
Setup Menu: Convergence Convergence Menu (Figure 1) Your Mitsubishi TV has three picture tubes which need to be aligned to properly converge the projected light beams on the screen. Each picture tube projects a single color of red, blue or green. During production, your TV was carefully adjusted to properly align these colors.
Page 45 Setup Menu: Advanced Convergence, Transport Menu, and Language Press INFO for help Figure 1. Advanced Convergence menu IMPORTANT There are more than 64 line intersections but the flashing bracket only stops at the 64 adjustment positions. Figure 2. Setup menu (Transport menu selected) Figure 3.
Page 46: Memory And Name
Antenna Menu: Antenna, Memorize Channels, Channel, Memory and Name Antenna Menu (Figure 1) Select Ant-A, Ant-B, or Ant-DTV for use with the rest of the option on the Antenna Menu. You can memorize channels, add or delete channels, and add channels to an SQV (Super Quick View™) list. For Ant-A and Ant-B, you can name channels.
Page 47 Antenna Menu: SuperQuickView™ (SQV™) Figure 1. Antenna Menu SQV (SuperQuickView™) Using The Menu Screen (Figure 1) SQV (SuperQuickView™) allows you to put together lists of your favorite channels from Ant-A, Ant-B and Ant-DTV. You can store channels in any of the 9 different SQV memory banks.
Page 48 Clock Menu: Auto or Manual Clock Setting Clock Setting (Auto) (Figure 1) The Clock Setting (Auto) will automatically set the day and time using Extended Data Service (XDS) time data. This data is automatically retrieved from a PBS channel or other channel carrying this service when received on Ant-A or Ant-B.
Page 49 Captions Menu: Analog and Digital Captions Figure 1. Captions menu Captions Menu Figure 1 On analog channels (Ant-A or Ant-B), broadcasters can send either Standard or Text closed captioning. Standard Closed Captions follow the dialogue of the characters on-screen and display in a small section of the screen.
Page 50 Captions Menu: Digital Captions Settings Appearance (Figure 1) Closed Captions provider selects the Default options when sending digital closed captions. You may, however, select the Custom option to override and customize Closed Captions appearance. Fonts You can customize the text of digital captions by selecting the font of your choice.
Page 51 Figure 1. V-Chip Entry Screen Figure 2. V-Chip Blocked Channel passcode screen Figure 3. V-Chip menu V-Chip (Figure 3) V-Chip allows you to Block or Allow programs based upon rating signals sent by the broadcasting station. The TV comes from the factory with the V- CHIP in the Off setting.
Page 52: Movie Ratings
V-Chip Lock Menu: V-Chip Definitions V-Chip Signal Information When provided by the broadcaster, V-Chip ratings can be used to control which programs can be viewed or will be blocked. When V-Chip ratings are sent, you will see the ratings when you change the channel or when you press the INFO button on the remote control.
Page 53: Lock By Time
V-Chip Menu: Lock By Time and Front Button Lock Lock By Time (Figure 1) LOCK BY TIME will allow you to lock the entire TV during specific hours. Use ADJUST to select ON or OFF then use ADJUST to move to the “Lock Time” option box.
Page 54 Timer Menu: Setting The Timer Figure 1. Timer menu IMPORTANT The TV’s clock must be set before you can set the timer. If you have not set the clock, you will see the CLOCK menu instead of the TIMER menu. Timer On/Off (Figure 1) The timer can be turned On or Off.
Page 55: Enhancement, And Audio/Video Settings
A/V Settings Menu: A/V Memory Reset, Video Mute, Black Enhancement, and Audio/Video Settings A/V Memory Reset A/V Memory Reset allows you to select the device which will have the A/V Settings returned to the original factory settings. To return a device’s memory to the original factory settings, select the device and then press ENTer.
Page 56: Tv Speakers
A/V Settings Menu: TV Speakers TV Speakers (Figure 1) This selection will turn on or off the TV’s internal speakers. You may select Off when sending the sound through a separate stereo system or surround sound A/V receiver. When NetCommand™ is enabled, selecting the A/V Receiver icon from the Device Selection menu automatically turns Off the TV speakers.
Page 57: Audio Settings
A/V Setting Descriptions: Audio Audio Settings Bass enhances or reduces low-pitch sound. Treble enhances or reduces high-pitch sound. Balance adjusts the level of sound between the left and right speakers. Surround creates simulated stereo and surround effects through the TV speakers. Your choices are: •...
Page 58: Video Settings
A/V Setting Descriptions: Video Video Settings • Contrast provides a slider to adjust the white-to- black level. Low contrast shows a variety of shades in darker images, while high contrast shows darker images more uniformly black and makes colors appear more vibrant. •...
Page 59 In This Section . . . CHAPTER FOUR Remote Control Functions: Overview Care and Operation Remote Control Functions: Channel Selection and Sleep Timer Operation PIP/POP Display Formats Programming the Remote Control Remote Control Functions: Special Functions Important Notes: Stationary Images Appendix A: Lock Bypass Instructions Appendix B: Input Connection Compatibility Appendix C: Remote Control Programming...
Page 60: Remote Control Functions: Overview
Remote Control Functions: Overview Overview (Following page, figure 1) 1. Slide Switch: Select A/V product to be controlled by the remote control. 2. Numbers: Individually select channels or enter information into menus. 3. POWER: Turns power on and off for TV and other A/V products.
Page 61 Remote Control Functions: Care and Operation � � 17 18 19 20 22 23 24 25 26 27 �� Figure 1. The remote control functions. � � Figure 2. Installing the batteries. Operation Installing the Batteries: (Figure 2) 1.
Page 62: Channel Selection
Remote Control Functions: Channel Selection and Sleep Timer Channel Selection For Ant-A or Ant-B Channels: You have three options... • Enter three numbers (for channel 2, press 002). • Press the channel number and ENTer (for channel 2, press 2, then ENTer). •...
Page 63 Remote Control Functions: Operation of PIP and POP MAIN Side-by-Side PICTURE Figure 1 MAIN PICTURE Figure 2 MAIN PICTURE Figure 3 �� Figure 4 • Side-by-Side cannot show the same channel or device on both sides. •...
Page 64: Remote Control Functions
Remote Control Functions: This is a wide screen TV (also known as a 16:9 TV). This shape reflects the new types of images available from HDTV and many DVDs. There are still many older style narrow screen images (called 4:3 aspect ratio) you will encounter. While there will never be a perfect solution for displaying a narrow image on a wide screen, Mitsubishi offers several display formats to choose from.
Page 66 Programming the Remote Control to Control NetCommand ™ A/V Products To Program the Remote to Control NetCommand™ A/V Products: (See NetCommand Supported Devices, for the list of A/V products supported by the NetCommand™ System.) 1. Move the slide switch at the top of the remote to the TV layer.
Page 67 Programming the Remote Control to Control Non-NetCommand ™ AV Products To Program the Remote to Control Other Brands of Audio and Video Products: (Figures 1-5) 1. Move the slide switch at the top of the remote to the product you want to control. 2.
Page 68 Programming the Remote Control to Control Non-NetCommand ™ A/V Products Figure 4. Programming the remote to control your DVD/ LDP. Figure 5. Programming the remote to control your A/V receiver. IMPORTANT If the remote control has not been programmed to operate NetCommand™ and slide switch is set to TV when you enter an A/V receiver code, VOLUME and MUTE will control the A/V receiver rather...
Page 69 Remote Control Functions: Special Functions When your remote control has been Programmed to operate another manufacturer’s product, the function performed on each layer can vary. The most common functions are: �� ...
Page 70 IMPORTANT NOTES WARNING: When using the VGA Input, do not leave stationary or letterbox images on-screen for extended periods of time. Mix types of pictures shown. Uneven picture tube aging is NOT covered by your warranty. The normal use of a TV should include a mixture of TV picture types.
Page 71 Appendix A: Bypassing the V-Chip Lock Appendix A: Bypassing the V-Chip Lock Bypassing the V-Chip Lock After you set the lock, you need your passcode to view a V-Chip locked program, view the locked TV, cancel the lock, or enter the V-Chip Lock menus.
Page 73: Component Video
Component-1 and Component-2 Inputs These inputs are compatible with component video signals from standard DVD players and other equipment sending a standard NTSC component video signal (480i). These inputs are also compatible with newer DVD players sending a progressive NTSC component video signal (480p). VGA Input This input will accommodate most computers capable of supporting a VGA monitor.
Page 74: Remote Control Programming Codes
Remote Control Programming Codes A/V Receivers Mitsubishi ..010, 011, 012, 013, 014, ....015 Admiral ..220 Aiwa... . 225, 226, 241 Denon .
Page 75 Cleaning Normally, light dusting with a dry, non- scratching duster will keep your TV clean. If cleaning beyond this is needed, please use the following guidelines: First, turn off the TV and unplug the power cord from the power outlet. Top and Sides of the TV: •...
Page 76 Service If you are unable to correct a problem with your TV, consult your Mitsubishi dealer or a Mitsubishi Authorized Warranty Service Center. • DO NOT adjust any controls other than those described in this Owner’s Guide. • DO NOT remove the protective back cover of your TV.
Page 77 Diamond Shield™ Installation for Models WS-B55, WS-55511, WS-65511 and WS-65611 The instructions below will lead you through the Diamond Shield installation process. Included in the Diamond Shield package are the following items: For model WS-65511 and WS-65611 only. (1) Diamond Shield™ (2) molding clips 1.
Page 78 Appendix E: Diamond Shield Instructions Diamond Shield™ Installation for Models WS-48511, WS- 55711, WS-65711, WS-65712 and WS-73711 The instructions below will lead you through the Diamond Shield installation process. Included in the Diamond Shield package are the following items: For models WS-65711, WS-65712 and WS-73711 only.
Page 79: Appendix F: Cabinet Separation
Cabinet Separation for Model WS-65511 �� ...
Page 80 Appendix F: Cabinet Separation Cabinet Separation for Model WS-65611, WS-65711 and WS-73711 For Mitsubishi Dealers and Service Personnel Only The Mitsubishi TV models WS-65611, WS-65711 and WS-73711 cabinets are assembled in two pieces. These pieces may be separated to allow for easier delivery and set up.
Page 81 Cabinet Separation for Model WS-65712 For Mitsubishi Dealers and Service The Mitsubishi TV model WS 65712 cabinet is assembled in two pieces. These pieces may be separated to allow for easier delivery and set up. The instructions below show how to safely separate and reattach the cabinet.
Page 82 Appendix G: Troubleshooting Problem • The TV remote control does not work. • The TV takes several seconds to respond to channel commands. • You cannot access a channel. • On-screen displays appear each time you change a function. • You cannot program the TV to turn on automatically. •...
Page 83 Problem • The TV will not turn on after being plugged in. • TV functions do not respond to the remote control or to front panel control and the TV will not power off. • When viewing a stopped VCR, white lines are rolling on the screen.
Page 84 On Screen Information Displays When you turn on the TV, change Devices, change Channels or when you press the INFO button on the remote control the TV will display the current status. Below are the most common displays; please note that seldom or never do all of the different status indicators appear at the same time.
Page 85 accessories, 9 add channels, 46 adding and deleting devices, 32, 33 adaptors (BNC to RCA), 22 adjust button, 26, 38, 60-61 adjusting (convergence), 44-45 adjusting audio/video, 55-58 alignment (convergence), 44-45 Antenna Menu, 46 antennas (connecting), 17, 18 Audio button, 39, 55, 57, 60 Audio settings, 56 Audio/Video Menu, 55 A/V Memory, 55...
Page 86 safeguards, 4-5 screen information display, 84 servicing, 2, 5, 76 side-by-side, 62-63 Sharpness, 58 Sleep Timer, 60, 62 Spanish, 28, 45 Special Features, 9 Special Functions(Remote Control), 69 SQV (SuperQuickView™), 47 SAP, 57 STATIONARY PICTURE WARNING, 1, 21, 25, 70 Shield, Diamond, 75, 77-78 stereo, 57 surface(cleaning), 75...
Page 87 MITSUBISHI PROJECTION TELEVISION LIMITED WARRANTY MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. (“MDEA”) warrants to the original purchaser of this television that if purchased from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of improper workmanship and/or material: a. Parts. The lenticular (i.e. front picture) screen and/or the DiamondShield™ is warranted against defects in materials and workmanship for a period of 30 days.
Page 88: Mitsubishi Tv Software
MITSUBISHI TV SOFTWARE END-USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE IMPORTANT – READ CAREFULLY: This License Agreement is a legal agreement between you (either an individual or an entity) and Mitsubishi Digital Electronics America, Inc. (MDEA) for all software preinstalled and/or provided along with this television (“Software”). By utilizing this television and Software, you agree to be bound by the terms of this License Agreement.
Page 89 Notes...
Page 90 Notes...
Page 91: Connection: Helpful Hints
Connection: Helpful Hints Q My VCR (or other device) does not have two sets of stereo audio outputs; how can I connect this device’s audio to both the TV and the A/V Receiver? A. There are two solutions: 1. Connect the single set of stereo audio outputs to the TV only. Use the Edit NetCommand™ feature to “Change”...
Page 92 If you have questions regarding your television, call Consumer Relations at (800) 332-2119, or email us at M D E A s e r v i c e @ b i g s c r e e n . m e a . c o m To order replacement or additional remote controls or owner’s guides call (800) 553-7278 visit our website at...
