CONNECTING TO AN ATX POWER SUPPLY

To Connect ATX Power Supply to the Backplanes and/or the ISBC Card
Disconnect the AC cord from the power supply to prevent sudden electric surge.
1.
Connect the ATX power supply switch to the pin 17 (power button) and pin 19
2.
(+5VSB) of CN7 (multi panel) on the board.
To turn off the power supply, push the ATX power switch button for about four seconds.
•
To turn the system on, push the button once.
•
11 Features

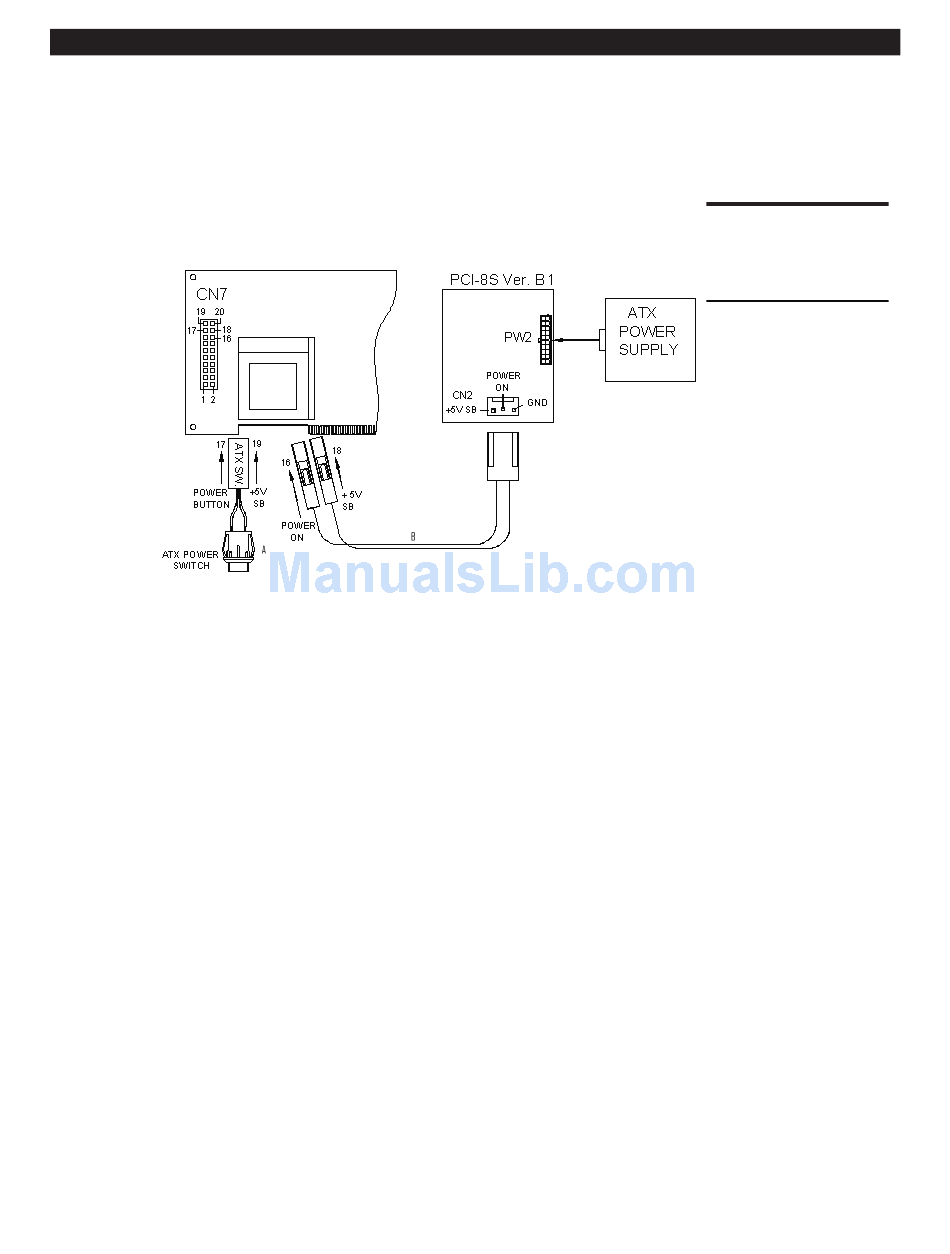

Figure 1. SBC-370
(through Power
Button and +5VSB).
