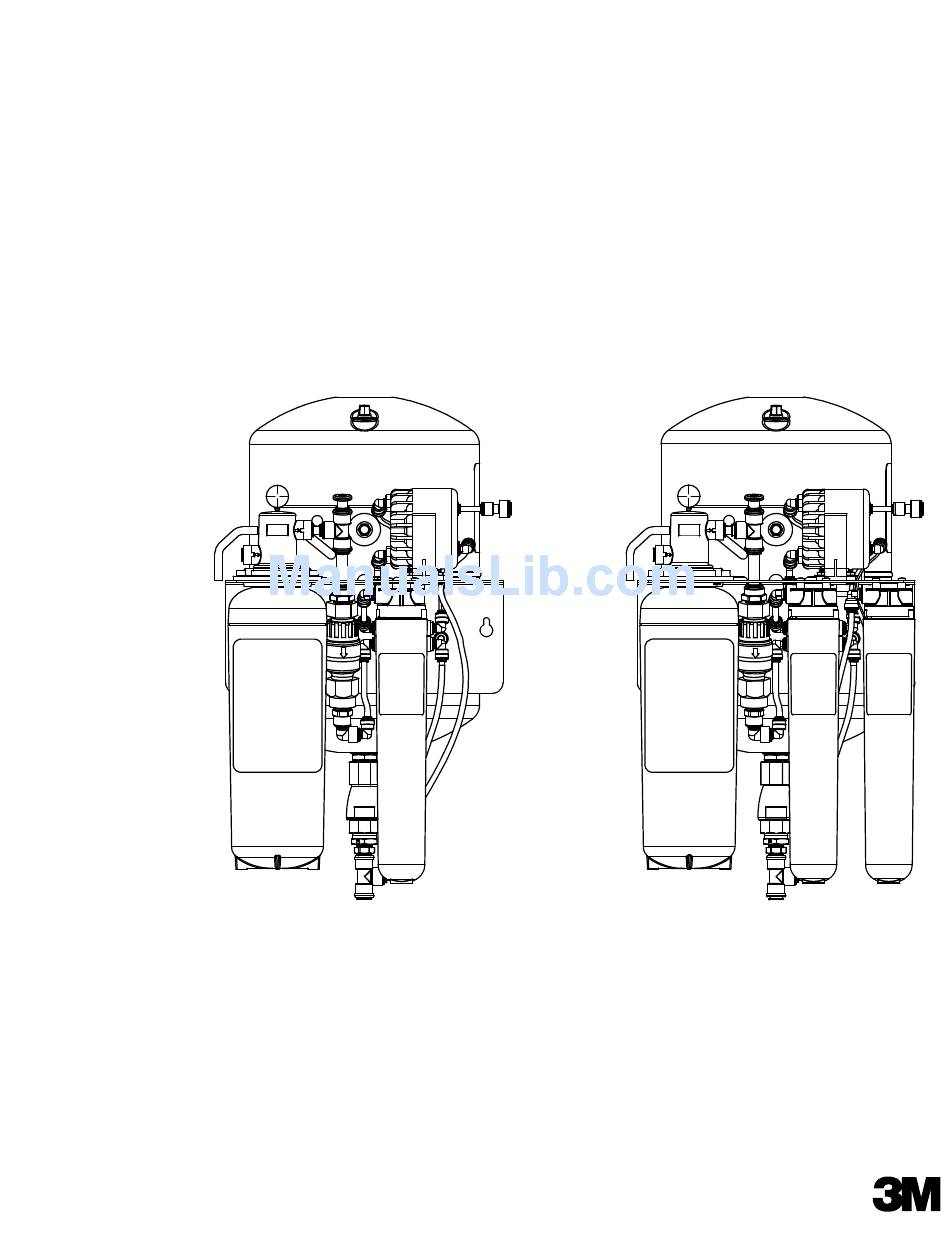

- Page 1 Water Filtration Products Installation and Operating Instructions for SGLP100-CL, SGLP200-CL and SGLP200-CL-BP REVERSE OSMOSIS FILTRATION SYSTEMS SGLP100-CL SGLP200-CL SGLP200-CL-BP Installer: Please leave this manual with owner/operator.
- Page 2 Intended Use Statement: SGLP100-CL, SGLP200-CL and SGLP200-CL-BP are intended for use in filtering potable water and have not been evaluated for other uses. The products are installed at the point of use and must be installed as specified in the installation instruction by a qualified professional.
-
Page 3: Feedwater Parameters
For areas with high dirt/sediment in incoming water, HF60-CL or HF90-CL pre-filter is recommended. * NOTE: For waters over 10 grain hard, a 3M water softener is recommended for pretreatment. Consult 3M technical services for correct sizing. For areas with incoming pressure less than 60 psi an external Booster Pump is required. -
Page 4: Product Specifications
RO production rates listed are at a water pressure and temperature of 50 PSI and 77°F producing water at atmosphere. PARTS LIST THE FOLLOWING PARTS ARE INCLUDED WITH THE SGLP100-CL, SGLP200-CL and SGLP200-CL-BP REVERSE OSMOSIS WATER FILTRATION SYSTEMS. PLEASE UNPACK THE CONTENTS FROM THE PRODUCT BOX AND CHECK TO VERIFY THAT ALL OF THE PARTS LISTED BELOW ARE INCLUDED. -
Page 5: Plumbing Connections
4. Run a 3/8” tubing (not included) from the “Brine Out” port of the permeate pump to the drain. 5a. For SGLP100-CL, ensure that the blue flow control is securely pushed into 1/4” tubing (one end of which is connected to the “brine in” port of the permeate pump). Insert the other end of that 1/4” tubing with the flow control at the bottom of the RO Membrane cartridge. - Page 6 Structure #: Illustration 1 Inch Water Inlet To Drain Date: 07/13/15 This artwork has been created as requested by 3M. 3M is responsible for the artwork AS APPROVED and assumes full responsibility for its correctness. Water Sample Valve Water Valve (not included)
-
Page 7: System Start-Up
Insert the cartridge into the filter head. Then, turn the cartridge 1/4 turn to the right. 2a. For SGLP100-CL, remove the red cap from the RO-membrane cartridge and moisten the o-rings with water. Insert the cartridge into the filter head. Then, turn the cartridge 1/4 turn to the right. - Page 8 CARTRIDGE & RO MEMBRANE CHANGE INSTRUCTIONS Pre-filter Cartridge (Replace every 12 months) 1. Close tank shut-off. 2. Turn used pre-filter cartridge 1/4 turn to the left. 3. Pull down on cartridge. 4. Discard used cartridge. 5. Remove red cap from new cartridge and moisten the o-ring with water. 6.
- Page 9 CHECK TANK PRESSURE WHEN: Yearly TOOLS: Piece of 3/8” tubing OR Bucket Bicycle or tire pressure gauge Bicycle tire pump 1. Drain water from the storage tank. a. Shut off the inlet water supply by removing the pre-filter or water booster system if applicable. b.
-
Page 10: Replacement Parts
THIS DOCUMENT CONTAINS PROPRIETARY, CONFIDENTIAL, DATE AND/OR PRIVILEGED INFORMATION WHICH IS THE PROPERTY 56-12301 Tank ISSUED: OF 3M PURIFICATION INC. OR ITS DESIGNATED ENTITY AND IS SUBMITTED FOR USE ONLY IN CONNECTION WITH PROPOSED AUTHORIZED WORK. INFORMATION THIS SIZE CODE IDENT. NO. -
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Cause Solution Notes Repair existing Booster Contact Dealer Unit never produces Pump RO water/only provides Low Feed Water Pressure Only if Booster Pump is not bypass water Add Water Booster Pump installed. Repair Existing Booster Pump / System Contact Dealer (If Applicable) Low Feed Water Pressure... - Page 12 9" 3/8" 1/4" 3/4" 5/8" 10 1/2" Figure 5...
-
Page 13: Limited Warranty
3M product in a particular application. Given the variety of factors that can affect the use and performance of a 3M product, user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and suitable for user’s method of application. - Page 15 NOTES...
- Page 16 3M Purification Inc. 400 Research Parkway Meriden, CT 06450 USA Toll Free: 866.990.9785 3M is a trademark of 3M Company. Worldwide: 203.237.5541 Schrader is a trademark of Schrader International, Inc. Fax: 203.238.8701 34-8717-8351-9 www.3Mfoodservice.com © 2015 3M Company. All rights reserved.
