Panasonic EP1015 Operating Instructions Manual

Household massage lounger
Hide thumbs Also See for EP1015:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
Operating Instructions
Manuel d'utilisation
de funcionamiento
Before operating this unit, please read these instructions completely and save this manual for future use.
Avant d'utiliser cet appareil, veuillez lire comlpètement ces instructions et conserver ce manuel à titre de référence.
Antes de utilizar esta unidad, lea completamente estas instrucciones y guarde este manual para
Instrucciones
utilizarlo en el futuro en caso de ser necesario.

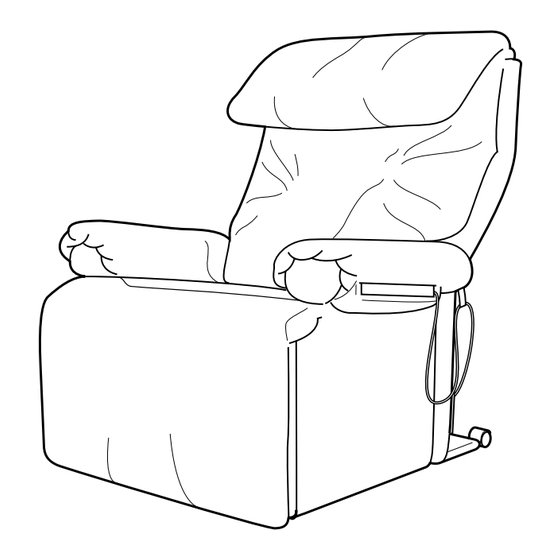

Household Massage Lounger
Fauteuil vibromasseur
Silla de masaje para el hogar
Model No.
Modèle No.
Modelo No.
®
EP1015
EP1015
EP1015

Advertisement

Table of Contents
loading

Related Manuals for Panasonic EP1015

Summary of Contents for Panasonic EP1015

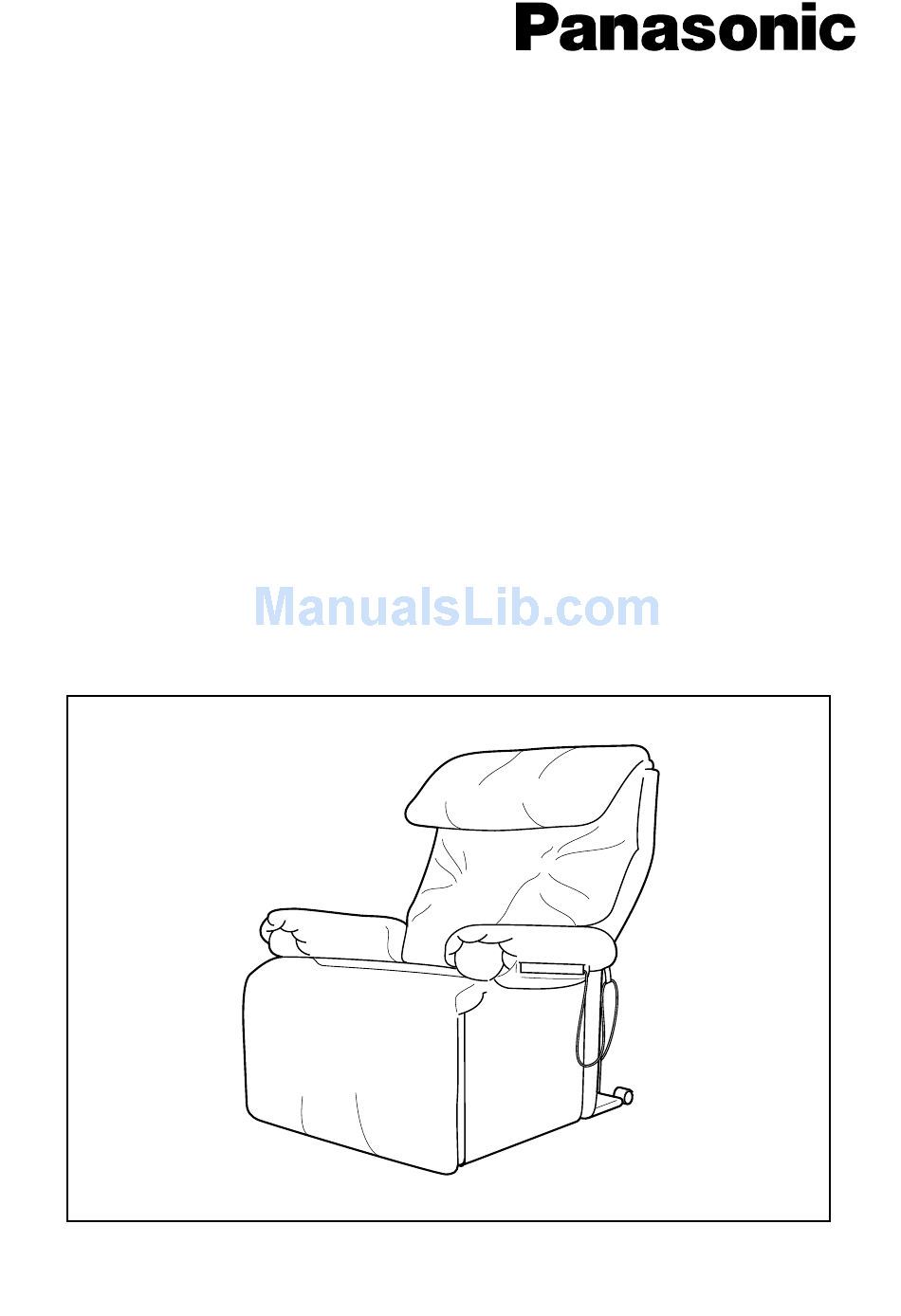

  • Page 1 Manuel d’utilisation Instrucciones de funcionamiento Household Massage Lounger Fauteuil vibromasseur Silla de masaje para el hogar EP1015 Model No. EP1015 Modèle No. EP1015 Modelo No. Before operating this unit, please read these instructions completely and save this manual for future use.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....3 HOW TO USE........10 •...

  • Page 3: Important Safety Instructions

    Thank you for purchasing the Panasonic Household Massage Lounger EP1015. For optimum performance and safety, please read these instructions carefully. IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using the massage lounger.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS WARNING: To avoid risk of injury 1. This product should not be used by pregnant women, persons who are ill, or persons with back, neck, shoulder or hip pain, or conditions of any kind, without consulting a physician prior to use. Do not use on any area of the body that has received medical treatment without consulting a physician prior to use.

  • Page 5: Operating Precautions

    OPERATING PRECAUTIONS WARNING: To avoid damage to the chair 1. The chair is designed for a maximum user weight of 264 lbs. (120 kg). Exceeding the maximum weight may cause permanent damage to the massage mechanism and/or other components of the chair. Any such damage is deemed to be user abuse and is not covered under the Limited Warranty.

  • Page 6: Grounding Instructions

    GROUNDING INSTRUCTIONS • This product must be grounded. If it should malfunction, grounding provides the path of least resistance for electric current to reduce the risk of electric shock. • This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 7: Parts Identification

    PARTS IDENTIFICATION MASSAGE LOUNGER Headrest • Drapes over the back cushion. Massage heads Back cushion (Underneath chair cushion) • Attaches to the chair with zipper. • Remove for a stronger massage. Controller storage pocket (Controller can be stored in the controller pocket [left side].) Legrest lever Armrest...

  • Page 8: Before Use

    BEFORE USE PLACE OF USE • Do not use the massage lounger where it will be exposed to direct sunlight for long periods of time. Overexposure to harsh light can discolor or harden the cover. • Do not use the massage lounger in hot or humid places or places where it may become wet from rain, splashing or dripping water, etc.

  • Page 9: Reclining The Chair

    RECLINING THE CHAIR By using the reclining button on the controller, the legrest can be raised and lowered automatically in concert with the movement of the massage lounger’s backrest. • To avoid possible tipping of the chair, do not sit or lean on the backrest while chair back is in a reclined position.

  • Page 10: How To Use

    HOW TO USE TO START/STOP MASSAGE ACTION Before using, first read all the instructions including the warnings and safety and operating precautions, as well as the section on programmed and manual massage. 1. To operate the massager, press the “on/off” button. •...

  • Page 11: Programmed Massage

    PROGRAMMED MASSAGE First read and familiarize yourself with the safety and operating precautions. 1. Press the “on/off” button. 2. Use the “massage heads adjustment” button (neck roller position) to leg massage toggle from the highest (tallest) setting “1” to the lowest (shortest) quick setting “5”, in order to set the massage heads to the desired position stop...

  • Page 12: Manual Massage

    MANUAL MASSAGE First read and familiarize yourself with the safety and operating precautions. Press the button for the desired massage. Manual Operation • The currently operating massage is indicated by the massage indicator lamps. knead down roll • It is possible to combine different massage types. Kneading (upward/downward) massage Tapping massage intensity...
  • Page 13 MANUAL MASSAGE Kneading rolling massage 1. Press the “knead” button and the “roll” button. The massage heads start the kneading rolling massage. 2. To raise the massage heads, press the “up” button. To lower them, press the “down” button. • All functions that include rolling are available for the entire back, or for a limited section of the back, by pressing the “stroke”...
  • Page 14 Massage heads up-down adjustment Use of the up or down adjustment button allows you to adjust the up and down down direction of the massage heads. To move the massage heads up, press and hold the “up” button. To lower them, press the “down”...

  • Page 15: Back Cushion And Headrest

    BACK CUSHION AND HEADREST Headrest Weighted flap Strap Back cushion • Fasten the back cushion to the chair and the headrest and insert the weighted flap through the strap attached behind the chair. • If you prefer a stronger massage, remove the back cushion. •...

  • Page 16: Details Of Programmed Massage

    DETAILS OF PROGRAMMED MASSAGE Whole back course Rolling Tapping rolling/ Upward Downward/ Tapping Kneading rolling kneading upward kneading Complete massage including neck, shoulders, back stretching and lower Kneading rolling/ Kneading rolling/ Tapping Upward kneading/ Rolling back Rolling Tapping rolling Kneading rolling Neck and shoulder course Rolling Tapping rolling/...

  • Page 17: Massage Heads' Range Of Movement

    MASSAGE HEADS’ RANGE OF MOVEMENT • The vertical movement of the massage heads can be set for different areas, giving you a massage any place you like from the neck to the lower back for all massage types. Kneading (upward/downward), Kneading rolling, and Regional kneading rolling. Massage range width: 2 15/16 in.

  • Page 18: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Before requesting service for this unit, check the table below for the possible cause of the problem. Some simple checks or minor adjustment on your part may eliminate the problem and restore proper operation. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, call us at 1-800-338-0552 to locate the servicer near to you.

  • Page 19: Specifications

    SPECIFICATIONS Power source: 120 V AC, 60 Hz Power consumption: 200 W Kneading speed: Approx. 28 times/min. Tapping speed: Approx. 500 times/min. (per side) Rolling massage speed: Approx. 1 cycle every 37 sec. Massage width: Shoulder / lower back section: Approx. 2 15/16 in. (75 mm) Back rolling width/tapping width: Narrow: Approx.
