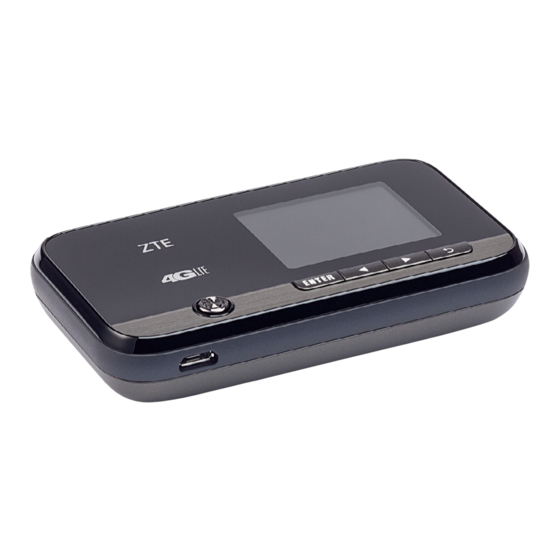

Zte Z289L Quick Start Manual

Hide thumbs Also See for Z289L:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Start Manual
ZTE MOBILE HOTSPOT
QUICK START GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Zte Z289L

Summary of Contents for Zte Z289L

  • Page 1 ZTE MOBILE HOTSPOT QUICK START GUIDE...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Thank you for choosing Consumer Cellular! Introduction We know you’re excited to use your new ZTE Mobile Getting to Know Your Device Hotspot, and this short guide will help you get familiar with it, so you can start using it as soon as possible.

  • Page 3: Getting To Know Your Device

    GETTING TO KNOW YOUR DEVICE GETTING TO KNOW YOUR DEVICE GETTING TO KNOW YOUR DEVICE INDICATORS APPEARANCE Icon Indication The following diagram is for your reference only. Network signal strength. The actual product may be different. Network type. 3G/4G/LTE icon will appear 3G/4G/ on the LCD homescreen according to the network being connected.

  • Page 4: Initial Set-Up

    GETTING TO KNOW YOUR DEVICE INITIAL SET-UP INITIAL SET-UP FUNCTION ICONS Icon Name Description REMOVE THE Connection Show and check the BACK COVER. Info connection information. Show and check the Device Info device information. Show and check the Connected information about Device connected devices.

  • Page 5: Charging Your Device

    INITIAL SET-UP CHARGING YOUR DEVICE CHARGING YOUR DEVICE CLOSE THE You can charge your Mobile Hotspot by using the USB BACK COVER. cable or adapter. Please charge your device for more than 2 hours when you use it the first time or when you haven’t used it for a long time.

  • Page 6: Connection Scenario

    CONNECTION SCENARIO CONNECTING TO YOUR DEVICE CONNECTION SCENARIO CONNECTING TO YOUR DEVICE Your Mobile Hotspot allows you to use your SIM card to 1. Power on your Mobile Hotspot. It will take 1 to access the Internet and supports multiple devices for 2 minutes to initialize.
  • Page 7 CONNECTING TO YOUR DEVICE CONNECTING TO YOUR DEVICE 3. Select the SSID of your Mobile Hotspot, and then 4. Input the password, and then press Next. press Connect. NOTE: Please check the label on your Mobile Hotspot NOTE: Please check the label on your Mobile Hotspot or select Device Info on the LCD homescreen to get the or select Device Info on the LCD homescreen to get the default SSID.
  • Page 8 CONNECTING TO YOUR DEVICE CONNECTING TO YOUR DEVICE 5. Your computer or other Wi-Fi enabled device will ACCESSING THE INTERNET then connect to the Mobile Hotspot. You will see After your Wi-Fi enabled device is connected to Connected once this takes place. your Mobile Hotspot successfully, you can access the Internet automatically.

  • Page 9: Configuring Your Pc

    CONFIGURING YOUR PC CONFIGURING YOUR PC CONFIGURING YOUR PC 2. Press Properties. Follow these steps and figures for Windows 10 to configure the Internet Protocol for your Wi-Fi connection. Steps may vary if you use a different operating system. 1. Access Network and Sharing Center from the Control Panel, and then click the hotspot name next to Connections.
  • Page 10 CONFIGURING YOUR PC CONFIGURING YOUR PC 3. Select Internet Protocol Version 4 (TCP/IPv4), and 4. Select Obtain an IP address automatically and then press Properties. Obtain DNS server address automatically, and then press OK to finish the configuration.

  • Page 11: Resetting Your Device

    RESETTING YOUR DEVICE RESETTING YOUR DEVICE 3. Select Reset > Yes. The Mobile Hotspot will restart RESETTING YOUR DEVICE automatically. There are two ways to reset your Mobile Hotspot to factory default settings. VIA WEB CONFIGURATION PAGE 1. Go to http://192.168.0.1 or http://mobile.hotspot and log in with the default password (Admin).

  • Page 12: Troubleshooting

    RESETTING YOUR DEVICE TROUBLESHOOTING VIA MOBILE HOTSPOT TROUBLESHOOTING 1. Remove the back cover. Problem Suggested Solution 2. Find the hole marked Reset on the bottom of the Cannot • Make sure the Wi-Fi function is Mobile Hotspot. establish the active. Wi-Fi connection •...

  • Page 13: For Your Safety

    TROUBLESHOOTING FOR YOUR SAFETY FOR YOUR SAFETY Problem Suggested Solution TO THE OWNER Cannot access • Enter the correct address. the web The default address is • Do not use the device in an enclosed environment configuration http://192.168.0.1 or http:// or where heat dissipation is poor.
  • Page 14 FOR YOUR SAFETY FOR YOUR SAFETY • Be aware of the usage limitation when using your • Avoid using your device near or inside metal device at places such as oil warehouses or chemical structures or establishments that can emit factories, where there are explosive gases or electromagnetic waves;...

  • Page 15: Warranty

    FOR YOUR SAFETY WARRANTY WARRANTY BATTERY HANDLING This product is guaranteed for a period of 12 months • Do not short-circuit the battery, as this can cause from the date of purchase. In the unlikely event of a excessive heat and fire. fault occurring during this period, please contact the •...

  • Page 16: Contact Us

    CONTACT US CONTACT US For assistance, please contact: Email: Service@ConsumerCellular.com Website: ConsumerCellular.com/Support Telephone: (800) 686-4460...
  • Page 17 © 2015 Consumer Cellular, Inc. Consumer Cellular and the Consumer Cellular logo are trademarks of Consumer Cellular, Inc. ZTE and the ZTE logos are trademarks of the ZTE Corporation. Android is a trademark of Google Inc. Wi-Fi is a registered trademark of Wi-Fi Alliance.
