Miller Electric Maxstar 150 STL Specifications

Miller electric stick welding power source specifications.
Hide thumbs

Maxstar
150 STL
Issued February 2008 • Index No. DC/27.1
®
TIG/Stick Welding
Light Industrial Applications
Processes
Amperage Range
115 VAC: 5 – 150 A (DC TIG)
20 – 100 A (DC Stick)
Process Piping
Lift-Arc
TIG (GTAW)
Quick
230 VAC: 5 – 150 A (DC TIG)
Dairy Industry
Stick (SMAW)
20 – 150 A (DC Stick)
Food/Beverage Industry
Specs
Input Power
Restaurant/Kitchen Repair
Max. Open-Circuit Voltage
90
Experimental Aircraft
1-Phase Power
Shipboard Installation/Repair
Weight
13.7 lb (6.2 kg)
Maintenance Repair
The Power of Blue
.
®
New Case and
Improved!
MVP Plugs!
Single amperage range allows
operator to accurately set amperage
Auto-Line
provides state-of-the-art
on both 115 or 230 V primary power.
flexibility to the end user. The Auto-
Line circuitry automatically connects
Inverter-based, DC power source has
to 115–230 VAC, single-phase power
a simple-to-use operator interface
without removing the covers to relink
providing only the necessary
the power source. No longer is there
controls in a compact machine.
a concern if you have the correct
machine for the shop or job site.
Adaptive Hot Start
for Stick arc
starts automatically increases the
Miller's exclusive
output amperage at the start of a
multi-voltage plug
weld should the start require it.
(MVP
) allows
Prevents the electrode from
connection to 115
sticking and creating an inclusion.
or 230 V receptacles
without tools —
Low OCV Stick is a simple design
choose the plug that fits the receptacle
that reduces the open-circuit
and connect it to the power cord.
voltage to 12–16 V when the
welding power source is not in use.
Portable in the shop or at the job
This circuit design is now built into
site — at 13.7 lb the shoulder strap
the Maxstar 150 STL eliminating
allows the end user to easily move

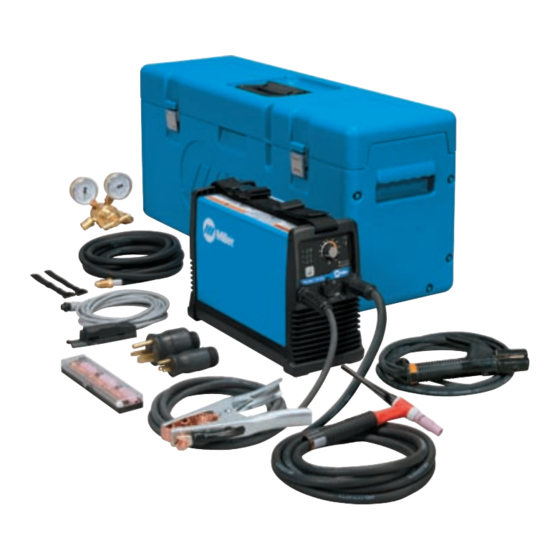

TIG/Stick Package (#907 135-01-7) comes complete with:
the need for add-on voltage reducers.
from location to location.
Maxstar 150 STL
10 ft (3 m) MVP
power cord
Best in class Stick arc character -
Lift-Arc
start provides TIG arc starting
MVP
plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A)
istics for those demanding jobs.
without the use of high frequency.
X-CASE
provides protection in transport and storage
Remote fingertip control
Power Factor Corrected (PFC) for
Built-in gas solenoid eliminates the
Weldcraft
®
WP1712RD125 TIG torch with adapter
optimum performance especially
need for bulky torch with a gas valve.
13 ft (4 m) Stick electrode holder with 25 mm Dinse connector
on 115 V — reduces nuisance
10 ft (3 m) work clamp with 25 mm Dinse connector
Full function remote control for
breaker tripping.
Smith
®
regulator with gas hose
precise amperage control for critical
AK-2C accessory kit
welds on thin materials (6-pin fingertip
Shoulder strap
Fan-On-Demand
power source
or foot control available.)
cooling system operates only when
needed, reducing noise, energy use
Thermal overload protection with
and the amount of contaminants
indicator light helps prevent machine
pulled through the machine.
damage if the duty cycle is exceeded
or airflow is blocked.
Power source is warranted for 3 years, parts and labor.
Original main power rectifiers are warranted for 5 years.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
Phone: 920-735-4505
www.MillerWelds.com
1635 West Spencer Street
USA FAX: 920-735-4134
Appleton, WI 54914 USA
Canadian FAX: 920-735-4169
International FAX: 920-735-4125

   Related Manuals for Miller Electric Maxstar 150 STL

   Summary of Contents for Miller Electric Maxstar 150 STL

  • Page 1: Power Source

    12–16 V when the welding power source is not in use. This circuit design is now built into the Maxstar 150 STL eliminating the need for add-on voltage reducers. Best in class Stick arc character - istics for those demanding jobs.

  • Page 2: Control Panel

    Specifications (Subject to change without notice.) Welding Amperage Input Power Range Rated Welding Output 115 VAC Stick 15 A 20 –70 A 70 A at 22.8 VDC, 100% Duty Cycle 115 VAC TIG 15 A 5–100 A 100 A at 14.0 VDC, 100% Duty Cycle 115 VAC Stick 20 A 20–100 A 70 A at 22.8 VDC, 100% Duty Cycle...

  • Page 3

    Maxstar 150 STL Packages ® Packages Standard Package #907 135 Package includes: Maxstar 150 STL 10 ft (3 m) MVP ™ power cord ™ plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A) 13 ft (4 m) Stick electrode holder with 25 mm Dinse connector...

  • Page 4: Ordering Information

    Includes 26.5 ft (8 m) cord and plug. Description Maxstar 150 STL with electrode holder, work clamp, and MVP cord and plugs ™ Includes #907 135 PLUS X-CASE , TIG torch, gas regulator with hose, and...
