2. Product specification and description

2.2.3. Paper Path

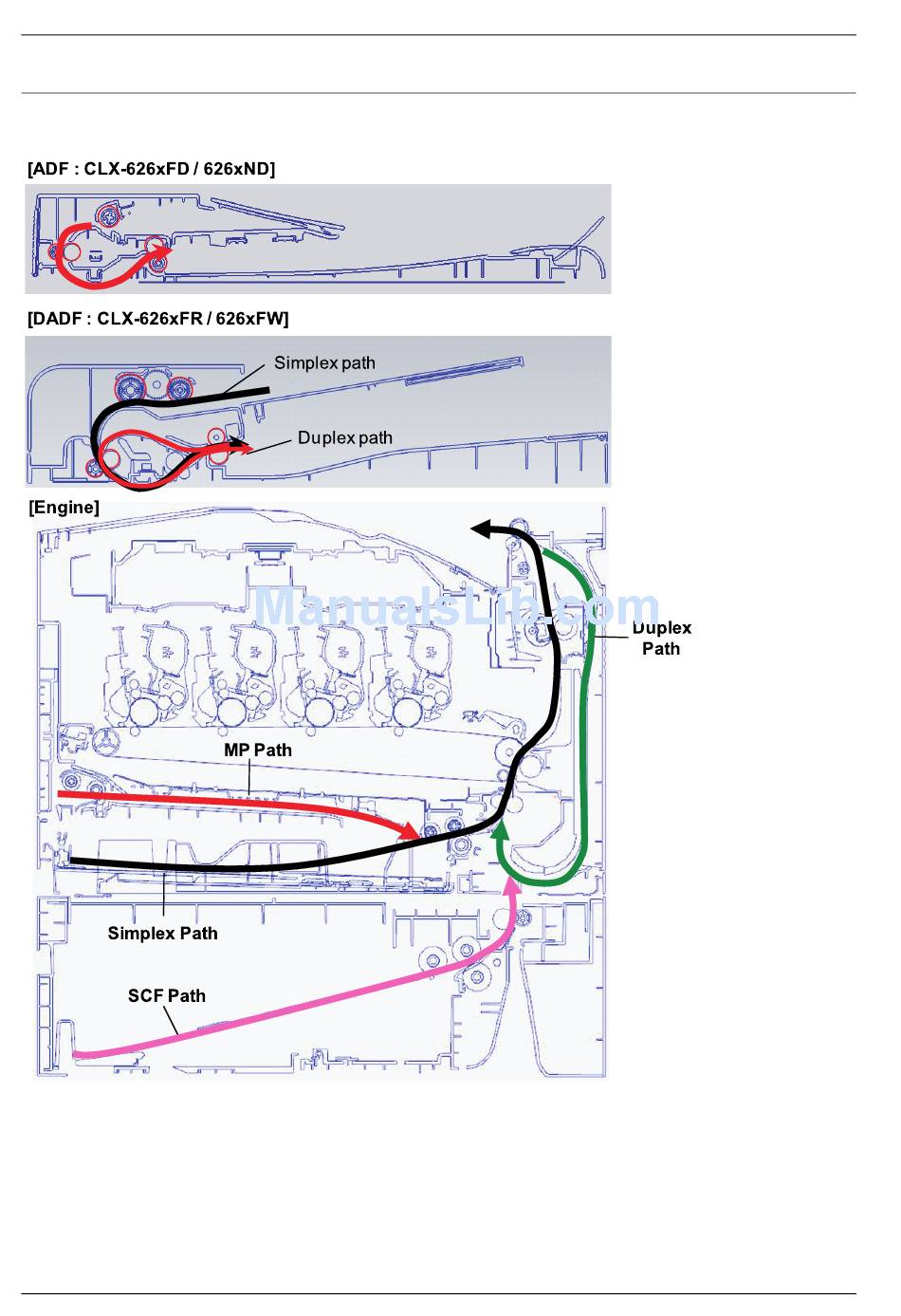

The following diagram displays the path the paper follows during the printing process.
[ADF : CLX-626xFD / 626xND]
[DADF : CLX-626xFR / 626xFW]
[En g in e ]
S imp le x P a th
S CF P a th
2-19
S imple x pa th
Du ple x pa th
MP P a th
Du p le x
P a th
