Asus RS100-E5-PI2 User Manual

Asus RS100-E5-PI2 User Manual

1u rackmount server
Hide thumbs
Table of Contents

Advertisement

Quick Links

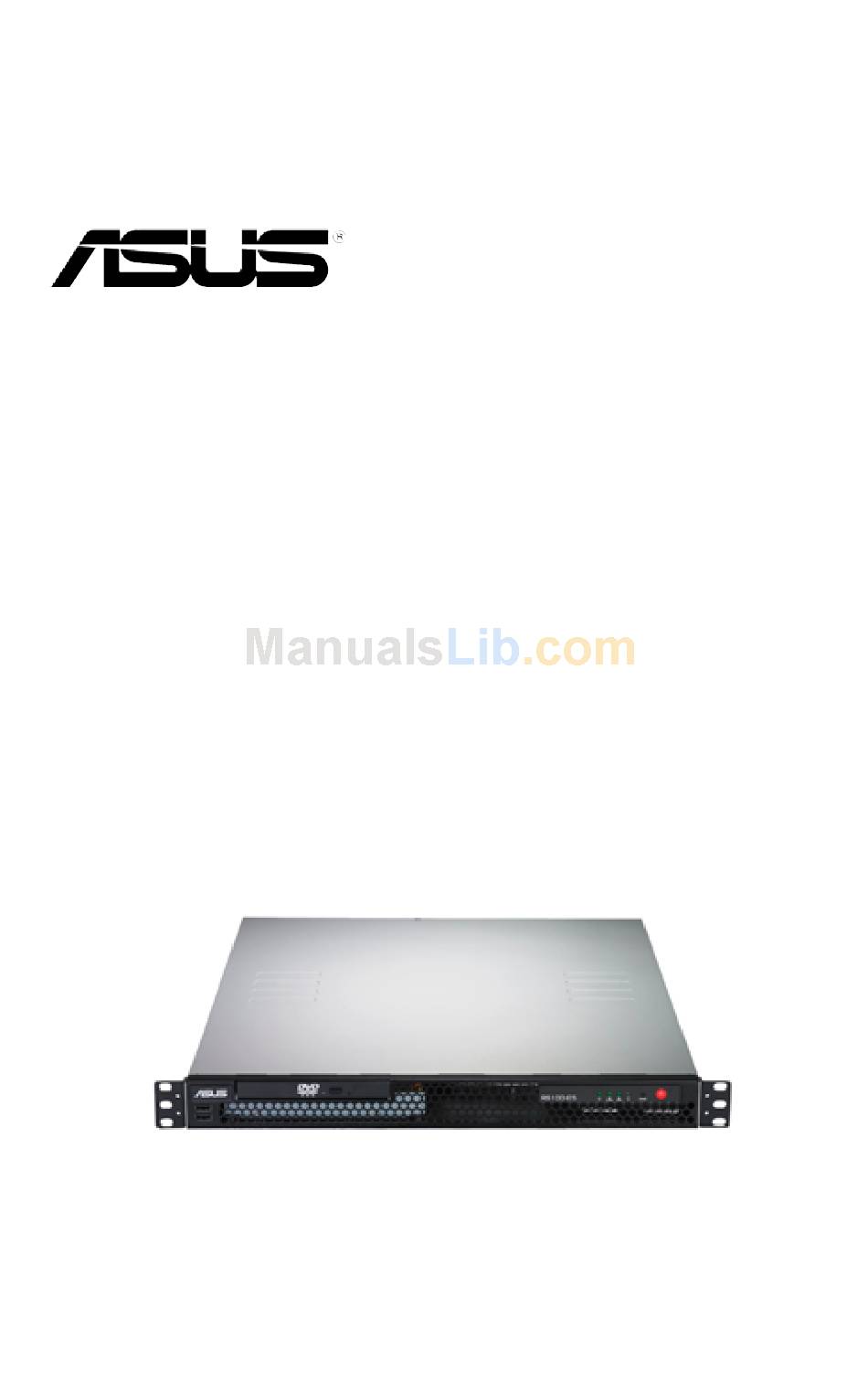

RS100-E5-PI2
1U Rackmount Server
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Asus RS100-E5-PI2

Summary of Contents for Asus RS100-E5-PI2

  • Page 1 RS100-E5-PI2 1U Rackmount Server User Guide...
  • Page 2 ASUSTeK COMPUTER INC. (“ASUS”). ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no...

  • Page 3: Table Of Contents

    Contents Contents ... iii Notices ... vii Safety information ... viii About this guide ... ix Chapter 1: Product introduction System package contents ... 1-2 Serial number label ... 1-2 1.3 System specifications ... 1-3 Front panel features ... 1-5 Rear panel features ... 1-5 Internal features ...

  • Page 4: Contents

    Managing and updating your BIOS ... 5-2 5.1.1 Creating a bootable floppy disk ... 5-2 5.1.2 AFUDOS utility ... 5-3 5.1.3 ASUS CrashFree BIOS 3 utility ... 5-6 BIOS setup program ... 5-8 5.2.1 BIOS menu screen ... 5-9 5.2.2 Menu bar ... 5-9 5.2.3...
  • Page 5 Contents 5.3.6 System Information ... 5-15 Advanced menu ... 5-16 5.4.1 USB Configuration ... 5-16 5.4.2 Remote Access Configuration ... 5-17 5.4.3 Trusted Computing ... 5-18 5.4.4 MPS Configuration ... 5-18 5.4.5 CPU Configuration ... 5-19 5.4.6 Chipset Configuration ... 5-20 5.4.7 Onboard Devices Configuration ...
  • Page 6 Contents 6.3.2 Initializing the virtual drives ... 6-18 6.3.3 Rebuilding failed drives ... 6-23 6.3.4 Checking the drives for data consistency ... 6-25 6.3.5 Deleting a RAID configuration ... 6-28 6.3.6 Selecting the boot drive from a RAID set ... 6-29 6.3.7 Enabling the WriteCache ...

  • Page 7: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Page 8: Safety Information

    Safety information Electrical Safety • Before installing or removing signal cables, ensure that the power cables for the system unit and all attached devices are unplugged. • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. •...

  • Page 9: About This Guide

    About this guide Audience This user guide is intended for system integrators, and experienced users with at least basic knowledge of configuring a server. Contents This guide contains the following parts: Chapter 1: Product Introduction This chapter describes the general features of the server, including sections on front panel and rear panel specifications.
  • Page 10 Refer to the following sources for additional information, and for product and software updates. ASUS Server Web-based Management (ASWM) user guide This manual tells how to set up and use the proprietary ASUS server management utility. ASUS websites The ASUS websites worldwide provide updated information for all ASUS hardware and software products.
  • Page 11 Chapter 1 This chapter describes the general features of the chassis kit. It includes sections on front panel and rear panel specifications. ASUS RS100-E5-PI2...

  • Page 12: Chapter 1: Product Introduction

    If any of the above items is damaged or missing, contact your retailer. Serial number label Before requesting support from the ASUS Technical Support team, you must take note of the product’s serial number containing 12 characters such as xxxxxxxxxxxx.

  • Page 13: System Specifications

    1.3 System specifications The ASUS RS100-E5-PI2 is a 1U barebone server system featuring the ASUS P5BV-M/RS100-E5 server board. The server supports Intel 3300/3200/3100/3000 Series processors with EM64T technology, plus other latest technologies through the chipsets onboard. Model Name Processor / System Bus...
  • Page 14 Environment *Specifications are subject to change without notice. ® eTrust™ anti-virus software (Optional) SM-Bus/ASMB3-SOL or ASMB3-iKVM (Optional) ® ASUS ASWM 2.0 381mm x 430mm x 43.4mm 6.2 Kg 220W 80+ PFC PSU Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C Non operation humidity: 20% ~ 90% ( Non-...

  • Page 15: Front Panel Features

    The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, and Gigabit LAN do not appear on the rear panel if motherboard is not present. This port is for ASUS ASMB3-SOL or ASMB3-iKVM controller card only. ASUS RS100-E5-PI2 HDD Access LED...

  • Page 16: Internal Features

    The barebone server does not include a floppy disk drive. connect a USB floppy disk drive to any of the USB ports on the front or rear panel if you need to use a floppy disk. • Only ASUS CD/DVD-ROMs fit the optical drive bay. Chapter 1: Product introduction...

  • Page 17: Led Information

    1.7.2 LAN (RJ-45) LEDs ACT/LINK LED Status Description No link GREEN Linked BLINKING Data activity ASUS RS100-E5-PI2 Power LED LAN2 LED LAN1 LED Display status Description System power ON No activity Blinking Read/write data into the HDD No LAN connection...
  • Page 18 Chapter 1: Product introduction...
  • Page 19 Chapter 2 This chapter lists the hardware setup procedures that you have to perform when installing or removing system components. ASUS RS100-E5-PI2...

  • Page 20: Chapter 2: Hardware Setup

    Chassis cover 2.1.1 Removing the cover Use a Phillips screwdriver to remove the screw on the top cover. Firmly hold the cover and slide it toward the rear panel for about half an inch until it is disengaged from the chassis. Lift the cover from the chassis.

  • Page 21: Installing The Cover

    2.1.2 Installing the cover Position the cover on top of the chassis with the hooks aligned to the side tabs of the chassis. Slide the cover toward the front until it snaps in place. ASUS RS100-E5-PI2 Side tabs...
  • Page 22 Secure the cover with one screw. Chapter 2: Hardware setup...

  • Page 23: Motherboard Information

    Refer to Chapter 4: Motherboard Information for detailed Information. Place this side towards the rear of the chassis Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components. ASUS RS100-E5-PI2 ® P5BV-M/RS100-E5...

  • Page 24: Central Processing Unit (Cpu)

    ASUS shoulders the repair cost only if the damage is shipment/transit-related. • Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA775 socket.
  • Page 25 The socket alignment key should fit into the CPU notch. ASUS RS100-E5-PI2 Load plate Alignment key Gold triangle mark PnP cap This side of the socket...

  • Page 26: Installing The Cpu Heatsink

    The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU! Close the load plate (A), then push the load lever (B) until it snaps into the retention tab.
  • Page 27 Tighten the screws. Peel the adhesive cover of the heatsink plastic cover and evenly attach to heatsink. Heatsink plastic cover The heatsink plastic cover ensures the linear airflow between the heatsink and chassis fans. ASUS RS100-E5-PI2...

  • Page 28: System Memory

    • Always install DIMMs with the same CAS latency. For optimum compatibility, we recommend that you obtain memory modules from the same vendor. Refer to the DDR2 Qualified Vendors List on the ASUS web site. • When installing one or two DIMMs, install the DIMM(s) to the blue slots (DIMM_A1/DIMM_B1).

  • Page 29: Installing A Dimm

    Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM might get damaged when it flips out with extra force. Remove the DIMM from the socket. ASUS RS100-E5-PI2 DDR2 DIMM notch Unlocked retaining clip DDR2 DIMM notch 2-11...

  • Page 30: Replaceable Components

    Replaceable components You may need to replace defective components or remove previously installed system components when installing or removing system devices. This section tells how to install or remove the following components: 1. Chassis fans 2. Serial ATA hard disk drives 3.

  • Page 31: Installing Serial Ata Drives

    You can install up to two (2) Serial ATA hard disk drives to the system. Follow the succeeding instructions to install each of the drives. To install primary Serial ATA drive: Locate the Serial ATA drive bay beside the power supply unit. Notice the four standard screw holes. ASUS RS100-E5-PI2 CPU_FAN1 FRNT_FAN1 FAN PWM FANPWR2 2-13...
  • Page 32 Connect the Serial ATA signal cable and ATX power connectors. Use the L-type Serial ATA connector to connect to the hard drive. Place the Serial ATA drive into the drive bay matching the four screw holes with the holes on the disk drive.
  • Page 33 Locate the Serial ATA drive plate under the optical disk drive (ODD) bay. SATA drive plate Secure the hard disk drive brackets to the HDD with four screws. HDD bracket ASUS RS100-E5-PI2 ® P5BV-M/RS100-E5 P5BV-M/RS100-E5 SATA1 Connector SATA1 2-15...
  • Page 34 Insert the Serial ATA drive into the drive plate as shown. Secure the hard drive with four screws. Connect the Serial ATA signal cable and ATX power connectors. Use the L-type Serial ATA connector to connect to the hard drive. Connect the other end of the Serial ATA signal connector to the onboard SATA connector labeled...

  • Page 35: Installing Optical Disk Drive (Odd)

    Optical disk drive slot Align the screw hole of the ODD bracket with the screw hole on the SATA drive bracket, then secure it with a screw. ODD bracket Optical disk drive (optional) ASUS RS100-E5-PI2 2-17...
  • Page 36 Place the ODD side bracket to the ODD, matching the two connectors of the bracket with the holes on the side of the ODD. Bracket connectors ODD side bracket Secure the ODD side bracket to the Serial SATA drive bracket with a screw.
  • Page 37 Chapter 3 This chapter describes how to install the optional components and devices into the barebone server. ASUS RS100-E5-PI2...

  • Page 38: Chapter 3: Installation Options

    Rackmount rail kit items The rackmount rail kit contains two pairs of rails (one pair for each side of the server system), six (6) pieces of inner rail screws, and two (2) pieces of rack screws. Rack screws 3.1.1 Attaching the rack ears The bundled rack ears serve as handle when inserting or pulling the server from a rack cabinet.

  • Page 39: Attaching The Rails To The Rack

    3.1.2 Attaching the rails to the rack To attach the rack rails: Attach the inner rail to the correspoding side of the chassis and secure with three inner rail screws. Make sure the rail is oriented as shown. ASUS RS100-E5-PI2...
  • Page 40 Attach the second inner rail to the other side of the chassis and secure with three inner rail screws. Select one unit of space (1U) on the rack where you wish to install the server. Place three (3) nuts on the front and three at the back.
  • Page 41 Hold the latches, and insert the rear side of the server to the front end of the outer rack rail. Make sure that the inner rails are properly aligned with the outer rails. ASUS RS100-E5-PI2...
  • Page 42 Carefully push the server all the way to the back until the front panel fits the front end of the rack. 10. Secure the server to the rack with one rack screw at one side. Secure the other side as well. Rack screw Chapter 3: Installation options...

  • Page 43: Rackmount Bracket Kit (Optional)

    Orient the rack ear as shown. Secure the rack ear to the chassis with six screws. Repeat steps 2 - 4 to attach the other rack ear. ASUS RS100-E5-PI2...

  • Page 44: Attaching The Server To The Rack Cabinet

    3.2.2 Attaching the server to the rack cabinet Select one unit of space (1U) on the rack where you wish to install the server. Place three (3) nuts on the front and three at the back. Do the same to the corresponding side of the rack.

  • Page 45: Front Panel Cover Kit (Optional)

    (12) screws. Secure the front panel connector to the rack ear. Secure the rack ear to the chassis with four screws. Repeat steps 2 - 3 to attach the other rack ear. ASUS RS100-E5-PI2...
  • Page 46 Align the front cover to the pre- installed front cover connectors. Carefully attach the front cover to the front cover connectors. 3-10 Chapter 3: Installation options...
  • Page 47 Chapter 4 This chapter gives inforamtion about the motherboard that comes with the server. This chapter includes the motherboard layout, jumper settings, and connector locations. ASUS RS100-E5-PI2...

  • Page 48: Chapter 4: Motherboard Information

    Motherboard overview EATXPWR1 PS/2KBMS T: Mouse B: Keyboard LAN_USB12 5721 5721 LAN1 CR2032 3V Lithium Cell LAN2 CMOS Power Qimonda 0706 SB_PWR1 REAR_FAN1 HDLED1 COM2 24.5cm (9.6in) ATX12V1 6312 Intel 3200 ® P5BV-M/RS100-E5 DDR2 DIMM_A1 (64 bit,240-pin module) DDR2 DIMM_A2 (64 bit,240-pin module) DDR2 DIMM_B1 (64 bit,240-pin module) DDR2 DIMM_B2 (64 bit,240-pin module) PCIE1...

  • Page 49: Layout Contents

    CPU and system fan connectors (4pin CPU_FAN1, FRNT_ FAN1, REAR_FAN1) ATX power connectors (24-pin EATXPWR1, 4-pin ATX12V1) System panel connector (20-pin PANEL1) System panel auxiliary connector (20-2 pin AUX_PANEL1) TPM connector (20-pin TPM) ASUS RS100-E5-PI2 Page 2-10 Page Page Page...

  • Page 50: Jumpers

    Jumpers Clear RTC RAM (CLRTC) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.
  • Page 51 Insert the floppy disk then turn on the system to update the BIOS. Shut down the system. Set the jumper back to pins 1-2. Turn on the system. ® P5BV-M/RS100-E5 P5BV-M/RS100-E5 BIOS Recovery Setting ASUS RS100-E5-PI2 Matrix Storage Manager. ® RAID_SEL1 LSI RAID ROM INTEL RAID ROM (Default)
  • Page 52 Fan mode setting (3-pin CPUFAN_SET1; CHAFAN_SET1) These jumpers allow you to connect either a 3-pin or a 4-pin fan cable plug to the CPU fan or Chasis fan connectors Set these jumpers to pins 1-2 Short PWM mode if you are using a 4-pin fan cable plug, or to pins 2-3 Short DC mode if you are using a 3-pin plug.

  • Page 53: Connectors

    PS/2 keyboard port (purple). This port is for a PS/2 keyboard. LAN port LED indications Activity/Link LED Status Description No link ORANGE Linked BLINKING Data activity ASUS RS100-E5-PI2 Speed LED Status Description 10 Mbps connection ORANGE 100 Mbps connection GREEN 1 Gbps connection ACT/LINK...

  • Page 54: Internal Connectors

    4.3.2 Internal connectors Floppy disk drive connector (34-1 pin FLOPPY1) This connector is for the provided Floppy Disk Drive (FDD) signal cable. Insert one end of the cable to this connector, then connect the other end to the signal connector at the back of the floppy disk drive. ®...
  • Page 55 Ultra DMA cable connector. This prevents incorrect insertion when you connect the IDE cable. • Use the 80-conductor IDE cable for Ultra DMA 100/66 IDE devices. ASUS RS100-E5-PI2 PRI_IDE1 NOTE: Orient the red markings (usually zigzag) on the IDE ribbon cable to PIN 1.
  • Page 56 Serial ATA connectors (7-pin SATA1-4) These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives. If you installed Serial ATA hard disk drives, you can create a RAID 0 and RAID 1 configuration using the Intel MegaRAID utility embedded in the Intel ®...
  • Page 57 Hard Disk Activity LED Connector USB connector (10-1 pin USB34) This connector is for USB 2.0 ports. This USB connector complies with USB 2.0 specification that supports up to 480 Mbps connection speed. ® P5BV-M/RS100-E5 P5BV-M/RS100-E5 USB 2.0 Connector ASUS RS100-E5-PI2 HDLED1 USB34 4-11...
  • Page 58 Serial port connector (10-1 pin COM2) This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis. The serial port module is purchased separately. ®...

  • Page 59: Atx Power Connector

    The system may become unstable or may not boot up if the power is inadequate. • You must install a PSU with a higher power rating if you intend to install additional devices. ASUS RS100-E5-PI2 EATXPWR1 ATX12V1 4-13...
  • Page 60 System panel connector (20-1 pin PANEL1) This connector supports several chassis-mounted functions. • System power LED (Green 3-pin PLED) This 3-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.
  • Page 61 Locator LED cables to these 2-pin connector. The LEDs will light up when the Locator button is pressed. • Locator Button/Switch (2-pin LOCATORBTN) This connector is for the locator button. This button queries the state of the system locator. ASUS RS100-E5-PI2 AUX_PANEL1 4-15...
  • Page 62 11. TPM connector (20- pin TPM) This connector is used to connect a Trusted Platform Module (TPM) Card. You need to install ASUS TPM card to use this feature function. ® P5BV-M/RS100-E5 P5BV-M/RS100-E5 TPM Connector The TPM module is purchased separately.
  • Page 63 Chapter 5 This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided. ASUS RS100-E5-PI2...

  • Page 64: Chapter 5: Bios Setup

    ASUS AFUDOS (Updates the BIOS in DOS mode using a bootable floppy disk.) ASUS CrashFree BIOS 3 (Updates the BIOS using a bootable floppy or USB Flash disk when the BIOS file fails or gets corrupted.) Refer to the corresponding sections for details on these utilities.

  • Page 65: Afudos Utility

    A:\>afudos /oOLDBIOS1.rom Main filename Press <Enter>. The utility copies the current BIOS file to the floppy disk. A:\>afudos /oOLDBIOS1.rom AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB)) Copyright (C) 2002 American Megatrends, Inc. All rights reserved. Reading flash ... done Write to file... ok A:\>...
  • Page 66 Updating the BIOS file To update the BIOS file using the AFUDOS utility: Visit the ASUS website (www.asus.com) and download the latest BIOS file for the motherboard. Save the BIOS file to a bootable floppy disk. Write the BIOS filename on a piece of paper. You need to type the exact BIOS filename at the DOS prompt.
  • Page 67 The utility returns to the DOS prompt after the BIOS update process is completed. Reboot the system from the hard disk drive. A:\>afudos /irs100e5.rom AMI Firmware Update Utility - Version 1.19(ASUS V2.07(03.11.24BB)) Copyright (C) 2002 American Megatrends, Inc. All rights reserved. WARNING!! Do not turn off power during flash BIOS Reading file ... done...

  • Page 68: Asus Crashfree Bios 3 Utility

    5.1.3 ASUS CrashFree BIOS 3 utility The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can update a corrupted BIOS file using the USB flash disk, or the floppy disk that contains the updated BIOS file.
  • Page 69 When found, the utility reads the BIOS file and starts flashing the corrupted BIOS file. Bad BIOS checksum. Starting BIOS recovery... Checking for floppy... Floppy found! Reading file “rs100e5.rom”. Completed. Start flashing... DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure! Restart the system after the utility completes the updating process. ASUS RS100-E5-PI2...

  • Page 70: Bios Setup Program

    The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. • Visit the ASUS website (www.asus.com) to download the latest BIOS file for this motherboard. Chapter 5: BIOS setup...

  • Page 71: Bios Menu Screen

    At the bottom right corner of a menu screen are the navigation keys for that particular menu. Use the navigation keys to select items in the menu and change the settings. Some of the navigation keys differ from one screen to another. ASUS RS100-E5-PI2 Configuration fields BIOS SETUP UTILITY [19:10:19]...

  • Page 72: Menu Items

    5.2.4 Menu items The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items. The other items (Advanced, Power, Boot, and Exit) on the menu bar have their respective menu items. 5.2.5 Sub-menu items A solid triangle before each item on any menu screen means that the iteam has a...

  • Page 73: Main Menu

    5.3.3 Legacy Diskette A [Disabled] Sets the type of floppy drive installed. Configuration options: [Disabled] [360K, 5.25 in.] [1.2M , 5.25 in.] [720K , 3.5 in.] [1.44M, 3.5 in.] [2.88M, 3.5 in.] ASUS RS100-E5-PI2 BIOS SETUP UTILITY [11:10:19] [Mon 01/28/2008] [Disabled]...

  • Page 74: Primary Ide Master/Slave, Sata1-4

    5.3.4 Primary IDE Master/Slave, SATA1-4 The BIOS automatically detects the connected IDE devices. There is a separate sub-menu for each IDE device. Select a device item, then press <Enter> to display the IDE device information. Main Primary IDE Master Device : Not Detected Type LBA/Large Mode...

  • Page 75: Ide Configuration

    Configuration options: [Disabled] [Compatible] [Enhanced] Configure SATA as [IDE] This sub-item appears only when you set the ATA/IDE Configuration item to [Enhanced] and allows you to set the SATA configuration. Configuration options: [IDE] [RAID] [AHCI] ASUS RS100-E5-PI2 BIOS SETUP UTILITY [Enhanced] [IDE] [Disabled]...
  • Page 76 Legacy IDE Channels [PATA Pri, SATA Sec] This sub-item appears only when you set the ATA/IDE Configuration item to [Compatible] and allows you to set the legacy IDE channels. Configuration options: [SATA Only] [PATA Pri, SATA Sec] [SATA Pri, PATA Sec] [PATA Only] •...

  • Page 77: System Information

    System Memory Displays the auto-detected total system memory. The System information screen may be not exactly match the information on your screen. It will change according to your actual system configuration. ASUS RS100-E5-PI2 BIOS SETUP UTILITY Select Screen Select Item...

  • Page 78: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Take caution when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. Main Advanced USB Configuration Remote Access Configuration...

  • Page 79: Remote Access Configuration

    Configuration options: [COM1] [COM2] Serial Port Mode [115200 8, n,1] Allows you to select a serial port mode. Configuration options: [115200 8,n,1] [57600 8,n,1] [38400 8,n,1] [19200 8,n,1] [09600 8,n,1] ASUS RS100-E5-PI2 BIOS SETUP UTILITY [Disabled] Select Remote Access type.

  • Page 80: Trusted Computing

    Flow Control [None] Allows you to set the flow control for console redirection. Configuration options: [None] [Hardware] [Software] Redirection After BIOS POST [Always] Sets the redirection mode after the BIOS Power-On Self-Test (POST). Some operating systems may not work when this item is set to Always. Configuration options: [Disabled] [Boot Loader] [Always] Terminal Type [ANSI] Allows you to select the target terminal type.

  • Page 81: Cpu Configuration

    Execute Disable Bit [Enabled] Allows you to enable or disable the No-Execution Page Protection Technology. Setting this item to [Disabled] forces the XD feature flag to always return to zero (0). Configuration options: [Disabled] [Enabled] ASUS RS100-E5-PI2 BIOS SETUP UTILITY [Enabled] [Disabled] [Enabled]...

  • Page 82: Chipset Configuration

    5.4.6 Chipset Configuration The Chipset Configuration menu allows you to change the advanced chipset settings. Select an item then press <Enter> to display the sub-menu. Advanced Advanced Chipset Settings WARNING: Setting wrong values in below sections may cause system to North Bridge Configuration South Bridge Configuration North Bridge Configuration Advanced North Bridge chipset Configuration Memory Remap Feature PCI MMIO Allocation: 4GB To 3584MB DRAM Frequency Configure DRAM Timing by SPD [Enabled] Initiate Graphic Adapter...

  • Page 83: Onboard Devices Configuration

    Allows you to select the Serial Port2 base address. Configuration options: [Disabled] [2F8/IRQ3] [2E8/IRQ3] Serial Port2 Mode [Normal] Allows you to select the Serial Port2 mode. Configuration options: [Normal] [IrDA] [ASK IR] ASUS RS100-E5-PI2 BIOS SETUP UTILITY [Enabled] BIOS SETUP UTILITY [3F8/IRQ4]...

  • Page 84: Pci Pnp

    PCIE LAN-5721A/B [Enabled] Allows you to hide or active PCIE LAN-5721A/B. LAN A is LAN port 2 supporting ASF, and LAN B is LAN port 1 not supporting ASF. Configuration options: [Disabled] [Enabled] LAN5721A/B Boot ROM [Disabled] Allows you to Configure LAN5721A/B Boot ROM. Configuration options: [Disabled] [Enabled] 5.4.8 PCI PnP...
  • Page 85 IRQ-xx assigned to [PCI Device] When set to [PCI Device], the specific IRQ is free for use of PCI/PnP devices. When set to [Reserved], the IRQ is reserved for legacy ISA devices. Configuration options: [PCI Device] [Reserved] ASUS RS100-E5-PI2 5-23...

  • Page 86: Power Configuration

    5.5 Power Configuration The Power Configuration menu items allow you to change the settings for the ACPI and Advanced Power Management (APM) features. Select an item then press <Enter> to display the configuration options. Main Advanced ACPI 2.0 Support ACPI APIC Support APM Configuration Hardware Monitor v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.

  • Page 87: Apm Configuration

    Configuration options: [00] [01] [02] [03]...[23] RTC Alarm Minute (Second) [30] To set the alarm minute (second≠), highlight this item and press the <+> or <-> key to make the selection. Configuration options: [00] [01] [02] [03]...[59] ASUS RS100-E5-PI2 BIOS SETUP UTILITY [Disabled] [Disabled] [Disabled] <Enter>...

  • Page 88: Hardware Monitor

    (RPM). If the fan is not connected to the motherboard, the field shows N/A. CPU Smart Fan Control [Enabled] Allows you to enable or disable the ASUS Smart Fan feature that smartly adjusts the fan speeds for more efficient system operation. Configuration options: [Disabled] [Enabled] The CPU Fan Ratio and CPU Target Temperature items appear only when you set the CPU Smart Fan Control item to [Enabled].
  • Page 89 Configuration options: [35ºC] [38ºC] [41ºC] [44ºC] [47ºC] [50ºC] [53ºC] [56ºC] [59ºC] [62ºC] [65ºC] VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage, VBAT Voltage The onboard hardware monitor automatically detects the voltage outputs through the onboard voltage regulators. ASUS RS100-E5-PI2 5-27...

  • Page 90: Boot Menu

    Boot menu The Boot menu items allow you to change the system boot options. Select an item then press <Enter> to display the sub-menu. Main Advanced Boot Settings Boot Device Priority Boot Settings Configuration Security v02.58 (C)Copyright 1985-2007, American Megatrends, Inc. 5.6.1 Boot Device Priority Main Advanced Boot Device Priority 1st Boot Device 2nd Boot Device...

  • Page 91: Boot Settings Configuration

    Allows you to enable or disable the full screen logo display feature. Configuration options: [Disabled] [Enabled] Set this item to [Enabled] to use the ASUS MyLogo2™ feature. AddOn ROM Display Mode [Force BIOS] Allows you to set display mode for optional ROM.

  • Page 92: Security

    5.6.3 Security The Security menu items allow you to change the system security settings. Select an item then press <Enter> to display the configuration options. Security Settings Supervisor Password User Password Change Supervisor Password Change User Password Change Supervisor Password Select this item to set or change the supervisor password.

  • Page 93: Change User Password

    When set to [Setup], BIOS checks for user password when accessing the Setup utility. When set to [Always], BIOS checks for user password both when accessing Setup and booting the system. Configuration options: [Setup] [Always] ASUS RS100-E5-PI2 BIOS SETUP UTILITY Boot [Full Access] [Setup] <Enter>...

  • Page 94: Exit Menu

    Exit menu The Exit menu items allow you to load the optimal or failsafe default values for the BIOS items, and save or discard your changes to the BIOS items. Main Advanced Exit Options Exit & Save Changes Exit & Discard Changes Discard Changes Load Setup Defaults v02.58 (C)Copyright 1985-2007, American Megatrends, Inc.
  • Page 95 Chapter 6 This chapter provides instructions for setting up, creating and configuring RAID sets using the available utilities. ASUS RS100-E5-PI2...

  • Page 96: Raid Configurations

    6.1 RAID configurations The server system/motherboard comes with the Intel RAID technology built-in the Intel configure IDE and Serial ATA hard disk drives as RAID sets. The motherboard supports the following RAID configurations: 6.1.1 RAID definitions RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks.

  • Page 97: Installing Serial Ata Hard Disks

    Use the LSI Software RAID Configuration Utility to create a RAID 0 or RAID 1 under Windows Server or Red Hat ® Refer to the succeeding sections for details on how to use the RAID configuration utilities. ASUS RS100-E5-PI2 Enterprise operating system. ®...

  • Page 98: Intel ® Matrix Storage Manager Option Rom Utility

    Intel ROM Utility The Intel Matrix Storage Manager Option ROM utility allows you to create RAID ® 0 or RAID 1 from Serial ATA hard disk drives that are connected to the Serial ATA connectors supported by the Southbridge. To enter the Intel Matrix Storage Manager Option ROM utility: ®...

  • Page 99: Creating A Raid 0 Set (Striped)

    Are you sure you want to create this volume? (Y/N): Press <Y> to create the RAID volume and return to the main menu, or <N> to go back to the Create Volume menu. ASUS RS100-E5-PI2 CREATE ARRAY MENU Name: Volume0...

  • Page 100: Creating A Raid 1 Set (Mirrored)

    6.2.2 Creating a RAID 1 set (mirrored) To create a RAID 1 set: From the utility main menu, select 1. Create RAID Volume, then press <Enter>. This screen appears. Intel(R) Matrix Storage Manager Option ROM v5.6.2.1002 ICH7R wRAID5 Copyright(C) 2003-06 Intel Corporation. All Rights Reserved. Enter a string between 1 and 16 characters in length that can be used to uniquely identify the RAID volume. This name is case sensitive and [↑↓]-Change [TAB]-Next [ESC]-Previous Menu [Enter]-Select Enter a name for the RAID 1 set, then press <Enter>.

  • Page 101: Deleting A Raid Set

    Use the up/down arrow key to select the RAID set you want to delete, then press <Del>. This window appears. Are you sure you want to delete volume “Volume0”? (Y/N): Press <Y> to delete the RAID set and return to the utility main menu; otherwise, press <N> to return to the Delete Volume menu. ASUS RS100-E5-PI2 DELETE VOLUME MENU Drives Capacity Status 306.8GB...

  • Page 102: Resetting Disks To Non-Raid

    6.2.4 Resetting Disks to Non-RAID Take caution before you reset a RAID volume HDD to non-RAID. Resetting a RAID volume HDD deletes all internal RAID structure on the drive. To reset a RAID set hard disk drive: From the utility main menu, select 3. Reset Disks to Non-RAID, then press <Enter>...

  • Page 103: Rebuilding The Raid

    Copyright(C) 2003-06 Intel Corporation. All Rights Reserved. RAID Volumes: ID Name Level Strip Size Status Bootable 0 Volume0 RAID0(Stripe) 128KB 306.8GB Rebuild Physical Disks: Port Drive Model Hitachi HDS72161 Hitachi HDS72161 [↑↓]-Select [ESC]-Exit [ENTER]-Select Menu ASUS RS100-E5-PI2 DEGRADED VOLUME DETECTED Serial# VN6Bxxxx MAIN MENU 1. Create RAID Volume 2. Delete RAID Volume 3. Reset Disks to Non-RAID 4. Exit [ DISK/VOLUME INFORMATION ]...

  • Page 104: Setting The Boot Array In The Bios Setup Utility

    Exit the RAID configuration utility and reboot the system. Select Start > Programs > Intel Matrix Storage > Intel Matrix Storage Console or click the Intel Matrix Storage Manager tray icon to load the Intel Matrix Stroage Manager utility. From the View menu, select Advanced Mode to display the details of the Intel Matrix Storage Console.

  • Page 105: Lsi Software Raid Configuration Utility

    The keys on the legend box vary according to the menu level. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option ASUS RS100-E5-PI2 Hitachi HDS721616P 156554MB Hitachi HDS721616P 156554MB Configure VD(s) 6-11...

  • Page 106: Creating A Raid 0 Or Raid 1 Set

    Menu Configure Initialize Objects Rebuild Check Consistency Allows you to check the data consistency of the virtual drive of a 6.3.1 Creating a RAID 0 or RAID 1 set The LSI Software RAID Configuration Utility allows you to create a RAID 0 or RAID 1 set using two types of configurations: Easy and New.
  • Page 107 Select all the drives required for the RAID set, then press <Enter> to end array. The configurable array appears on screen. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Port # 0 DISK 156402MB HDS728080PLA380 PF20A60A SPACE-Sel,ENTER-EndArray,F10-Configure,F2-Drive Info,F3-Virtual Drives,F4-HSP ASUS RS100-E5-PI2 Easy Configuration - ARRAY SELECTION MENU PORT # READY READY Easy Configuration - ARRAY SELECTION MENU PORT # ONLIN A00-01 ONLIN A00-00 6-13...
  • Page 108 Press <F10>, select the configurable array, then press <SpaceBar>. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Cursor Keys, SPACE-(De)Select F2-ChIdInfo F3-SlotInfo F10-Configure Esc-Quit Press <F10> again, the virtual drive information appears including a Virtual Drive menu that allows you to change the virtual drive parameters. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure...
  • Page 109 Virtual Drive 0 RAID = 1 Size = 156402MB DWC = Off Accept SPAN = NO Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option Enabling DWC can improve the performance, but with the risk of data loss. ASUS RS100-E5-PI2 Virtual Drive(s) Configured RAID Size #Stripes StripSz Easy Configuration - ARRAY SELECTION MENU PORT #...
  • Page 110 10. When finished setting the selected virtual drive configuration, select Accept from the menu, then press <Enter>. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option 11. Press <Esc> to exit the virtual drive configuration. When prompted, save the configuration, then press <Esc> to return to the Management Menu. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure...
  • Page 111 Virtual Drive 0 RAID = 1 Size = 156402MB DWC = Off Accept SPAN = NO Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option Follow steps 8 to 13 of the previous section to create the RAID set. ASUS RS100-E5-PI2 Virtual Drive(s) Configured RAID Size #Stripes StripSz Easy Configuration - ARRAY SELECTION MENU PORT #...

  • Page 112: Initializing The Virtual Drives

    6.3.2 Initializing the virtual drives After creating the RAID set, you must initialize the virtual drives. You may initialize the virtual drives of a RAID set using the Initialize or Objects command on the Management Menu. Using the Initialize command To initialize the virtual drive using the Initialize command: From the Management Menu, highlight Initialize, then press <Enter>.
  • Page 113 Initializing a virtual drive(s) erases all data on the drive. A progress bar appears on screen. If desired, press <Esc> to abort initialization. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Virtual Drives Loical Drive 0 ASUS RS100-E5-PI2 Virtual Drive(s) Configured RAID Size #Stripes 0 1 154494MB 2 64 KB ONLINE Initialize? SPACE-(De)Select, F10-Check Consistency Virtual Drive(s) Configured RAID Size #Stripes...
  • Page 114 When initialization is completed, press <Esc>. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Virtual Drives Loical Drive 0 Using the Objects command To initialize the virtual drive using the Objects command: From the Management Menu, highlight Objects, then press <Enter>. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects...
  • Page 115 Select Initialize from the pop-up menu, then press <Enter> to start initialization. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Adapter Configure Virtual Drive Initialize Physical Drive Objects Rebuild Check Consistency Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option ASUS RS100-E5-PI2 Objects Change VD Parameters Vitual Drive(1) Virtual Drive 0 Objects Select VD Vitual Drive(1) Virtual Drive 0 Objects Vitual Drive(0) Initialze Check Consistency...
  • Page 116 When prompted, select Yes from the Initialize? dialog box, then press <Enter>. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option A progress bar appears on screen. If desired, press <Esc> to abort initialization. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu C o n f i g u r e I n i t i a l i z e Check Consistency Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option...

  • Page 117: Rebuilding Failed Drives

    P o r t # 1 D I S K 1 5 6 4 0 2 M B H D S 7 2 8 0 8 0 P L A 3 8 0 PF20A60A SPACE-Sel,ENTER-EndArray,F10-Configure,F2-Drive Info,F3-Virtual Drives,F4-HSP ASUS RS100-E5-PI2 Rebuild PD(s) PORT #...
  • Page 118 After selecting the drive to rebuild, press <F10>. The indicator for the selected drive now shows RBLD. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Port # 1 DISK 156402MB HDS728080PLA380 PF20A60A SPACE-(De)Select,F10-Start Rebuild,F2-Drive Information,F3-View Virtual Drives When prompted, press <Y> to to rebuild the drive. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild...

  • Page 119: Checking The Drives For Data Consistency

    Press the <Spacebar> to select the virtual drive from the Virtual Drive selection, then press <F10>. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Virtual Drives Loical Drive 0 ASUS RS100-E5-PI2 CC Of VD(s) Virtual Drive(s) Configured RAID Size #Stripes 0 1 154494MB 2 64 KB ONLINE Select VD SPACE-(De)Select, F10-Check Consistency StripSz Status...
  • Page 120 When prompted, use the arrow keys to select Yes from the Consistency Check dialog box, then press <Enter>. You may also press <F10> to check the drive consistency. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Virtual Drives Virtual Drive 0 A progress bar appears on screen.
  • Page 121 <Enter>. Select Check Consistency from the pop-up menu, then press <Enter>. When prompted, use the arrow keys to select Yes from the dialog box to check the drive. When checking is complete, press any key to continue. ASUS RS100-E5-PI2 6-27...

  • Page 122: Deleting A Raid Configuration

    6.3.5 Deleting a RAID configuration To delete a RAID configuration: From the Management Menu, select Configure > Clear Configuration, then press <Enter>. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure Initialize Objects Rebuild Check Consistency Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option When prompted, use the arrow keys to select Yes from the Clear Configuration? dialog box, then press <Enter>. LSI Software RAID Configuration Utility Ver A.53 Sep 06, 2007 Management Menu Configure...

  • Page 123: Selecting The Boot Drive From A Raid Set

    Management Menu View/Add Configuration Configure Clear Configuration Initialize Select Boot Drive Objects Rebuild Check Consistency Use Cursor Keys to Navigate Between Items And Press Enter To Select An Option The virtual drive is selected as boot drive. Press any key to continue. ASUS RS100-E5-PI2 Select A Boot VD Bootable VDs(1):Current Boot VD(0) Boot Drive 0 Select A Boot VD 6-29...

  • Page 124: Enabling The Writecache

    6.3.7 Enabling the WriteCache You may enable the RAID controller’s WriteCache option to improve the data transmission performance. When you enable WriteCache, you may lose data when a power interruption occurs while transmitting or exchanging data among the drives. To enable WriteCache: From the Management Menu, select Objects > Adapter, then press <Enter>...
  • Page 125 Chapter 7 This chapter provides instructions for installing the necessary drivers for different system components. ASUS RS100-E5-PI2...

  • Page 126: Chapter 7: Driver Installation

    RAID driver installation After creating the RAID sets for your server system, you are now ready to install an operating system to the independent hard disk drive or bootable array. This part provides instructions on how to install the RAID controller drivers during OS installation.
  • Page 127 RHEL 5 32/64 bit SLES 9.0 SP3 32 bit SLES 9.0 SP3 64 bit SLES 10 32 bit SLES 10 64 bit Back Exit Broadcom ASF Firmware Update Broadcom ASF Firmware Update RS100-E5-PI2 system Back Exit Write DMI Write DMI RS100-E5-PI2 system Back Exit For systems with Red Hat Makedisk menu, explore the support CD and copy the RAID driver disk from the following path: \ICH7R LSI RAID\Driver\Linux.

  • Page 128: Installing The Raid Controller Driver

    7.1.2 Installing the RAID controller driver Windows Server OS ® During Windows To install the RAID controller driver when installing Windows Boot the computer using the Windows Setup starts. Windows Setup Press F6 if you need to install a third party SCSI or RAID driver... Press <F6>...
  • Page 129 “LSI Logic Embedded SATA RAID (Intel IA32E)” item. Windows Setup You have chosen to configure a SCSI Adapter for use with Windows, using a device support disk provided by an adapter manufacturer. Select the SCSI Adapter you want from the following list, or press ESC to return to the previous screen. ENTER=Continue F3=Exit ASUS RS100-E5-PI2 Please insert the disk labeled Manufacturer-supplied hardware support disk into Drive A: Press ENTER when ready. LSI Logic Embedded SATA RAID LSI Logic Embedded SATA RAID (Intel IA32E)
  • Page 130 Intel Matrix Storage Select “Intel(R) 82801GR/GH SATA RAID Controller (Desktop ICH7RDH)” for Intel Matrix Storage RAID mode from the list, then press <Enter>. If you configured SATA as AHCI Mode in the BIOS setup utility of IDE Configuration, first install the Intel SATA AHCI Driver during windows setup. Then, select the “Intel(R) 82801GR/GH SATA AHCI Controller (Desktop ICH7RDH)”...
  • Page 131 (recommended)”, then click Next. 10. The wizard searches the RAID controller drivers. When found, click Next to install the drivers. 11. Click Finish after the driver installation is done. ASUS RS100-E5-PI2 Server OS ® Server OS: ® desktop , then select...
  • Page 132 To verify the RAID controller driver installation: Right-click the My Computer icon on the Windows Properties from the menu. Click the Hardware tab, then click the Device Manager button. Click the “+” sign before the item SCSI and RAID controllers. The LSI Logic Embedded SATA RAID or Intel appear.
  • Page 133 To install the Intel ICH7R LSI Logic Embedded SATA RAID controller driver when ® installing Red Hat Enterprise operating system: ® Boot the system from the Red Hat At the boot:, type linux dd , then press <Enter>. ASUS RS100-E5-PI2 Installation CD. ®...
  • Page 134 Select Yes using the <Tab> key when asked if you have the driver disk. Press <Enter> Select fd0 using the <Tab> key when asked to select the driver disk source. Press <Tab> to move the cursor to OK, then press <Enter>. 7-10 Chapter 7: Driver installation...
  • Page 135 The drivers for the RAID controller are installed to the system. When asked if you will load additional RAID controller drivers, select Yes, then install the additional RAID controller drivers. Follow screen instructions to continue the OS installation. ASUS RS100-E5-PI2 Enterprise RAID driver disk to the floppy ® 7-11...

  • Page 136: Suse Linux

    SuSE Linux To install the RAID controller driver when installing SuSE Linux OS: Boot the system from the SuSE Installation CD. Select Installation from the Boot Options menu, then press <Enter>. A message instructs you to prepare the RAID driver disk. Press <F6>. 7-12 Chapter 7: Driver installation...
  • Page 137 When prompted, insert the RAID driver disk to the floppy disk drive, then press <Enter>. When prompted, select the floppy disk drive (fd0) as the driver update medium, select OK, then press <Enter>. The drivers for the RAID controller are installed to the system. ASUS RS100-E5-PI2 7-13...

  • Page 138: Lan Driver Installation

    LAN driver installation This section provides instructions on how to install the Broadcom BCM5721 LAN controller driver. 7.2.1 Windows To install the Broadcom BCM5721 LAN controller driver on a Windows Restart the computer, then log on with Administrator privileges. Insert the motherboard/system support CD to the optical drive. The CD automatically displays the Drivers menu if Autorun is enabled in your computer.

  • Page 139: Red Hat ® Enterprise

    Build the driver bcm5700.o as a loadable module for the running kernel: cd bcm5700-<version>/src make Test the driver by loading it: insmod bcm5700.o Install the driver and man page: make install Refer to Red Hat distribution documentation to configure the network protocol and address ASUS RS100-E5-PI2 7-15...

  • Page 140: Vga Driver Installation

    VGA driver installation This section provides instructions on how to install the XGI Graphics driver. 7.3.1 Windows You need to manually install the XGI Graphics driver on a Windows operating system. To install the XGI Graphicsdriver: Restart the computer, then log on with Administrator privileges. Insert the motherboard/system support CD to the optical drive.

  • Page 141: Red Hat Enterprise

    7.3.2 Red Hat enterprise The Red Hat Enterprise operating system automatically recognizes the XGI Graphics driver during system installation. There is no need to install an additional driver(s) to support the onboard VGA. ASUS RS100-E5-PI2 7-17...

  • Page 142: Management Applications And Utilities Installation

    The contents of the support CD are subject to change at any time without notice. Visit the ASUS website (www.asus.com) for updates. 7.4.1 Running the support CD Place the support CD to the optical drive.

  • Page 143: Management Software Menu

    The Management Software menu displays the available network and server monitoring application. Click on an item to install. 7.4.4 Utilities menu The Utilities menu displays the software applications and utilities that the motherboard supports. Click on an item to install. ASUS RS100-E5-PI2 7-19...

  • Page 144: Contact Information

    7.4.5 Contact information Click the Contact tab to display the ASUS contact information. You can also find this information on the inside front cover of this user guide. 7-20 Chapter 7: Driver installation...

  • Page 145: Appendix: Reference Information

    The Appendix describes the CPU features that the motherboard supports. Reference information...

  • Page 146: Intel ® Em64T

    32-bit operating systems. • The motherboard comes with a BIOS file that supports EM64T. You can download the latest BIOS file from the ASUS website (www.asus.com/ support/download/) if you need to update the BIOS file. See Chapter 5 for details.

  • Page 147: Using The Eist

    Click Apply, then click OK. 10. Close the Display Properties window. After you adjust the power scheme, the CPU internal frequency slightly decreases when the CPU loading is low. The screen displays and procedures may vary depending on the operating system. ASUS RS100-E5-PI2...
  • Page 148 Appendix: CPU features...
