Tv (Front View); Tv (Rear View) - Sharp LC-32D65E Service Manual

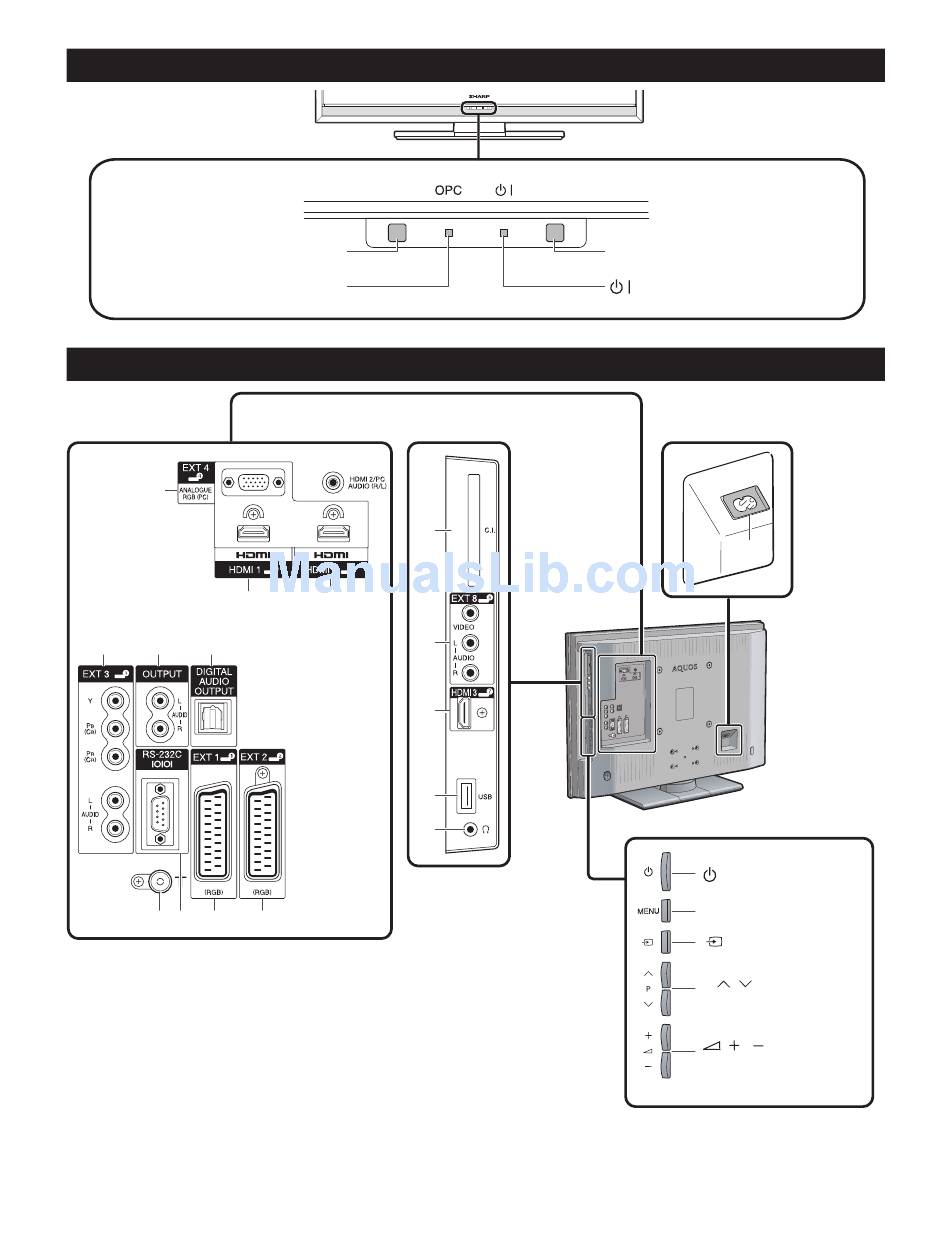

TV (Front view)

Remote control sensor

TV (Rear view)

1
2
4 5 6
7 8 9
WARNING:
Excessive sound pressure from earphones and headphones can cause hearing loss.
1 EXT4 (ANALOGUE RGB/AUDIO)
terminals*
2 HDMI1 (HDMI) terminal
3 HDMI2 (HDMI/AUDIO) terminals*
4 EXT3 (COMPONENT/AUDIO)
terminals
5 OUTPUT (AUDIO) terminals
6 DIGITAL AUDIO OUTPUT terminal
OPC indicator
11
3
12
13
14
15
10
7 Antenna terminal
8 RS-232C terminal
9 EXT1 (RGB) terminal
10 EXT2 (RGB) terminal
11 COMMON INTERFACE slot
12 EXT8 terminals
13 HDMI3 (HDMI) terminal
14 USB terminal
15 Headphones
16 AC INPUT terminal
OPC sensor
*
1 – 3
LC-32D65E/RU, LC-37D65E/RU
(Standby/On) indicator
16
(Power) button
MENU button
(INPUT SOURCE)
button
P /
Programme (channel)
buttons
/ Volume
buttons
The HDMI2 and EXT4 terminals
can both use the same audio input
terminal. However, the proper item
must be selected in the "PC Audio
Select" menu.
