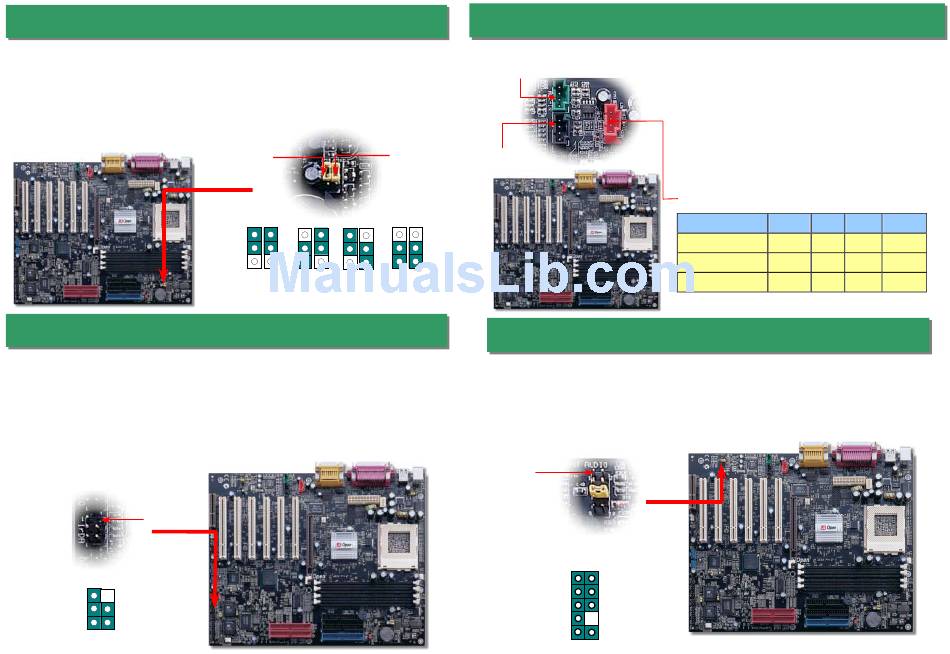

10. Dr. Voice
The Dr. Voice is a great feature of this motherboard. It can let you easily to know what
kind of problem occurred. It can clearly "tell" whether there is a component issue or an
installation issue, such as CPU, memory module, VGA, PCI add-on card, FDD, HDD or
keyboard by voice. The Dr. Voice provides four kinds of language version, English,
German, Japanese and Chinese for choosing. You can select preferred language
version by JP15 & JP16.
11. Connect IrDA Connector
The IrDA connector can be configured to support wireless infrared module, with this
module and application software such as Laplink or Windows 95 Direct Cable
Connection, the user can transfer files to or from laptops, notebooks, PDA devices and
printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).
Install the infrared module onto the IrDA connector and enable the infrared function
from BIOS Setup, UART mode select, make sure to have the correct orientation when
you plug in the IrDA connector.
Pin 1
NC KEY
+5V GND
IR_TX IR_RX
JP16
JP15
Pin 1
Pin 1
JP16 JP15
1 1
Chinese Japanese German
English
(Default)
12. Connecting CD / MODEM / AUX Connector
AUX-IN
(Green)
CD-IN (Black)

13. Front Audio

If the housing has been design with an audio port on the front panel, you'll be able to
connect onboard audio to front panel through this connector. By the way, please remove
the jumper cap from the Front Panel Audio Connector before you connect the cable. Do
not remove this yellow jumper cap if housing without an audio port on the front panel.
Pin 1
1 2
GND
FP_MIC
+5V
NC
PHONE_R JS1
KEY
NC
NC
PHONE_L
9 10
The CD-IN connector is used to connect CD Audio
cable from CDROM or DVD drive to onboard sound.
The MODEM-CN connector is used to connect
Mono In/ Mic Out cable from internal modem card to
onboard sound circuit.
The AUX-IN connector is used to connect MPEG
Audio cable from MPEG card to onboard sound.
MODEM-CN (Red)
Connector Pin1 Pin2 Pin3
CD-IN Left GND GND
MODEM-CN Mono In GND GND Mic Out
AUX-IN Left GND GND
Pin4
Right
Right
