Motherboard x1
Floppy Disk Drive Cable x1
40-wire IDE Cable x1
80-wire IDE Cable x1
USB2.0 Cable x 1
COM2 Cable x1
Bonus Pack CD x1
NORTON AntiVirus CD x1
User Manual x1
This Easy Installation Guide x1
PART NO: 49.89H12.E01
DOC. NO: AX3SP2U-EG-E0108A

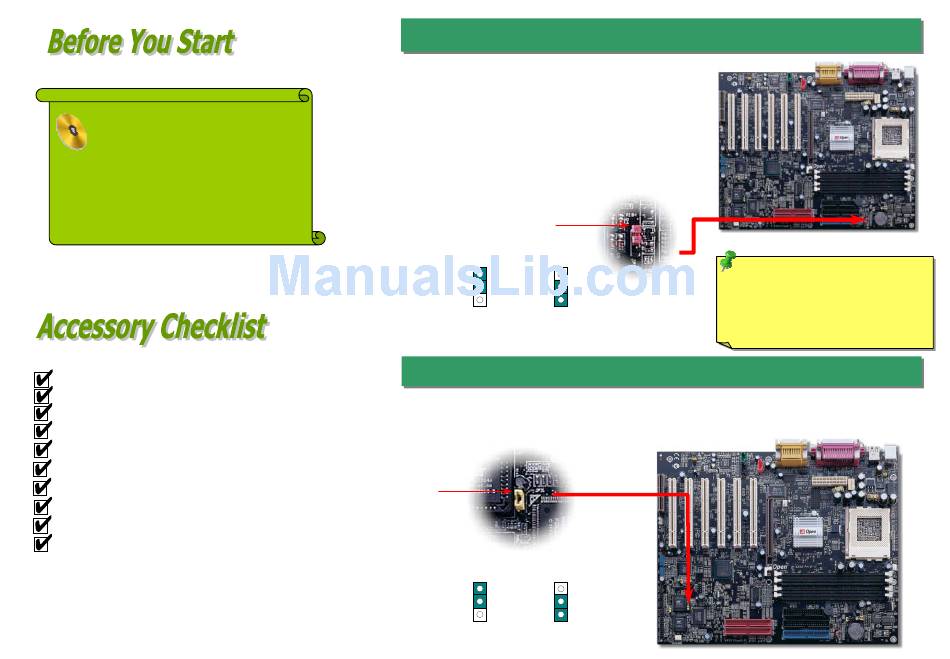

You can clear CMOS to restore system default setting. To
clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pins 1 & pin2.
Online
5. Connect ATX power cable back to connector PWR2.
The JP35 is used to enable or disable onboard PROMISE
want to disable this controller, please turn off the system power first, and short pin 2 and pin 3 of JP35 by
jumper.
Pin 1
1. JP14 Clear CMOS
Pin 1
1
1
Clear CMOS
Normal Operation
(default)
2.
JP35 Onboard IDE RAID Jumper (AX3S Max only)
1
1
Enable
Disable
(Default)
Tip: When should I Clear CMOS?
1. Boot fail because of overclocking...
2. Forget password...
3. Troubleshooting...
®
