Panasonic MC-E3002-WP47 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TABLE OF CONTENTS

1 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 5
belt) ----------------------------------------------------------- 6
4.2. BEATER BAR UNIT--------------------------------------- 7
4.3. IDLER PULLEY UNlT ------------------------------------ 7
4.4. FAN MOTOR UNIT---------------------------------------- 8
4.6. ON/OFF SWITCH ---------------------------------------- 11
5 Wiring Connection Diagram ---------------------------------11
6.1. EXPLODED VIEW (BODY UNIT) --------------------12
6.2. PARTS LIST (BODY UNIT) ----------------------------13
MC-E3002-WP47
Product Color : White
Destination
PAGE
6.3. PACKING INSTRUCTIONS --------------------------- 15
6.4. PACKING LIST ------------------------------------------- 15
© 2007 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
Order No.VCB0704009CE
Vacuum Cleaner
: UK
PAGE

Advertisement

Table of Contents
loading

Related Manuals for Panasonic MC-E3002-WP47

Summary of Contents for Panasonic MC-E3002-WP47

  • Page 1: Table Of Contents

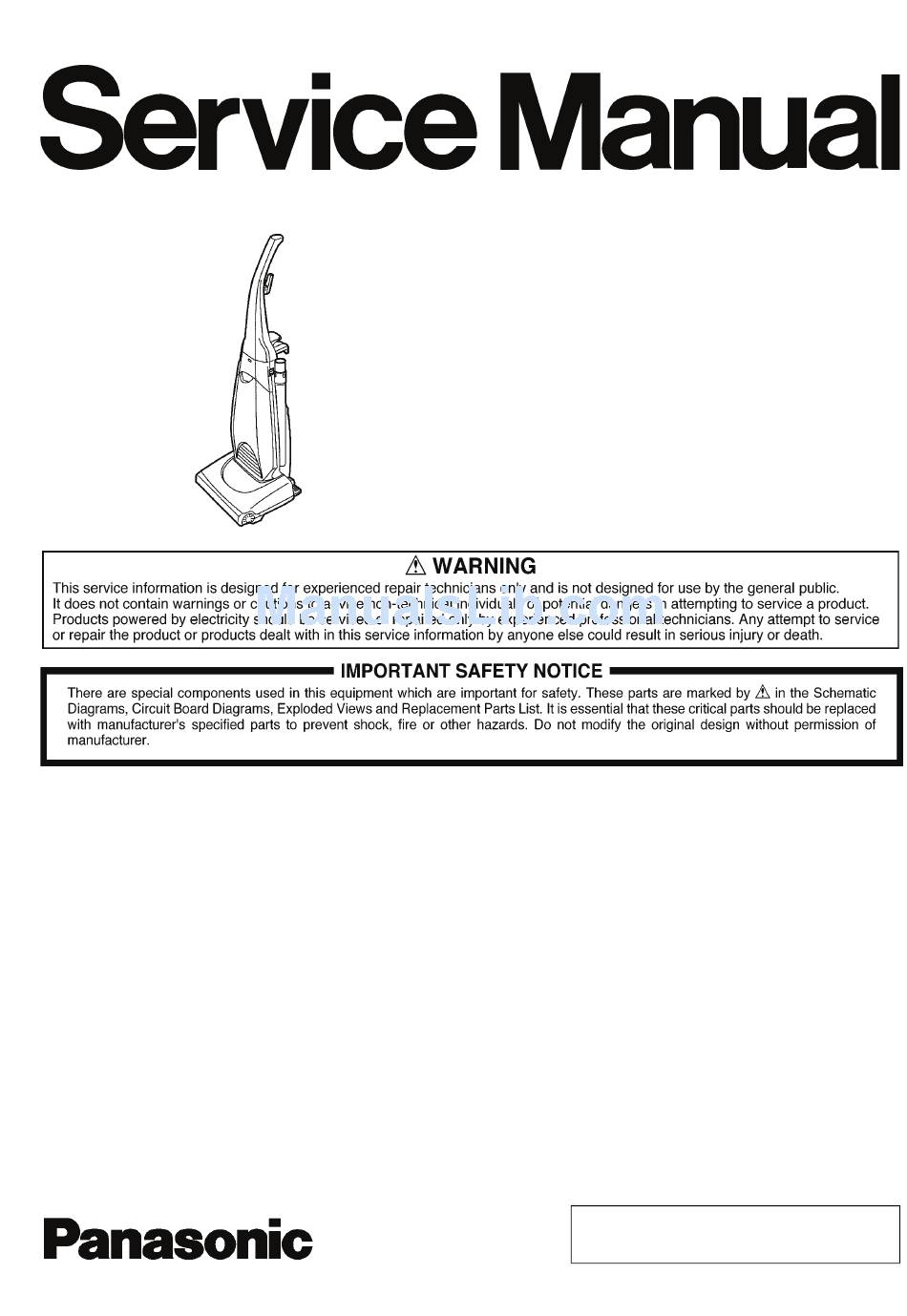

    Order No.VCB0704009CE Vacuum Cleaner MC-E3002-WP47 Product Color : White Destination : UK TABLE OF CONTENTS PAGE PAGE 1 Specifications ----------------------------------------------------- 2 6.3. PACKING INSTRUCTIONS --------------------------- 15 2 Location of Controls and Components ------------------- 3 6.4. PACKING LIST ------------------------------------------- 15 3 Troubleshooting Guide ----------------------------------------- 5 4 Disassembly and Assembly Instructions ---------------- 6 4.1.

  • Page 2: Specifications

    1 Specifications Model MC-E3002-WP47 Power source AC230-240V~50Hz Input power (MAX) 1900W Input power (Nominal) 1600-1700W Cord length 6.7m Net weight 6.3kg Dimensions (L x W x H) mm 320 x 323 x 1045 Dusting brush Crevice nozzle Extension wand Specifications are subject to change without notice for further improvement.

  • Page 3: Location Of Controls And Components

    2 Location of Controls and Components...

  • Page 5: Troubleshooting Guide

    3 Troubleshooting Guide CONDITION CHECKPOINT METHOD OF INSPECTION CAUSE / REMEDY The fan motor does not rotate. Fuse A unit Check whether or not the fuse has If the fuse has blown, then replace blown. Power cord (Mains lead) Check whether or not the power If the power cord has broken, then cord has broken.

  • Page 6: Disassembly And Assembly Instructions

    4 Disassembly and Assembly Instructions IMPORTANT: Before replacing any part always DISCONNECT THE CLEANER FROM THE ELECTRICITY SUPPLY. 4.1. BELT (Beater bar belt), BELT B 3. Remove the 1 screw from the pedal shaft to detach the pedal. (Fig. 3) (Motor shaft belt) 1.

  • Page 7: Beater Bar Unit

    4.2. BEATER BAR UNIT 1. Remove the base plate (floor nozzle lower unit). 2. Remove the beater bar unit from the floor nozzle upper unit. (Fig. 4) 3. Replace the bar unit with a new one and place the belt around the beater bar unit.

  • Page 8: Fan Motor Unit

    4.4. FAN MOTOR UNIT 4. Turn the vacuum cleaner over and remove 4 screws from Moter case and take it out. (Fig.9) 1. As described in paragraph 4.3 of "IDLER PULLEY UNlT", remove the base plate (floor nozzle lower unit), pedal, and idler pulley, and belt B, belt.

  • Page 9: Pc Board W/Component, On/Off Switch, Fuse Unit And Power Cord (Mains Lead)

    8. Re-install the motor and reassemble motor case and a. Take out the motor and detach the motor support rub- remaining parts in the reverse order. ber (rear) and cushion plate (Fig. 11). NOTE: Make sure the lead wires are correctly posi- tioned to avoid pinching them between parts.
  • Page 10 2. Remove the indicator unit (Fig. 15). 4. Open P.C.B. holder A and the P.C.B. holder. Remove the PC board w/Components inside. (Fig. 17) Note: You can remove the ON/OFF switch, fuse unit, and mains power cord (lead wire). 5. Connect the lead wires according to the schematic dia- gram, restore the switch cover to its original position, and refasten the screws.

  • Page 11: On/Off Switch

    3. Replace the ON/OFF switch with a new one. Connect the two lead wires to the terminal according to the schematic diagram. 4. Restore the switch cover to its original position and refas- ten the screws. 5 Wiring Connection Diagram MODEL MC-E3002-WP47...

  • Page 12: Exploded View And Replacement Parts List

    6 Exploded View and Replacement Parts List 6.1. EXPLODED VIEW (BODY UNIT)

  • Page 13: Parts List (Body Unit)

    6.2. PARTS LIST (BODY UNIT) Safety Ref No. PART NO. PART NAME & DESCRIPTION Q'TY Remarks AMC95B-XB0WE Handle unit AMC33Z-XD008 Warning label AMC73B-XD00E Handle screw AMC93E-ZS0K8 Power cord w/plug (3p) (Mains lead) AMC84P-XA00E Hose unit AMC07Z-XB00E Caution label A AMC19P-XB04E Hose cover AMC98M-XA00E Indicator unit...
  • Page 14 Safety Ref No. PART NO. PART NAME & DESCRIPTION Q'TY Remarks XTN4+18BFJ Tapping screw...

  • Page 15: Packing Instructions

    6.3. PACKING INSTRUCTIONS 6.4. PACKING LIST Safety Ref No. PART NO. PART NAME & DESCRIPTION Q'TY Remarks AMV01Z-58008 Operating Instructions AMC69Z-ZS00E Cushion A AMC70Z-XB00E Cushion B AMC0TZ-XB00E Cushion C AMV61Z-5800E Individual carton AMC72Z-XB00E Cushion plate A...
