Specifications

MC-E7101
MC-E7103
Product Color (R)Red---MC-E7101 (B)Blue---MC-
E7101 (R)Red---MC-E7103
Destination Europe
© 2004 Matsushita Electric Industrial Co., Ltd. All
rights
reserved.
distribution is a violation of law.
Order No. ECD0405001C2

Vacuum Cleaner

Unauthorized
copying
and

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic mc-e7101

  • Page 1: Vacuum Cleaner

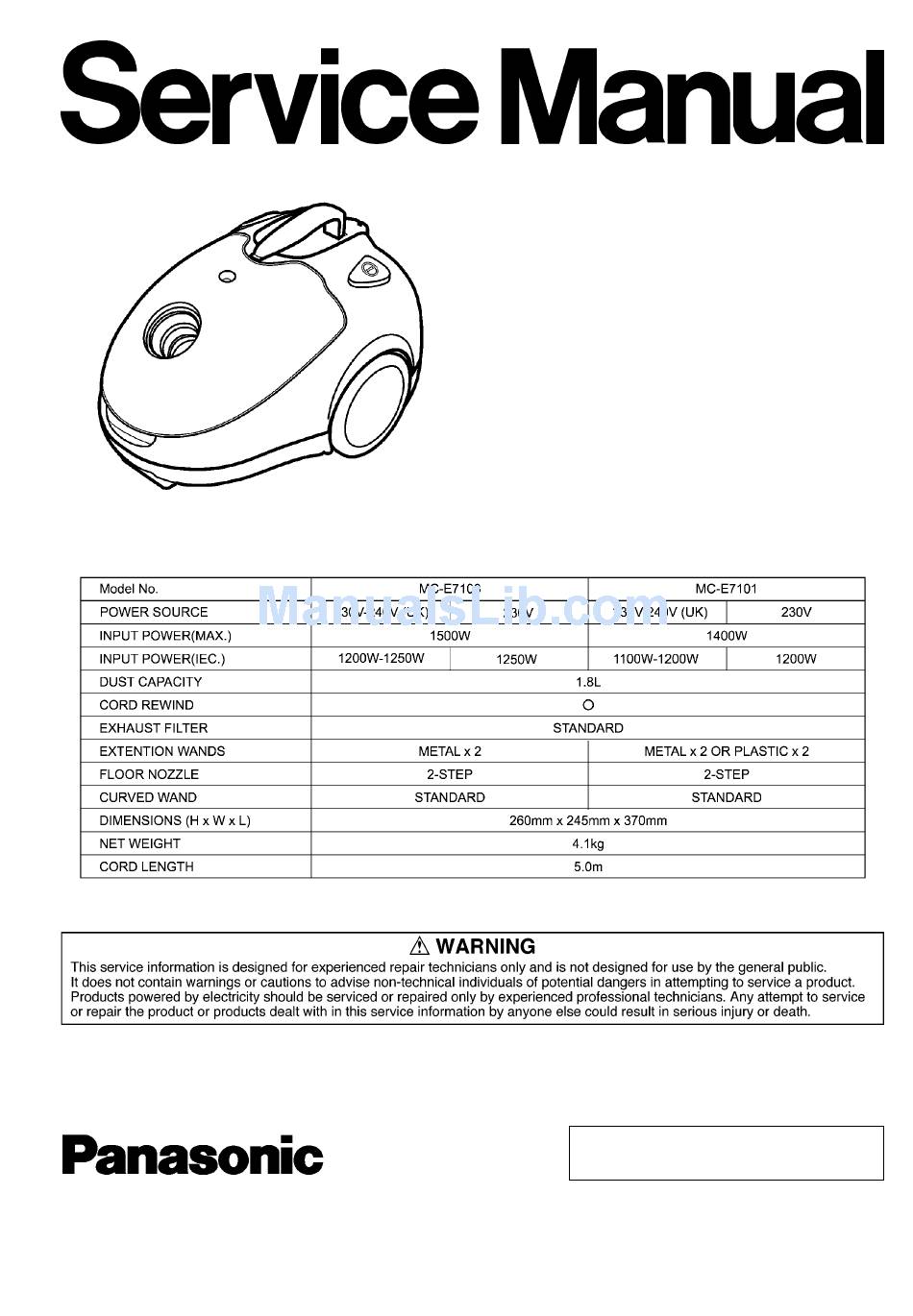

    Order No. ECD0405001C2 Vacuum Cleaner MC-E7101 MC-E7103 Product Color (R)Red---MC-E7101 (B)Blue---MC- E7101 (R)Red---MC-E7103 Destination Europe Specifications © 2004 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying distribution is a violation of law.
  • Page 2: Name Of Parts

    MC-E7101 / MC-E7103 1 Name of parts MODEL MC-E7103, MC-E7101...
  • Page 3 MC-E7101 / MC-E7103...
  • Page 4: Troubleshooting Guide

    MC-E7101 / MC-E7103 4 TROUBLE SHOOTING GUIDE CONDITION CHECHPOINT METHOD OF INSPECTION CAUSE/REMEDY Motor fails rotate Power cord connection Chech power cord continuity If there is no continuity, replace (no noise heard at all). between pliug pins cord reel ass´y.
  • Page 5: Replacement Of Main Parts

    MC-E7101 / MC-E7103 5 REPLACEMENT OF MAIN PARTS IMPORTANT: Before replacing any part always 5.3. Disassemble of Dust Cover DISCONNECT THE CLEANER FROM THE ELECTRICITY Assembly SUPPLY. 5.3.1. Suction Inlet unit 5.1. Removing attachment nozzle and rear cover 1. Removing Remove the mounting screw(3pieces),and remove Suction 1.
  • Page 6 MC-E7101 / MC-E7103 5.4. Removing upper body 5.5. Replacing motor 1. Remove the mounting screw (1 piece), and remove the rear 1. Straightly pull up the motor from the lower body for removal. cover retaining plate. 2. Lifting the handle at the rear area, and push it forward for removal.
  • Page 7 MC-E7101 / MC-E7103 5.6. Replacing cord reel 1. When the motor is removed from the lower body, straightly pull up the cord reel from the lower body for removal. 5. With the brake lever section down, fit the cord reel ass’y into the upper body.
  • Page 8 MC-E7101 / MC-E7103 5.7. Replacing power switch 5.8. Replacing power board 1. Remove the lead wires and hole cover from the connection 1. Look at inside the upper body. terminal (Faston terminal). 2. Disconnect the lead wires from the switch terminals.
  • Page 9 MC-E7101 / MC-E7103 6.1.2. PARTS LIST (ATTACHMENT) Ref. No. Part No. Part Name & Description Remarks AMC99R-UW0 FLOOR NOZZLEASSY.(PLASTIC) AMC94P-UW0 HOSE ASSENBLY AMC13P-UW0 ENTENSION WAND A(PLASTIC) E7101 AMC13P-UX0 ENTENSION WAND A(METAL) E7103 AMC40P-UW0 ENTENSION WAND (PLASTIC) E7101 AMC40P-UX0 ENTENSION WAND (METAL)
  • Page 10: Parts List (Body Unit)

    MC-E7101 / MC-E7103 6.1.4. PARTS LIST (BODY UNIT) Ref. No. Part No. Part Name & Description Remarks AMC01B-UW0B HANDLE E7101 BLUE AMC01B-UW0R HANDLE E7101/E7103 RED AMC93K-UW0B DUST COVER ASSEMBLY E7101 BLUE AMC93K-UW0R DUST COVER ASSEMBLY E7101 RED AMC93K-UX0R DUST COVER ASSEMBLY...
  • Page 11: Packing Instruction

    MC-E7101 / MC-E7103 6.1.5. PACKING INSTRUCTION...
  • Page 12: Packing List

    MC-E7101 / MC-E7103 6.1.6. PACKING LIST Ref. No. Part No. Part Name & Description Remarks AMC61Z-UW0BA CARTON BOX E7101 BLUE AMC61Z-UB0RA CARTON BOX E7101 RED AMC61Z-UX0RA CARTON BOX E7103 RED AMC98Z-UW0 CUSHION UNIT E7101 AMC98Z-UX0 CUSHION UNIT E7103 AMC10Z-UW0 BODY BAG...
