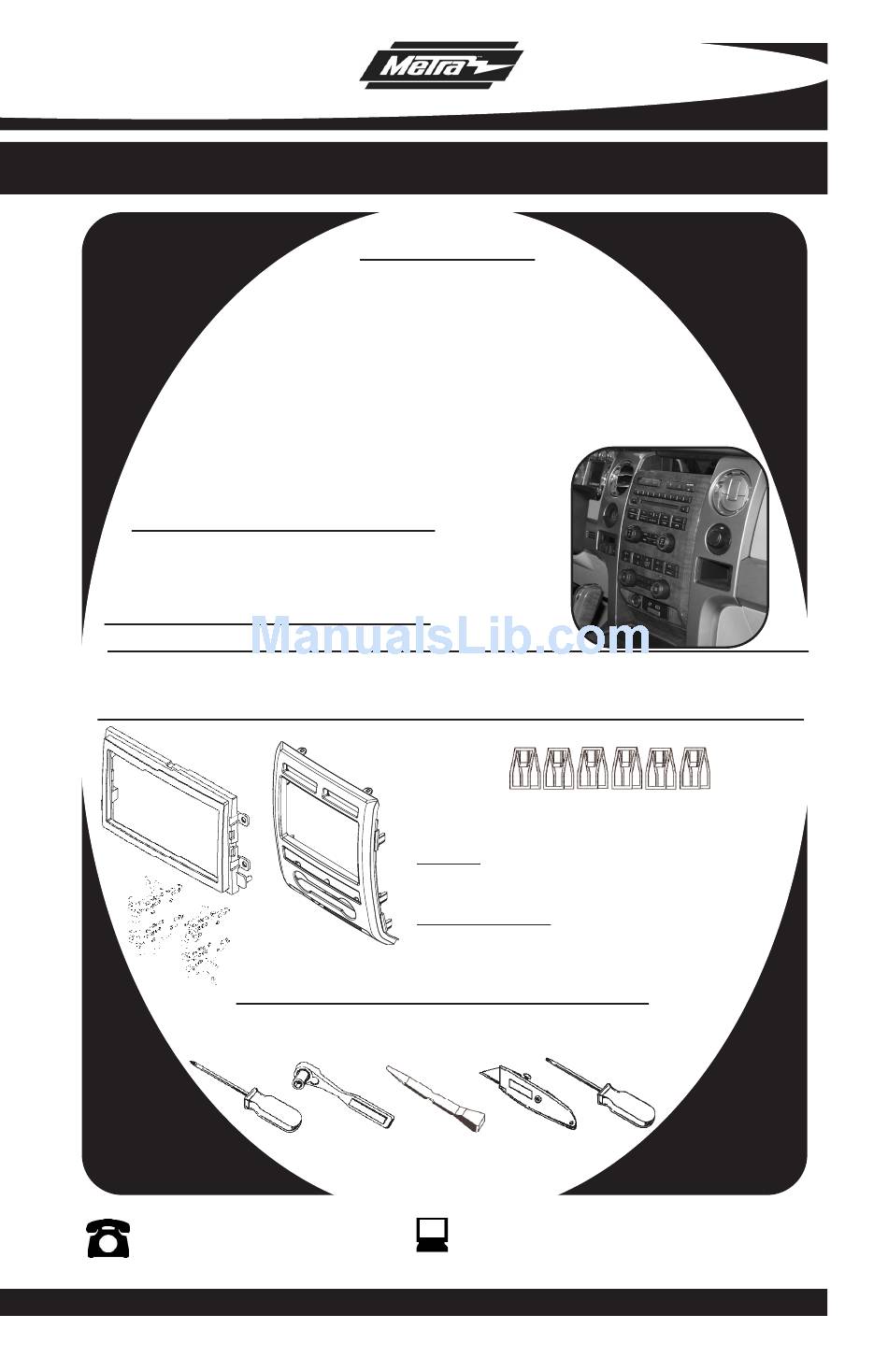

INSTALLATION INSTRUCTIONS FOR PART 95-5822B
LARIAT / KING RANCH / PLATINUM MODELS
95-5822B - BLACK
95-5822AS – PLATINUM / ASH SATIN
95-5822CM - KING RANCH / CURLY MAPLE
95-5822MM – LARIAT / MILANO MAPLE
KIT FEATURES
• Double DIN Head Unit Provision
• Stacked ISO DIN Head Unit Provision
• Painted or Wood Grain
KIT COMPONENTS
• A) Double DIN Radio Housing • B) Double DIN Radio Housing Brackets
• C) Radio Housing Trim Panel • D) (6) U Style Panel Clips
A
B
• Phillips Screwdriver • Socket Wrench • Panel Removal Tool • Cutting Tool
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
2009-10 FORD F-150
(Not for NAV Equipped Models)
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Harness:
• Please see www.metraonline.com for
specific interface harness
C
Antenna Adapter:
• 40-CR10 - Chrysler antenna adapter 02-up
TOOLS REQUIRED:
• Torx Driver
D
www.metraonline.com

Advertisement

loading

Related Manuals for Metra Electronics 955822

Summary of Contents for Metra Electronics 955822

  • Page 1 • C) Radio Housing Trim Panel • D) (6) U Style Panel Clips • Phillips Screwdriver • Socket Wrench • Panel Removal Tool • Cutting Tool 1-800-221-0932 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION APPLICATIONS 2009-10 FORD F-150 WIRING AND ANTENNA CONNECTIONS...
  • Page 2 TABLE OF CONTENTS Dash Disassembly - FORD F-150 2009- 10 ....... 1,2 Kit Preparation - FORD F-150 2009-10.
  • Page 3 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the switch panel to the right of the cigarette lighter then remove the (1) 9/32” screw exposed. (Figure A) Remove the rubber pad at the top of the radio trim panel then remove the (2) 9/32”...

  • Page 4: Ford F-150 2009- 10

    Unclip and remove the hazard/airbag switch and driver info switch assem- blies from the factory radio trim panel. (Figure E) Unclip and remove the cigarette lighter socket from the radio trim panel. (Figure F) Remove (4) Torx screws securing the factory climate control to the radio trim panel.

  • Page 5: Ford F-150 2009-10

    Clip the hazard/airbag switch and driver info switch assemblies into the radio housing in the same loca- tion as the factory radio trim panel. Clip the cigarette lighter socket into the radio housing in the same loca- tion as the factory radio trim panel.

  • Page 6: Double Din Radio Provision

    DOUBLE DIN RADIO PROVISION OR STACKED ISO MOUNT UNIT(S) PROVISION Note: Refer also to the instructions included with the aftermarket radio. Slide the appropriate side bracket over the mounting legs of the Double DIN trim plate aligning the holes in the trim plate and the bracket and rotate inward.

  • Page 7: Final Assembly

    FINAL ASSEMBLY Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit). Re-connect the negative battery terminal and test the unit for proper operation. Reassemble radio and dash assemblies in reverse order of disassembly using the 95-5822B radio housing in place of the factory radio trim panel.
  • Page 8 95-5822B INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 05/21/10 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION INST95-5822B...
