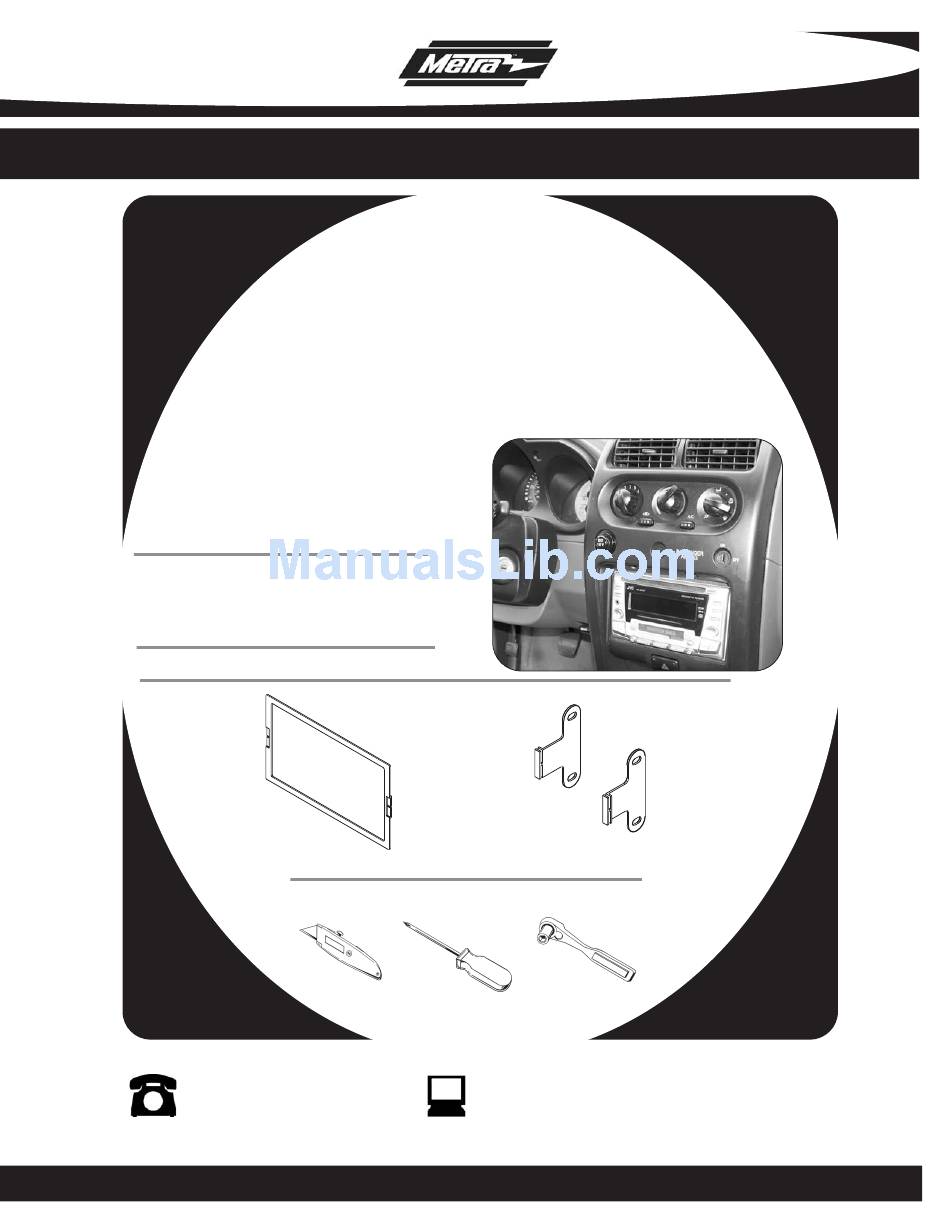

INSTALLATION INSTRUCTIONS FOR PART 95-7417
1995-2003 Maxima / 1996-2004 Pathfinder/QX4 1997-2000
95-7417
KIT FEATURES
• DDIN Head Unit Provision
• Stacked ISO DIN Head Unit Provision
KIT COMPONENTS
A) DDIN Trim plate B) DDIN Brackets
A
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
INFINITI 1996-1999 I-30
MERCURY 1993-2002 Villager
NISSAN 1995-1998 200SX/240SX
1998-2001 Altima / 1998-2004 Frontier
1993-2003 Quest / 1995-1999 Sentra
2000-2004 Xterra
TOOLS REQUIRED:
Cutting Tool • Phillips Screwdriver • Socket Wrench
www.metraonline.com
B

Advertisement

Table of Contents
loading

Related Manuals for Metra Electronics 95-7417

Summary of Contents for Metra Electronics 95-7417

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7417 INFINITI 1996-1999 I-30 MERCURY 1993-2002 Villager NISSAN 1995-1998 200SX/240SX 1998-2001 Altima / 1998-2004 Frontier 1995-2003 Maxima / 1996-2004 Pathfinder/QX4 1997-2000 1993-2003 Quest / 1995-1999 Sentra 95-7417 KIT FEATURES • DDIN Head Unit Provision • Stacked ISO DIN Head Unit Provision...

  • Page 2: Table Of Contents

    Stacked ISO DIN Head Unit Provision ... 15 Final Assembly ...16 CAUTION: Do not cycle the key when removing a dash with passenger airbag ON/OFF switch. 95-7417 NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.

  • Page 3: Dash Disassembly

    95-7417 1996-1999 INFINITI I-30 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the shift lever trim panel and remove the (2) screws exposed. Remove (1) screw to the left of the ashtray then unclip and remove the ashtray assembly.

  • Page 4: 1993-1995 Mercury Villager 1993-1995 Nissan Quest

    95-7417 1993-1995 MERCURY VILLAGER 1993-1995 NISSAN QUEST Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (1) screw above the climate controls. Unclip and remove the radio trim panel. Remove (4) screws securing the radio. DASH DISASSEMBL Y...

  • Page 5: 1996-1998 Mercury Villager 1996-1998 Nissan Quest

    95-7417 1996-1998 MERCURY VILLAGER 1996-1998 NISSAN QUEST Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (4) plastic screws and screw anchors from the base of the storage compartment then remove the compartment. Remove (2) Phillips screws from the base of the radio trim panel.

  • Page 6: 1999-2002 Mercury Villager 1999-2003 Nissan Quest

    95-7417 1999-2002 MERCURY VILLAGER 1999-2003 NISSAN QUEST Disconnect the negative battery terminal to prevent an accidental short circuit. Open the ashtray/cupholder assem- bly and depress the retaining clips on each side to remove. Remove (2) Phillips screws from each side of the ashtray/cupholder.

  • Page 7: 1995-1999 Nissan Sentra /1995-1998 200 Sx

    95-7417 1995-1999 NISSAN SENTRA 1995-1998 200 SX Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the dummy plate above the climate controls. Remove (1) Phillips screw from behind dummy plate. Unclip and remove radio trim panel.

  • Page 8: 1995-1998 Nissan 240 Sx

    95-7417 1995-1998 NISSAN 240 SX Disconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the climate con- trol trim panel and remove the (2) exposed behind. Unclip and remove the shift lever trim panel and remove the (2) screws exposed behind.

  • Page 9: 1998-2001 Nissan Altima

    95-7417 1998-2001 NISSAN ALTIMA Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip the shift lever trim panel and remove (2) Phillips screws at the base of the radio trim panel. Remove (2) Phillips screws above the radio opening.

  • Page 10: 1998-2001 Nissan Frontier/2000-2001 Nissan Xterra

    95-7417 1998-2001 NISSAN FRONTIER 2000-2001 NISSAN XTERRA Disconnect the negative battery terminal to prevent an accidental short circuit. Remove the ashtray and the (2) Phillips screws exposed in the ashtray cavity. Unclip and remove the radio trim panel. Remove (4) Phillips screws securing the radio.

  • Page 11: 2002-2004 Nissan Frontier/2002-2004 Nissan Xterra

    95-7417 2002-2004 NISSAN FRONTIER 2002-2004 NISSAN XTERRA Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the shift lever trim panel. Remove (2) Phillips screws exposed in the shift lever cavity. Remove (2) Phillips screws under the climate control.

  • Page 12: 1995-1999 Nissan Maxima

    95-7417 1995-1999 NISSAN MAXIMA Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip the shift lever trim panel. Remove the (2) Phillips screws at the base of the radio trim panel. Remove (1) Phillips screw to the left of the ashtray and unclip the ashtray assembly.

  • Page 13: 2000-2003 Nissan Maxima

    95-7417 2000-2003 NISSAN MAXIMA Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the vent/radio trim panel. Note: For Bose systems the vent assembly will be removed without the trim panel. Remove the ashtray insert and (1) Phillips screw exposed behind.

  • Page 14: 1996-2000 Nissan Pathfinder/Qx4 1997-2000

    Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (2) Phillips screws from the base of the radio trim panel. Unclip and remove the radio trim panel. Remove (4) Phillips screws securing radio. 95-7417 DASH DISASSEMBL Y...

  • Page 15: 2001-2004 Nissan Pathfinder

    95-7417 2001-2003 NISSAN PATHFINDER Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the vent/clock assembly. (Figure A) Remove (2) Phillips screws from the top of the radio trim panel then remove the panel. (Figure B) Remove (4) Phillips screws securing radio.

  • Page 16: Kit Assembly

    (Figure A) Attach the factory mounting brackets and the 95-7417 DDIN trim plate/bracket assembly to the DDIN head unit with the screws supplied with the unit. (Figure B)

  • Page 17: Stacked Iso Din Head Unit Provision

    (Figure A) Attach the factory mounting brackets and the 95-7417 DDIN trim plate/bracket assembly to the stacked ISO DIN head units with the screws supplied with the units.

  • Page 18: Final Assembly

    95-7417 FINAL ASSEMBL Y 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
  • Page 19 95-7417 NOTES...
  • Page 20 95-7417 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 07/28/09 © COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION INST95-7417...
