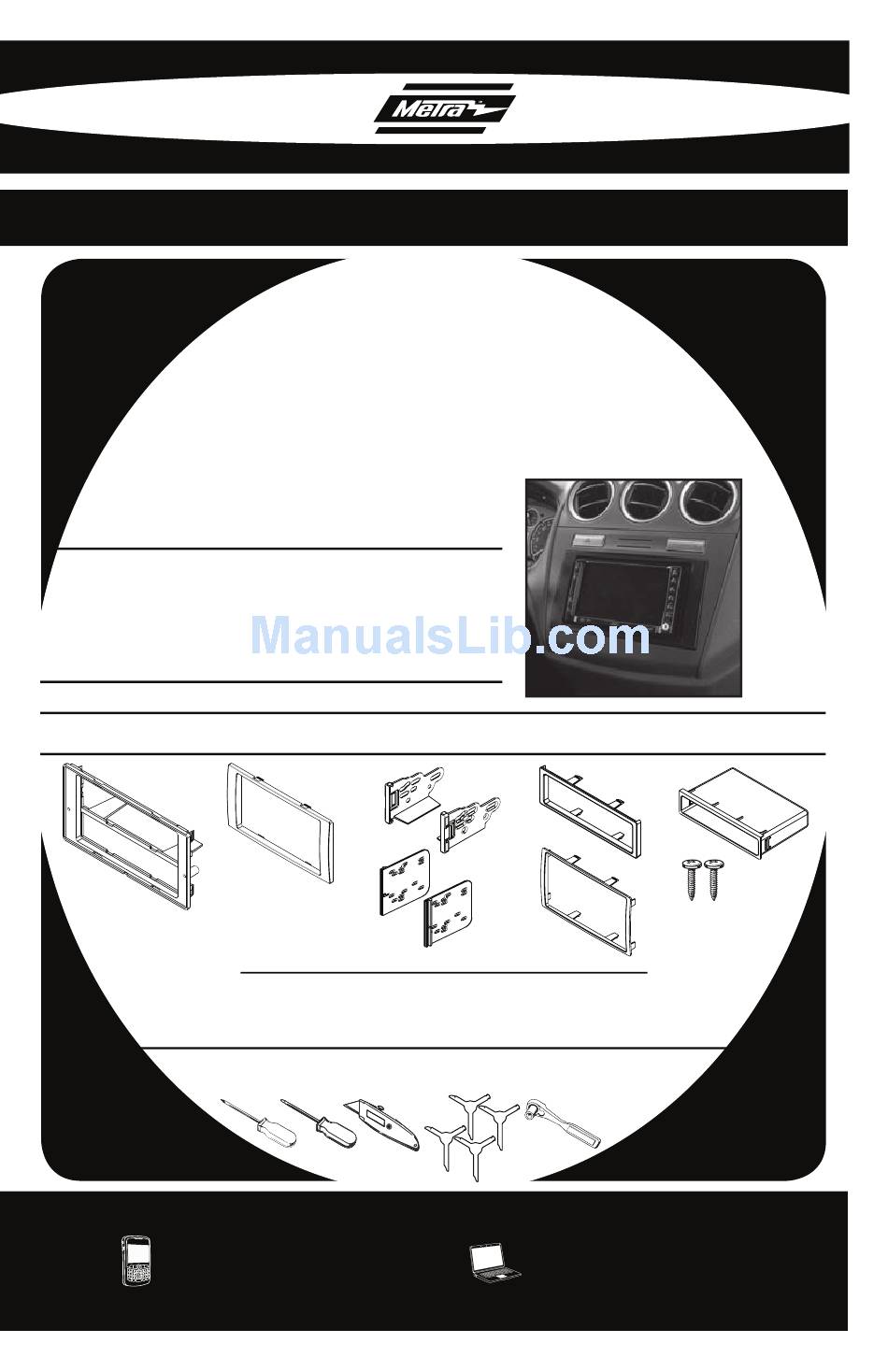

INSTALLATION INSTRUCTIONS FOR PART 99-5824CH
99-5824CH

KIT FEATURES

• DIN Head unit provisions with pocket
• ISO DIN Head unit provision with pocket
• DDIN Head unit provision
• Painted Charcoal to Match Factory
99-5824B = Matte Black
99-5824S = Silver

KIT COMPONENTS

A) Radio Housing B) Radio Housing Trim Panel C) ISO Brackets D) ISO Trim-plate E) Pocket
F) DDIN Brackets G) DDIN Trim Plate H) (2) #8 1½" Phillips Screws
A
• Phillips Screwdriver • Small Flat Blade Screwdriver • Cutting Tool
• (2) 86-9001 Head unit removal tools • Small Socket Wrench
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
TRANSIT CONNECT
2010-UP
Other applications not found in North America:
Focus 2005- up
Focus C-Max 2005- up
Fiesta 2006- up
Fusion 2006- up
Galaxy 2006- up
B
C
F
WIRING & ANTENNA CONNECTIONS (Sold Separately)
• 70-5523 2010 Ford Transit Harness
• 40-VW10 1986-Up Euro antenna adapter
TOOLS REQUIRED
APPLICATIONS
Kuga 2008- up
S-Max 2006-up
Transit 2006-up
D
G
metraonline.com
E
H

Advertisement

loading

Related Manuals for Metra Electronics 99-5824CH

Summary of Contents for Metra Electronics 99-5824CH

  • Page 1: Kit Features

    INSTALLATION INSTRUCTIONS FOR PART 99-5824CH Other applications not found in North America: Focus 2005- up Focus C-Max 2005- up Fiesta 2006- up Fusion 2006- up Galaxy 2006- up 99-5824CH KIT FEATURES • DIN Head unit provisions with pocket • ISO DIN Head unit provision with pocket •...
  • Page 2 INSTALLATION INSTRUCTIONS FOR PART 99-5824CH TABLE OF CONTENTS DASH DISASSEMBLY •TRANSIT CONNECT 2010-UP ....1 KIT ASSEMBLY TRANSIT CONNECT 2010-UP •DIN HEAD UNIT PROVISION ....2 •ISO DIN HEAD UNIT PROVISION .
  • Page 3 99-5824CH DASH DISASSEMBLY TRANSIT CONNECT 2010-UP Insert Metra’s 86-9001 into the slots in the factory head unit and pull the unit out. (Fig. A) Remove (2) 7 MM screws from sub dash. (Fig. B) Disconnect the wiring. Continue to Kit Assembly...

  • Page 4: Din Head Unit Provision

    99-5824CH KIT ASSEMBLY TRANSIT CONNECT 2010-UP DIN HEAD UNIT PROVISION Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.

  • Page 5: Iso Din Head Unit Provision

    99-5824CH KIT ASSEMBLY TRANSIT CONNECT 2010-UP ISO DIN HEAD UNIT PROVISION Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
  • Page 6 99-5824CH KIT ASSEMBLY TRANSIT CONNECT 2010-UP DDIN HEAD UNIT PROVISION Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
  • Page 7 • Destornillador Phillips • Destornillador de hoja plana • herramienta de corte • (2) herramientas de extracción para la unidad central 86-9001 • llave de vaso METRA. THE WORLD’S BEST KITS.™ 1-800-221-0932 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION APPLICATIONS TRANSIT CONNECT 2010-UP...
  • Page 8 INSTALLATION INSTRUCTIONS FOR PART 99-5824CH TABLA DE CONTENIDOS DESMONTAJE DEL TABLERO •TRANSIT CONNECT 2010-UP ....1 MONTAJE DEL KIT TRANSIT CONNECT 2010-UP •Accesorio para unidades centrales DIN ..2 •Accesorios para unidades centrales DIN ISO.
  • Page 9 99-5824CH DESMONTAJE DEL TABLERO TRANSIT CONNECT 2010-UP Inserte la herramienta 86-9001 de Metra en las ranuras de la unidad central de fábrica y jale la unidad hacia afuera. (Fig. A) Retire (2) tornillos de 7 mm del subtablero. (Fig. B) Desconecte el cableado.
  • Page 10 99-5824CH MONTAJE DEL KIT TRANSIT CONNECT 2010-UP ACCESORIO PARA UNIDADES CENTRALES DIN Ubique el arnés del cableado de fábrica en el tablero. Metra recomienda usar el adaptador de acoplamiento adecuado de Metra o AXXESS. Vuelva a conectar el terminal negativo de la batería y pruebe la unidad para verificar que funcione correctamente.
  • Page 11 99-5824CH MONTAJE DEL KIT TRANSIT CONNECT 2010-UP ACCESORIOS PARA UNIDADES CENTRALES DIN ISO Ubique el arnés del cableado de fábrica en el tablero. Metra recomienda usar el adaptador de acoplamiento adecuado de Metra o AXXESS. Vuelva a conectar el terminal negativo de la batería y pruebe la unidad para verificar que funcione correctamente.
  • Page 12 99-5824CH MONTAJE DEL KIT TRANSIT CONNECT 2010-UP ACCESORIOS PARA UNIDADES CENTRALES DIN DOBLES Ubique el arnés del cableado de fábrica en el tablero. Metra recomienda usar el adaptador de acoplamiento adecuado de Metra o AXXESS. Vuelva a conectar el terminal negativo de la batería y pruebe la unidad para verificar que funcione correctamente.
