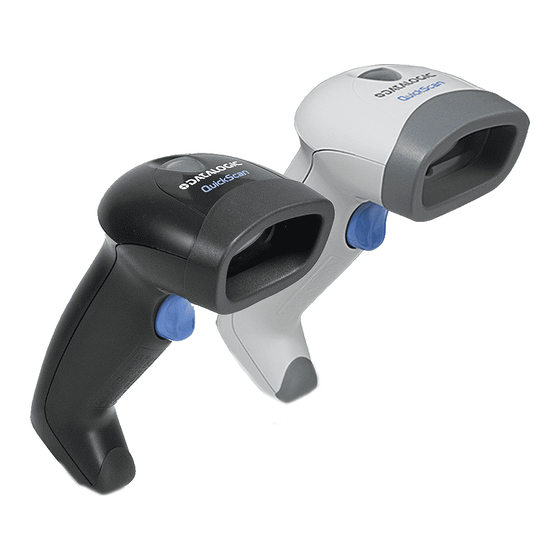

Datalogic QD 2300 QuickScan L Quick Reference Manual

Hide thumbs Also See for QD 2300 QuickScan L:
Table of Contents

Advertisement

Quick Links

TM
QuickScan
L
QD 2300 Barcode Scanner
Quick Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Datalogic QD 2300 QuickScan L

Summary of Contents for Datalogic QD 2300 QuickScan L

  • Page 1 QuickScan QD 2300 Barcode Scanner Quick Reference Guide...
  • Page 2 Datalogic representative. Electronic versions may either be downloadable from the Data- logic website (www.scanning.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publica- tions, please let us know via the "Contact Datalogic" page.

  • Page 3: Connect/Disconnect Cable

    Connect/Disconnect Cable Connect/Disconnect Cable Connect Host Interface Keyboard Wedge Interface RS-232 Interface USB Interface Quick Reference Guide...

  • Page 4: Aim And Scan

    Aim and Scan 012345 012345 65° 65° QuickScan...

  • Page 5: Parts Of The Scanner

    Parts of the Scanner Parts of the Scanner Scan Window Trigger Nose Boot Scanning Modes The scanner can operate in two modes: • Trigger Single Mode - trigger button must be pressed to emit the laser in order to a scan barcode. •...

  • Page 6: Stand Mode Timeout Period

    Stand Mode Timeout Period The Timeout Period for the transition from low power to sleep mode can be set to one of the following durations: • 1 Hour • 5 Hours (default) • Infinite Timeout — With this setting, there is no timeout, thus the scanner will never go into sleep mode or beam shut-off but will remain in low power mode until a label is read.

  • Page 7: Troubleshooting

    Troubleshooting Troubleshooting Problem Possible Cause Possible Solutions Nothing happens when Check system power. No power to the scan- the scan button is Ensure power supply is ner. pulled. connected. Interface or power Ensure all cable connec- cables are loose. tions are secure. Ensure scanner is pro- grammed to read the type Laser comes on, but...

  • Page 8: Beeper Definitions

    Beeper Definitions The scanner issues different beep sequences and patterns to indi- cate status. The table below defines beep sequences that occur dur- ing both normal scanning and while programming the scanner. Beeper Sequence Indication Standard Use ow/medium/high beep Power up. A barcode label was decoded (if decode Short high beep beeper is enabled).

  • Page 9: Led Definitions

    LED Definitions Beeper Sequence Indication A successful transmission of buffered Low/high beep data. Host Specific USB only Scanner has not completed initialization. 4 short high beeps Wait several seconds and scan again. Scanner gives a power-up beep Communication with the bus must be after scanning a USB Device established before the scanner can oper- Type.

  • Page 10: Programming Barcodes Descriptions

    Programming Barcodes Descriptions This guide includes the programming barcodes required to set up the scanner to work with various host interfaces. Some frequently used programming barcodes are also included. For all programming barcodes, plus detailed information about the scanner, download the latest version of the Product Reference Guide (PRG), Advanced Data Formatting (ADF) Guide and all documentation pertaining to the scanner from the website listed on the back cover of this manual.

  • Page 11: Carriage Return / Line Feed

    Carriage Return / Line Feed Carriage Return / Line Feed If a carriage return/enter is required after each scanned bar code, scan the following bar codes in order: SCAN OPTIONS <DATA><SUFFIX> Carriage Return / Line Feed Set Scan Data Transmission Format SCAN OPTIONS <DATA><SUFFIX>...

  • Page 12: Programming Barcodes

    Programming Barcodes SET DEFAULTS Keyboard Wedge Interface IBM PC/AT and IBM PC COMPATIBLES IBM PS/2 (MODEL 30) Country Keyboard Types (Country Codes) 5001 7008 5002 7014 7009 5003 5004 7012 7003 7013 5005 5006 5007 7004 5008 5009 5010 7011 7002 NORTH AMERICAN (Default) FRANÇAIS/FRENCH Windows...
  • Page 13 Programming Barcodes Country Keyboard Types (Country Codes) — cont. FRANÇAIS CANADIAN/ FRENCH CANADIAN Windows XP/2000 DEUTSCH/GERMAN Windows ESPAÑOL/SPANISH Windows ITALIANO/ITALIAN Windows SVENSKA/SWEDISH Windows UK ENGLISH Windows 日本語 /JAPANESE Windows PORTUGUÊS (BRASIL)/ PORTUGUÊSE-BRAZILIAN Windows Quick Reference Guide...

  • Page 14: Usb Interface

    RS-232 OPOS For USB OPOS operation, use host type USB OEM HAND- HELD and an appropriate driver supplied by Datalogic. There are many more country settings for the USB Keyboard. NOTE Please refer to the PRG, downloadable from the website located on the back cover of this manual.

  • Page 15: Ergonomic Recommendations

    All models are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to equipment, not expressly ap- proved by Datalogic could void the user's authority to operate the equipment. Power Supply Use only a power supply approved by Datalogic for this product and model.

  • Page 16: Radio Frequency Interference Requirements

    Hinweis Benutzen Sie nur eine von Datalogic genehmigte Stromversor- gung. Die Modelle erfordern eine Stromquelle der Klasse II oder III mit einer Leistungsbegrenzung (LPS). Für eine gültige Sicher- heitszertifizierung müssen Klasse III Stromquellen am Eingang nach den Bestimmungen IEC/EN60950-1 (EN 60335-Serien, EN 60065 oder entsprechenden) zugelassen sein.

  • Page 17: Replacing The Scan Window

    Replacing the Scan Window If the Scan Window becomes scratched, broken or contaminated with heavy dust, replace it by removing the Nose Boot and install- ing a new window. Datalogic offers a replacement window as an orderable accessory. Nose Boot...

  • Page 18: Scanner Labeling

    (WEEE), visite la página Web www.scanning.datalogic.com. Portuguese Para informações sobre a disposição de Sucatagem de Equipamentos Elétricos e Eletrônicos (WEEE -Waste Electrical and Electronic Equipment), consultar o site web www.scanning.datalogic.com. Chinese Japanese 廃電気電子機器 (ＷＥＥＥ) の処理についての関連事項は Datalogic のサイト www.scanning.datalogic.com をご参照下 さい。 QuickScan...

  • Page 19: International Caution Statements

    ATTENTION Si, quand la fonction de balayage est lancée, le diagramme de balayage est constitué d’un seul point, cesser d’utiliser le scanneur et le retourner à Datalogic. ATTENTION Ne pas essayer d’ouvrir ou de réparer les composants de la cavité optique. L’ouverture de la cavité optique ou la réparation de ses composants par une personne non qualifiée peut entraîner le non-respect des règles de sécurité...
  • Page 20 CUIDADO Se ao pressionar o gatilho a luz do laser for um único ponto, interrompa a operação e devolva o scanner à Datalogic. CUIDADO Não tente abrir ou consertar qualquer componente da cavidade óptica. A abertura ou manutenção de qualquer peça da cavidade óptica por pessoal não autorizado pode infringir os regulamentos de segurança do laser.
  • Page 21 PRECAUCIÓN Si al oprimir el interruptor, el patrón de exploración es un solo punto, discontinúe el uso y devuelva el escáner a Datalogic. PRECAUCIÓN No intente abrir o de ninguna manera dar servicio a ninguno de los componentes del receptáculo óptico. Abrir o dar servicio a las piezas del receptáculo óptico por parte del personal no autorizado podría ser una violación a los...

  • Page 22: Datalogic Scanning Limited Factory Warranty

    Datalogic Scanning (“Datalogic”) hardware products are warrant- ed against defects in material and workmanship under normal and proper use. The liability of Datalogic under this warranty is limited to furnishing the labor and parts necessary to remedy any defect covered by this warranty and restore the product to its normal op- erating condition.
  • Page 23 Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Datalog- ic service center is located.
  • Page 24 No attempted assignment or transfer in violation of this provision shall be valid or binding upon Datalogic. DATALOGIC'S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR...
  • Page 25 Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for prod- uct in Datalogic’s possession. In the absence of specific written in- structions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liabil- ity in connection with the return shipment.

  • Page 26: Quickscan L China Rohs

    QuickScan L China RoHS QuickScan...

  • Page 27: Declaration Of Conformity

    EC-69 DECLARATION OF CONFORMITY Rev.:0 Pag.:1 di 1 Datalogic Scanning, Inc. 959 Terry Street Eugene, Oregon 97402 dichiara che declares that the déclare que le bescheinigt, daß das Gerät declara que el QuickScan L, QD2300 Barcode Reader e tutti i suoi modelli and all its models et tous ses modèles...
  • Page 28 Datalogic Scanning, Inc. 959 Terry Street Eugene, OR 97402 Telephone: (541) 683-5700 Fax: (541) 345-7140 © 2007-2012 Datalogic Scanning, Inc. 820024114 (Rev. E) March / 2012...
