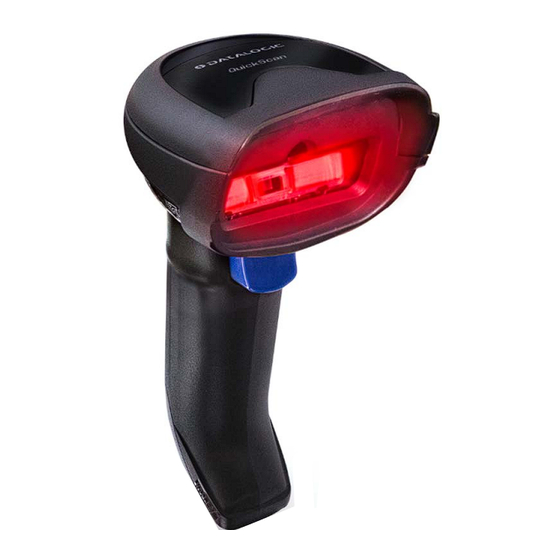

Datalogic Quickscan QD2200 Product Reference Manual

General purpose corded handheld linear bar code reader
Hide thumbs Also See for Quickscan QD2200:
Table of Contents

Advertisement

Quick Links

L
Quickscan™ I
QD2200
PRODUCT REFERENCE GUIDE
General Purpose Corded Handheld Linear
Bar Code Reader

Advertisement

Table of Contents
loading

Related Manuals for Datalogic Quickscan QD2200

Summary of Contents for Datalogic Quickscan QD2200

  • Page 1 Quickscan™ I QD2200 PRODUCT REFERENCE GUIDE General Purpose Corded Handheld Linear Bar Code Reader...
  • Page 2 Quickscan is a trademark of Datalogic S.p.A. and/or its affiliates, registered in the U.S. The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Datalogic S.p.A. and/or its affiliates is under license. All other trademarks and brands are property of their respective owners.

  • Page 3: Table Of Contents

    Interface Selection ......................8 Configuring the Interface ....................9 Customizing Configuration Settings ................. 11 Using the Programming Bar Codes ....................11 Datalogic Aladdin™ Utility ........................11 Interface Settings ..........................11 Configuring Other Features ......................12 Software Version Transmission .......................12 Resetting the Product Configuration to Defaults ................12 Restore Custom Default Configuration ..................12...
  • Page 4 TABLE OF CONTENTS USB-COM SETTINGS ........................... 2 Intercharacter Delay ........................2 Beep On ASCII BEL ........................3 Beep On Not on File ........................3 ACK NAK Options ........................4 ACK Character ..........................5 NAK Character ..........................5 ACK NAK Timeout Value ......................6 ACK NAK Retry Count ........................
  • Page 5 TABLE OF CONTENTS DISABLE ALL SYMBOLOGIES ......................66 COUPON CONTROL ...........................66 UPC-A ..............................67 UPC-A Enable/Disable ......................67 UPC-A Check Character Transmission ..................67 Expand UPC-A to EAN-13 ......................68 UPC-A Number System Character Transmission ..............68 UPC-E ..............................69 UPC-E Enable/Disable ......................69 UPC-E Check Character Transmission ..................69 Expand UPC-E to EAN-13 ......................70 Expand UPC-E to UPC-A ......................70 UPC-E Number System Character Transmission ..............70...
  • Page 6 Compressed 2 of 5 Set Length 2 ....................111 DATALOGIC 2 OF 5 ..........................112 Datalogic 2 of 5 Enable/Disable .....................112 Datalogic 2 of 5 Check Character Calculation ................112 Datalogic 2 of 5 Check Character Transmission ..............113 Datalogic 2 of 5 Length Control .....................113 Datalogic 2 of 5 Set Length 1 ....................114...
  • Page 7 TABLE OF CONTENTS Codabar Check Character Calculation ..................120 Codabar Check Character Transmission ................121 Codabar Start/Stop Character Transmission ................121 Codabar Start/Stop Character Set ..................122 Codabar Start/Stop Character Match ..................122 Codabar Quiet Zones .......................123 Codabar Length Control ......................124 Codabar Set Length 1 ......................124 Codabar Set Length 2 ......................125 ABC CODABAR ..........................126 ABC Codabar Enable/Disable ....................126...
  • Page 8 TABLE OF CONTENTS NAK Character ..........................150 ACK NAK Timeout Value ........................151 ACK NAK Retry Count ........................152 Disable Character ..........................153 Enable Character ..........................154 Keyboard Interface ....................... 155 Intercharacter Delay ........................155 Intercode Delay ..........................156 Data Format ......................... 157 Data Editing .............................157 Please Keep In Mind.......................157 Global Prefix/Suffix .........................158 Example: Setting a Prefix .......................158 Global AIM ID ...........................159...
  • Page 9 TABLE OF CONTENTS IBM XT ........................201 Microsoft Windows Codepage 1252 ................203 APPENDIX F. ASCII CHART................... 204 PRODUCT REFERENCE GUIDE...

  • Page 10: Preface

    Programming can alternatively be performed using the Datalogic Aladdin™ Configura- tion application, which is available from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC.

  • Page 11: Manual Conventions

    OVERVIEW Manual Conventions The following conventions are used in this document: The symbols listed below are used in this manual to notify the reader of key issues or procedures that must be observed when using the reader: NOTE: This symbol draws attention to details or procedures that may be useful in improving, maintaining, or enhancing the performance of the hardware or software being discussed.

  • Page 12: Technical Support

    TECHNICAL SUPPORT Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to (www.datalogic.com). For quick access, from the home page click on the search icon , and type in the name of the product you’re looking for.
  • Page 13 TECHNICAL SUPPORT NOTES xiii PRODUCT REFERENCE GUIDE...

  • Page 14: Chapter 1. Introduction

    Comfort and Reliability Lightweight and easy to handle, the QuickScan QD2200 is very responsive at the pull of the trigger, providing a superior robustness for this class of products where the device is mostly stressed, because of the accurate design and quality of parts.

  • Page 15: Programming The Reader

    PROGRAMMING THE READER Figure 1 - Correct positioning of the scanner PROGRAMMING THE READER Configuration Methods Programming Bar Codes The reader is factory-configured with a standard set of default features. After scanning the interface bar code, you can select other options and customize your reader through use of the instructions and programming bar code labels available in the corresponding features section for your interface.

  • Page 16: Datalogic Aladdin

    In addition, Aladdin makes it easy to upgrade the handheld’s firmware, to attain the benefits of new reader features. Reference the Datalogic Aladdin™ Online Help for more details. Aladdin is available for download free of charge on the Datalogic website.

  • Page 17: Chapter 2. Setup

    CHAPTER 2 SETUP UNPACKING Check carefully to ensure the scanner and any cables or accessories ordered are present and undamaged. If any damage occurred during shipment, contact " Technical Support" on page xii SETTING UP THE QUICKSCAN™ QD2200 READER Follow the steps provided in this section to connect and get your reader up and commu- nicating with its host: 1.

  • Page 18: Usb Connection

    SETUP Figure 2. Cable Connection/Disconnection at the Scanner Paper Clip Cable Connector USB Connection Connect the scanner to a USB port on the terminal/PC using the correct USB cable for the interface type you ordered. USB: Select to communicate either by USB OEM, USB COM STD, or USB Keyboard inter- face types by scanning the appropriate interface type bar codes available in this manual.

  • Page 19: Hands Free Stand/Holder

    HANDS FREE STAND/HOLDER HANDS FREE STAND/HOLDER An accessory is available which holds the reader at a convenient angle, allowing hands free scanning of items. It can also be used as a holder. Figure 4- Adjusting the Stand Arm Grab and Rotate PRODUCT REFERENCE GUIDE...

  • Page 20: Parts Of The Reader

    Besides the collapsible stand shown in the picture above, all the stands of the Quick- Scan 2500 Series (2D scanners) are also available and compatible with the QD2200 Series, but the auto-sense capability is not active with the QuickScan QD2200. to change Scan Mode and allow the user to operate in hands-free mode.

  • Page 21: Using The Quickscan™ I Qd2200

    USING THE QUICKSCAN™ I QD2200 USING THE QUICKSCAN™ I QD2200 The Quickscan™ I QD2200 normally functions by capturing and decoding codes. Bar Code Reading Point the reader at the target and pull the trigger to enable the illuminator (red beam) to decode the bar code label.

  • Page 22: Configuring The Interface

    Select USB-COM-STD USB-Composite (combines USB-KBD emulation and USB-COM $P,HA4D.P Select USB-Composite a. USB-COM driver needs to be installed for these interfaces to work. Please download it from www.datalogic.com OTHER INTERFACES USB HID POS $P,HA44.P Select USB HID POS USB Toshiba TEC $P,HA41.P...
  • Page 23 CONFIGURING THE INTERFACE USB-OEM USB-OEM (can be used for OPOS/UPOS/JavaPOS) $P,HA45.P Select USB-OEM NOTE: If you erroneously read the USB-OEM interface selection code, it is required to press and hold the trigger to unlock the reader. Then read the correct interface bar code.

  • Page 24: Customizing Configuration Settings

    Datalogic Aladdin™ is a multi-platform utility program providing a quick and user- friendly configuration method via the USB-COM interface. The Aladdin utility is avail- able on the Datalogic website. Aladdin allows you to program the scanner by selecting configuration commands through a user-friendly graphical interface running on a PC.

  • Page 25: Configuring Other Features

    CUSTOMIZING CONFIGURATION SETTINGS Configuring Other Features If your installation requires different programming than the standard factory default settings, the following sections of this manual allow configuration of non-interface-spe- cific settings you might require: Configuration Using Bar Codes: General Features includes programming for scanning, speaker and LED indicators and other such universal settings.

  • Page 26: Restore Factory Configuration

    SETUP Restore Factory Configuration If you want to restore the Factory Configuration for your reader, scan either the Restore USA Factory Configuration bar code or the Restore EU Factory Configuration bar code below. Both labels restore the reader configuration to the factory settings, including the interface type.

  • Page 27: Chapter 3. Configuration With Bar Codes

    CHAPTER 3 CONFIGURATION WITH BAR CODES This and following sections provide programming bar codes to configure your reader by changing the default settings. For details about additional methods of programming, see " Customizing Configuration Settings" on page 11 NOTE: You must first enable your PowerScan to read bar codes in order to use this section.

  • Page 28: Symbology-Specific Parameters

    CONFIGURATION WITH BAR CODES Symbology-specific Parameters: defines options for all symbologies and provides the Symbologies, starting on page 65 programming bar codes necessary for configuring these features. NOTE: You must first enable your reader to read bar codes in order to use this section.

  • Page 29: Global Interface Features

    GLOBAL INTERFACE FEATURES ENTER/EXIT PROGRAMMING MODE GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host commands. When set to ignore, the reader will ignore all host commands except those necessary for: •...

  • Page 30: Usb Suspend Mode

    CONFIGURATION WITH BAR CODES USB Suspend Mode This setting enables/disables the ability of USB interfaces to enter suspend mode. $CUSSE00  USB Suspend Mode = Disable $CUSSE01 USB Suspend Mode = Enable QUICKSCAN™ I QD2200...

  • Page 31: Usb-Com Interfaces

    CONFIGURATION | USB-COM INTERFACES SECTION CONTENTS • • Intercharacter Delay ACK NAK Timeout Value • • Beep On ASCII BEL ACK NAK Retry Count • • Beep On Not on File ACK NAK Error Handling • • ACK NAK Options Indicate Transmission Failure •...

  • Page 32: Programming Bar Codes

    ENTER/EXIT PROGRAMMING MODE USB-COM INTERFACES USB-COM SETTINGS Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments.

  • Page 33: Beep On Ascii Bel

    BEEP ON ASCII BEL ENTER/EXIT PROGRAMMING MODE Beep On ASCII BEL When this parameter is enabled, the scanner issues a beep when a <BEL> character is detected on the serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event.

  • Page 34: Ack Nak Options

    ENTER/EXIT PROGRAMMING MODE USB-COM INTERFACES ACK NAK Options This enables/disables the ability of the scanner to support the ACK/NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...

  • Page 35: Ack Character

    ACK CHARACTER ENTER/EXIT PROGRAMMING MODE ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See " ACK Character" on for more detailed programming instructions.

  • Page 36: Ack Nak Timeout Value

    ENTER/EXIT PROGRAMMING MODE USB-COM INTERFACES ACK NAK Timeout Value This option specifies the amount of time the scanner waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.

  • Page 37: Ack Nak Error Handling

    ACK NAK ERROR HANDLING ENTER/EXIT PROGRAMMING MODE ACK NAK Error Handling This feature specifies the method the scanner uses to handle receive errors detected while waiting for an ACK character from the host. Options are: • Ignore errors detected • Process error as valid ACK character •...

  • Page 38: Bar Code Reading

    ENTER/EXIT PROGRAMMING MODE USB-COM INTERFACES Disable Character Specifies the value of the host command used to disable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. See " Disable for more detailed programming instructions. Character"...

  • Page 39: Keyboard Interface

    CONFIGURATION | KEYBOARD INTERFACE SECTION CONTENTS OUNTRY starting on page 10 • Setting Country Mode THER EYBOARD ARAMETERS starting on page 25 • • Encoding Type Intercode Delay • • ALT Output Type USB Keyboard Speed • Keyboard Numeric Keypad •...

  • Page 40: Country Mode

    COUNTRY MODE This feature specifies the country/language supported by the keyboard. The Country Mode setting is ignored if the interface uses alternate key encoding. SETUP ON PC TO USE ALT UNIVERSAL 1. Open Registry Edit 2. Set EnableHexNumpad to 1 as follows: 3.

  • Page 41: Setting Country Mode

    COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode $CKBCO00  United States $CKBCO01 French International (Belgian French) $CKBCO02 United Kingdom $CKBCO03 Danish $CKBCO04 French (France) $CKBCO05 German $CKBCO06 Italian PRODUCT REFERENCE GUIDE...
  • Page 42 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO07 Norwegian $CKBCO08 Portuguese (Portugal) $CKBCO09 Spanish $CKBCO0A Swedish $CKBCO0B Swiss French $CKBCO0C Japanese ASCII $CKBCO0D Hungarian QUICKSCAN™ I QD2200...
  • Page 43 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO0E Czech $CKBCO0F SlovaK $CKBCO10 Romanian $CKBCO11 Croatian $CKBCO12 Polish_214 $CKBCO13 French Canadian Win7 $CKBCO14 Lithuanian PRODUCT REFERENCE GUIDE...
  • Page 44 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO17 Vietnamese $CKBCO18 Russian $CKBCO19 Arabic 101 $CKBCO1A Chinese ASCII $CKBCO1B Thai-Kedmanee $CKBCO1C Albanian $CKBCO1D Arabic 102 QUICKSCAN™ I QD2200...
  • Page 45 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO1E Arabic 102 AZERTY $CKBCO1F Azeri Cyrillic $CKBCO20 Azeri Latin $CKBCO21 Belarusian $CKBCO22 Bosnian Cyrillic $CKBCO23 Bosnian Latin $CKBCO24 Bulgarian Cyrillic PRODUCT REFERENCE GUIDE...
  • Page 46 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO25 Bulgarian Latin $CKBCO26 Canadian French (Legacy) $CKBCO27 Canadian Multilingual $CKBCO28 Chinese (Simplified) $CKBCO29 Chinese (Traditional) $CKBCO2A Czech Programmers $CKBCO2B Czech QWERTY QUICKSCAN™ I QD2200...
  • Page 47 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO2C Dutch Netherland $CKBCO2D Estonian $CKBCO2E Faeroese $CKBCO2F Finnish $CKBCO30 French (Canada) 2000/XP $CKBCO31 French (Canada) 95/98 $CKBCO32 Galician PRODUCT REFERENCE GUIDE...
  • Page 48 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO33 Greek $CKBCO34 Greek Latin $CKBCO35 Greek Polytonic $CKBCO36 Greek220 $CKBCO37 Greek220 Latin $CKBCO38 Greek319 $CKBCO39 Greek319 Latin QUICKSCAN™ I QD2200...
  • Page 49 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO3A Hebrew Israel $CKBCO3B Hungarian_101KEY $CKBCO3C Icelandic $CKBCO3D Irish $CKBCO3E Italian_142 $CKBCO3F Japanese (Shift-JIS) $CKBCO40 Kazakh PRODUCT REFERENCE GUIDE...
  • Page 50 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO41 Korean (Hangul) $CKBCO42 Korean ASCII $CKBCO43 Kyrgyz Cyrillic $CKBCO44 Latin America $CKBCO45 Latvian $CKBCO46 Latvian QWERTY $CKBCO47 Lithuanian_IBM QUICKSCAN™ I QD2200...
  • Page 51 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO48 Macedonian -FYROM $CKBCO49 Maltese_47KEY $CKBCO4A Mongolian-Cyrillic $CKBCO4B Polish Programmer $CKBCO4C Portuguese Brazil $CKBCO4D Portuguese Brazilian ABNT $CKBCO4E Portuguese Brazilian ABNT2 PRODUCT REFERENCE GUIDE...
  • Page 52 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO4F Romanian Legacy $CKBCO50 Romanian Programmer $CKBCO51 Romanian Standard $CKBCO52 Russian Typewriter $CKBCO53 Serbian Cyrillic $CKBCO54 Serbian Latin $CKBCO55 Slovak QWERTY QUICKSCAN™ I QD2200...
  • Page 53 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO56 Slovenian $CKBCO57 Spanish Variation $CKBCO58 Swiss German $CKBCO59 Tatar $CKBCO5A Turkish F $CKBCO5B Turkish Q $CKBCO5C Ukrainian PRODUCT REFERENCE GUIDE...
  • Page 54 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO5D US Dvorak $CKBCO5E US Dvorak Left Hand $CKBCO5F US Dvorak Right Hand $CKBCO60 US English (Mac) $CKBCO61 US English (North American) $CKBCO62 US International $CKBCO63 Uzbek Cyrillic QUICKSCAN™ I QD2200...

  • Page 55: Other Keyboard Parameters

    OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE OTHER KEYBOARD PARAMETERS Encoding Type $CENCO00 Encoding Type = Don’t Use Encoding $CENCO03 Encoding Type = UTF_8 $CENCO04 Encoding Type = Windows 874 $CENCO05 Encoding Type = Windows 932 $CENCO06 Encoding Type = Windows 936 $CENCO07 Encoding Type = Windows 949 $CENCO08...
  • Page 56 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO09 Encoding Type = Windows 1250 $CENCO0A Encoding Type = Windows 1251 $CENCO0B Encoding Type = Windows 1252 $CENCO0C Encoding Type = Windows 1253 $CENCO0D Encoding Type = Windows 1254 $CENCO0E Encoding Type = Windows 1255 $CENCO0F Encoding Type = Windows 1256 QUICKSCAN™...
  • Page 57 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO10 Encoding Type = Windows 1257 $CENCO11 Encoding Type = Windows 1258 $CENCO12 Encoding Type = Windows 20866 $CENCO31 Encoding Type = Windows 54936 $CENCO13 Encoding Type = ISO 8859-1 $CENCO14 Encoding Type = ISO 8859-2 $CENCO15 Encoding Type = ISO 8859-3...
  • Page 58 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO16 Encoding Type = ISO 8859-4 $CENCO17 Encoding Type = ISO 8859-5 $CENCO18 Encoding Type = ISO 8859-6 $CENCO19 Encoding Type = ISO 8859-7 $CENCO1A Encoding Type = ISO 8859-8 $CENCO1B Encoding Type = ISO 8859-9 $CENCO1C Encoding Type = ISO 8859-10 QUICKSCAN™...
  • Page 59 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO1D Encoding Type = ISO 8859-11 $CENCO1E Encoding Type = ISO 8859-13 $CENCO1F Encoding Type = ISO 8859-14 $CENCO20 Encoding Type = ISO 8859-15 $CENCO21 Encoding Type = ISO 8859-16 $CENCO22 Encoding Type = MS-DOS 437 $CENCO23 Encoding Type = MS-DOS 737...
  • Page 60 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO24 Encoding Type = MS-DOS 775 $CENCO25 Encoding Type = MS-DOS 850 $CENCO26 Encoding Type = MS-DOS 852 $CENCO27 Encoding Type = MS-DOS 855 $CENCO28 Encoding Type = MS-DOS 857 $CENCO29 Encoding Type = MS-DOS 860 $CENCO2A Encoding Type = MS-DOS 861 QUICKSCAN™...
  • Page 61 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO2B Encoding Type = MS-DOS 862 $CENCO2C Encoding Type = MS-DOS 863 $CENCO2D Encoding Type = MS-DOS 865 $CENCO2E Encoding Type = MS-DOS 866 $CENCO2F Encoding Type = MS-DOS 869 $CENCO30 Encoding Type = Mac CP10000 PRODUCT REFERENCE GUIDE...

  • Page 62: Alt Output Type

    ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE ALT Output Type This option specifies the encode type of ALT Mode when the scanner sends Output Key- board Data in Alt Mode. (Be aware that the scanner may switch automatically between ALT mode & Normal Keyboard Scancode, to correctly display some characters that are not present in the current Keyboard Country).

  • Page 63: Keyboard Numeric Keypad

    OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Keyboard Numeric Keypad This feature specifies if numeric characters will be sent using the standard keys or the numeric keypad. $CKBKP00  Keyboard Numeric Keypad = Standard Keys $CKBKP01 Keyboard Numeric Keypad = Numeric Keypad Keyboard Send Control Characters This feature is used by the USB Keyboard interfaces.

  • Page 64: Intercharacter Delay

    ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments. A setting of zero specifies no delay. See " Intercharacter Delay"...

  • Page 65: Usb Keyboard Speed

    OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed This option specifies the USB poll rate for a USB Keyboard. NOTE: This feature applies ONLY to the USB Keyboard interface. $CKBSP01  USB Keyboard Speed = 1ms $CKBSP02 USB Keyboard Speed = 2ms $CKBSP03 USB Keyboard Speed = 3ms $CKBSP05...

  • Page 66: Usb-Oem Interface

    CONFIGURATION | USB-OEM INTERFACE SECTION CONTENTS • • USB-OEM Device Usage USB-OEM Interface Options QUICKSCAN™ I QD2200...

  • Page 67: Usb-Oem Device Usage

    ENTER/EXIT PROGRAMMING MODE USB-OEM Device Usage The USB-OEM protocol allows for the scanner to be identified as one of two dif- ferent types of bar code scanners. Depending on what other scanners you may already have connected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate.

  • Page 68: Data Format

    CONFIGURATION | DATA FORMAT SECTION CONTENTS • • Global Prefix/Suffix GS1-128 AIM ID • Global AIM ID ABEL starting on page 41 • • Label ID: Pre-loaded Sets Label ID Control • • Label ID: Set Individually Per Symbology Label ID Symbology Selection •...

  • Page 69: Global Prefix/Suffix

    ENTER/EXIT PROGRAMMING MODE Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data). See " Global Prefix/ for more detailed programming instructions.

  • Page 70: Global Aim Id

    ENTER/EXIT PROGRAMMING MODE DATA FORMAT Global AIM ID NOTE: This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See " Global AIM ID"...

  • Page 71: Label Id

    LABEL ID ENTER/EXIT PROGRAMMING MODE LABEL ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.

  • Page 72: Label Id: Set Individually Per Symbology

    ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID: Set Individually Per Symbology This feature configures a Label ID individually for a single symbology. NOTE: This setting requires the scanning of bar codes from multiple sec- tions. See " Label ID: Set Individually Per Symbology" on page 162 for more detailed programming instructions.

  • Page 73: Label Id Symbology Selection

    LABEL ID ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See " Label ID: for full instructions. Set Individually Per Symbology" on page 162 Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
  • Page 74 ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection (continued) $C32ID Set EAN-13/P2 Label ID Character(s) $C35ID Set EAN-13/P5 Label ID Character(s) $CISID Set ISBN Label ID Character(s) $CINID Set ISSN Label ID Character(s) $C8BID Set EAN-8 Label ID Character(s) $C82ID Set EAN-8/P2 Label ID Character(s) $C85ID...
  • Page 75 LABEL ID ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection (continued) $CXBID Set GS1 DataBar Expanded Label ID Character(s) $CLBID Set GS1 DataBar Limited Label ID Character(s) $CC3ID Set Code 39 Label ID Character(s) $CP3ID Set Code 32 Label ID Character(s) $CCCID Set Code 39 CIP Label ID Character(s) $CC8ID...
  • Page 76 DATA FORMAT Label ID Symbology Selection (continued) $CHRID Set Interleaved 2 of 5 CIP HR Label ID Character(s) $CD2ID Datalogic 2 of 5 Label ID Character(s) $CS2D Standard 2 of 5 Label ID Character(s) $CU2ID Industrial 2 of 5 Label ID Character(s)
  • Page 77 LABEL ID ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection (continued) $CC1ID Code 11 Label ID Character(s) $CMSID Label ID Character(s) $CPLID Plessey Label ID Character(s) $CALID Anker Plessey Label ID Character(s) PRODUCT REFERENCE GUIDE...

  • Page 78: Case Conversion

    ENTER/EXIT PROGRAMMING MODE DATA FORMAT Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. NOTE: Case conversion affects ONLY scanned bar code data, and does not affect Label ID, Prefix, Suffix, or other appended data. $CLFCA00 ...

  • Page 79: Reading Parameters

    CONFIGURATION | READING PARAMETERS SECTION CONTENTS CANNING EATURES starting on page 50 • • Scan Mode Stand Mode/Object Detection Sensitivity • • Scanning Active Time Stand Mode/Object Detection Sensitivity • • Flash On Time Stand Mode/Object Detection Sensitivity • • Flash Off Time Stand Mode/Object Detection Illumination Off Time...

  • Page 80: Scanning Features

    ENTER/EXIT PROGRAMMING MODE READING PARAMETERS SCANNING FEATURES Scan Mode Selects the reader’s scan operating mode. See in “References” for descriptions. page 165 $CSNRM00  Scan Mode = Trigger Single $CSNRM01 Scan Mode = Trigger Hold Multiple $CSNRM02 Scan Mode = Trigger Pulse Multiple $CSNRM03 Scan Mode = Flashing $CSNRM04...

  • Page 81: Scanning Active Time

    SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second incre- ments.

  • Page 82: Flash Off Time

    ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. See in “References”...
  • Page 83 SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Double Read Timeout (continued) $CSNDR32 Double Read Timeout = 0.5 Second $CSNDR3C  Double Read Timeout = 0.6 Second $CSNDR46 Double Read Timeout = 0.7 Second $CSNDR50 Double Read Timeout = 0.8 Second $CSNDR5A Double Read Timeout = 0.9 Second $CSNDR64 Double Read Timeout = 1 Second PRODUCT REFERENCE GUIDE...

  • Page 84: Stand Mode/Object Detection Sensitivity

    ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Stand Mode/Object Detection Sensitivity Sets the sensitivity level for stand mode/object detection wakeup. Choices are low, medium and high. $CSMSE00 Stand/Base Detection Sensitivity = Low $CSMSE01  Stand/Base Detection Sensitivity = Medium $CSMSE02 Stand/Base Detection Sensitivity = High QUICKSCAN™...

  • Page 85: Stand Mode/Object Detection Illumination Off Time

    SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Stand Mode/Object Detection Illumination Off Time Specifies the amount of time reader illumination stays off after pulling the trigger when in Stand Mode/Object Detection. The configurable range is 01 to 32 by 01 in increments of 500ms (500ms to 16 seconds).

  • Page 86: Beeper Control

    ENTER/EXIT PROGRAMMING MODE READING PARAMETERS BEEPER CONTROL Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. $CBPPU00 Power On Alert = Disable (No Audible Indication) $CBPPU01  Power On Alert = Power-up Beep Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound.

  • Page 87: Good Read Beep Frequency

    BEEPER CONTROL ENTER/EXIT PROGRAMMING MODE Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below. (Controls the beeper’s pitch/tone.) $CBPFR00 Good Read Beep Frequency = Low $CBPFR01 Good Read Beep Frequency = Medium $CBPFR02...

  • Page 88: Good Read Beep Length

    ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Good Read Beep Length $CBPLE06 Good Read Beep Length = 60 msec $CBPLE08  Good Read Beep Length = 80 msec $CBPLE0A Good Read Beep Length = 100 msec $CBPLE0C Good Read Beep Length = 120 msec $CBPLE0E Good Read Beep Length = 140 msec $CBPLE10...

  • Page 89: Good Read Beep Volume

    BEEPER CONTROL ENTER/EXIT PROGRAMMING MODE Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three select- able volume levels. $CBPVO00 Good Read Beep Volume = Beeper Off $CBPVO01 Good Read Beep Volume = Low $CBPVO02 Good Read Beep Volume = Medium $CBPVO03...

  • Page 90: Led Control

    ENTER/EXIT PROGRAMMING MODE READING PARAMETERS LED CONTROL Green LED Good Read Enable Specifies whether the green LED good read indicator is enabled or disabled. $CRBGE00 Green LED Good Read = Disable $CRBGE01  Green LED Good Read = Enable QUICKSCAN™ I QD2200...

  • Page 91: Good Read Led Duration

    LED CONTROL ENTER/EXIT PROGRAMMING MODE Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 100 milliseconds to 25,500 milliseconds (0.1 to 25.5 seconds) in 100ms increments.

  • Page 92: Good Read: When To Indicate

    ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a bar code. $CBPIN00  Indicate Good Read = After Decode $CBPIN01 Indicate Good Read = After Transmit $CBPIN02 Indicate Good Read =...

  • Page 93: Green Spot Duration

    LED CONTROL ENTER/EXIT PROGRAMMING MODE Green Spot Duration Specifies the duration of the good read pointer beam after a good read. $CLSSP00 Green Spot Duration = Disable (Green Spot is Off) $CLSSP01  Green Spot Duration = Short (300 msec) $CLSSP02 Green Spot Duration = Medium (500 msec) $CLSSP03...

  • Page 94: Illuminator Intensity (Power Level)

    Illuminator Intensity (Power Level) This setting selects the illumination level for bar code reading. $CIPWL01 Illuminator Intensity = Low $CIPWL06 Illuminator Intensity = Medium $CIPWL0C  Illuminator Intensity = High QUICKSCAN™ I QD2200...

  • Page 95: Symbologies

    CONFIGURATION | SYMBOLOGIES SECTION CONTENTS ISABLE YMBOLOGIES starting on page 66 GS1-128 • OUPON ONTROL • starting on page 66 starting on page 101 UPC-A 5 (I 2 • • NTERLEAVED starting on page 67 starting on page 101 UPC-E 5 CIP HR •...

  • Page 96: Disable All Symbologies

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES DISABLE ALL SYMBOLOGIES Scan this label to disable all symbologies. Disable All Symbologies COUPON CONTROL This feature is used to control the method of processing coupon labels. Options are: • Allow all — allow all coupon bar codes to be decoded •...

  • Page 97: Upc-A

    UPC-A ENTER/EXIT PROGRAMMING MODE UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the scanner will not read UPC-A bar codes. $CABEN00 UPC-A = Disable $CABEN01  UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code data. $CABCT00 UPC-A Check Character Transmission = Don’t Send $CABCT01...

  • Page 98: Expand Upc-A To Ean-13

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CAB3B00  UPC-A to EAN-13 = Don’t Expand $CAB3B01 UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.

  • Page 99: Upc-E

    UPC-E ENTER/EXIT PROGRAMMING MODE UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the scanner will not read UPC-E bar codes. $CEBEN00 UPC-E = Disable $CEBEN01  UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data. $CEBCT00 UPC-E Check Character Transmission = Don’t Send $CEBCT01...

  • Page 100: Expand Upc-E To Ean-13

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CEB3B00  UPC-E to EAN-13 = Don’t Expand $CEB3B01 UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.

  • Page 101: Gtin Formatting

    UPC-E ENTER/EXIT PROGRAMMING MODE GTIN Formatting This feature enables/disables the ability to convert UPC-E, UPC-A, EAN-8, and EAN-13 labels into the GTIN 14-character format. $CGBEN00  GTIN Formatting = Disable $CGBEN01 GTIN Formatting = Enable PRODUCT REFERENCE GUIDE...

  • Page 102: Ean-13 Enable/Disable

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES EAN-13 The following options apply to the EAN-13 symbology. EAN-13 Enable/Disable When disabled, the scanner will not read EAN-13 bar codes. $C3BEN00 EAN-13 = Disable $C3BEN01  = Enable EAN-13 EAN-13 Check Character Transmission Enable this option to transmit the check character along with EAN-13 bar code data. $C3BCT00 EAN-13 Check Character Transmission = Don’t Send $C3BCT01...

  • Page 103: Ean-13 Flag 1 Character

    EAN-13 ENTER/EXIT PROGRAMMING MODE EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN-13 Flag1 character. The Flag 1 character is the first character of the label $C3BF100 EAN-13 Flag 1 Char = Don’t transmit $C3BF101  EAN-13 Flag 1 Char = Transmit EAN-13 to ISBN Conversion This option enables/disables conversion of EAN-13/JAN-13 Bookland labels starting with 978 to ISBN labels.

  • Page 104: Ean-13 To Issn Conversion

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES EAN-13 to ISSN Conversion Enables/disables conversion of EAN/JAN-13 Bookland labels starting with 977 to ISSN labels. $C3BIN00  ISSN = Disable $C3BIN01 ISSN = Enable QUICKSCAN™ I QD2200...

  • Page 105: Ean-8 Enable/Disable

    EAN-8 ENTER/EXIT PROGRAMMING MODE EAN-8 The following options apply to the EAN-8 symbology. EAN-8 Enable/Disable When disabled, the scanner will not read EAN-8 bar codes. $C8BEN00 EAN-8 = Disable $C8BEN01  = Enable EAN-8 EAN-8 Check Character Transmission Enable this option to transmit the check character along with EAN-8 bar code data. $C8BCT00 EAN-8 Check Character Transmission = Don’t Send $C8BCT01...

  • Page 106: Expand Ean-8 To Ean-13

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Expand EAN-8 to EAN-13 Enable this option to expand EAN-8/JAN-8 labels to EAN-13/JAN-13. $C8B3B00  EAN-8 to EAN-13 = Don’t Expand $C8B3B01 EAN-8 to EAN-13 = Expand QUICKSCAN™ I QD2200...

  • Page 107: Upc/Ean Global Settings

    UPC/EAN GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 sym- bologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits.

  • Page 108: Upc/Ean Quiet Zones

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES UPC/EAN Quiet Zones This feature specifies the number of quiet zones for UPC/EAN labels. Quiet zones are blank areas at the ends of a bar code, typically 10 times the width of the narrowest bar or space in the label. The property applies to all EAN-UPC symbologies globally and to the ADD-ONs.

  • Page 109: Add-Ons

    UPC/EAN GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE Add-Ons The following features apply to optional add-ons. NOTE: Contact Customer Support for advanced programming of optional and conditional add-ons. PRODUCT REFERENCE GUIDE...

  • Page 110: Optional Add-Ons

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Optional Add-ons The scanner can be enabled to optionally read the following add-ons (supplementals): • • NOTE: If a UPC/EAN base label and a an add-on are both decoded, the scan- ner will transmit the base label and add-on. If a UPC/EAN base label is decoded without an add-on, the base label will be transmitted without an add-on.

  • Page 111: Optional Add-On Timer

    UPC/EAN GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer This option sets the time the scanner will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. $CADOT01 Optional Add-on Timer = 10ms $CADOT02 Optional Add-on Timer = 20ms $CADOT03 Optional Add-on Timer = 30ms...

  • Page 112: Gs1 Databar™ Omnidirectional

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar Omnidirectional (formerly RSS-14) sym- bology. GS1 DataBar Omnidirectional Enable/Disable When disabled, the scanner will not read GS1 DataBar Omnidirectional bar codes. $C4BEN00  GS1 DataBar Omnidirectional = Disable $C4BEN01 GS1 DataBar Omnidirectional = Enable GS1 DataBar Omnidirectional to GS1-128 Emulation...

  • Page 113: Gs1 Databar™ Expanded

    GS1 DATABAR™ EXPANDED ENTER/EXIT PROGRAMMING MODE GS1 DATABAR™ EXPANDED The following options apply to the GS1 DataBar Expanded (formerly RSS Expanded) sym- bology. GS1 DataBar Expanded Enable/Disable When disabled, the scanner will not read GS1 DataBar Expanded bar codes. $CXBEN00 ...

  • Page 114: Gs1 Databar Expanded Length Control

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES GS1 DataBar Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar Expanded symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CXBLC00 ...

  • Page 115: Gs1 Databar Expanded Set Length 2

    GS1 DATABAR™ EXPANDED ENTER/EXIT PROGRAMMING MODE GS1 DataBar Expanded Set Length 2 This feature specifies one of the bar code lengths for " GS1 DataBar Expanded Length . Length 2 is the maximum label length if in Variable Length Mode, or Control"...

  • Page 116: Gs1 Databar™ Limited

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar Limited (formerly RSS Limited) symbol- ogy. GS1 DataBar Limited Enable/Disable When disabled, the scanner will not read GS1 DataBar Limited bar codes. $CLBEN00  GS1 DataBar Limited = Disable $CLBEN01 GS1 DataBar Limited = Enable GS1 DataBar Limited to GS1-128 Emulation...

  • Page 117: Code 39

    CODE 39 ENTER/EXIT PROGRAMMING MODE CODE 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the scanner will not read Code 39 bar codes. $CC3EN00 Code 39 = Disable $CC3EN01  Code 39 = Enable Code 39 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional Code 39 check character.

  • Page 118: Code 39 Check Character Transmission

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES $CC3CC08 Code 39 Check Character Calculation = Enable Daimler Chrysler Check Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. $CC3CT00 Code 39 Check Character Transmission = Don’t Send $CC3CT01 ...

  • Page 119: Code 39 Full Ascii

    CODE 39 ENTER/EXIT PROGRAMMING MODE Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters. $CC3FA00  Code 39 Full ASCII = Disable $CC3FA01 Code 39 Full ASCII = Enable Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels.

  • Page 120: Code 39 Length Control

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES $CC3LO05 Code 39 Quiet Zones = Small Quiet Zones on two sides Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set.
  • Page 121 CODE 39 ENTER/EXIT PROGRAMMING MODE Code 39 Set Length 1 This feature specifies one of the bar code lengths for " Code 39 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

  • Page 122: Code 39 Set Length 2

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Code 39 Set Length 2 This feature specifies one of the bar code lengths for " Code 39 Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.

  • Page 123: Trioptic Code

    TRIOPTIC CODE ENTER/EXIT PROGRAMMING MODE TRIOPTIC CODE The following options apply to the trioptic symbology. Trioptic Code Enable/Disable When disabled, the scanner will not read Trioptic Code bar codes. $CCTEN00  Trioptic Code = Disable $CCTEN01 Trioptic Code = Enable CODE 39 DANISH PPT The following options apply to the Code 39 Danish PPT symbology.

  • Page 124: Code 39 Pzn

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES CODE 39 PZN The following options apply to the Code 39 PZN symbology. Code 39 PZN Enable/Disable When disabled, the scanner will not read Code 39 PZN bar codes. $CPZEN00  Code 39 PZN = Disable $CPZEN01 Code 39 PZN = Enable CODE 39 LA POSTE...

  • Page 125: Code 32 (Italian Pharmaceutical)

    CODE 32 (ITALIAN PHARMACEUTICAL) ENTER/EXIT PROGRAMMING MODE CODE 32 (ITALIAN PHARMACEUTICAL) The following options apply to the Code 32 symbology. Code 32 Enable/Disable When disabled, the scanner will not read Code 32 bar codes. $CP3EN00  Code 32 = Disable $CP3EN01 Code 32 = Enable Code 32 Feature Setting Exceptions...

  • Page 126: Code 32 Start/Stop Character Transmission

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Code 32 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 32 start and stop characters. $CP3SS00  Code 32 Start/Stop Character Transmission = Don’t Transmit $CP3SS01 Code 32 Start/Stop Character Transmission = Transmit CODE 39 CIP (FRENCH PHARMACEUTICAL) The following options apply to the Code 39 CIP symbology.

  • Page 127: Code 128

    CODE 128 ENTER/EXIT PROGRAMMING MODE CODE 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable Enables/Disables ability of the scanner to decode Code 128 labels. $CC8EN00 Code 128 = Disable $CC8EN01  Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.

  • Page 128: Code 128 Check Character Transmission

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 bar code data. $CC8CT00  Code 128 Check Character Transmission = Don’t Send $CC8CT01 Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.

  • Page 129: Code 128 Quiet Zones

    CODE 128 ENTER/EXIT PROGRAMMING MODE Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.

  • Page 130: Code 128 Set Length 1

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Code 128 Set Length 1 This feature specifies one of the bar code lengths for " Code 128 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

  • Page 131: Gs1-128

    GS1-128 ENTER/EXIT PROGRAMMING MODE GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GTIN- 128, UCC-128.) GS1-128 Enable This option enables/disables the ability of the scanner to translate GS1-128 labels to the GS1-128 data format. Options are: •...

  • Page 132: I 2 Of 5 Enable/Disable

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES I 2 of 5 Enable/Disable When disabled, the scanner will not read I 2 of 5 bar codes. $CI2EN00  I 2 of 5 = Disable $CI2EN01 I 2 of 5 = Enable I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character.

  • Page 133: I 2 Of 5 Check Character Transmission

    INTERLEAVED 2 OF 5 (I 2 OF 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Check Character Calculation (continued) $CI2CC10 I 2 of 5 Check Character Calculation = Calculate Bosch Check $CI2CC20 I 2 of 5 Check Character Calculation = Calculate Italian Post Check I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 bar code data.

  • Page 134: I 2 Of 5 Length Control

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CI2LC00 ...

  • Page 135: I 2 Of 5 Set Length 2

    INTERLEAVED 2 OF 5 CIP HR ENTER/EXIT PROGRAMMING MODE I 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for " I 2 of 5 Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.

  • Page 136: Standard 2 Of 5

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES STANDARD 2 OF 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the scanner will not read Standard 2 of 5 bar codes. $CS2EN00  Standard 2 of 5 = Disable $CS2EN01 Standard 2 of 5 = Enable Standard 2 of 5 Check Character Calculation...

  • Page 137: Standard 2 Of 5 Check Character Transmission

    STANDARD 2 OF 5 ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check charac- ter. $CS2CT00 Standard 2 of 5 Check Character Transmission = Don’t Send $CS2CT01 ...

  • Page 138: Standard 2 Of 5 Set Length 1

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Standard 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Standard 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 107 fixed length if in Fixed Length Mode.

  • Page 139: Compressed 2 Of 5

    COMPRESSED 2 OF 5 ENTER/EXIT PROGRAMMING MODE COMPRESSED 2 OF 5 The following options apply to the Compressed 2 of 5 symbology. Compressed 2 of 5 Enable/Disable When disabled, the scanner will not read Compressed 2 of 5 bar codes. $CC2EN00 ...

  • Page 140: Compressed 2 Of 5 Check Character Transmission

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Compressed 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Compressed 2 of 5 check char- acter. $CC2CT00 Compressed 2 of 5 Check Character Transmission = Don’t Send $CC2CT01  Compressed 2 of 5 Check Character Transmission = Send Compressed 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the...

  • Page 141: Compressed 2 Of 5 Set Length 1

    COMPRESSED 2 OF 5 ENTER/EXIT PROGRAMMING MODE Compressed 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Compressed 2 of 5 Length Control" . Length 1 is the minimum label length if in Variable Length Mode, or the on page 110 first fixed length if in Fixed Length Mode.

  • Page 142: Datalogic 2 Of 5

    DATALOGIC 2 OF 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the scanner will not read Datalogic 2 of 5 bar codes. $CD2EN00  Datalogic 2 of 5 = Disable...

  • Page 143: Datalogic 2 Of 5 Check Character Transmission

    DATALOGIC 2 OF 5 ENTER/EXIT PROGRAMMING MODE Datalogic 2 of 5 Check Character Transmission Enable this option to transmit the check character along with Datalogic 2 of 5 bar code data. $CD2CT00 Datalogic 2 of 5 Check Character Transmission = Don’t Send $CD2CT01 ...

  • Page 144: Datalogic 2 Of 5 Set Length 1

    Alphanu- meric characters in Appendix D, Keypad represent- Select Datalogic 2 of 5 Set Length 2 Setting ing your desired character(s). End by scanning the $CD2L2 ENTER/EXIT bar code again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.

  • Page 145: Industrial 2 Of 5

    INDUSTRIAL 2 OF 5 ENTER/EXIT PROGRAMMING MODE INDUSTRIAL 2 OF 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable When disabled, the scanner will not read Industrial 2 of 5 bar codes. $CU2EN00 ...

  • Page 146: Industrial 2 Of 5 Check Character Transmission

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. $CU2CT00 Industrial 2 of 5 Check Character Transmission = Don’t Send $CU2CT01  Industrial 2 of 5 Check Character Transmission = Send Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the...

  • Page 147: Industrial 2 Of 5 Set Length 1

    INDUSTRIAL 2 OF 5 ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Industrial 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 116 fixed length if in Fixed Length Mode.

  • Page 148: Iata

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the scanner to decode IATA labels. $CIAEN00  IATA = Disable $CIAEN01 IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional IATA check character. $CIACT00 IATA Check Character Transmission = Don’t Send...

  • Page 149: Follett 2 Of 5

    FOLLETT 2 OF 5 ENTER/EXIT PROGRAMMING MODE FOLLETT 2 OF 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of scanner to decode Follett 2 of 5 labels. $CF2EN00  Follett 2 of 5 = Disable $CF2EN01 Follett 2 of 5 = Enable...

  • Page 150: Codabar

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES CODABAR The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the scanner will not read Codabar bar codes. $CCBEN00  Codabar = Disable $CCBEN01 Codabar = Enable Codabar Check Character Calculation This option enables/disables calculation and verification of an optional Codabar check character.

  • Page 151: Codabar Check Character Transmission

    CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar bar code data. NOTE: This feature is valid only when Codabar Check Character Calculation is enabled. $CCBCT00 Codabar Check Character Transmission = Don’t Send $CCBCT01 ...

  • Page 152: Codabar Start/Stop Character Set

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters. $CCBSC00 Codabar Check Character Set = ABCD/TN*E $CCBSC01 Codabar Check Character Set = ABCD/ABCD $CCBSC02 Codabar Check Character Set = abcd/tn*e $CCBSC03 ...

  • Page 153: Codabar Quiet Zones

    CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.

  • Page 154: Codabar Length Control

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CCBLC00 ...

  • Page 155: Codabar Set Length 2

    CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Set Length 2 This feature specifies one of the bar code lengths for " Codabar Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.

  • Page 156: Abc Codabar

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES ABC CODABAR The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of scanner to decode ABC Codabar labels. $CCBAB00  ABC Codabar = Disable $CCBAB01 ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.

  • Page 157: Abc Codabar Dynamic Concatenation Timeout

    ABC CODABAR ENTER/EXIT PROGRAMMING MODE ABC Codabar Dynamic Concatenation Timeout This parameter specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. The timeout can be set within a range of 05 to 255 in 10ms increments. A setting of zero specifies no delay. To configure this feature, scan the ENTER/EXIT PRO- GRAMMING MODE bar code above, then the bar code at left followed by the digits from the Alphanu-...

  • Page 158: Isbt 128

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Enables/disables ISBT 128 concatenation of 2 labels. $CI8CE00  ISBT 128 Concatenation = Disable $CI8CE01 ISBT 128 Concatenation = Enable ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic.

  • Page 159: Isbt 128 Dynamic Concatenation Timeout

    ISBT 128 ENTER/EXIT PROGRAMMING MODE ISBT 128 Dynamic Concatenation Timeout Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode. $CI8DT05 ISBT 128 Dynamic Concatenation Timeout = 50 msec $CI8DT0A ISBT 128 Dynamic Concatenation Timeout = 100 msec $CI8DT14 ...

  • Page 160: Isbt 128 Force Concatenation

    ISBT 128 Force Contatenation = Disable $CI8FC01 ISBT 128 Force Concatenation = Enable ISBT 128 Advanced Concatenation Options NOTE: Use the Datalogic Aladdin configuration application or Contact Cus- tomer Support to set up pairs of label types for concatenation. QUICKSCAN™ I QD2200...

  • Page 161: Code 11

    CODE 11 ENTER/EXIT PROGRAMMING MODE CODE 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the scanner will not read Code 11 bar codes. $CC1EN00  Code 11 = Disable $CC1EN01 Code 11 = Enable Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character.

  • Page 162: Code 11 Check Character Transmission

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. $CC1CT00 Code 11 Check Character Transmission = Don’t Send $CC1CT01  Code 11 Check Character Transmission = Send Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology.

  • Page 163: Code 11 Set Length 1

    CODE 11 ENTER/EXIT PROGRAMMING MODE Code 11 Set Length 1 This feature specifies one of the bar code lengths for " Code 11 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

  • Page 164: Code 93

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES CODE 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of scanner to decode Code 93 labels. $CC9EN00  Code 93 = Disable $CC9EN01 Code 93 = Enable Code 93 Check Character Calculation This option enables/disables calculation and verification of optional Code 93 check character.

  • Page 165: Code 93 Check Character Transmission

    CODE 93 ENTER/EXIT PROGRAMMING MODE Code 93 Check Character Transmission This feature enables/disables transmission of an optional Code 93 check character. $CC9CT00  Code 93 Check Character Transmission = Don’t Send $CC9CT01 Code 93 Check Character Transmission = Send Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology.

  • Page 166: Code 93 Set Length 1

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Code 93 Set Length 1 This feature specifies one of the bar code lengths for " Code 93 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

  • Page 167: Code 93 Quiet Zones

    CODE 93 ENTER/EXIT PROGRAMMING MODE Code 93 Quiet Zones This feature specifies the number of quiet zones for Code 93 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.

  • Page 168: Msi

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of scanner to decode MSI labels. $CMSEN00  MSI = Disable $CMSEN01 MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. $CMSCC00 MSI Check Character Calculation = Disable $CMSCC01...

  • Page 169: Msi Check Character Transmission

    ENTER/EXIT PROGRAMMING MODE MSI Check Character Transmission Enables/disables transmission of an MSI check character. $CMSCT00 MSI Check Character Transmission = Don’t Send $CMSCT01  MSI Check Character Transmission = Send MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.

  • Page 170: Msi Set Length 1

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES MSI Set Length 1 This feature specifies one of the bar code lengths for " MSI Length Control" on page 139 Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

  • Page 171: Plessey

    PLESSEY ENTER/EXIT PROGRAMMING MODE PLESSEY The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of scanner to decode Plessey labels. $CPLEN00  Plessey = Disable $CPLEN01 Plessey = Enable Plessey Check Character Calculation Enables/Disables calculation and verification of a Plessey check character. $CPLCC00 Plessey Check Character Calculation = Disable $CPLCC01...

  • Page 172: Plessey Check Character Transmission

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES Plessey Check Character Transmission Enables/disables transmission of a Plessey check character. $CPLCT00 Plessey Check Character Transmission = Don’t Send $CPLCT01  Plessey Check Character Transmission = Send Plessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology.

  • Page 173: Plessey Set Length 1

    PLESSEY ENTER/EXIT PROGRAMMING MODE Plessey Set Length 1 This feature specifies one of the bar code lengths for " Plessey Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

  • Page 174: Bc412

    ENTER/EXIT PROGRAMMING MODE SYMBOLOGIES BC412 The following options apply to the BC412 symbology. BC412 Enable/Disable Enables/Disables ability of scanner to decode BC412 labels. $CBCEN00  BC412 = Disable $CBCEN01 BC412 = Enable BC412 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional BC412 check character.

  • Page 175: Bc412 Length Control

    BC412 Length Control This feature specifies either variable length decoding or fixed length decoding for the BC412 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CBCLC00 ...

  • Page 176: Bc412 Set Length 1

    BC412 Set Length 1 This feature specifies one of the bar code lengths for " BC412 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the bar code’s data characters only. The length can be set from 01 to 50 characters.

  • Page 177: Chapter 2. References

    CHAPTER 2 REFERENCES This section contains explanations and examples of selected bar code features. See Con- for the actual bar code labels used to con- figuration with Bar Codes, starting on page 14 figure the scanner. SECTION CONTENTS USB COM P ARAMETERS on page 147 •...
  • Page 178 REFERENCES 1. Determine the desired setting in milliseconds. 2. Divide the desired setting by 10 (setting is in 10ms increments). Pad the result with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc. 3.

  • Page 179: Ack Nak Options

    USB COM PARAMETERS ACK NAK Options This enables/disables the ability of the scanner to support the ACK/NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...

  • Page 180: Nak Character

    REFERENCES NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.

  • Page 181: Ack Nak Timeout Value

    USB COM PARAMETERS ACK NAK Timeout Value This option specifies the amount of time the scanner waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1.

  • Page 182: Ack Nak Retry Count

    REFERENCES ACK NAK Retry Count This feature specifies the number of times the scanner retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 dis- ables the count, and a selection of 255 specifies unlimited retries. To set this feature: 1.

  • Page 183: Disable Character

    USB COM PARAMETERS Disable Character Specifies the value of the host command used to disable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.

  • Page 184: Enable Character

    REFERENCES Enable Character Specifies the value of the host command used to enable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.

  • Page 185: Keyboard Interface

    KEYBOARD INTERFACE KEYBOARD INTERFACE Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments. A setting of zero specifies no delay. To set the delay: 1.

  • Page 186: Intercode Delay

    REFERENCES Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The select- able range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.

  • Page 187: Data Format

    ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) NOTE: Additional advanced editing is available. See the Advanced format- ting features in the Datalogic Aladdin configuration software, or contact " Technical Support" on page xii for more information. Please Keep In Mind...

  • Page 188: Global Prefix/Suffix

    REFERENCES Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data) as indicated. Figure 2 Prefix and Suffix Positions OR...

  • Page 189: Global Aim Id

    DATA FORMAT Global AIM ID NOTE: This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...

  • Page 190: Label Id

    Code 93 & 260000 550000 Code 11 434500 620000 Code 128 230000 540000 Code 32 410000 580000 Code 39 2A0000 560000 Datalogic 2of5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN8 464600 410000 EAN8 P2...
  • Page 191 DATA FORMAT SYMBOLOGY USA LABEL ID SET EU LABEL ID SET ISSN 6E0000 6E0000 400000 5A0000 730000 500000 UPCA 410000 430000 UPCA P2 410000 460000 UPCA P5 410000 470000 UPCE 450000 440000 UPCE P2 450000 480000 UPCE P5 450000 490000 PRODUCT REFERENCE GUIDE...

  • Page 192: Label Id: Set Individually Per Symbology

    REFERENCES Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate bar code in the section " Label ID Control"...
  • Page 193 DATA FORMAT Label ID: Set Individually Per Symbology — continued Table 11 Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT bar code (Scanner enters Programming Mode) Determine placement of the Label ID characters BEFORE or AFTER with regard to Enable as Prefix Enable as Suffix Enable as Prefix...

  • Page 194: Character Conversion

    REFERENCES Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the char- acter that will be converted. The second character in the pair is the character to convert to.

  • Page 195: Scanning Features

    SCANNING FEATURES SCANNING FEATURES Scan Mode Selects the scan operating mode for the reader. Selections are: Trigger Single: When the trigger is pulled, scanning is activated until one of the follow- ing occurs: •Stand Mode/Object Detection has elapsed •a label has been read •the trigger is released This mode is associated with typical handheld reader operation: when the trigger is pulled, scanning starts and the product scans until the trigger is released, or a label is...

  • Page 196: Scanning Active Time

    REFERENCES Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second incre- ments. Follow these instructions to set this feature: 1.

  • Page 197: Flash On Time

    SCANNING FEATURES Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. Follow these instructions to set this feature. 1.

  • Page 198: Flash Off Time

    REFERENCES Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. Follow these instructions to set this feature. 1.

  • Page 199: Led And Beeper Indicators

    LED AND BEEPER INDICATORS LED AND BEEPER INDICATORS Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.

  • Page 200: Symbologies

    REFERENCES SYMBOLOGIES Set Length Length Control allows you to select either variable length decoding or fixed length decoding for the specified symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. Set Length 1 This feature specifies one of the bar code lengths for a given symbology.

  • Page 201: Set Length 2

    SYMBOLOGIES Table 16 Length 1 Setting Examples ACTION EXAMPLES STEP Desired Setting 01 Character 07 Character 52 Character 74 Character Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT LENGTH 1 SETTING for the desired symbology Scan two characters from ‘0’ and ‘1’ ‘0’...
  • Page 202 REFERENCES Table 17 Length 2 Setting Examples ACTION EXAMPLES STEP 00 (ignore Desired Setting 07 Character 52 Character 74 Character second length) Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT LENGTH 2 SETTING Scan two characters from ‘0’ and ‘0’ ‘0’ and ‘7’ ‘5’...

  • Page 203: Appendix A. Technical Specifications

    APPENDIX A TECHNICAL SPECIFICATIONS The table below contains Physical and Performance Characteristics, User Environment and Regulatory information. Table 34 provides Standard Cable Pinouts. QD2200 TECHNICAL SPECIFICATIONS Table 18 QD2200 Technical Specifications PHYSICAL CHARACTERISTICS Color Black Height 15.6 cm (6.1”) Dimensions Length 10.7 cm (4.2”) Width 6.7 cm (2.6”) Weight (without cable)

  • Page 204: Common Reading Characteristics

    Tilt Tolerance +/- 65° Pitch Tolerance +/- 65° Skew Tolerance HORIZONTAL 56° +/- 2° Field of View PCS (Datalogic Test minimum 15% Chart) a. Based on ISO 15423 specifications COMMON READING CHARACTERISTICS Table 19 Reading Characteristics READING CHARACTERISTICS Code 39 4mils: 25 to 220mm / 0.98 to 8.66 inch Code 39 5mils: 10 to 300mm / 0.39 to 11.8 inch...

  • Page 205: Decoding Capabilities

    2 of 5; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2 of 5 (China Post Code/Chinese 2 of 5); IATA 2of5 Air cargo code; Code 11; Cod- abar;...

  • Page 206: User Indications For Qd2200

    TECHNICAL SPECIFICATIONS USER INDICATIONS FOR QD2200 Table 21 User Indications for QD2200 STATUS 3GL AND GOOD READ LED Power-up ↔ USB Enumeration Phase 250 ms ON 250 ms OFF USB Suspend Depends on Power Cable and specific configurations Idle While Reading Solid ON Decode Done Programmable Duration (300ms default)

  • Page 207: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Check system power. Ensure power sup- Nothing happens when No power to the imager ply is connected. the scan button is pulled. Interface or power cables are loose. Ensure all cable connections are secure. Imager not programmed for correct bar Ensure imager is programmed to read code type.

  • Page 208: Standard Cable Pinouts

    TECHNICAL SPECIFICATIONS STANDARD CABLE PINOUTS Figure 5 and Table 22 on page 178 provide standard pinout information for the scan- ner’s cable. Figure 5 Standard Cable Pinouts The signal descriptions in Table 21 apply to the connector on the scanner and are for reference only.

  • Page 209: Appendix B. Standard Defaults

    APPENDIX B STANDARD DEFAULTS The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming bar codes for each parameter. A column has also been provided for recording of your pre- ferred default settings for these same configurable features.
  • Page 210 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Ignore Scanner Configuration USB-OEM Interface Options Host Commands DATA FORMAT No Global Prefix Global Prefix/Suffix Global Suffix = 0x0D (CR) Global AIM ID Disable GS1-128 AIM ID Enable Label ID: Pre-loaded Sets USA Set Label ID Control Disable...
  • Page 211 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code EAN/UPC Coupon Control Enable only UPC/EAN UPC-A UPC-A Enable/Disable Enable UPC-A Check Character Transmis- Send sion Expand UPC-A to EAN-13 Don’t expand UPC-A Number System Character Transmit Transmission UPC-E UPC-E Enable/Disable Enable UPC-E Check Character Transmis- Send...
  • Page 212 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER UPC/EAN Quiet Zones Two Modules ADD-ONS Optional Add-ons Disable P2, P5, P8 Optional Add-On Timer 70 ms GS1 DATABAR™ OMNIDIRECTIONAL GS1 DataBar Omnidirectional Disable Enable/Disable GS1 DataBar Omnidirectional to Disable GS1-128 Emulation GS1 DataBar Expanded Enable/Dis- Disable able...
  • Page 213 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code 32 Enable/Disable Disable Code 32 Check Character Transmis- Don’t Send sion Code 32 Start/Stop Character Trans- Don’t Transmit mission CODE 39 CIP (French Pharmaceutical Code) Code 39 CIP Enable/Disable Disable SPECIAL CODES Code 128 Code 128 Enable/Disable Enable...
  • Page 214 Datalogic 2 of 5 Check Character Send Transmission Datalogic 2 of 5 Length Control Variable Length Datalogic 2 of 5 Set Length 1 1 = 06 (6 characters) Datalogic 2 of 5 Set Length 2 50 (50 characters) INDUSTRIAL 2 of 5...
  • Page 215 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER CODE IATA IATA Enable/Disable Disable IATA Check Character Transmission Send FOLLET 2 OF 5 Follett 2 of 5 Enable/Disable Disable CODABAR Codabar Enable/Disable Disable Codabar Check Character Calcula- Disable tion Codabar Check Character Transmis- Send sion Codabar Start/Stop Character...
  • Page 216 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code 11 Check Character Calculation Check C and K Code 11 Check Character Transmis- Send sion Code 11 Length Control Variable Code 11 Set Length 1 04 (4 characters) Code 11 Set Length 2 50 (50 characters) CODE 93 Code 93 Enable/Disable...

  • Page 217: Default Exceptions

    STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER BC412 Check Character Calculation Calculate BC412 Length Control Variable BC412 Set Length 1 01 (one character) BC412 Set Length 2 50 (50 characters) DEFAULT EXCEPTIONS Table 24 - Default Exceptions by Interface Type PARAMETER DEFAULT EXCEPTION Interfaces: USB-OEM...

  • Page 218: Appendix C. Sample Barcodes

    APPENDIX C SAMPLE BARCODES The sample bar codes in this appendix are typical representations for their symbology types. SAMPLE BARCODES 1D Barcodes UPC-A EAN-13 Code 39 Code 128 QUICKSCAN™ I QD2200...
  • Page 219 SAMPLE BARCODES Interleaved 2 of 5 12345678901231 Code 32 Codabar Code 93 Code 11 PRODUCT REFERENCE GUIDE...

  • Page 220: Gs1 Databar™ (Rss)

    SAMPLE BARCODES GS1 Databar™ (RSS) GS1 DataBar™ variants must be enabled to read the barcodes below (see " DataBar™ Omnidirectional" on page 82 GS1 DataBar™ Expanded 1234890hjio9900mnb GS1 DataBar™ Limited 08672345650916 GS1 Databar™ (-14) GS1 DataBar™ Omnidirectional Truncated 55432198673467 QUICKSCAN™ I QD2200...

  • Page 221: Appendix Dkeypad

    APPENDIX D KEYPAD Use the bar codes in this appendix to enter numbers as you would select digits/charac- ters from a keypad. PRODUCT REFERENCE GUIDE...
  • Page 222 KEYPAD QUICKSCAN™ I QD2200...

  • Page 223: Appendix E. Scancode Tables

    APPENDIX E SCANCODE TABLES CONTROL CHARACTER EMULATION Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to USB Keyboard platforms. Control Character 00 : Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.
  • Page 224 SCANCODE TABLES QUICKSCAN™ I QD2200...

  • Page 225: Interface Type Pc At Ps/2, Usb-Keyboard Or Usb-Keyboard For Apple

    INTERFACE TYPE PC AT PS/2, USB-KEYBOARD OR USB-KEYBOARD FOR APPLE (CONTINUED) PRODUCT REFERENCE GUIDE...
  • Page 226 SCANCODE TABLES QUICKSCAN™ I QD2200...

  • Page 227: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode

    INTERFACE TYPE PC AT PS/2 ALT MODE OR USB-KEYBOARD ALT MODE (CONTINUED) PRODUCT REFERENCE GUIDE...

  • Page 228: Digital Interface

    SCANCODE TABLES QUICKSCAN™ I QD2200...

  • Page 229: Ibm31Xx 102-Key

    IBM31XX 102-KEY PRODUCT REFERENCE GUIDE...
  • Page 230 SCANCODE TABLES QUICKSCAN™ I QD2200...
  • Page 231 IBM XT PRODUCT REFERENCE GUIDE...
  • Page 232 SCANCODE TABLES QUICKSCAN™ I QD2200...
  • Page 233 MICROSOFT WINDOWS CODEPAGE 1252 MICROSOFT WINDOWS CODEPAGE 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the leg- acy components of Microsoft Windows in English and some other Western languages. PRODUCT REFERENCE GUIDE...
  • Page 234 APPENDIX F ASCII CHART ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < > QUICKSCAN™ I QD2200...
