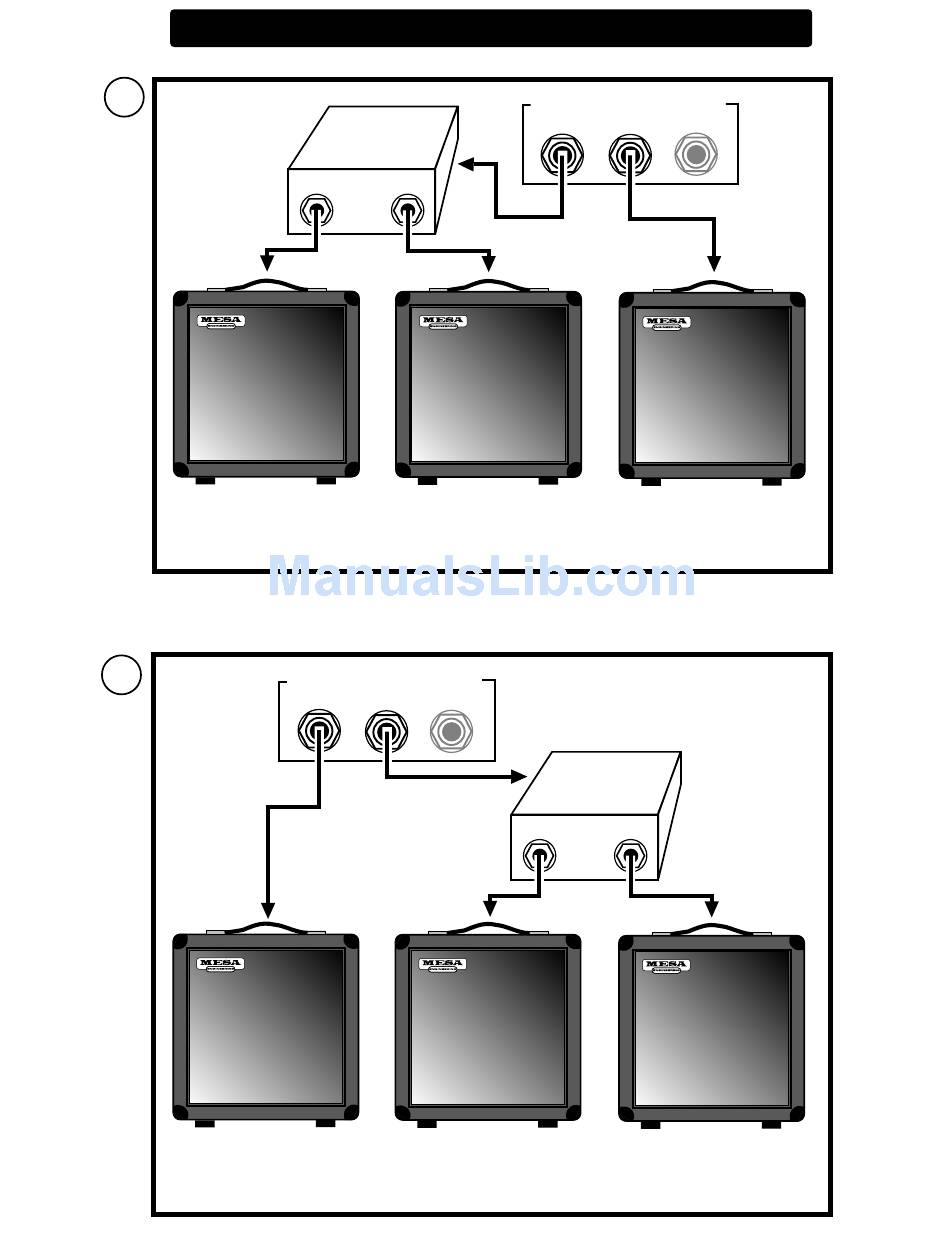

WIRING SCHEMES...Amplifier to Speaker Cabinets
13
Partial back view of amplifier
16 Ohm
4 OHM
4 OHM
8 OHM
SERIES BOX
8 Ohm
8 Ohm
8 Ohm Cabinet
8 Ohm Cabinet
16 Ohm Cabinet
SAFE MISMATCH
14
Partial back view of amplifier
8 OHM
4 OHM
4 OHM
8 Ohm
PARALLEL BOX
16 Ohm
16 Ohm
16 Ohm Cabinet
16 Ohm Cabinet
16 Ohm Cabinet
SAFE MISMATCH
PAGE 39
