SAFETY FIRST
Instructions contained in warnings within this manual marked
with a symbol concern critical points which must be taken into
consideration to prevent possible serious bodily injury, and for
this reason you are requested to read all such instructions care-
fully and follow them without fail.
WARNINGS IN THE MANUAL
WARNING
This mark indicates instructions, which must be followed in order
to prevent accidents, which could lead to serious bodily injury
or death.
IMPORTANT
This mark indicates instructions, which must be followed, or it
leads to mechanical failure, breakdown, or damage.
NOTE
This mark indicates hints or directions useful in the use of the
product.
This pole-mounted powered pruner (hereafter called pruner) is designed especially for tree service
by a trained operator. For safe operation, you must read and understand this owner's manual com-
pletely before operating the pruner.
Note: Illustrations and specifications in this manual may vary according to requirements of individual
countries and are subject to change without notice by the manufacturer.

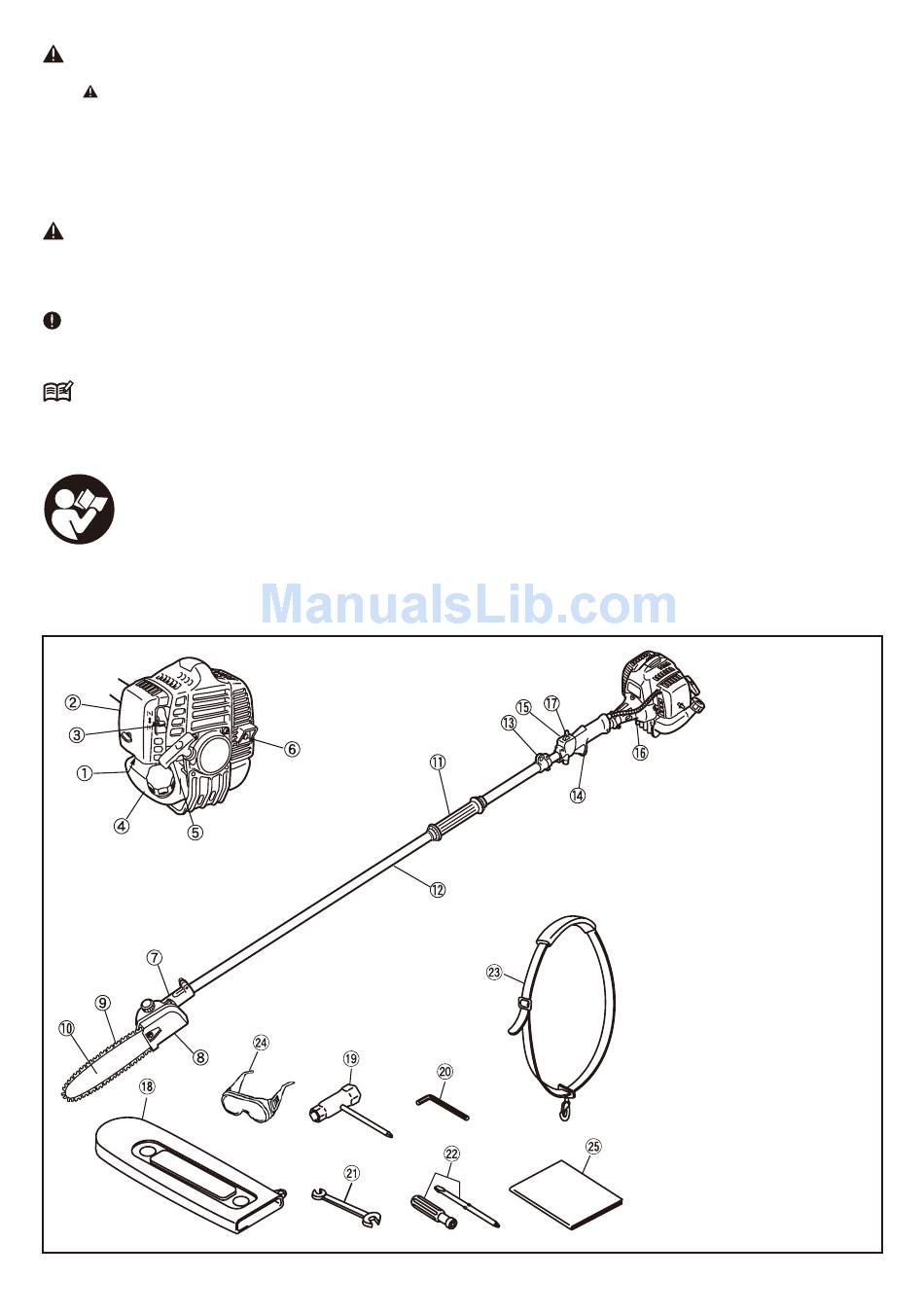

1. Parts location

GB-2
Contents
1. Parts location ...................................................2
2. Specifications ...................................................3
3. Warning labels on the machine .......................3
4. Symbols on the machine ..................................3
5. For safe operation ............................................4
6. Set up ...............................................................7
7. Fuel and chain oil .............................................9
8. Operation .......................................................10
9. Maintenance ..................................................13
10. Storage ...........................................................16
11. Disposal .........................................................16
12. Troubleshooting guide ...................................16
1. Primer
2. Air cleaner cover
3. Choke lever
4. Fuel tank
5. Starter knob
6. Spark arrester
7. Transmission
8. Chain cover
9. Saw chain
10. Guide bar
11. Grip
12. Shaft tube
13. Suspension point
14. Throttle trigger
15. Stop switch
16. Throttle cable
17. Throttle set button
18. Guide bar cover
19. Hexagon socket (S16/
S19) with torx driver
20. Wrench
21. Spanner
22. Screw driver
23. Harness
24. Goggles
25. Owners' manual
